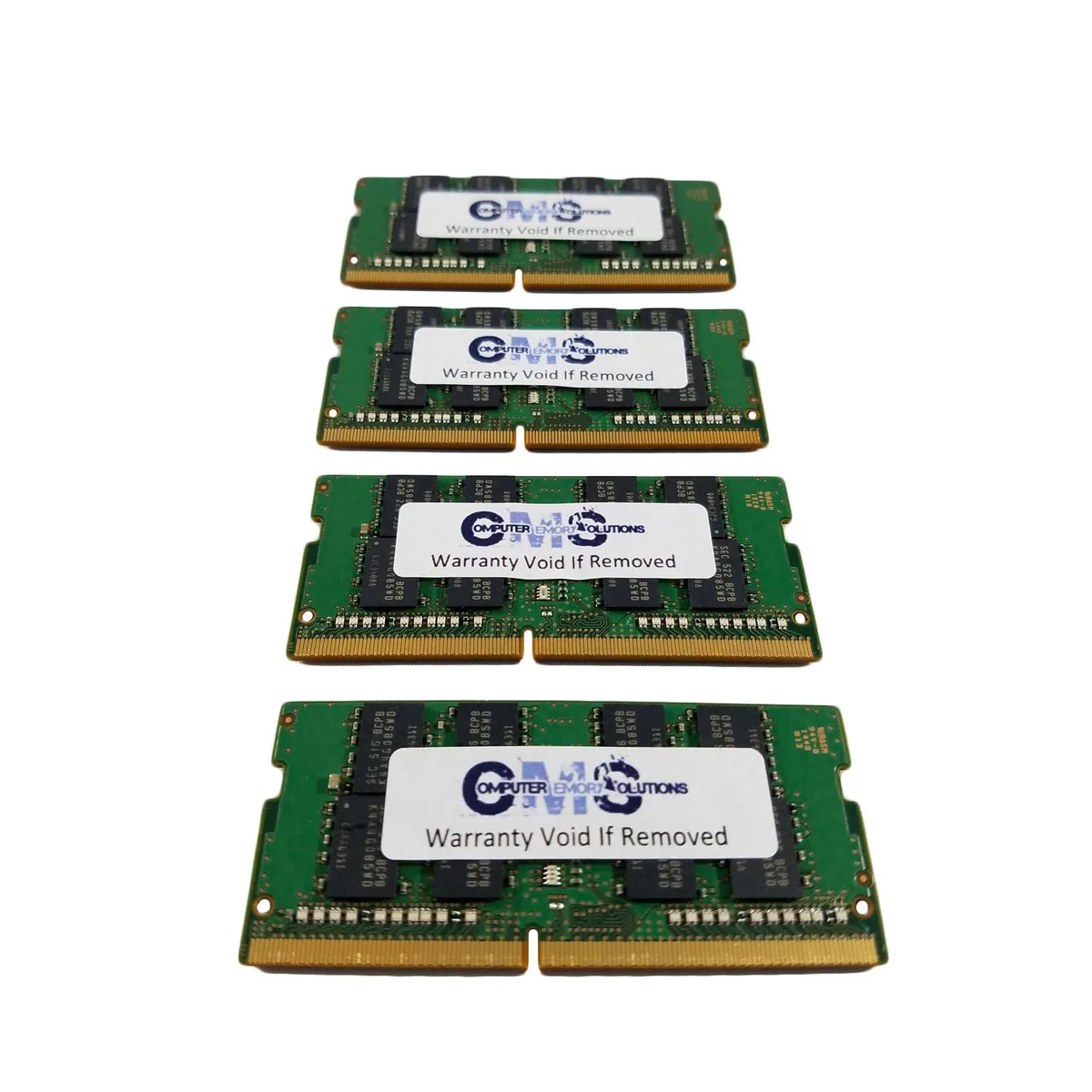

Four green circuit boards with black memory chips, no heat spreaders

Computer Memory Solutions

Computer Memory Solutions 64GB (4x16GB) DDR4 2400 CL17 SODIMM QNAP TVS-473/673

SKU CH-KHZY-7Z03F

Four 16 GB DDR4 2400 CL17 SODIMM modules for QNAP TVS-473 and TVS-673 NAS servers

  • Capacity64GB (4 x 16GB)
  • Type260-Pin DDR4 SO-DIMM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.2V
  • 64 GB total capacity from four 16 GB modules
  • DDR4 2400 MHz speed rated at PC4 19200
  • CL17 latency with 17-17-17 timing for responsive operation
  • 2 V low voltage reduces power draw and heat
  • Validated for QNAP TVS-473 and TVS-673 series NAS servers

64GB DDR4 kit for QNAP TVS-473 and TVS-673

This 64GB kit contains four 16GB DDR4 2400 SO-DIMM modules built for QNAP TVS-473 and TVS-673 series NAS units. It targets owners who need the maximum supported memory for virtualization, heavy multitasking or large file caches. The kit is not for users whose NAS has fewer than four slots or who require ECC error correction.

Tool-free slot access, match modules for stability

The SO-DIMM slots on these NAS models are user-accessible and require no tools beyond a screwdriver for the chassis cover. Insert each 260-pin stick until the side clips click. The most common issue is mixing this non-ECC CL17 kit with existing modules of different speed or latency; the system will then run all memory at the slowest installed timing.

Verify four empty slots

Confirm your TVS-473 or TVS-673 unit has four SO-DIMM sockets and that no modules are already populated, because this kit fills every slot. The NAS must run a 64-bit operating system to address the full 64GB capacity. Check the current firmware version against QNAP's memory compatibility list for the specific sub-model you own.

Βασικά χαρακτηριστικά

  • 64 GB total capacity from four 16 GB modules
  • DDR4 2400 MHz speed rated at PC4 19200
  • CL17 latency with 17-17-17 timing for responsive operation
  • 2 V low voltage reduces power draw and heat
  • Validated for QNAP TVS-473 and TVS-673 series NAS servers

Προδιαγραφές

BrandComputer Memory Solutions
ModelCM2048642400SO
Capacity64GB (4 x 16GB)
Type260-Pin DDR4 SO-DIMM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.2V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemQNAP NAS Servers TVS-473e, TVS-473-16G; TVS-473-64G; TVS-473-8G, TVS-673-xxx; TVS-673e-xxx, TVS-673/e
Package Content4 Memory RAM Sticks

Ερωτήσεις για αυτό το προϊόν

How can I confirm the 64GB kit is running at 2400 MHz with CL17 timings after installing it in my QNAP TVS-473e?

Enter the NAS web interface, open the hardware information or system health section, and verify the memory shows 64 GB total, DDR4 2400 speed, and 17-17-17 latency values.

The box lists four 16 GB sticks; do I need any extra brackets, screws or tools to fit them into the TVS-673 SODIMM slots?

No extra hardware is required; the kit contains four 260-pin DDR4 SO-DIMM modules that slot directly into the four memory sockets of the compatible QNAP models.

My TVS-473-8G has two empty slots — should I buy the 64 GB kit or add two 16 GB sticks to the existing pair?

The 64 GB kit provides four matched 16 GB modules (CM2048642400SO) tested together at 2400 MHz CL17, ensuring all four sockets run at the same speed without down-clocking.
