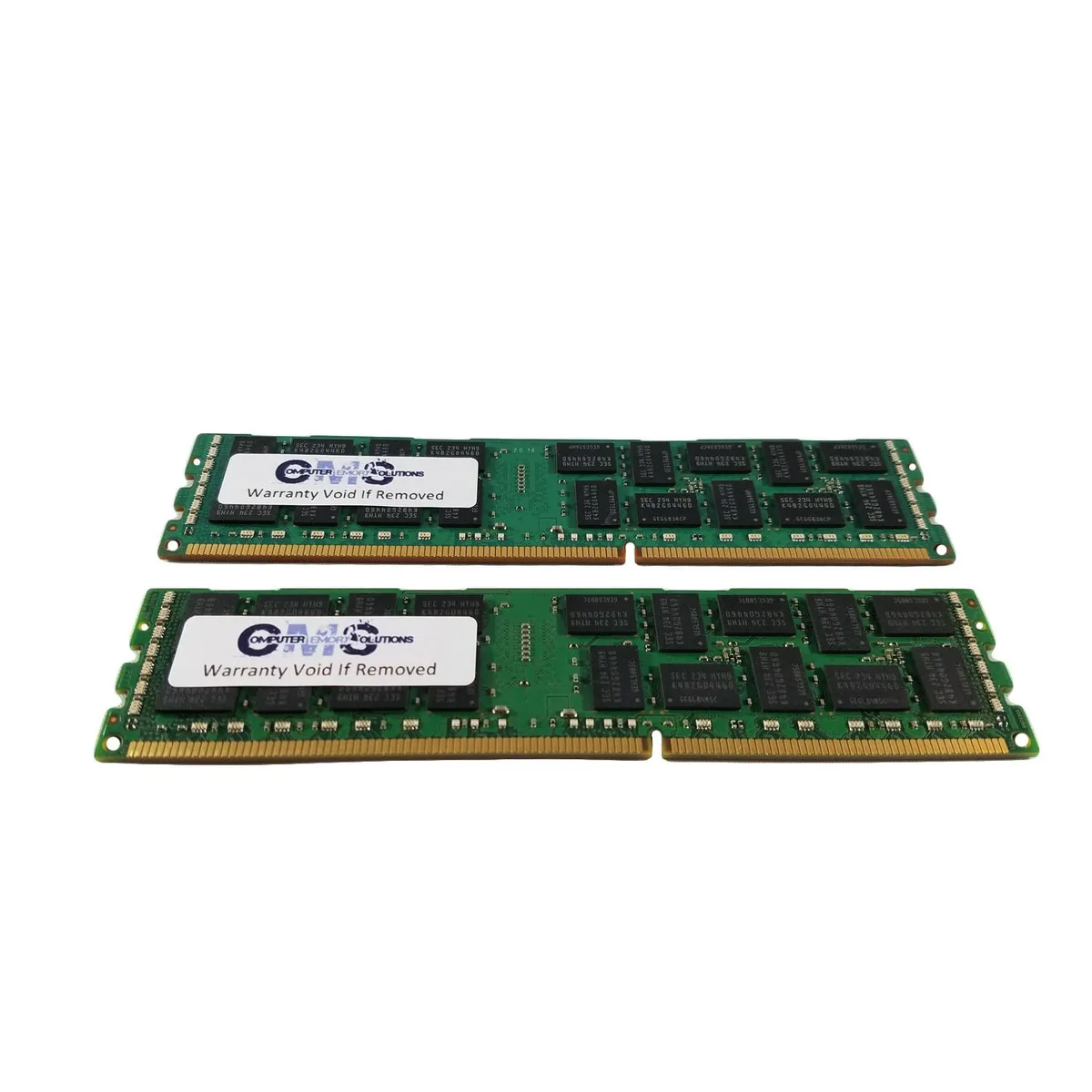

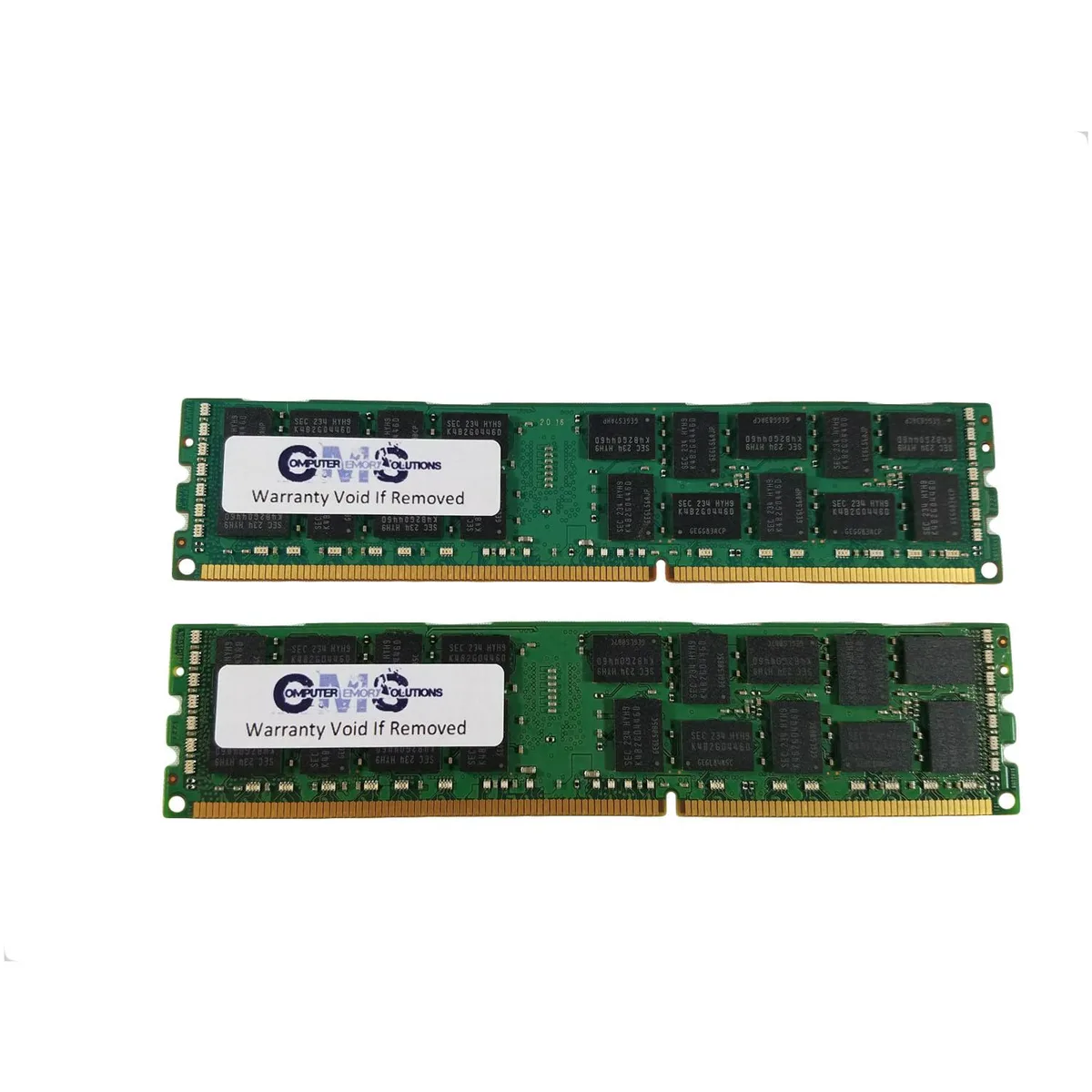

Two green DDR3L 240-pin DIMMs with black chips, no heat spreader

Computer Memory Solutions

Computer Memory Solutions CM20487212800ECCR2R4L 32GB (2x16GB) DDR3L 1600 ECC Registered memory upgrade

SKU CH-N7X3-NW3R1

32GB kit of two 16GB DDR3L 1600 ECC registered DIMMs validated for Asus Z8Na-D6 and Z8Na-D6C server boards

  • Capacity32GB (2 x 16GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3L 1600 (PC3L 12800)
  • CAS LatencyCL11
  • Timing11-11-11
  • Voltage1.35V
  • 32 GB dual-channel capacity with two 16 GB modules
  • Low-voltage DDR3L operation at 1.35 V reduces power draw
  • ECC registered design protects data integrity in server workloads
  • CL11 11-11-11 timing at 1600 MHz delivers responsive throughput
  • Validated for ASUS Z8Na-D6 and Z8Na-D6C server boards

Server-specific ECC Registered kit

This 32 GB kit consists of two 16 GB DDR3L 1600 modules built for the Asus Z8Na-D6 and Z8Na-D6C server boards. Registered ECC operation provides the error correction and signal buffering required by multi-socket Xeon 5500 series platforms. The low 1.35 V voltage reduces power draw compared with standard DDR3.

Capacity ceiling and speed limits

The board accepts up to 96 GB with Registered DIMMs across six total sockets, but memory speed drops as sockets fill. One DIMM per channel runs at 1333 MHz with Xeon X5550 or higher; two per channel forces 800 MHz. Quad-rank modules cannot reach 1333 MHz on this platform, and the system will not accept more than two such DIMMs per channel.

Registered build and slot implications

Modules use a 240-pin Registered 2Rx4 layout without heat spreaders, fitting the server’s standard DIMM slots. Mixing Registered and Unbuffered ECC is not supported, so all populated sockets must use the same type. The kit is validated only for the named Asus Z8 boards; other systems, including desktop platforms, are not compatible.

Βασικά χαρακτηριστικά

  • 32 GB dual-channel capacity with two 16 GB modules
  • Low-voltage DDR3L operation at 1.35 V reduces power draw
  • ECC registered design protects data integrity in server workloads
  • CL11 11-11-11 timing at 1600 MHz delivers responsive throughput
  • Validated for ASUS Z8Na-D6 and Z8Na-D6C server boards

Προδιαγραφές

BrandComputer Memory Solutions
ModelCM20487212800ECCR2R4L
Capacity32GB (2 x 16GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3L 1600 (PC3L 12800)
CAS LatencyCL11
Timing11-11-11
Voltage1.35V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemAsus Z8 Server Board Z8Na-D6, Z8Na-D6C
Package Content2 Memory RAM Sticks

Ερωτήσεις για αυτό το προϊόν

Will this 2Rx4 registered kit run with the existing 1333 MHz Xeon 5500 series CPUs in my Z8Na-D6?

Yes, the DDR3L 1600 modules automatically clock down to 1333 MHz with Xeon X5550 or higher, 1066 MHz with Xeon E5520 or higher, and 800 MHz with Xeon E5506 or lower.

How can I verify the 32 GB kit is running at the correct speed and ECC mode after installation?

Enter the BIOS on the Z8Na-D6 and confirm the memory reports 1600 MT/s (or the down-clocked speed for your CPU), CL11 11-11-11 timings, 1.35 V, and ECC Registered status.

Does the package contain only the two 16 GB DIMMs or are any brackets or cables included?

The box contains only the two 240-pin DDR3L ECC Registered DIMMs; no heat spreaders, brackets or cables are supplied.
