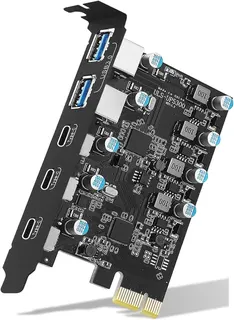

Green PCB expansion card with three USB-C and two USB-A ports on a metal bracket

ESTONE

ESTONE PCIE22A3C 5-Port PCIe USB 3.0 Card (3× Type C, 2× Type A)

SKU CH-RCM6-EGSRJ

Adds three USB-C and two USB-A ports at 5 Gbps through a single PCIe slot

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add five USB 3.0 ports — three Type-C and two Type-A — via a single PCIe slot

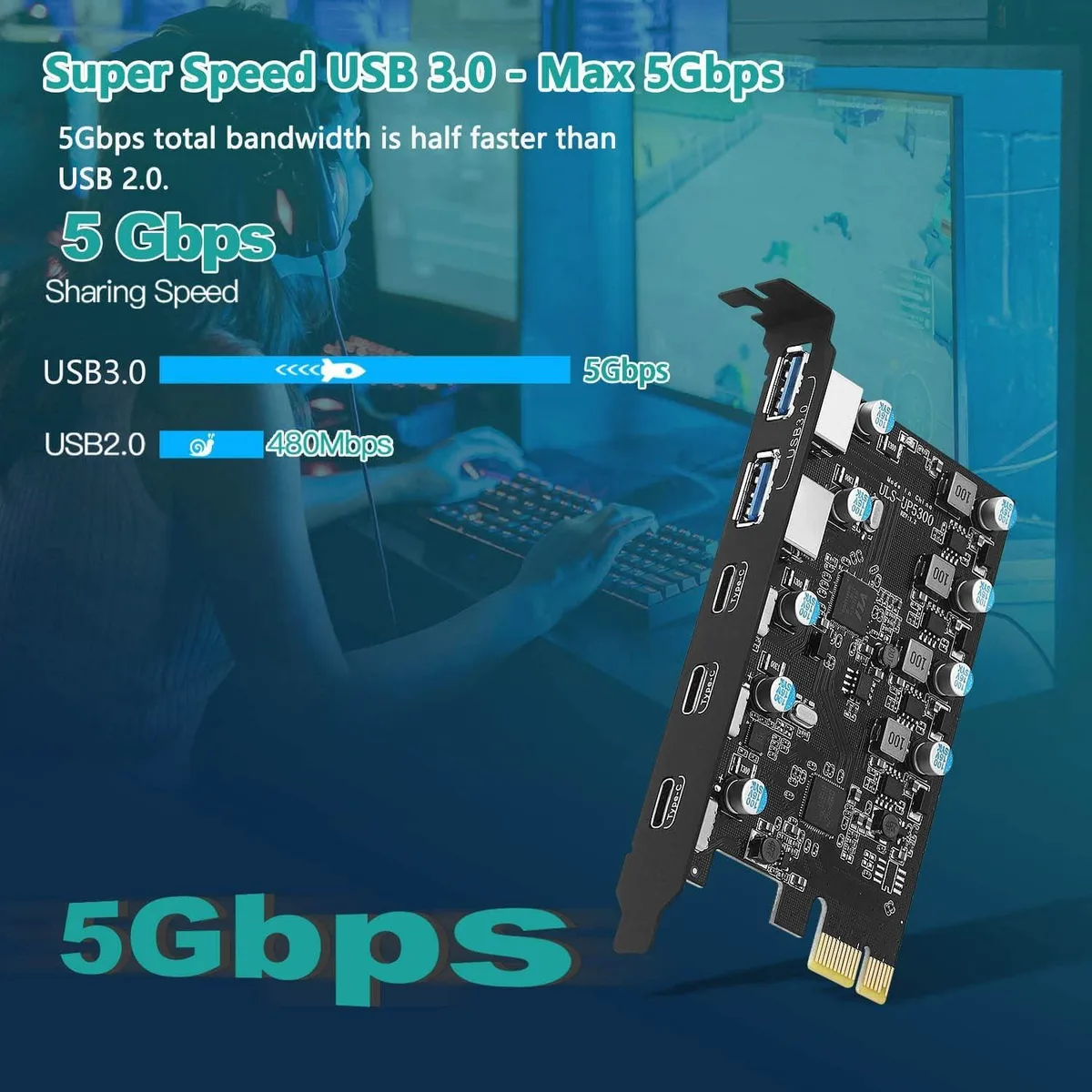

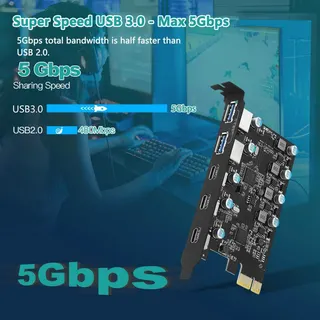

  • Reach 5.0 Gbps theoretical bandwidth for fast file transfers with compatible drives

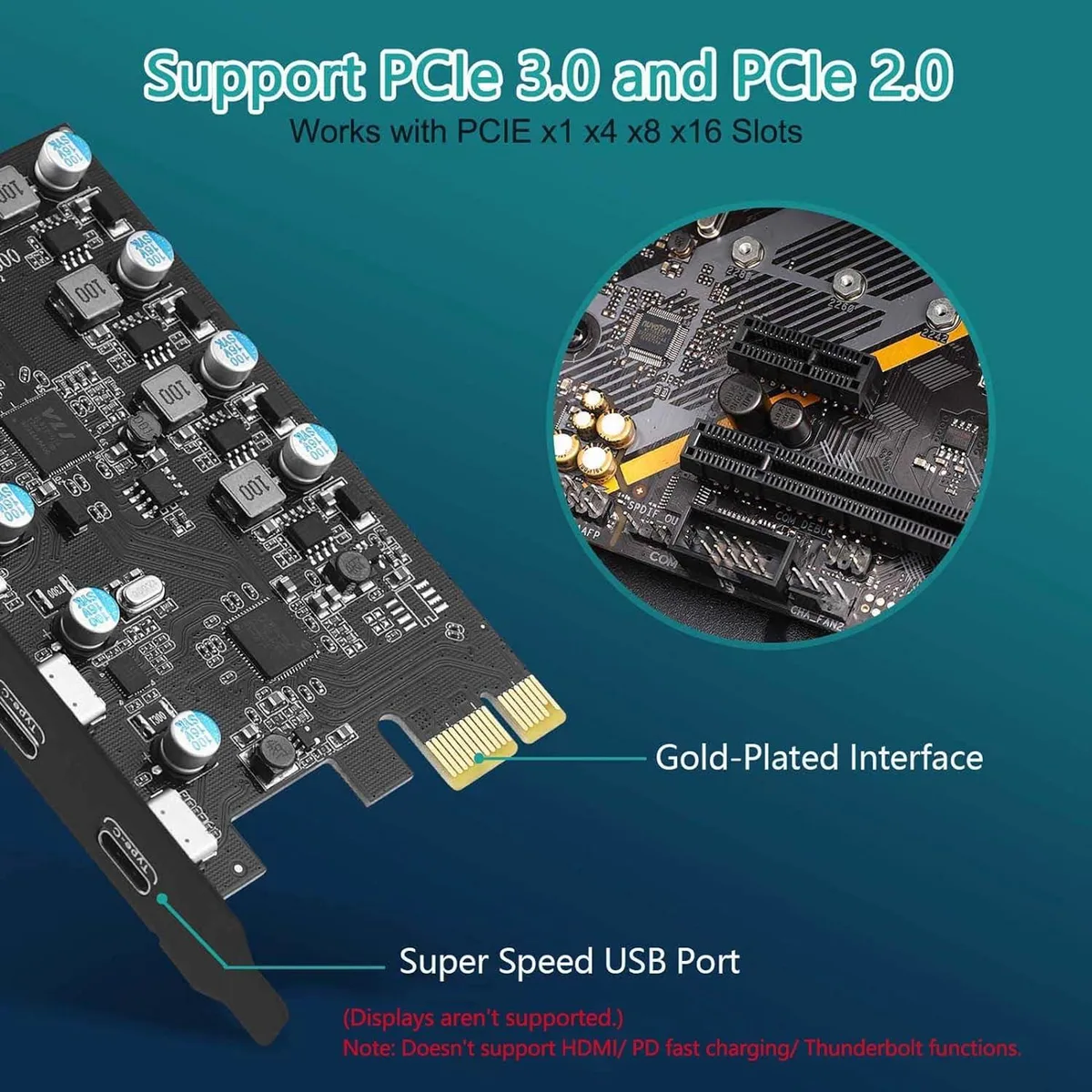

  • Works in x1, x4, x8 or x16 PCIe 2.0 and 3.0 slots without extra power
  • Supports Windows 7, 8, 10, 11 and Mac OS 10.8.2 or newer
  • Backward compatible with USB 2.0 and 1.1 peripherals for legacy device support

Five-Port USB 3.0 Expansion Card

The ESTONE PCIE22A3C adds three USB-C and two USB-A ports through a single PCI Express x1 slot. It suits desktop owners who need more SuperSpeed connections for peripherals such as external drives, VR headsets or cameras without replacing the motherboard.

Driver Installation and OS Support

Windows 10 and Mac OS 10.8.2 or later work without extra drivers; Windows 7, XP and Vista require the supplied RENESAS/VLI driver from the included CD. The card draws all power from the PCIe slot, so no auxiliary power connector is needed.

Bundled Disc, Screws and Manual

A driver CD, mounting screws and a user manual are provided in the box. The disc contains the legacy driver required for older Windows versions, while the screws secure the bracket to the chassis and the manual illustrates the slot insertion steps.

Βασικά χαρακτηριστικά

  • Add five USB 3.0 ports — three Type-C and two Type-A — via a single PCIe slot
  • Reach 5.0 Gbps theoretical bandwidth for fast file transfers with compatible drives
  • Works in x1, x4, x8 or x16 PCIe 2.0 and 3.0 slots without extra power
  • Supports Windows 7, 8, 10, 11 and Mac OS 10.8.2 or newer
  • Backward compatible with USB 2.0 and 1.1 peripherals for legacy device support

Προδιαγραφές

BrandESTONE
SeriesPCIE22A3C
ModelPCIE22A3C
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.0 HUB PCI Express Expansion Card Adapter 5Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 3.0 2.0 X1 lane, can transferring up to 5Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (3X USB-C - 2X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.0
Operating Systems: Windows7/8/10(32/64bit)
?
Weight3.0 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Ερωτήσεις για αυτό το προϊόν

How do I install the ESTONE PCIE22A3C in a PCI Express x1 slot and which step is commonly missed?

Insert the card into any PCI Express x1, x4, x8 or x16 slot, secure it with the supplied screw, then install the RENESAS/VLI USB 3.0 driver from the included CD before connecting devices; the driver step is the one most often overlooked.

What maintenance or replacement will the ESTONE PCIE22A3C need over time?

No scheduled maintenance is required; if a port becomes loose or the controller fails, the entire add-in card is replaced as a single unit.

What limit appears first when all five ports on the ESTONE PCIE22A3C run at full speed simultaneously?

The shared PCI Express x1 lane caps total bandwidth at 5.0 Gbps, so sustained transfers across multiple ports will hit that ceiling before individual device limits.
