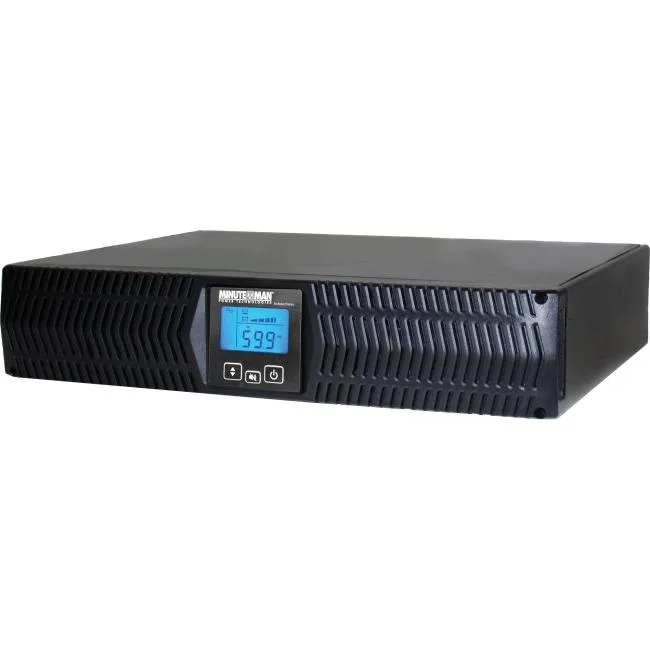

Rectangular black metal 2U rackmount UPS with LCD screen and eight outlets

MINUTEMAN

MINUTEMAN ED3000RTXL2UNC 3000VA 2700W 2U UPS

SKU CH-KZET-2GJHH MPN ED3000RTXL2UNC

Double-conversion UPS delivers 3000VA and 2700W from a 2U rack or tower chassis with eight outlets including NEMA L5-30R

International Version120V
Input Voltage Range0-160VAC
Input Frequency50/60Hz +/- 6Hz Auto-sensing
Input ConnectionNEMA L5-30P
VA Rating3000VA
Watts2700W

Model ED3000RTXL2UNC

Προβολή 16 ακόμη διαμορφώσεων

Οι διαγραμμένες εκδόσεις υπάρχουν, αλλά δεν είναι διαθέσιμες εδώ.

True on-line double-conversion topology delivers clean 120 V output
9 power factor provides 2700 W real power from 3000 VA rating
2U rackmount design fits high-density cabinets with included ears
Eight outlets include seven 5-15/20R and one L5-30R receptacle
Economy mode option reduces energy use during normal operation

2.333,99 $

0.02952362 BTC με τη σημερινή ισοτιμία

Διαθέσιμο · αποστολή σήμερα

Το ταμείο κλειδώνει την ισοτιμία σας για 30 λεπτά.

Παράδοση προς Ηνωμένες Πολιτείες εκτίμηση

UPS Worldwide Expedited 3–6 εργάσιμες ημέρες Δωρεάν
DHL Express Worldwide 2–3 εργάσιμες ημέρες 74,90 $

Οι εισαγωγικοί δασμοί επιβάλλονται κατά την άφιξη από τη χώρα σας.

Αποστολή αλλού

Double-Conversion 3000VA UPS

The Minuteman Endeavor ED3000RTXL2UNC is a true on-line, double-conversion UPS rated at 3000VA and 2700W. It delivers continuous 120VAC output with a user-selectable 110VAC option. The 2U rackmount chassis includes attached ears and supports tower, rack, or optional wall installation for high-density environments.

NEMA L5-30P Input and 0.9 Power Factor

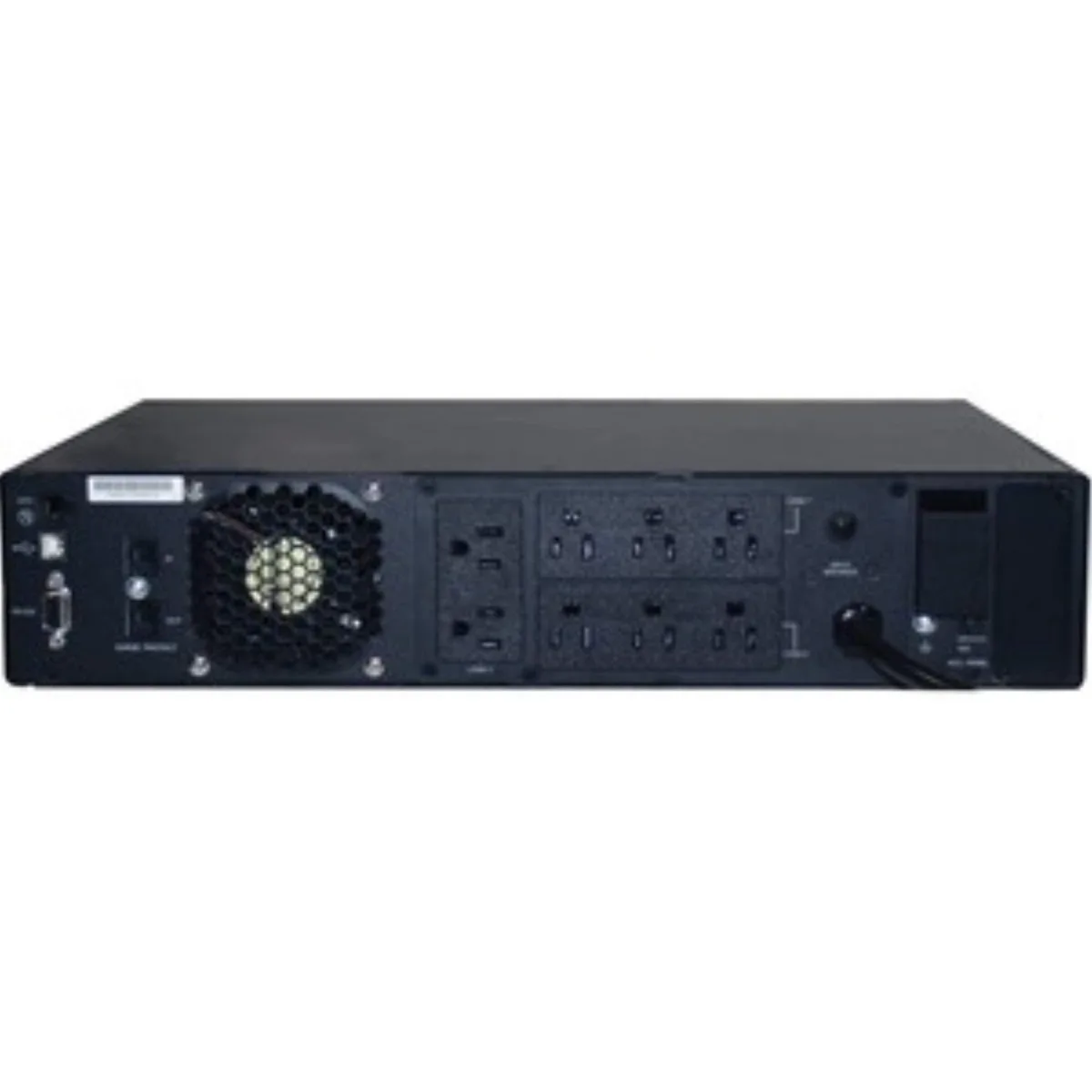

The unit requires a NEMA L5-30P input connection and supplies eight outlets: seven NEMA 5-15/20R and one NEMA L5-30R. Its 0.9 output power factor allows higher real-watt loading than many comparable units. This specific inlet and receptacle combination dictates compatibility with your facility power and connected equipment.

3.5-Minute Runtime at Full Load

At full 2700W load the internal sealed lead-acid batteries provide 3.5 minutes of runtime, extending to 12 minutes at half load. Recharge to 90 percent takes eight hours from total discharge. The replaceable BM0032 battery module supports long-term service, but the short full-load window suits orderly shutdown rather than extended operation.

Βασικά χαρακτηριστικά

True on-line double-conversion topology delivers clean 120 V output
9 power factor provides 2700 W real power from 3000 VA rating
2U rackmount design fits high-density cabinets with included ears
Eight outlets include seven 5-15/20R and one L5-30R receptacle
Economy mode option reduces energy use during normal operation

Προδιαγραφές

Brand	MINUTEMAN
Series	ENDEAVOR
Model	ED3000RTXL2UNC
International Version	120V
Input Voltage Range	0-160VAC
Input Frequency	50/60Hz +/- 6Hz Auto-sensing
Input Connection	NEMA L5-30P
VA Rating	3000VA
Watts	2700W
Output Voltage	120VAC, User selectable: 110VAC
Output Frequency	50/60Hz +/- 0.5Hz unless synchronized to line
Outlets	8
Outlet Type	[7] 5-15/20R & [1] L5-30R
Battery Type	Sealed Lead Acid
Battery Run Time	Half Load: 12 min Full Load: 3.5 min
Battery Recharge Time	8 hours to 90% from total discharge
Battery Replaceable	BM0032
Approvals	cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class B (1K & 1.5K), FCC Class A (2K & 3K), CE certified, Energy Star certified, RoHS2 (EU Directive 2011/65/EU)
Surge Energy Rating	1000 Joules
Temperature	Operating Temperature: +32 to +104°F (0 to 40°C) Storage Temperature: +5 to +113°F (-15 to +45°C)
Humidity	95% non-condensing
Dimensions	3.5" x 19" x 24.5"
Weight	70.5 lbs.
Βάρος αποστολής	41.73 kg
Διαστάσεις συσκευασίας	998 × 599 × 216 mm
