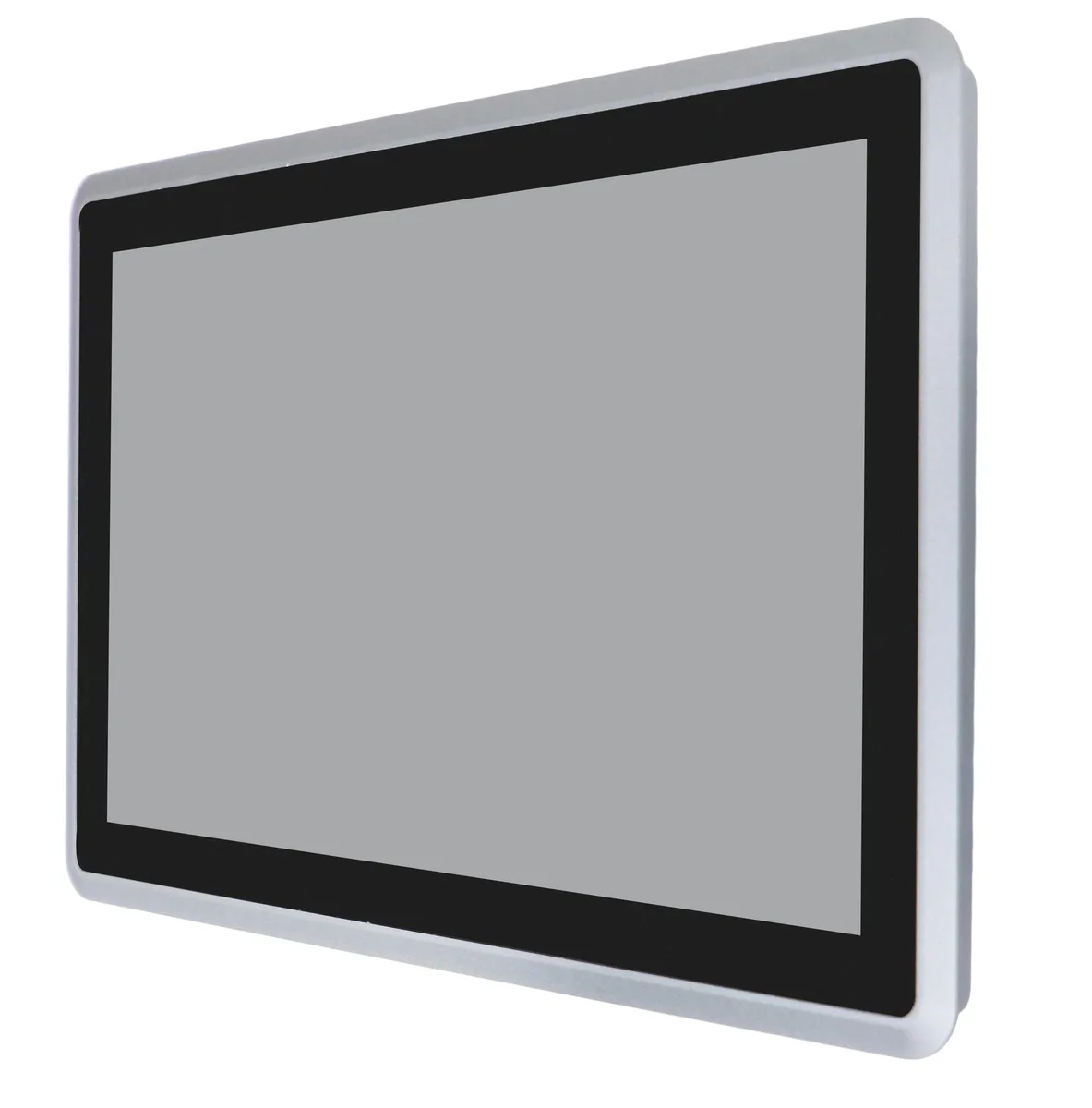

Gray 12.1 inch fanless all-in-one panel PC with capacitive touch screen and aluminum alloy chassis

partaker

partaker A26 12.1" AI edge system i5-6200U 16GB 512GB

SKU CH-R97H-XGFBW

A 12.1-inch fanless industrial panel PC with IP65 front protection, capacitive multi-touch screen, Intel Core i5-6200U processor, 16GB DDR4 memory, 512GB storage, dual Gigabit LAN, HDMI.

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

A26 12.1" Capacitive I5 6200U 16GB RAM / 512GB SSD

  • Fanless aluminum chassis enables silent, maintenance-free operation in harsh industrial settings
  • IP65-rated front panel provides dust and water resistance for reliable deployment in wet or dirty environments
  • 1-inch capacitive multi-touch display with 1024x768 resolution delivers clear visuals and responsive control for industrial interfaces
  • Dual Gigabit Ethernet plus two configurable COM ports and four USB ports ensure seamless integration with factory equipment and networks
  • 16 GB DDR4 memory and 512 GB storage support demanding multitasking and data processing in edge AI applications

Industrial Panel PC

The Partaker A26 is a 12.1-inch fanless industrial panel PC built around an Intel Core i5-6200U processor, 16 GB of DDR4 memory and a 512 GB mSATA drive. It ships with Windows 10 Pro and a capacitive multi-touch XGA display rated at 450 cd/m². The aluminium alloy chassis carries an IP65-rated front panel and operates silently from -20 °C to +60 °C, making it suited for harsh factory floors and outdoor kiosks.

Build Integration

The unit mounts through a 298.5 mm by 237 mm panel cutout or via standard VESA brackets, freeing cabinet space by eliminating a separate monitor and box PC. Dual Gigabit Ethernet ports, two configurable RS232/485 COM ports, four USB ports, HDMI output and audio connect directly to PLCs, cameras and HMI networks. A 12 V DC input is standard, with an optional 9–36 V wide-range option for unstable plant power. Two mini-PCIe slots accept Wi-Fi, 4G or additional I/O cards.

Upgrade Path

The A26 replaces older fan-cooled panel PCs that accumulate dust and require filter changes, and it supersedes lower-resolution resistive-touch units that lack multi-touch gestures. The i5-6200U dual-core processor and 16 GB DDR4 deliver enough headroom for modern SCADA clients and edge AI inference that legacy Atom- or Celeron-based panels cannot sustain. The jump is worth it when silence, IP65 sealing and XGA multi-touch are required together.

Βασικά χαρακτηριστικά

  • Fanless aluminum chassis enables silent, maintenance-free operation in harsh industrial settings
  • IP65-rated front panel provides dust and water resistance for reliable deployment in wet or dirty environments
  • 1-inch capacitive multi-touch display with 1024x768 resolution delivers clear visuals and responsive control for industrial interfaces
  • Dual Gigabit Ethernet plus two configurable COM ports and four USB ports ensure seamless integration with factory equipment and networks
  • 16 GB DDR4 memory and 512 GB storage support demanding multitasking and data processing in edge AI applications

Προδιαγραφές

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Άλλες εκδόσεις αυτού του μοντέλου

5 ακόμη στην ίδια σειρά

Ίδια οικογένεια, διαφορετική μνήμη, ψύκτρα ή συχνότητα — συγκρίνετε πριν αποφασίσετε.

Ερωτήσεις για αυτό το προϊόν

What is the maximum operating temperature before the fanless chassis reaches its thermal limit?

The fanless aluminium-alloy chassis is rated for continuous operation up to 60 °C with the solid-state drive installed, so sustained loads in hotter environments will hit the thermal ceiling first.

How much acoustic noise and heat does the system produce during 24/7 operation?

With no moving fans the unit runs silently; the aluminium shell acts as a heatsink, so surface temperature rises under load but stays within the -20 to 60 °C spec.

Which power supply must I already have to run the DC 12 V input?

A standard 12 V DC source is required; an optional 9-36 V wide-range input can be specified at order time if your site uses a different rail.
