17 inch industrial all-in-one PC with IP65 front panel and resistive touchscreen

partaker

partaker A9 17" all-in-one PC i7-6500U 16GB DDR3 128GB SSD

SKU CH-C1VZ-Q6PMM

A 17-inch IP65-rated industrial all-in-one with i7-6500U, 16GB DDR3L and 128GB SSD for 24/7 operation

Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity16GB DDR3
HDDNo

IP65 front-panel protection for harsh industrial environments
Intel Core i7-6500U up to 3.10 GHz for 24/7 stable operation
Fanless aluminium-alloy cooling ensures silent performance
17-inch resistive touchscreen rated for 35 million touches
Windows 11 Pro pre-installed for immediate deployment

685,99 $

0.00881361 BTC με τη σημερινή ισοτιμία

Διαθέσιμο · αποστολή σήμερα

Το ταμείο κλειδώνει την ισοτιμία σας για 30 λεπτά.

Παράδοση προς Ηνωμένες Πολιτείες εκτίμηση

UPS Worldwide Expedited 3–6 εργάσιμες ημέρες Δωρεάν
DHL Express Worldwide 2–3 εργάσιμες ημέρες 74,90 $

Οι εισαγωγικοί δασμοί επιβάλλονται κατά την άφιξη από τη χώρα σας.

Αποστολή αλλού

Industrial 17-inch panel PC

The Partaker A9 is a 17-inch all-in-one computer with an IP65-rated front panel and a high-temperature five-wire resistive touchscreen. It targets industrial users who need a sealed, fanless unit that can run continuously in environments up to 50 °C. The Intel Core i7-6500U processor and 16 GB of DDR3L memory provide enough headroom for typical HMI, SCADA or edge-gateway workloads. It is not suited for buyers who need a larger display or a multi-touch capacitive surface.

16 GB DDR3L and 128 GB mSATA SSD

The system ships with 16 GB of DDR3L-1600 memory in two SODIMM slots, which is the maximum the platform supports. The 128 GB mSATA SSD handles the operating system and local logs, while an M.2 2280 slot and a 2.5-inch SATA bay remain open for additional storage. Heavy local databases or large media caches will exceed the factory SSD capacity. Buyers who need more RAM than 16 GB or faster NVMe-only storage should look elsewhere.

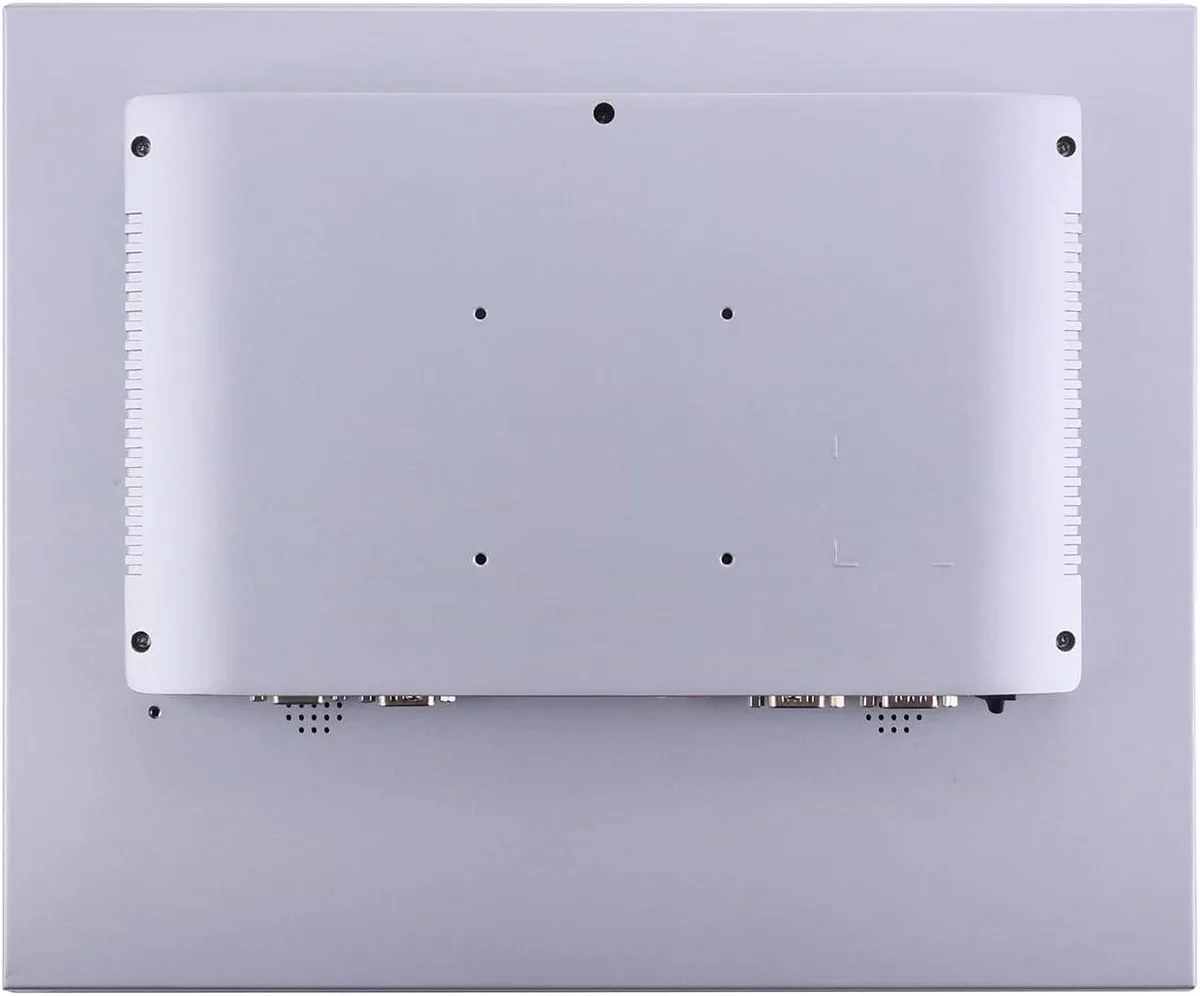

Fanless aluminium chassis with VESA mounting

A solid aluminium alloy enclosure acts as a passive heatsink, eliminating moving parts and enabling silent operation in noise-sensitive areas. The front meets IP65 against dust and water jets, while the rear offers HDMI, VGA, dual LAN, two USB 3.0, two USB 2.0, audio I/O, two COM ports and a 12 V DC input. Embedded mounting cut-outs of 380 x 315 mm simplify panel or wall installation. The unit lacks built-in wireless, so a Mini PCIe card must be added for Wi-Fi or 4G connectivity.

Βασικά χαρακτηριστικά

IP65 front-panel protection for harsh industrial environments
Intel Core i7-6500U up to 3.10 GHz for 24/7 stable operation
Fanless aluminium-alloy cooling ensures silent performance
17-inch resistive touchscreen rated for 35 million touches
Windows 11 Pro pre-installed for immediate deployment

Προδιαγραφές

Model	A9-PA-170TPC-CE5A(I76)-16G128G
Form Factor	All-in-One
Operating System	Windows 11 Pro
CPU Type	Intel Core i7 6th Gen
GPU/VGA Type	Intel HD Graphics 520
Memory Capacity	16GB DDR3
HDD	No
Screen Size	17"
Touchscreen	Yes

Ερωτήσεις για αυτό το προϊόν

Will the 1280 x 1024 VGA output drive my older 17" 4:3 monitor at native resolution?

Yes, the VGA port supports 1280 x 1024 resolution, matching the panel's native 4:3 aspect ratio for pixel-perfect output on legacy monitors.

How can I confirm the fanless aluminium chassis is dissipating heat correctly after installation?

Run a sustained CPU load; the i7-6500U should maintain up to 3.10 GHz without throttling while the exterior stays warm but safe to touch, confirming passive cooling works.

Does the box include the 12 V DC power adapter and the panel-mount buckles shown in the drawings?

The packing list provides the Partaker A9 panel PC, power supply, power cord and mounting buckle kits for embedded or wall installation.
