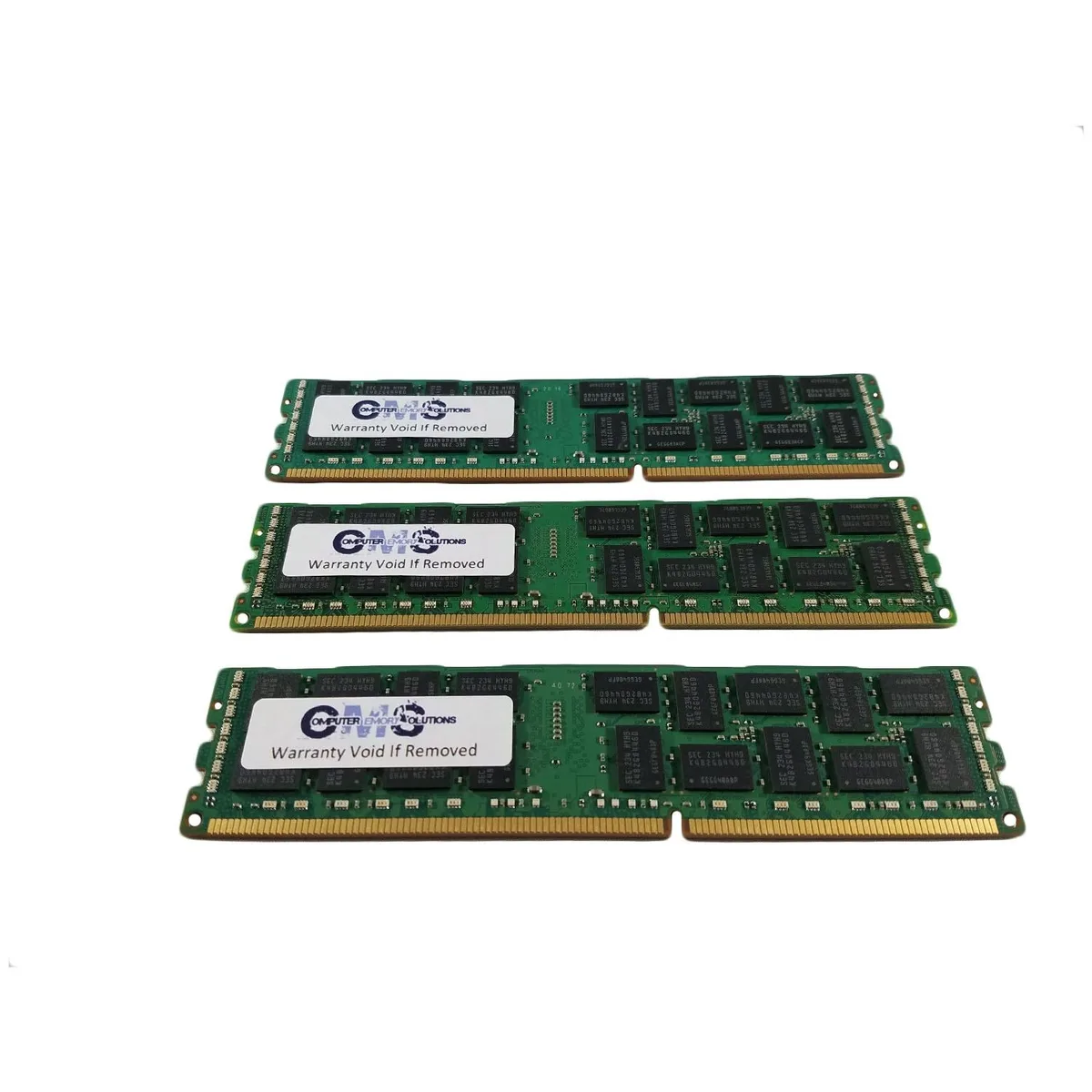

Three green DDR3 DIMMs with gold contacts and black chips

Computer Memory Solutions

Computer Memory Solutions CM10247210600ECCR2R4H 24GB (3x8GB) DDR3 1333MHz ECC Registered DIMM

SKU CH-KNPT-5HTAK

24 GB triple-channel DDR3-1333 ECC registered DIMM kit validated for HP Z600 C2 workstations

  • Capacity24GB (3 x 8GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1333 (PC3 10600)
  • CAS LatencyCL9
  • Timing9-9-9
  • Voltage1.5V
  • 24 GB capacity across three 8 GB modules for expanded system memory
  • ECC registered design detects and corrects data errors for server-grade reliability
  • DDR3 1333 MHz speed with CL9 timing delivers responsive throughput
  • Triple-channel kit optimised for HP Z600 C2 workstations
  • 5 V operation at 240-pin DDR3 standard ensures broad compatibility

Triple-channel ECC kit for Z600 C2

This 24 GB kit contains three 8 GB registered DDR3 DIMMs built for HP Z600 C2-series workstations. Each module runs at 1333 MHz with CL9 timing and 1.5 V. The memory is ECC registered and organised as 2Rx4, matching the platform’s triple-channel architecture.

Registered DIMMs enable full 24 GB capacity

Unbuffered ECC modules on this platform are limited to 4 GB per slot, so registered DIMMs are the only way to reach 24 GB with three sticks. The kit is validated for the C2 revision of the Intel 5520 chipset, identified by a 01/07/10 boot-block date.

Fills one CPU’s three sockets for 24 GB

The three modules occupy a single bank of three sockets on one processor, delivering 24 GB in triple-channel mode. A second CPU adds another bank of three sockets, raising the registered-DIMM ceiling to 48 GB. Builders needing more than 24 GB per CPU or unbuffered memory beyond 4 GB per slot must choose a different platform.

Põhijooned

  • 24 GB capacity across three 8 GB modules for expanded system memory
  • ECC registered design detects and corrects data errors for server-grade reliability
  • DDR3 1333 MHz speed with CL9 timing delivers responsive throughput
  • Triple-channel kit optimised for HP Z600 C2 workstations
  • 5 V operation at 240-pin DDR3 standard ensures broad compatibility

Tehnilised andmed

BrandComputer Memory Solutions
ModelCM10247210600ECCR2R4H
Capacity24GB (3 x 8GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3 1333 (PC3 10600)
CAS LatencyCL9
Timing9-9-9
Voltage1.5V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderBased on Current Inventory (If Required Please Contact)
Compatible SystemHp Workstation Z600 C2 Series
Package Content3 Memory RAM Sticks

Küsimused selle toote kohta

Will the 240-pin DDR3 modules need any firmware updates or reconfiguration if I add more kits later?

The kit installs as a matched triple-channel set for the Z600 C2 platform; any future expansion must follow the same 2Rx4 registered specification and populate all three channels per CPU for best performance.

What limits sustained throughput on the HP Z600 C2 workstation with this 1333 MHz registered memory?

The memory controller on the Intel 5520 chipset caps bandwidth at PC3-10600 speeds, so sustained workloads hit the DDR3-1333 ceiling before the modules themselves become the bottleneck.

How much extra heat and power do the three 1.5 V registered DIMMs add when the system runs all day?

Each 8 GB stick operates at the standard 1.5 V DDR3 voltage; registered buffering adds minimal overhead, so total power draw and thermal output remain within the workstation's original cooling design.
