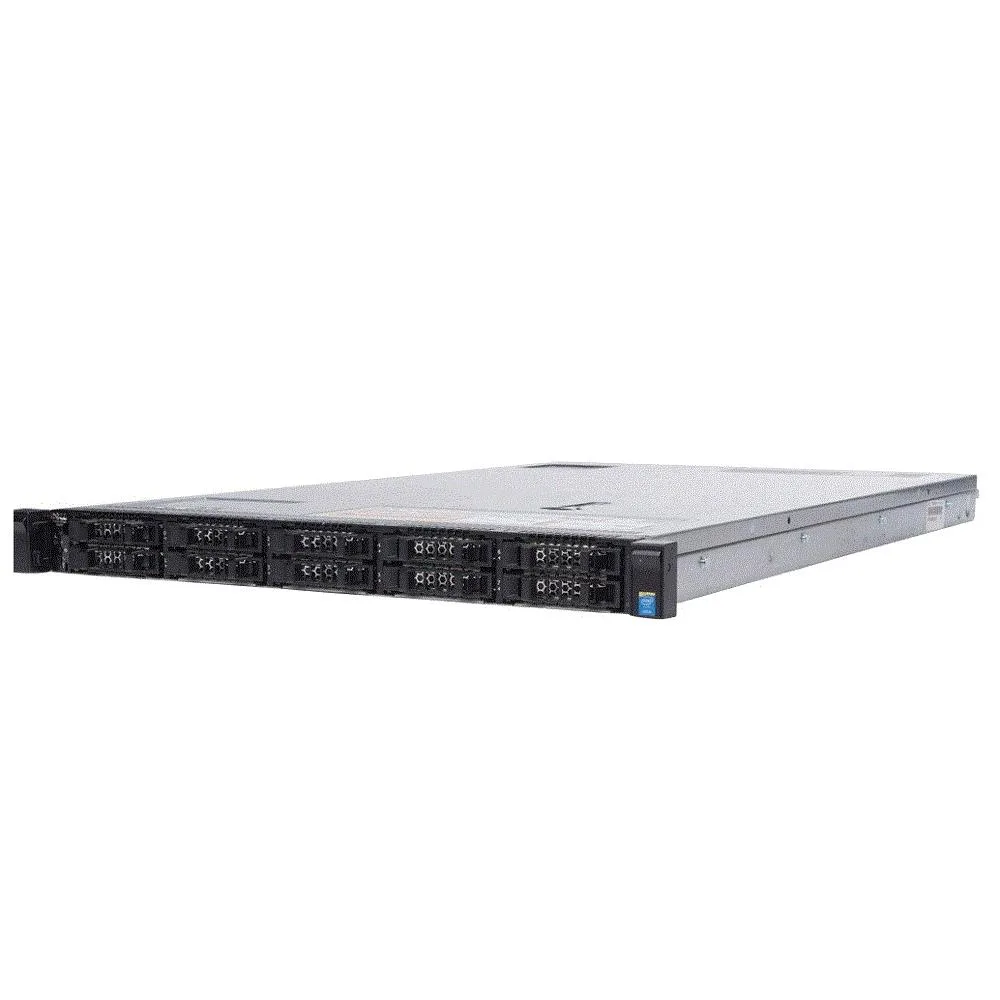

Silver 1U rack server with ten front drive bays and dual power supplies

DELL

DELL PowerEdge R630 10B E5-2609 V3 1.9GHz 48GB H330 rack server

SKU CH-K6NW-DBKVM

1U rack server with single Xeon E5-2609 V3 six-core 1.9GHz CPU, 48GB DDR4, H330 RAID controller supporting up to 10 hot-plug 2.5-inch drives.

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 48GB

HDD None

  • 1U rack form factor fits dense server deployments
  • Single Intel Xeon E5-2609 V3 six-core 1.9GHz processor installed
  • 48GB DDR4 memory across 24 DIMM slots
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant hot-swap power supplies included

Purpose-built 1U rack server

The Dell PowerEdge R630 is a 1U rack server designed for dense compute clusters and virtualisation hosts. It ships with a single Intel Xeon E5-2609 V3 six-core processor running at 1.9GHz and 48GB of DDR4 memory. The chassis supports a second processor for expanded throughput.

Installation and common pitfalls

The unit includes two hot-swap 750W redundant power supplies and rails for rack mounting. Drive trays are not supplied, so ten 2.5-inch SAS or SATA drives must be sourced separately. Memory population follows strict per-processor rules across the 24 DIMM slots; incorrect placement prevents boot.

Storage and interface limits

The integrated H330 controller provides 12Gbps SAS connectivity and supports RAID 0, 1, 5, 10, 50 and 60 across the ten drive bays. Maximum supported drive capacity is 14TB per bay. Networking defaults to four 1GbE ports via a daughter card; optional 10GbE adapters consume PCIe 3.0 slots shared with the dedicated PERC slot.

Põhijooned

  • 1U rack form factor fits dense server deployments
  • Single Intel Xeon E5-2609 V3 six-core 1.9GHz processor installed
  • 48GB DDR4 memory across 24 DIMM slots
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant hot-swap power supplies included

Tehnilised andmed

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size48GB
Memory TypeDDR4
Max Memory Capacity48GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Selle mudeli teised versioonid

5 veel samast sarjast

Sama seeria, erinev mälumaht, jahutus või taktsagedus — võrrelge enne otsustamist.

Küsimused selle toote kohta

How can I confirm the server is operating correctly after initial power-on?

Watch the front-panel LCD and iDRAC8 status LEDs; a steady green system-health light and accessible iDRAC web interface indicate normal operation.

What ships with the unit and what must I source separately?

Includes chassis, single E5-2609 V3 CPU, 48GB DDR4, H330 controller, dual 750W supplies, power cable and rail kit; drive trays, hard drives, bezel, mouse, keyboard and OS are not included.

Which memory capacity should I select if I want to expand beyond the installed 48GB?

Choose DDR4 modules in 4GB, 8GB, 16GB, 32GB, 64GB or 128GB sizes up to 2400MT/s; the board has 24 slots and supports 1536GB total when a second processor is added.
