GW Security Inc.
GW Security Inc. GW9516XVR 16 Channel 4K DVR Kit 4TB HDD
16-channel 4K DVR kit with 4TB storage, 16 5MP bullet cameras, AI face/human/vehicle detection, built-in microphones, 100ft night vision, and 10–100ft cables
- TypeDVR Kit
- Camera TypeAnalog Camera
- Camera inputs16 Channel
- Video Input16 x BNC Ports
- Audio Input16CH input
- Resolution Recording4K 2160p/1920p/1520p/1080p
Camera inputs 16 Channel
- 8 Channel
- 16 Channel
- 16-channel 4K DVR records every angle in 3840×2160 detail
- H.265 compression stores weeks of 4K footage on the 4 TB drive
- AI face, human and vehicle detection cuts false alerts to relevant events only
- Built-in microphone on each 5 MP bullet camera captures audio with 86° wide view
- 100 ft night vision plus 60 ft and 100 ft pre-made cables simplify outdoor installation
16 Channel 4K DVR Kit

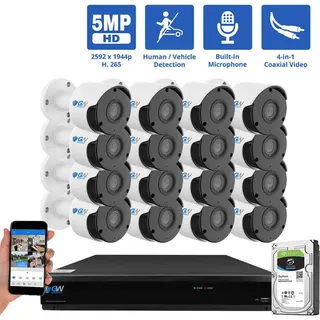

This GW Security kit provides a complete 16 channel surveillance system with a 4K DVR and 4TB hard drive. It includes sixteen 5MP bullet cameras with built-in microphones for audio recording. The system supports AI face, human and vehicle detection to reduce false alerts. It is suited for homes or businesses needing extensive coverage.
Sustained recording performance

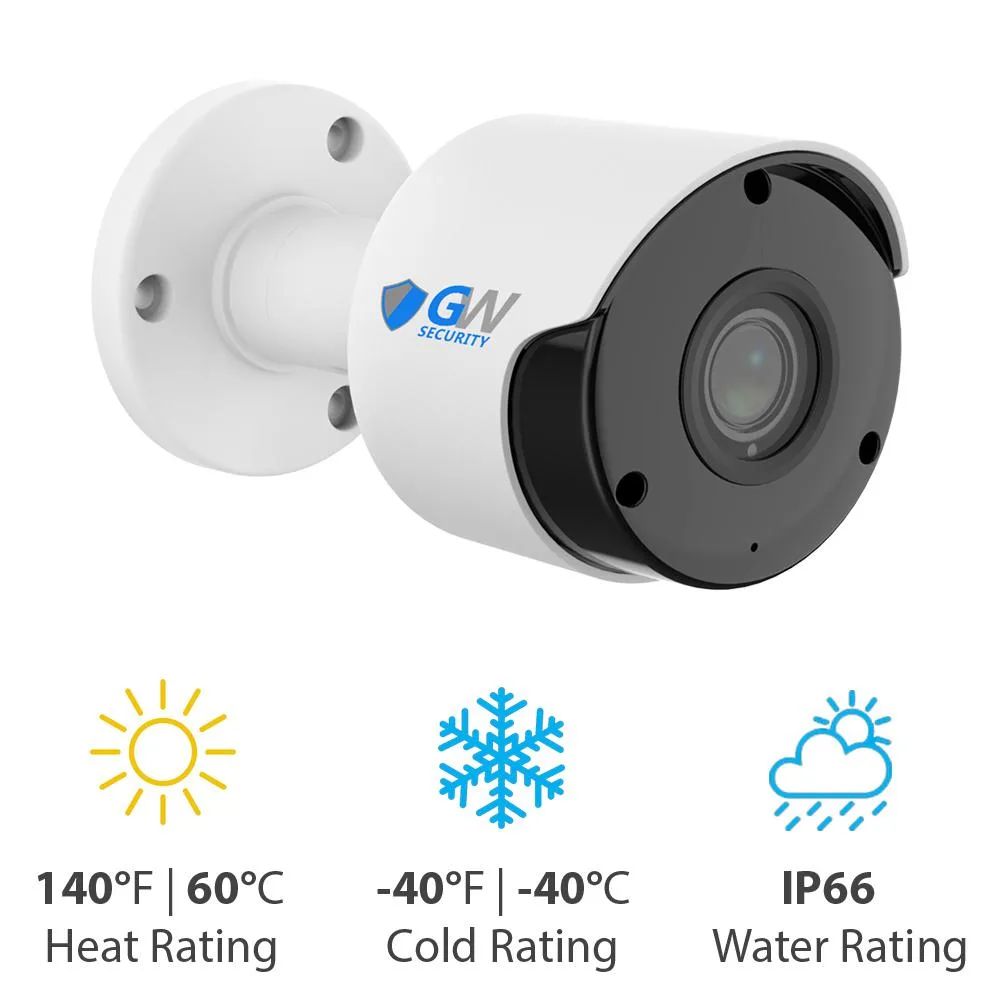

The DVR records all sixteen channels at 4K 2160p using H.265 HEVC compression to manage storage efficiently. Recording modes include continuous, motion detection, time schedule and alarm triggered capture. Eight cameras connect via 60 foot cables and eight via 100 foot cables for flexible placement. Each camera offers 100 feet night vision with a 3.6mm fixed lens and 86 degree view.
Pre installation checklist
Verify that your monitor accepts 4K HDMI or VGA input for the DVR video output. Ensure you have a router and available network port for the included 10 foot Ethernet cable. The cameras require the supplied pre made BNC cables for power and video connection. Check that mounting locations suit the 3.6mm fixed lens and 86 degree field of view.
Põhijooned
- 16-channel 4K DVR records every angle in 3840×2160 detail
- H.265 compression stores weeks of 4K footage on the 4 TB drive
- AI face, human and vehicle detection cuts false alerts to relevant events only
- Built-in microphone on each 5 MP bullet camera captures audio with 86° wide view
- 100 ft night vision plus 60 ft and 100 ft pre-made cables simplify outdoor installation
Tehnilised andmed
| Brand | GW Security |
|---|---|
| Series | Plug N Play |
| Model | GW9516XVR |
| Type | DVR Kit |
| Camera Type | Analog Camera |
| Camera inputs | 16 Channel |
| Video Input | 16 x BNC Ports |
| Audio Input | 16CH input |
| Resolution Recording | 4K 2160p/1920p/1520p/1080p |
| Recording Frame Rate | 4K 2160P/1920P/1520P/1080P @ all channels |
| Recording Mode | Motion Detective / Continues / Time Schedule / Alarm |
| Recording Compression | New Technology : H.265 HEVC |
| Video Output | 1 x VGA, 1 x HDMI up to 4K |
| Audio Output | RCA x 1 |
| ONVIF | Yes |
| Resolution Display | 4K (3840 x 2160P) |
| Max Resolution | 4K 8MP (3840 x 2160) |
| Display Frame Rate | 4K 2160P/1920P/1520P/1080P @ all channels |
| Built-In HDD | Yes |
| Storage Capacity | 1TB HDD |
| Backup Device | Local: USB2.0 (faster video files transfer and backup) / Online: download video through internet |
| Network Connection | RJ45 |
| Network Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/P2P/ONVIF |
| Network Remote | Computers (Windows & Mac), Smartphones （iPhone & Android）, and Tablets are All Compatiable (Call Our Free Tech Support if You Need Help to Setup Remote Viewing) |
| Features | 4K (3840x2160) DVR : Support up to 8MP BNC CCTV cameras |
| Operating System | Linux (embedded) |
| Power Supply | No Power Adapter for Camera Needed. PoE ports is supporting video signal and power through a single Ethernet cable (Ethernet cables are all included in the package) |
| Bundled Camera Number | 16 |
| Bundled Camera Spec | GW537HDMIC: 5MP CCTV Microphone Camera, 3.6mm Wide Angle Lens, 18pcs SMD LED, 100 feet IR Distance. H.265/H.264 Video Compression. 5MP@15fps, 4M@30fps, 2M@30fps high resolution |
| Camera Horizontal Resolution | 5 MP |
| Kit Feature Other | H.265 is the latest video compression standard which brings extensive possibilities and optimism to the HD-IP Camera by addressing H.264 problems such as shortage of bandwidth, improving transmission efficiency and delivers ultra HD image quality. • Compared with current H.264, the H.265 is able to double the data compression ratio, while improve video quality with low bit-rate, this enables IP camera to deliver smooth Superb HD video with low bandwidth, which in turn, reducing the network bandwidth, and video storage size. |
| Dimensions | 14.9 x 13.4 x 2 inches |
| Weight | 8 lb |
| Package Contents | DVR with selected HDD, CCTV cameras, DVR power adapter, USB mouse, Remote Control, Ethernet cables, Mouting screws, User manual CD, Specification sheet, One year warranty |
Selle mudeli teised versioonid
5 veel samast sarjast
Sama seeria, erinev mälumaht, jahutus või taktsagedus — võrrelge enne otsustamist.
GW Security Inc.
GW Security 16 Channel 5MP AI DVR System with 16 Cameras, 4TB HDD
- NVR Kit
- Analog Camera
884,99 $
0.01095BTC
Laos
GW Security Inc.
GW Security Inc. GW7816XVR 16 Channel 4K DVR System 12 x 8.0MP Cameras 4TB
- NVR Kit
- Analog Camera
946,99 $
0.01171713BTC
Laos
GW Security Inc.
GW Security Inc. GW7816XVR 16 Channel 4K DVR Kit with 16 x 8.0MP Cameras and 4TB HDD
- NVR Kit
- Analog Camera
1 135,99 $
0.01405563BTC
Laos
GW Security Inc.
GW Security Inc. 16CH 4K H.265 NVR 16×5MP IP Camera Kit 4TB
- Kit Solution
- IP Camera
1 255,99 $
0.01554039BTC
LaosKüsimused selle toote kohta
How much heat and fan noise does the 16-channel DVR produce when recording 4K 2160p on all channels continuously?
The unit uses H.265 HEVC compression to lower processing load, and the included 4TB drive runs cooler than larger-capacity drives; typical DVR chassis of this class stay warm but silent in a ventilated rack.
Which monitor connections and cables do I need to have ready before the DVR arrives?
You need a display with HDMI or VGA input and the matching cable; the box includes a USB mouse and remote, but no video cable.
Can the 5MP 1920p bullet cameras replace the 1080p cameras on my existing BNC cables without re-wiring?
Yes — the cameras use standard BNC video and power-over-coax on the supplied 60 ft and 100 ft pre-made cables, so they drop onto legacy RG59 or RG6 runs.
