10.1 inch industrial panel PC with flat IP65 front, aluminium fanless chassis, embedded mount

partaker

partaker 10.1" Industrial Panel PC i5-8260U 32GB 512GB SSD

SKU CH-X3M6-9WQ8V

10.1-inch IP65-rated all-in-one with i5-8260U, 32 GB DDR4, 512 GB SATA SSD, fanless aluminium cooling and 9–36 V Phoenix power input

Memory Capacity 32GB DDR4

SSD 512GB

  • IP65 front panel resists water and dust ingress
  • Intel Core i5-8260U delivers up to 3.90 GHz for industrial workloads
  • Fanless aluminium alloy cooling runs silently in noise-sensitive areas
  • 32 GB DDR4 and 512 GB SATA SSD provide ample memory and storage
  • Wide 9-36 V DC input suits unstable industrial power supplies

Industrial 10.1" panel PC

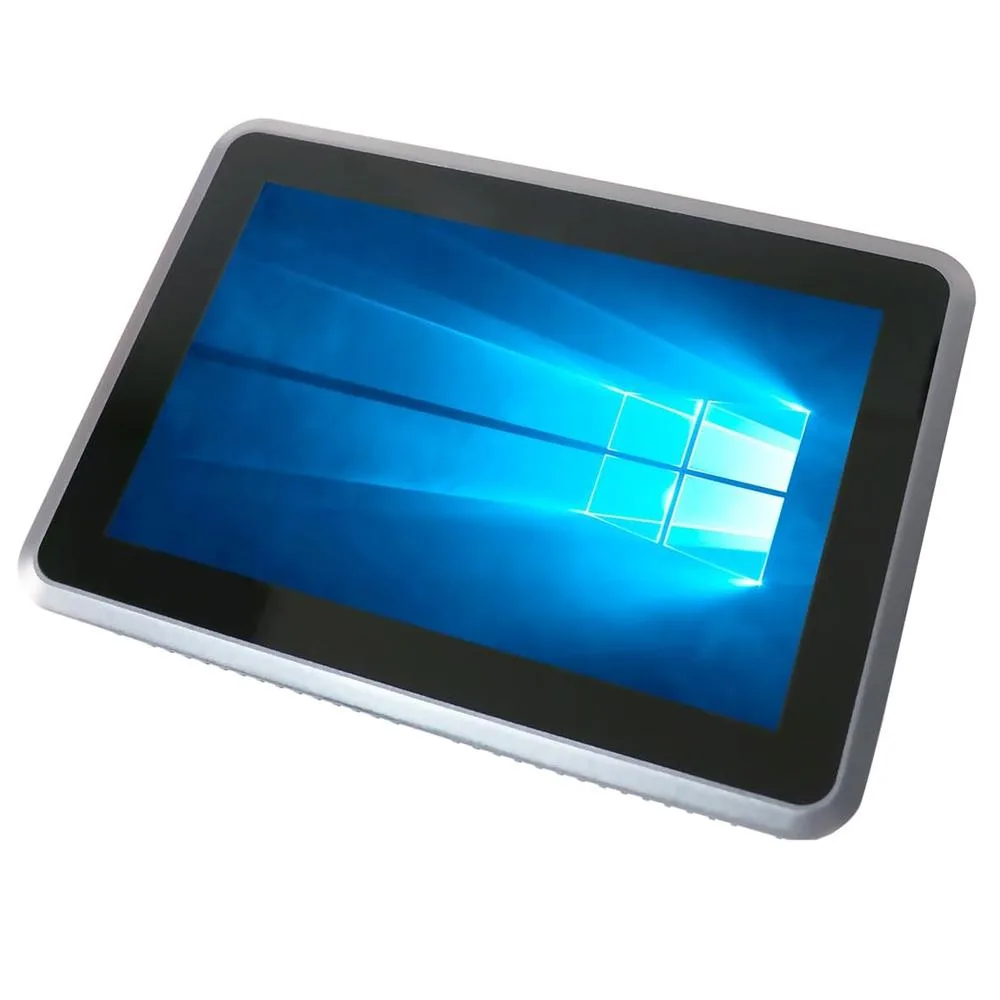

The Partaker A18 is a 10.1-inch all-in-one computer with an IP65-rated front panel and a multi-touch capacitive screen. It runs on an Intel Core i5-8260U processor with 32 GB of DDR4 memory and a 512 GB SATA SSD. Windows 11 Pro comes pre-installed for immediate deployment in industrial environments.

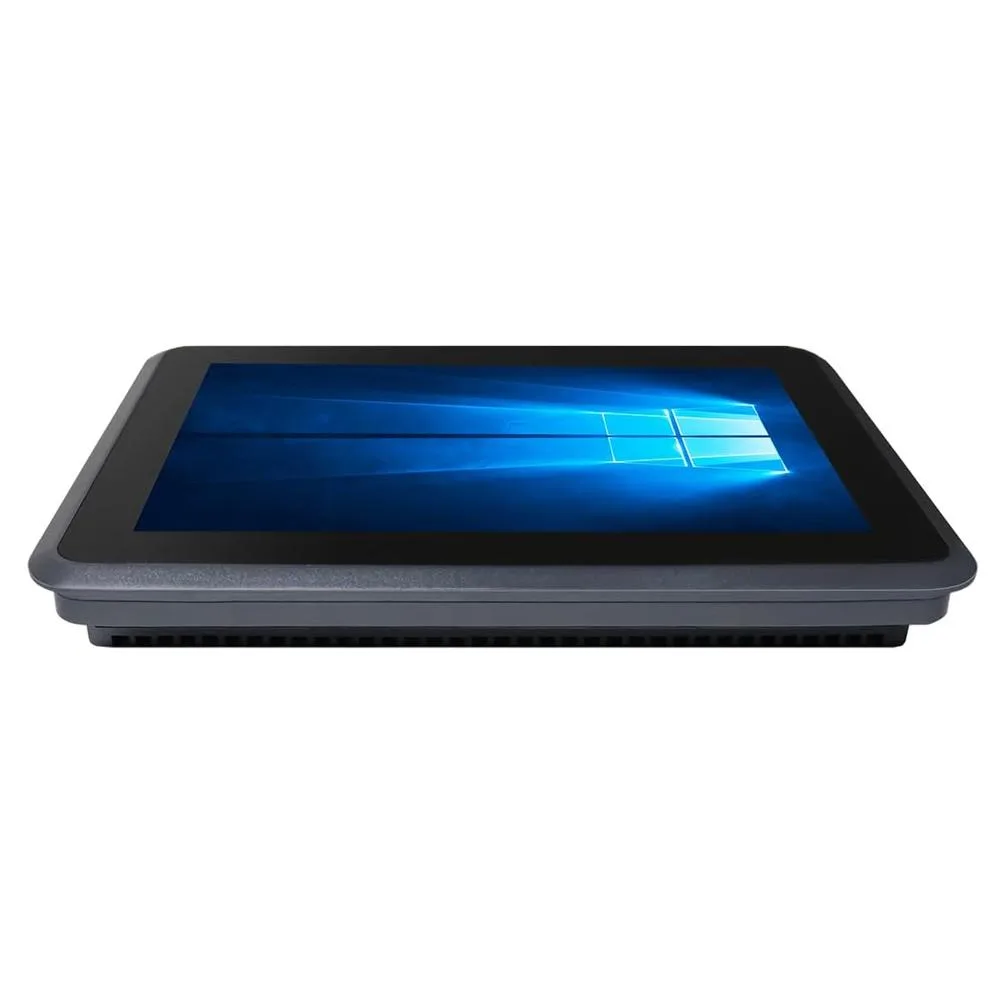

Fanless aluminium chassis fits embedded cut-outs

The fanless aluminium alloy body measures 271.5 by 190 by 53 mm and mounts into a 262 by 180 mm embedded opening. A 9-to-36 V Phoenix power connector accepts wide-range DC input, while two Intel gigabit LAN ports, HDMI, four USB 3.0 ports and two configurable COM ports handle data and peripheral connections without extra adapters.

Expansion slot and dual storage bays add flexibility

A Mini PCIe slot with a SIM holder allows optional Wi-Fi or 4G modules to be added later. The board provides one M.2 2280 SATA slot and one 2.5-inch SATA bay that support RAID 0 or 1 for redundancy or speed. Two 8-ohm 2-watt speakers deliver audio alerts without external hardware.

Põhijooned

  • IP65 front panel resists water and dust ingress
  • Intel Core i5-8260U delivers up to 3.90 GHz for industrial workloads
  • Fanless aluminium alloy cooling runs silently in noise-sensitive areas
  • 32 GB DDR4 and 512 GB SATA SSD provide ample memory and storage
  • Wide 9-36 V DC input suits unstable industrial power supplies

Tehnilised andmed

Selle toote kohta ei ole veel tehnilisi andmeid avaldatud.

Selle mudeli teised versioonid

5 veel samast sarjast

Sama seeria, erinev mälumaht, jahutus või taktsagedus — võrrelge enne otsustamist.

Küsimused selle toote kohta

Does the fanless aluminium chassis throttle the Core i5-8260U during continuous 24/7 loads?

The aluminium alloy fanless design is rated for silent, energy-efficient 24/7 industrial operation without active cooling.

How much heat and noise does the system produce when running all day?

Fanless cooling eliminates mechanical noise; the aluminium chassis dissipates heat passively within the 0–50 °C commercial or –20–60 °C industrial temperature range.

What external power source is required for the 9–36 V Phoenix connector?

A DC supply delivering 9–36 V via the 2-pin Phoenix connector is needed; the bundle includes a 12 V 5 A AC-DC adapter for 100–240 V mains.
