Black 22-inch frameless touchscreen monitor with adjustable stand

ViewSonic

ViewSonic TD2223 22" 1080p 10-point IR touch portable monitor

SKU CH-YKSH-Z3WJ1 MPN TD2223

A 22-inch Full HD touchscreen with 10-point IR multi-touch, 75 Hz refresh, HDMI, VGA, DVI and USB hub for kiosk, retail or office use

  • Cabinet ColorBlack
  • Touchscreen TypeIR touch
  • Monitor TypeTouchscreen Monitor
  • Screen Size22" (21.5" viewable)
  • Resolution1920 x 1080
  • Pixel Pitch0.248mm
  • 10-point IR touch enables fast pinch, zoom and swipe control
  • Full HD 1920 x 1080 resolution on a 22-inch screen delivers sharp detail
  • 7H scratch-resistant surface withstands heavy public use
  • Flicker-free and blue light filter reduce eye strain during long sessions
  • HDMI, VGA, DVI and USB hub provide flexible connectivity options

22-Inch 10-Point IR Touch Monitor

The ViewSonic TD2223 is a 22-inch Full HD portable monitor with 10-point IR touch technology. It serves retail, education and enterprise users who need a durable interactive display for kiosks, POS systems or collaborative workspaces.

10-Point IR Touch and 7H Hardness

The single specification that decides fit is the 10-point IR touchscreen with a 7H scratch-resistant surface. It enables pinch, zoom and swipe gestures over USB while withstanding heavy public use. The TN panel delivers 1920 x 1080 resolution at 75 Hz with 250 cd/m² brightness and 1000:1 static contrast.

Suits Public-Facing Interactive Deployments

This monitor suits integrators deploying Windows, Linux, Chrome OS or Android kiosks that require VESA mounting and HDMI, VGA, DVI plus USB hub connectivity. Buyers needing higher colour accuracy, wider viewing angles or a non-touch portable screen should look at something else.

Põhijooned

  • 10-point IR touch enables fast pinch, zoom and swipe control
  • Full HD 1920 x 1080 resolution on a 22-inch screen delivers sharp detail
  • 7H scratch-resistant surface withstands heavy public use
  • Flicker-free and blue light filter reduce eye strain during long sessions
  • HDMI, VGA, DVI and USB hub provide flexible connectivity options

Tehnilised andmed

BrandViewSonic
ModelTD2223
Cabinet ColorBlack
Touchscreen TypeIR touch
Monitor TypeTouchscreen Monitor
Screen Size22" (21.5" viewable)
Resolution1920 x 1080
Pixel Pitch0.248mm
Brightness250 cd/m2
Contrast RatioDCR 20,000,000:1 (1,000:1)
Response Time5ms (GTG)
PanelTN
Display TypeFHD
Maximum Resolution1920 x 1080
Viewing Angle170° (H) / 160° (V)
Display Colors16.7 Million (6bit + Hi-FRC)
WidescreenYes
Refresh Rate75Hz
Aspect Ratio16:9
Touchscreen InterfaceUSB
Input Video CompatibilityAnalog RGB, Digital

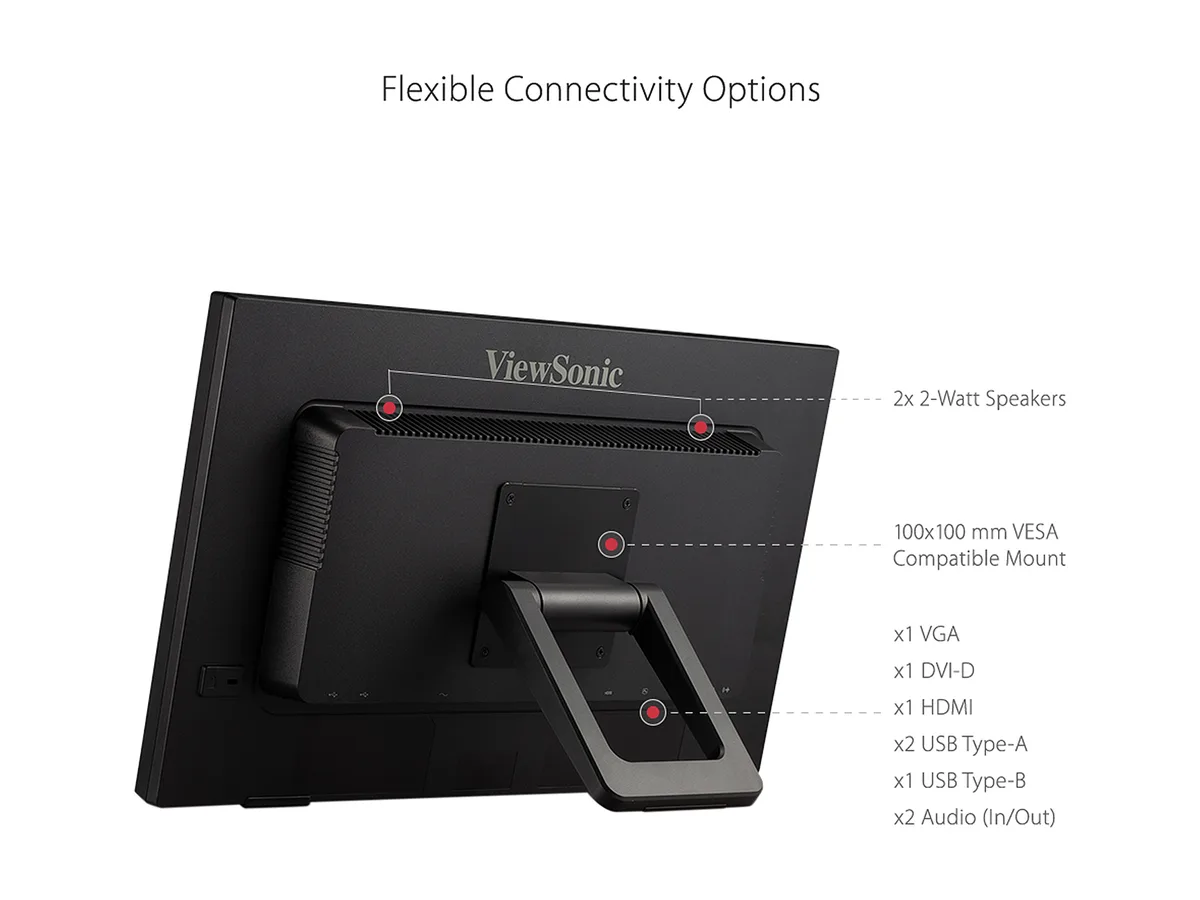

ConnectorsD-Sub, DVI, HDMI, USB
D-Sub1 x D-Sub
DVI1 x DVI-D
HDMI1 x HDMI 1.4
DisplayPortNo
USB 2.02 x USB 2.0 Type A
1 x USB 2.0 Type B
Built-in Speakers2 x 2W
User ControlsPhysical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Regulatory ApprovalscTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP
VESA Compatibility - Mountable100 x 100mm
FeaturesIntuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What's more, there is a magnetic pen placeho
Complies withEnergy Star 8.0
Power Supply100 - 240 VAC, 50/60Hz
Power ConsumptionEco Mode (Conserve): 8.5W
Eco Mode (Optimized): 10.5W
Consumption (Typical): 12.5W
Consumption (Max): 14W
Stand-by: 0.5W

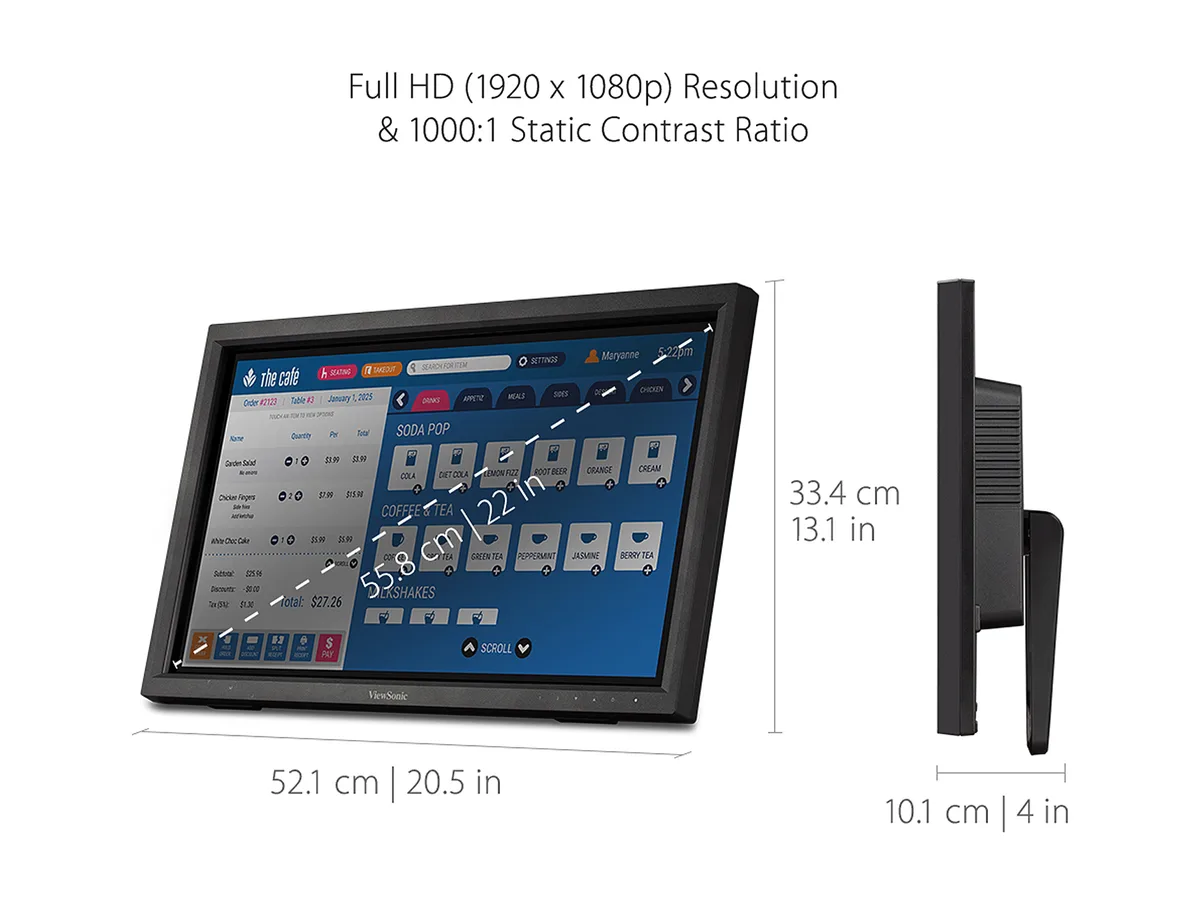

Dimensions12.50" x 20.50" x 2.40" w/o stand
13.10" x 20.50" x 4.00" w/ stand
Weight8.60 lbs. w/o stand
9.90 lbs. w/ stand
Temperature Range0°C to 40°C
Humidity Range20% to 90% (non-condensing)
Package Contents1 x TD2223
1 x 3-pin Plug (IEC C13 / CEE22)
1 x HDMI Cable (v1.4; Male-Male)
1 x USB A/B Cable (v2.0; Male-Male)
1 x Audio Cable (Male-Male)
1 x Quick Start Guide
Tarnekaal5.81 kg
Pakendi mõõtmed579 × 404 × 165 mm

Küsimused selle toote kohta

What does 10-point IR touch mean for daily use?

It lets up to ten fingers interact at once so multiple users can pinch, zoom and swipe on the same 22" screen without lag.

Which video inputs cap the resolution and refresh rate?

HDMI, VGA and DVI all drive the panel at its native 1920 x 1080 at 75 Hz.

What mounting options does the 22" chassis provide?

A built-in adjustable stand plus VESA-compatible holes for third-party arms or wall brackets.
