Black 2U rackmount server chassis with brushed aluminium front bezel, two 80mm fans and front USB 2.0 ports

Athena Power

Athena Power RM-2U200HR65U2 2U rackmount server chassis

SKU CH-PK2K-N5EFT MPN RM-2U200HR65U2

2U rackmount chassis supports ATX, Micro-ATX and Mini-ITX boards with an included 650 W power supply and seven expansion slots

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack
  • Case MaterialBrushed Aluminum Front Bezel / 1.2mm SECC
  • Motherboard CompatibilityMicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX
  • Power Supply2U 650W IPC Power supply
  • Supports MicroATX, ATX and Mini-ITX boards for flexible builds
  • Includes 650W 2U IPC power supply ready to run
  • Two 80mm fans and washable air filter keep components cool
  • Seven expansion slots give room for add-in cards

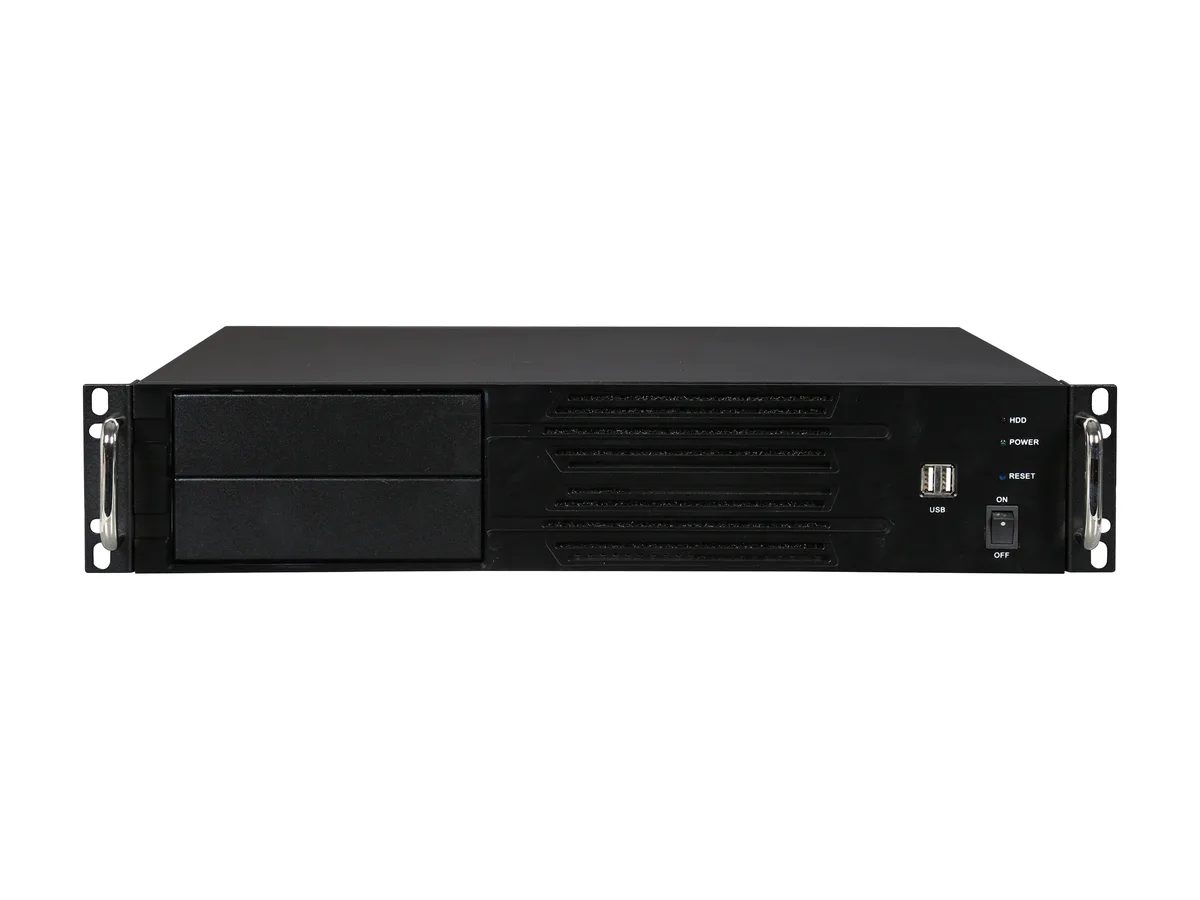

  • Front USB 2.0 ports with power and reset controls

2U rackmount server chassis

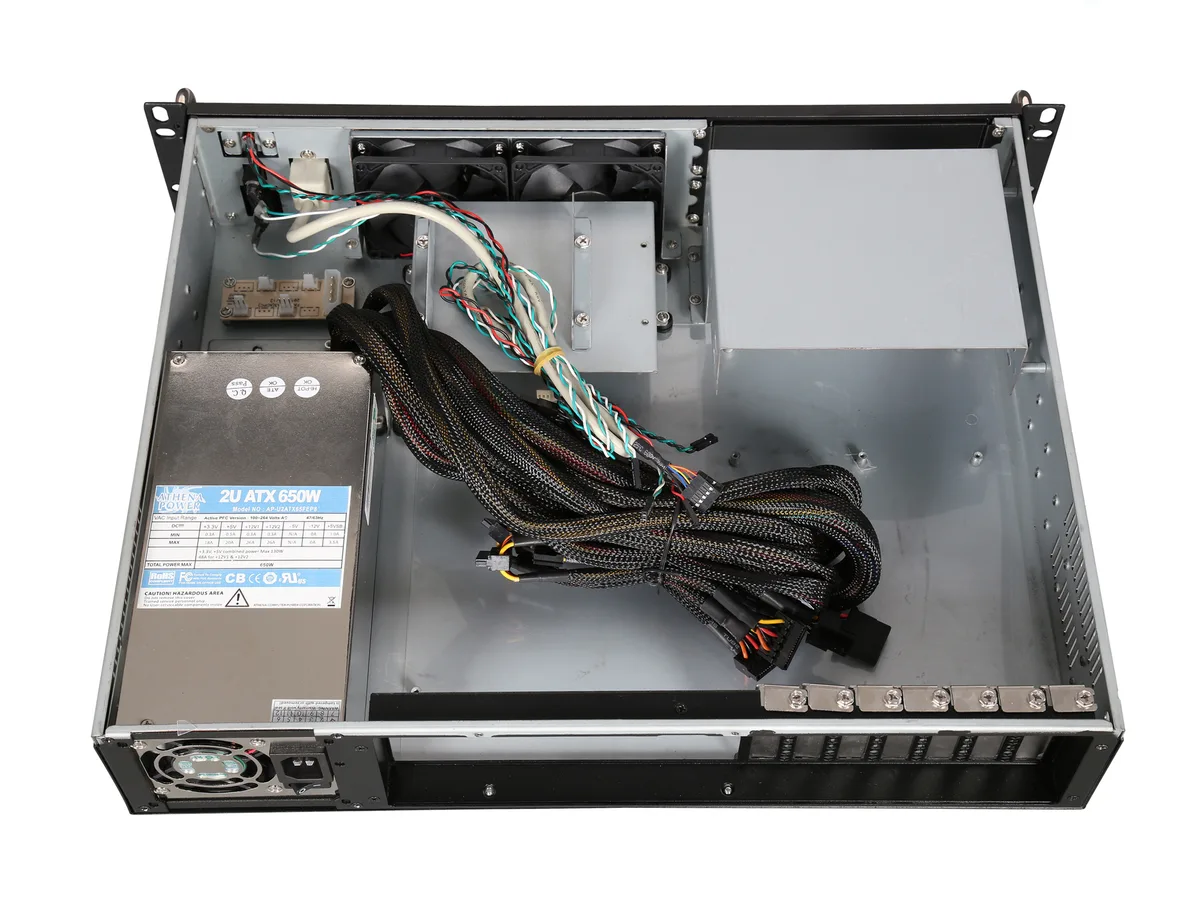

The Athena Power RM-2U200HR65U2 is a 2U rackmount server chassis finished in black with a brushed aluminium front bezel and 1.2mm SECC construction. It accepts MicroATX, ATX and Mini-ITX motherboards and ships with an included 650W IPC power supply. Two 80mm fans and a removable, washable air filter provide front-to-rear airflow. Front I/O includes two USB 2.0 ports plus power, reset and LED indicators.

Upgrade from tower or 1U builds

Moving from a tower case to this 2U format recovers rack density while keeping full ATX motherboard support and seven expansion slots. The integrated 650W supply removes the need to source a separate redundant unit for single-node deployments. The jump is worthwhile when you need standard rack mounting, front-accessible drive bays and a compact cooling path in a single package.

Suits single-node rack deployments

This chassis suits builders assembling a single rackmount server on a MicroATX, ATX or Mini-ITX board who want an included power supply and front USB 2.0 access. It is not for operators who need hot-swap drive trays, redundant power supplies, more than one internal 3.5in drive, or front-panel USB 3.0 connectivity.

Erősségek

  • Supports MicroATX, ATX and Mini-ITX boards for flexible builds
  • Includes 650W 2U IPC power supply ready to run
  • Two 80mm fans and washable air filter keep components cool
  • Seven expansion slots give room for add-in cards
  • Front USB 2.0 ports with power and reset controls

Műszaki adatok

BrandAthena Power
ModelRM-2U200HR65U2
Chassis TypeRackmount
Form Factor2U
ColorBlack
Case MaterialBrushed Aluminum Front Bezel / 1.2mm SECC
Motherboard CompatibilityMicroATX (9.6 in. x 9.6 in.)
ATX (12 in. x 9.6 in.)
Mini-ITX (6.7 in. x 6.7 in.)
Power Supply2U 650W IPC Power supply
External 5.25" Drive Bays(External) 5.25" up to 2 (Only 1 x 5.25" external bay with a m-ATX or ATX motherboard)
Internal 3.5" Drive Bays(Internal) 3.5" x 1 or 2.5" x 1
Expansion Slots7
Front Ports(Front) 2-Port USB 2.0
80mm Fans2
FeaturesAir Filter Removable & Washable
Switch: Power On/Off, Reset
Indicators: (LED) Power On / HDD Access
Dimensions3.50" x 17.11" x 14.00"
Szállítási súly9.31 kg
Csomagméret566 × 503 × 241 mm

Kérdések a termékről

How deep is the chassis so I can check my rack depth?

The chassis measures 14.00 inches deep, 17.11 inches wide and 3.50 inches high, matching a standard 2U rackmount footprint.

Which screws or rails do I use to secure an ATX board in this chassis?

Align the ATX board with the nine mounting holes and install all standoffs before tightening any screw; skipping a standoff is the common mistake that shorts the board.

How do I clean the air filter without removing the front bezel?

The removable washable filter slides out from the front panel; rinse it with water, let it dry completely, then slide it back in to maintain airflow.
