Small rectangular camera board with wide-angle lens and flat ribbon cable

Khadas

Khadas OS08A10 8MP HDR MIPI-CSI camera development board

SKU CH-NJE5-Y03XK

8 megapixel HDR camera board with 160-degree wide-angle lens, MIPI-CSI interface and IR-cut filter for Khadas VIM3 and VIM4 robot vision projects

  • 8 MP HDR sensor captures high-dynamic-range detail
  • 160° ultra-wide view covers broad scenes for robot vision
  • IR-CUT filter ensures accurate colour reproduction day and night
  • 4-lane MIPI-CSI interface transfers 3840×2160 frames at speed
  • Light 13.2 g board with flexible FPC cable fits tight mounts

8MP HDR MIPI-CSI Camera Board

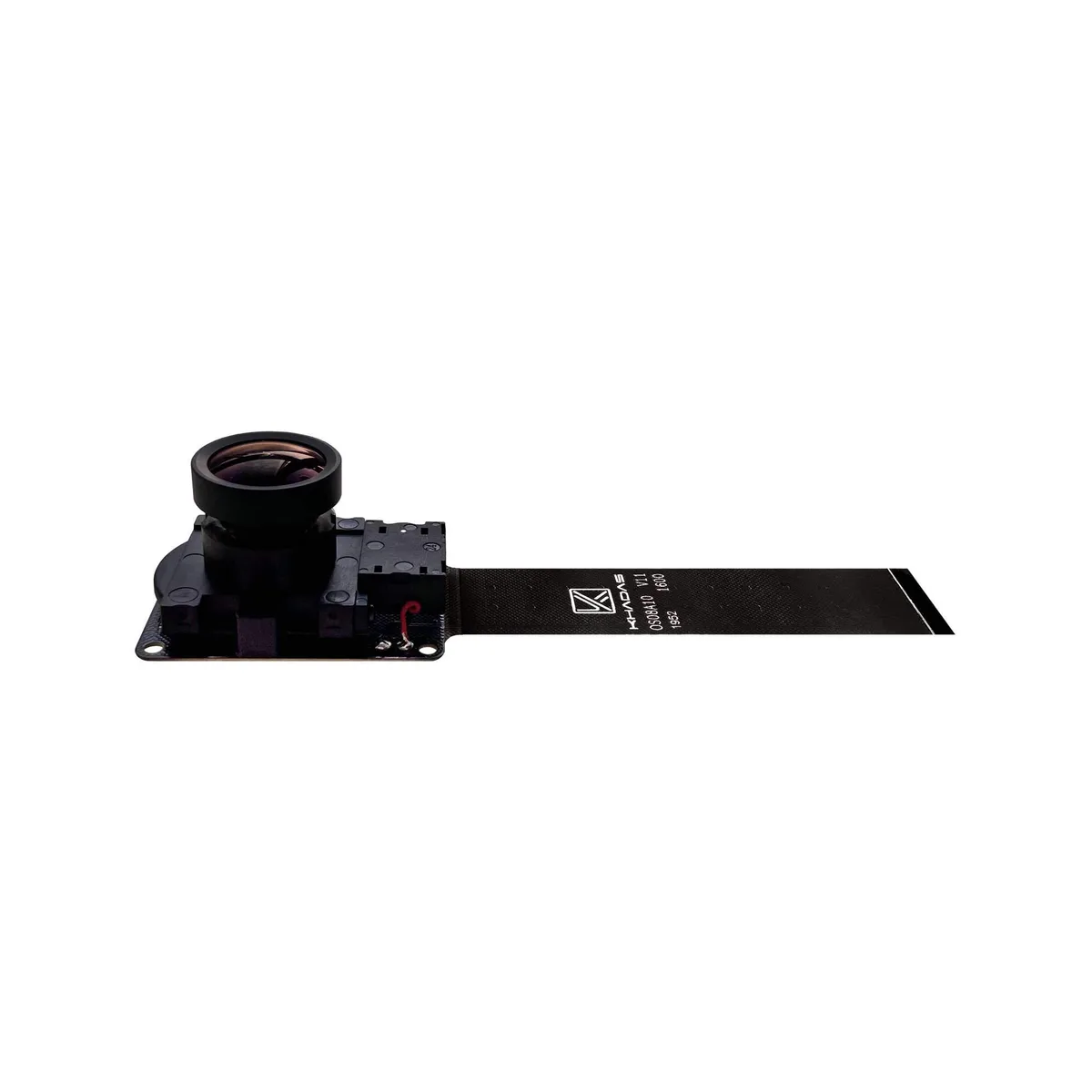

The Khadas OS08A10 is an 8 megapixel development camera with a MIPI-CSI interface and flexible FPC cable. It targets robot-vision and machine-vision projects that need wide-angle HDR capture on compatible Khadas single-board computers.

Interchangeable M12 Lens and IR-CUT Filter

The board ships with an M12-mount lens (3.47 mm focal length, f/2.1) that can be swapped for other M12 optics. An integrated IR-CUT filter switches automatically for day or night operation, while the flexible FPC cable eases routing inside tight enclosures.

3840x2160 at Four Lanes with 160° View

Four MIPI-CSI lanes deliver 3840x2160 frames from the 1/2.0" OmniVision OS08A10 sensor with 2.0 µm pixels. The 160° diagonal view covers a broad scene from 80 cm to 500 cm, though barrel distortion reaches -23 percent at the edges and the module is incompatible with VIM3L, Edge-V and Captain boards.

Erősségek

  • 8 MP HDR sensor captures high-dynamic-range detail
  • 160° ultra-wide view covers broad scenes for robot vision
  • IR-CUT filter ensures accurate colour reproduction day and night
  • 4-lane MIPI-CSI interface transfers 3840×2160 frames at speed
  • Light 13.2 g board with flexible FPC cable fits tight mounts

Műszaki adatok

Ehhez a termékhez egyelőre nincs közzétett műszaki adat.

Kérdések a termékről

Does the M12 interchangeable lens need periodic replacement or cleaning on the OS08A10 board?

The M12 lens is interchangeable, so it can be swapped if damaged or if a different focal length is required; routine cleaning of the IR-CUT filter and lens surface is recommended to maintain image clarity.

What limits continuous operation of the 8MP HDR sensor on this MIPI-CSI camera?

The sensor runs over a 4-lane MIPI-CSI interface at 3840×2160 resolution, so sustained frame-rate is bounded by the host board's CSI bandwidth and its ability to dissipate heat from the 13.2 g module.

How much heat and noise does the 100×26×20.6 mm camera produce when running all day?

The board has no fan or active cooling; it draws minimal power from the host via the FPC cable and operates silently, with heat limited to the tiny 13.2 g sensor package.
