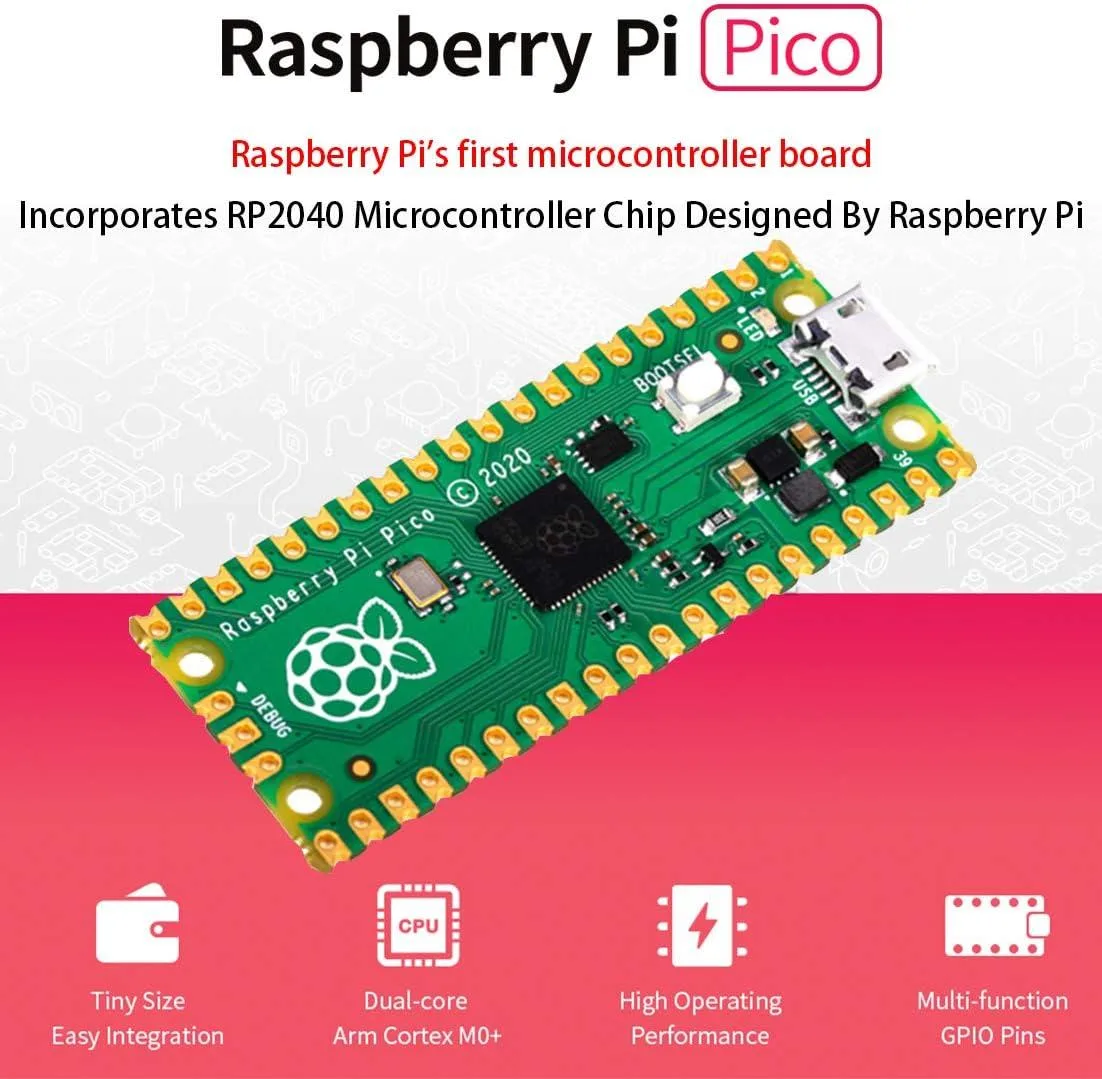

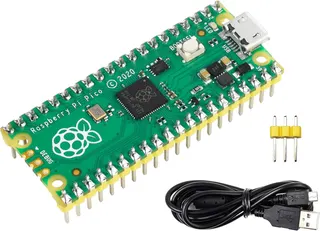

Green rectangular circuit board with gold pins along both edges and a micro USB port on one end

MCDODO

MCDODO Raspberry Pi Pico Development Board With Pre-Soldered Header

SKU CH-RPES-DE6VJ

RP2040 microcontroller board with dual-core Cortex-M0+ at 133 MHz, 264 KB SRAM, 2 MB Flash, 26 GPIO, USB 1.1 and pre-soldered header

  • TypeSingle Board Computers
  • Pre-soldered header lets you start prototyping immediately
  • Dual-core ARM Cortex-M0+ runs up to 133 MHz for responsive tasks
  • 26 multi-function GPIO pins give broad peripheral connectivity
  • 264 KB SRAM plus 2 MB Flash store code and data together
  • USB 1.1 device and host support enables drag-and-drop programming

Ready-to-use Raspberry Pi Pico development board

This MCDODO board ships with a pre-soldered header so the Raspberry Pi RP2040 microcontroller is immediately ready for breadboard or HAT work. The dual-core ARM Cortex-M0+ processor runs at up to 133 MHz with 264 KB of SRAM and 2 MB of on-board Flash memory. Drag-and-drop programming over USB 1.1 mass storage removes the need for a separate debugger.

26 multi-function GPIO pins define expansion scope

The board exposes 26 GPIO pins that support 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC channels and 16 controllable PWM outputs. Eight programmable I/O state machines add custom peripheral timing without CPU overhead. Projects needing more than 26 pins or a different pinout will require a larger module or additional circuitry.

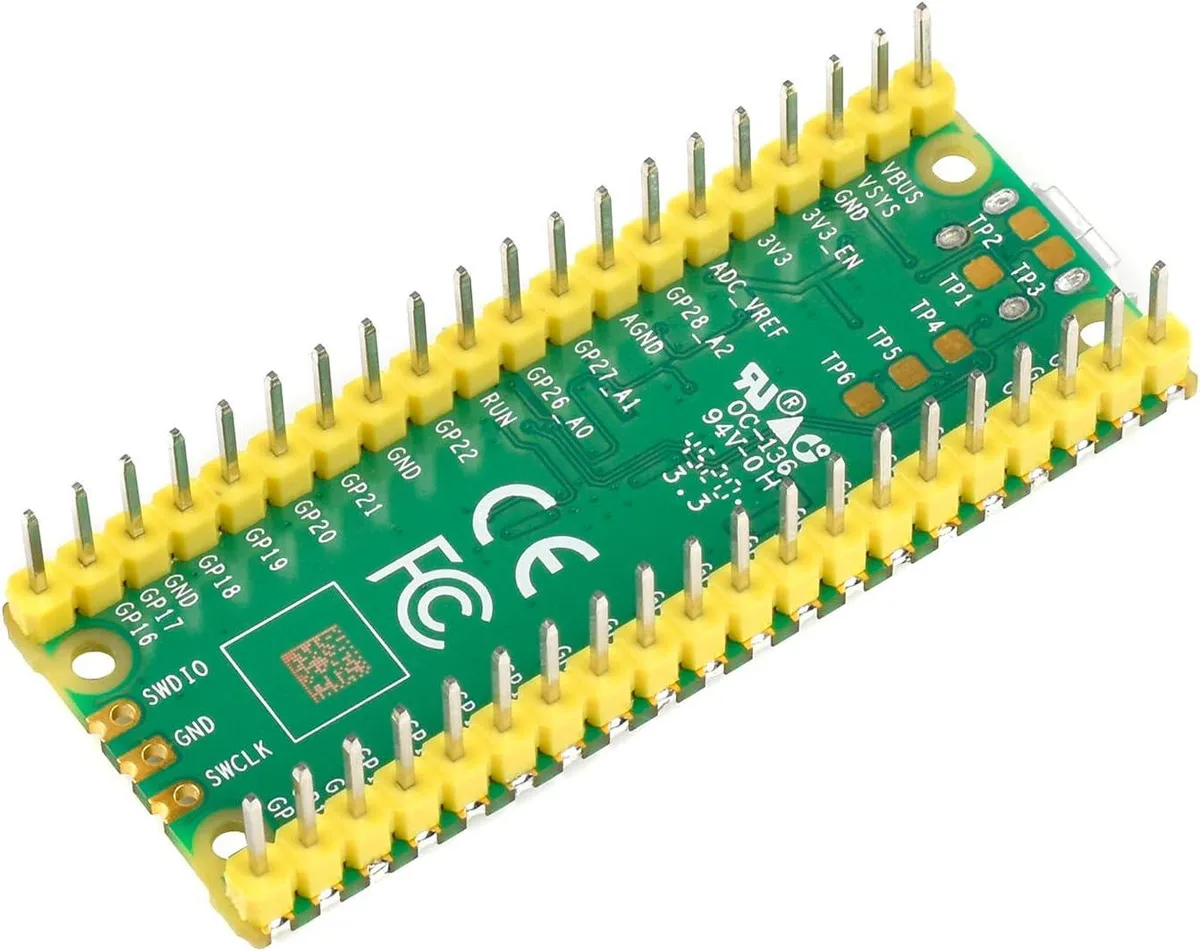

Pre-soldered header removes assembly step

The fitted header lets makers plug the castellated module straight into a breadboard or carrier board without soldering. On-chip accelerated floating-point libraries and a temperature sensor are available immediately. Users who need a headerless board for direct surface-mount soldering or a different pin arrangement must source a bare Pico module instead.

Erősségek

  • Pre-soldered header lets you start prototyping immediately
  • Dual-core ARM Cortex-M0+ runs up to 133 MHz for responsive tasks
  • 26 multi-function GPIO pins give broad peripheral connectivity
  • 264 KB SRAM plus 2 MB Flash store code and data together
  • USB 1.1 device and host support enables drag-and-drop programming

Műszaki adatok

TypeSingle Board Computers

Kérdések a termékről

What does the 133 MHz dual-core ARM Cortex M0+ processor mean for real-time tasks on this board?

The RP2040 chip runs two cores at up to 133 MHz with 264 KB SRAM, giving deterministic timing for motor control, sensor polling or audio synthesis without an OS overhead.

How does the USB 1.1 interface limit data transfer when using drag-and-drop programming?

USB 1.1 caps at 12 Mb/s, so flashing the 2 MB on-board Flash via mass-storage takes a few seconds — fine for iterative development, slow for large binary images.

Will the pre-soldered header and castellated edges fit a standard 0.1 inch breadboard or a custom carrier PCB?

The 26 multi-function GPIO pins are on 0.1 inch pitch headers for breadboards, while the castellated module edges allow direct surface-mount soldering onto a carrier board.
