15 inch industrial all-in-one panel PC flat IP65 front aluminium fanless chassis

partaker

partaker A20 Industrial Panel PC 15" i3-10110U 16GB 256GB all-in-one PC

SKU CH-Z8XH-3CE42

15" IP65 front-panel touch PC with Core i3-10110U, 16GB DDR4, 256GB SSD, dual LAN, 9-36V wide-range power and fanless aluminium cooling for continuous industrial use

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i3 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i3 10th Gen

Memory Capacity 16GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water jets
  • 16 GB DDR4 and 256 GB SATA SSD deliver responsive performance
  • Intel Core i3-10110U up to 4.10 GHz handles industrial workloads
  • Fanless aluminium alloy chassis runs silently from 9 V to 36 V

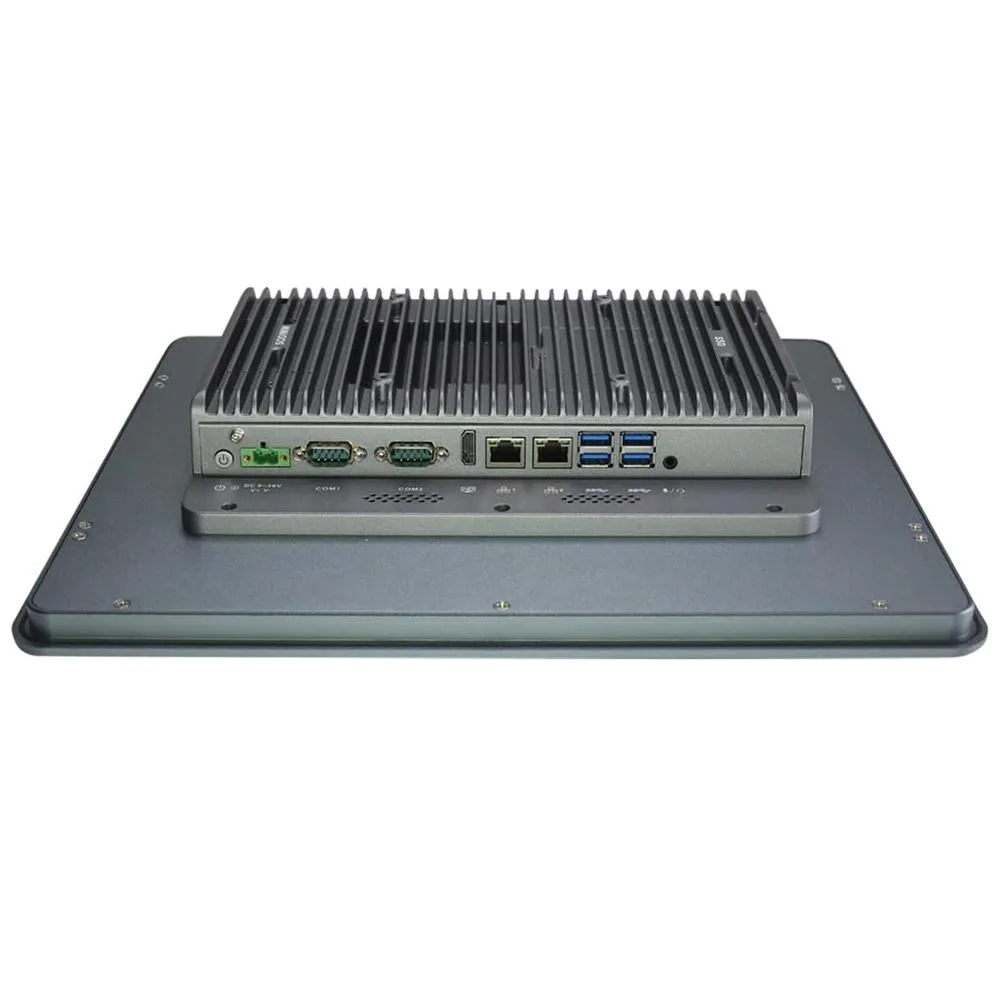

  • Dual Intel LAN, HDMI, two COM ports and four USB 3.0 connect equipment

Industrial all-in-one for factory floors

The partaker A20 integrates a 15 inch IP65 front panel with a resistive multi-touch screen and a Core i3-10110U processor. Sixteen gigabytes of DDR4 memory and a 256GB SATA SSD come pre-installed with Windows 11 Pro. The sealed aluminium chassis is designed for continuous 7x24 operation in harsh environments.

Fanless cooling and wide voltage input

An aluminium alloy heatsink dissipates heat without moving parts, so the system runs silently and avoids dust ingestion. DC input accepts 9 to 36 volts through a two-pin Phoenix connector, and the unit includes a 12V5A AC adapter for standard mains supply. Operating temperature spans 0 to 50°C for commercial use or -20 to 60°C with an industrial SSD.

Expansion slots and mounting flexibility

One Mini PCIe slot with a SIM holder allows optional Wi-Fi or 4G modules. Dual Intel gigabit LAN, two COM ports configurable for RS232/422/485, HDMI, four USB 3.0 ports and audio round out the I/O. The panel fits embedded cut-outs of 355 by 279mm and also supports wall, desktop or cantilever mounting.

Erősségek

  • IP65 front panel resists dust and water jets
  • 16 GB DDR4 and 256 GB SATA SSD deliver responsive performance
  • Intel Core i3-10110U up to 4.10 GHz handles industrial workloads
  • Fanless aluminium alloy chassis runs silently from 9 V to 36 V
  • Dual Intel LAN, HDMI, two COM ports and four USB 3.0 connect equipment

Műszaki adatok

ModelA20-New-I3-10110U-16G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i3 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size15"
TouchscreenYes

A modell további verziói

5 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

How do I install the Partaker A20 panel PC into a 355 x 279 mm cut-out and which step is often missed?

Secure the unit with the embedded mounting kit so the IP65 front seal sits flush; the step often missed is tightening all four corners evenly to maintain the gasket seal.

Which components can be upgraded later and what are the limits?

One SODIMM DDR4-2666 slot supports up to 32 GB RAM; storage uses one M.2 2280 SATA SSD and one 2.5" SATA bay with RAID 0/1 support.

What thermal limit appears first during continuous 7×24 operation in a sealed cabinet?

The fanless aluminum chassis relies on surface airflow; sustained loads above 50 °C ambient (commercial) or 60 °C (industrial SSD) will throttle the Core i3-10110U.
