Compact grey aluminium mini PC with external USB fan kit

partaker

Partaker I8 i5-12500T 64GB 1TB barebone mini PC

SKU CH-Y23M-2HK2S

An industrial mini-PC with a six-core Intel processor, 64 GB DDR4 memory, 1 TB NVMe storage, dual HDMI, VGA, two LAN ports, four RS485 COM ports, GPIO and CAN expansion.

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I8 H610 I5 12500T FAN 64GB RAM / 1TB SSD

  • Fan-less aluminium chassis with USB fan kit runs -20 °C to 60 °C
  • Six-core i5 up to 4.4 GHz and 64 GB DDR4 3200 handle heavy multitasking

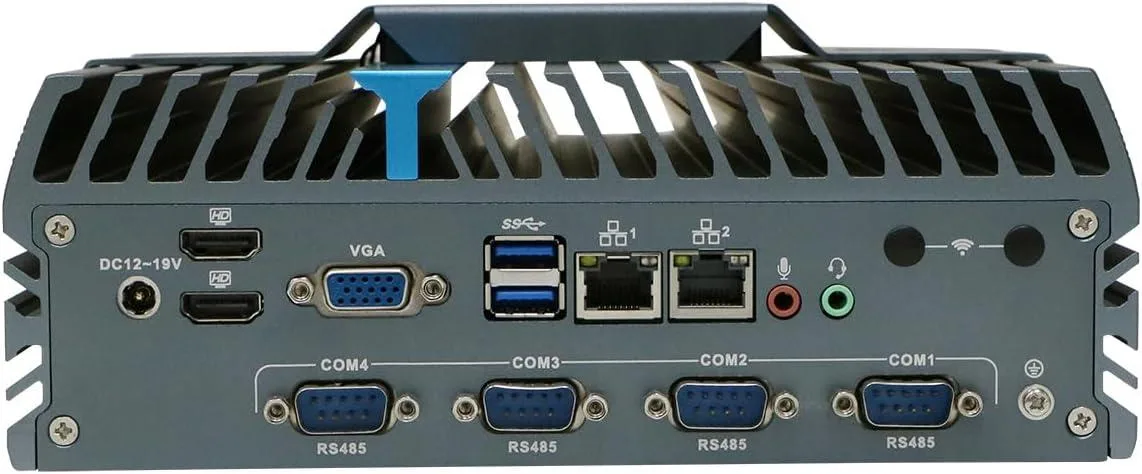

  • Two HDMI plus VGA drive three independent 4K displays
  • Dual Gigabit LAN, four RS485 COM and GPIO suit industrial automation
  • Wide 12-19 V DC input with watchdog, TPM 2.0 and WOL ensures 24/7 uptime

Industrial barebone for edge workloads

The Partaker I8 is a fanless-ready mini PC built around a 12th-generation Intel Core i5 with six cores and twelve threads. It ships with 64 GB of DDR4 3200 memory and a 1 TB NVMe SSD already installed. The aluminium chassis operates from minus twenty to sixty degrees Celsius, making it suitable for continuous duty in industrial, medical or logistics environments.

Sustained load behaviour with external airflow

A USB-powered fan kit provides active cooling so the processor can maintain its 4.4 GHz boost clock during extended compute tasks without throttling. The 35 to 74 watt TDP range is managed by the external airflow design, while the wide 12 to 19 volt DC input tolerates unstable power supplies common in factory or vehicle installations. Watchdog timers up to level 255 and TPM 2.0 add hardware-level reliability for unattended 24/7 operation.

Check expansion and display needs first

Verify that four RS485 COM ports, two gigabit LAN ports and the single Mini PCIe slot with Nano SIM cover your industrial I/O and wireless requirements. The system drives two 4K displays at 60 Hz via HDMI plus one 1080p VGA output for legacy panels. A second 2.5 inch SATA bay remains open if additional local storage is required beyond the installed 1 TB drive.

Erősségek

  • Fan-less aluminium chassis with USB fan kit runs -20 °C to 60 °C
  • Six-core i5 up to 4.4 GHz and 64 GB DDR4 3200 handle heavy multitasking
  • Two HDMI plus VGA drive three independent 4K displays
  • Dual Gigabit LAN, four RS485 COM and GPIO suit industrial automation
  • Wide 12-19 V DC input with watchdog, TPM 2.0 and WOL ensures 24/7 uptime

Műszaki adatok

ColorGray
CPU TypeIntel Core i5 12th Gen

A modell további verziói

5 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

How much power does the i5-12500T draw when the system runs continuously under load?

The processor TDP spans 35-74W and the supplied adapter delivers 12V at 10A, giving ample headroom for sustained industrial workloads.

Which display cables and storage drives do I need to provide myself to get this barebone running?

The unit includes the 12V power supply and cord; you must add DDR4 SODIMM modules, an M.2 2280 NVMe drive or 2.5" SATA drive, and your own HDMI or VGA cables.

Will the four RS485 ports and dual GbE LAN ports work with my existing PLCs and legacy sensors?

Yes, four native RS485 COM ports and two Realtek RTL8111H Gigabit LAN ports provide direct connectivity for industrial automation equipment without extra adapters.
