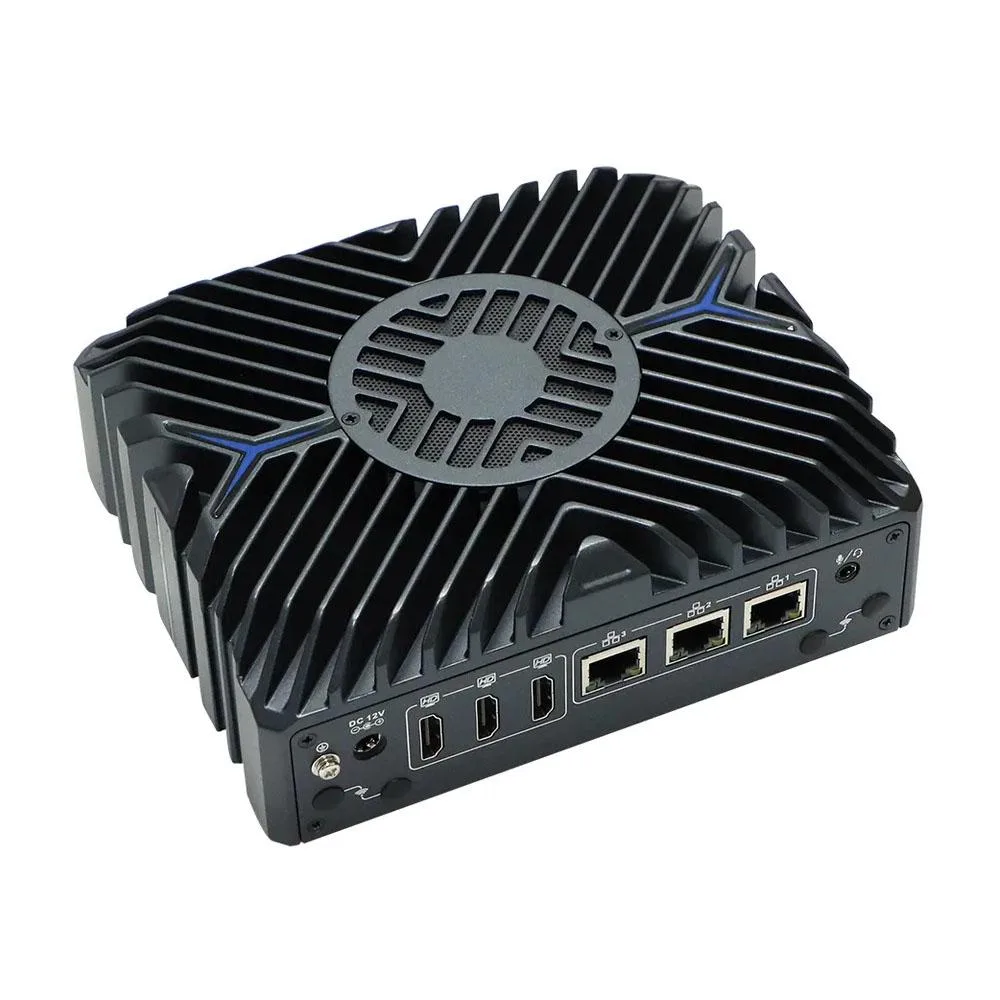

Compact black aluminium mini PC with cooling fan visible on top

partaker

partaker N7 i5-1235U 8GB 128GB barebone mini PC

SKU CH-BPNX-6BFH6

Fan-cooled barebone mini PC with Intel Core i5-1235U, 8 GB DDR5, 128 GB SSD, three 2.5 GbE ports, triple 4K HDMI and dual COM

  • ColorBlack
  • CPU TypeIntel Core i5 12th Gen

CPU Type Intel Core i5-1235U

Group 8GB / 128GB SSD

  • 12th Gen Intel Core i5-1235U with 10 cores and 4.4 GHz turbo for responsive multitasking
  • Triple Intel i225-V 2.5G LAN ports enable high-throughput network redundancy
  • Three HDMI outputs drive independent 4K displays from a single compact unit

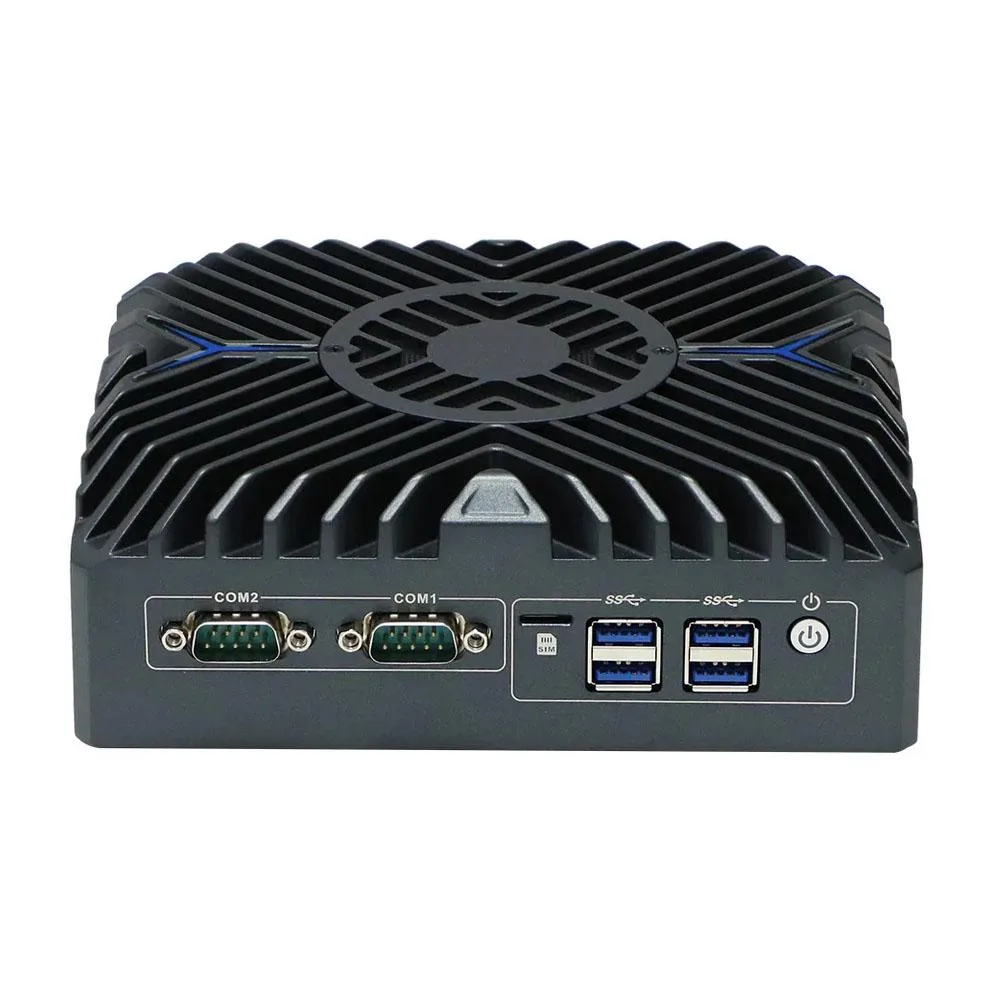

  • Dual COM ports with RS232/RS485 support integrate legacy industrial equipment
  • Fan-cooled aluminium chassis operates from -20 °C to 50 °C for harsh environments

Industrial mini PC for edge deployments

The Partaker N7 is a fan-cooled barebone built around an Intel Core i5-1235U processor with ten cores and twelve threads reaching 4.4 GHz turbo. It arrives with 8 GB of DDR5-4800 memory and a 128 GB SSD installed, running Windows 11 Pro or Linux Ubuntu. The aluminium chassis measures 170 x 140 x 58 mm and supports VESA mounting for DIN-rail or panel installations in automation cabinets.

Upgrade path from dual-core gateways

The single DDR5 SODIMM slot accepts up to 32 GB, letting integrators move from 8 GB to the full 32 GB when workloads demand larger buffers. An M.2 2280 NVME slot and a 2.5-inch bay provide room for additional high-speed or high-capacity storage beyond the factory 128 GB drive. Three Intel i225-V 2.5G LAN ports replace single-gigabit interfaces, removing the network bottleneck common on older industrial boxes.

Headroom for vision and IoT workloads

The CPU’s ten cores handle parallel inference, sensor fusion and protocol translation concurrently, while 32 GB RAM ceiling accommodates local model caching and edge databases. Three HDMI outputs drive independent 4K displays for operator panels or machine-vision cameras. Dual COM ports with RS232/RS485, a SIM slot and M.2 3052 plus Mini-PCIe expansion cover legacy PLCs, 4G/5G and Wi-Fi modules without external adapters.

Erősségek

  • 12th Gen Intel Core i5-1235U with 10 cores and 4.4 GHz turbo for responsive multitasking
  • Triple Intel i225-V 2.5G LAN ports enable high-throughput network redundancy
  • Three HDMI outputs drive independent 4K displays from a single compact unit
  • Dual COM ports with RS232/RS485 support integrate legacy industrial equipment
  • Fan-cooled aluminium chassis operates from -20 °C to 50 °C for harsh environments

Műszaki adatok

ColorBlack
CPU TypeIntel Core i5 12th Gen

A modell további verziói

5 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

Does the N7 include VESA mounting holes for wall or monitor-arm installation?

Yes, the N7 supports VESA mounting so it can be attached to a monitor arm or wall bracket.

How do I install an M.2 2280 NVME drive, and what step is commonly missed?

Remove the bottom cover, insert the M.2 2280 NVME drive into the M-key slot at an angle, then secure it with the retention screw; the step often missed is fastening that screw before reassembling the case.

The N7 has a fan for active cooling; what ongoing maintenance does it require?

Periodically clean dust from the fan intake and exhaust vents to maintain airflow, especially when operating near the 40 °C commercial or 50 °C industrial temperature limits.
