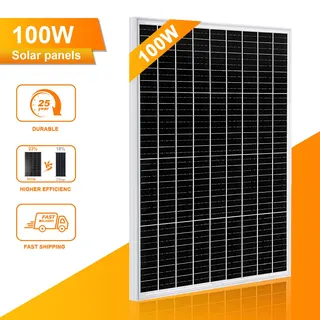

Rectangular dark-blue monocrystalline panel in silver anodised aluminium frame, 76 by 58 cm, MC4 leads visible

PFCTART

PFCTART 100W 12V Monocrystalline Solar Panel

SKU CH-ZJCY-94QEC MPN 100W

A 100W monocrystalline panel with half-cut cells for off-grid 12V charging in RVs, cabins or marine use

  • TypeSolar Panels
  • Cell TypeMonocrystalline
  • Solar Panel KitsOff-Grid
  • Size/Dimensions76*58*3 cm
  • Weight4.58 KG
  • FrameAnodized aluminum alloy
  • 100W rated output from monocrystalline half-cut cells
  • 90% power output retained after 10 years

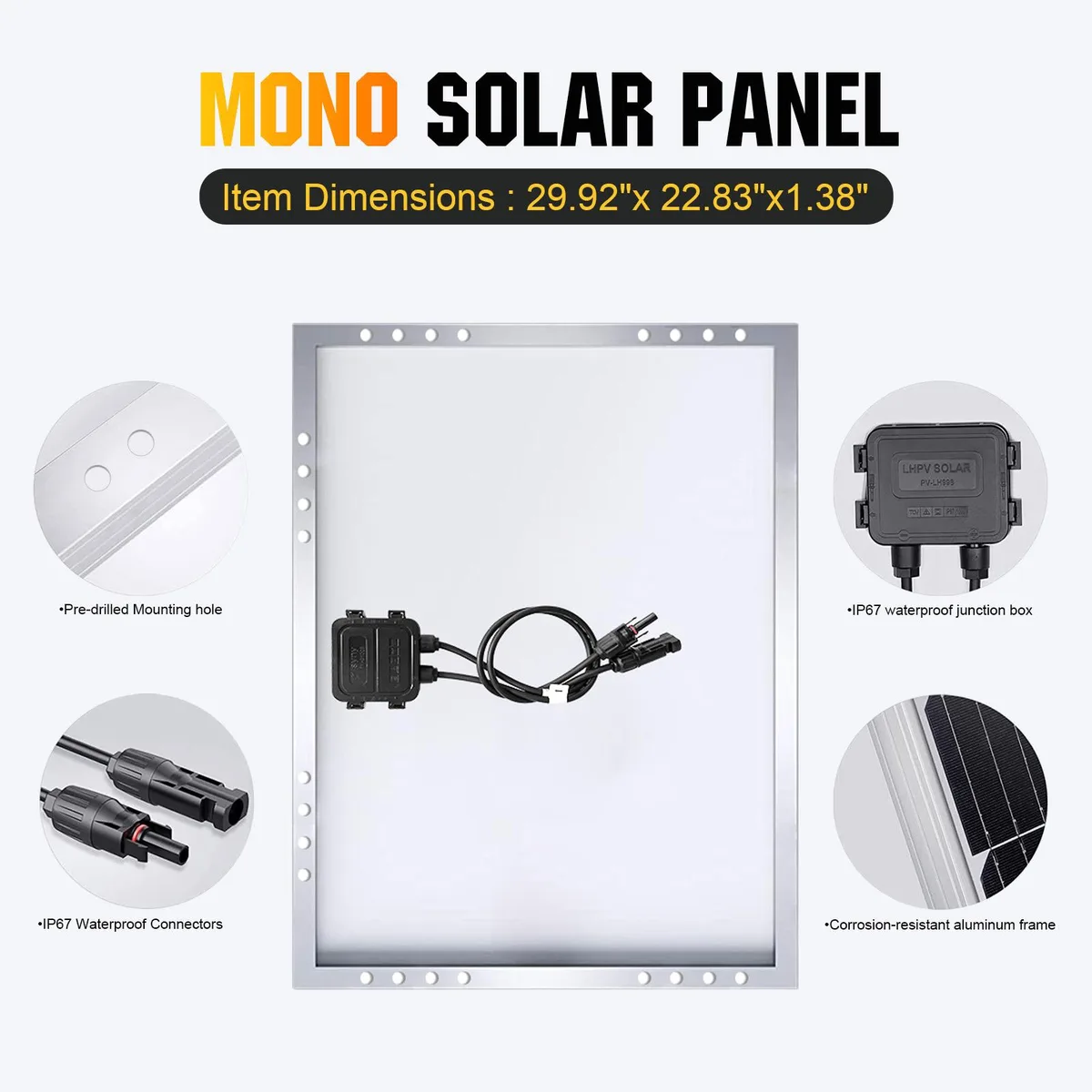

  • Pre-drilled holes and MC4 leads for quick mounting
  • Anodised aluminium frame rated 2400Pa wind and 5400Pa snow
  • Compact 76×58 cm panel weighs only 4.58 kg

Power output & voltage

This 100W monocrystalline panel delivers up to 100 watts at 21.6V optimum operating voltage and 5.55A current. Open-circuit voltage reaches 18V with a short-circuit current of 6.2A, making it suitable for 12V battery charging systems. Half-cut cell technology reduces power loss and lowers operating temperature for more stable performance.

Ideal off-grid uses

Well suited for RV, motorhome, cabin, marine and home backup installations where a single 100W panel fits the available mounting area. Pre-drilled holes and MC4 connectors simplify connection to a charge controller or expansion with additional panels. Not for buyers who need higher daily energy yield without adding more panels, or installations that cannot accommodate the 76 by 58 cm footprint.

Electrical specification check

Verify that your charge controller accepts 21.6V Vmp and 18V Voc for a 12V nominal system. The panel produces roughly 0.8 kWh per day under eight hours of full sun, with a 20-year output warranty at 80% of rated power. Operating temperature range spans -40°C to +80°C, and the frame withstands 2400Pa wind and 5400Pa snow loads.

Erősségek

  • 100W rated output from monocrystalline half-cut cells
  • 90% power output retained after 10 years
  • Pre-drilled holes and MC4 leads for quick mounting
  • Anodised aluminium frame rated 2400Pa wind and 5400Pa snow
  • Compact 76×58 cm panel weighs only 4.58 kg

Műszaki adatok

BrandPFCTART
Model100W Solar Panel
TypeSolar Panels
Cell TypeMonocrystalline
Solar Panel KitsOff-Grid
Size/Dimensions76*58*3 cm
Weight4.58 KG
FrameAnodized aluminum alloy
ConnectorsMC4 Connectors
NOCT Maximum Power (Pmax)100W
NOCT Optimum Operating Voltage (Vmp)21.6V
NOCT Optimum Operating Current (Imp)5.55A
NOCT Open Circuit Voltage (Voc)18V
NOCT Short Circuit Current (Isc)6.2A
Nominal Operating Cell Temperature (-40 to +80
Item CountOutdoor
SpecificationsHigh Efficient Monocrystalline
FeaturesAll Daylight Conditions, Corrosion Resistant, Maintenance Free, Monocrystalline,With pre-drilled mounting holes

Kérdések a termékről

Should I pick the 100W 12V panel or a higher-wattage model for my off-grid setup?

The 100W panel produces about .8 kWh per day under eight hours of full sun, so choose it if that daily yield matches your load; add more panels of the same rating if you need more energy.

What does the 100W rating actually deliver once the panel is installed?

At NOCT the panel reaches 21.6V at 5.55A for 100W peak; open-circuit voltage is 18V and short-circuit current is 6.2A, so a compatible charge controller must handle those values.

What connectors does the panel use and what voltage does the MC4 interface limit me to?

It ships with MC4 connectors rated for the panel’s 18V open-circuit voltage and 6.2A short-circuit current, so any controller or cable with standard MC4 plugs will work within those electrical limits.
