Blue rectangular monocrystalline solar panel with silver aluminium frame, MC4 connectors, 76 by 58 cm

PFCTART

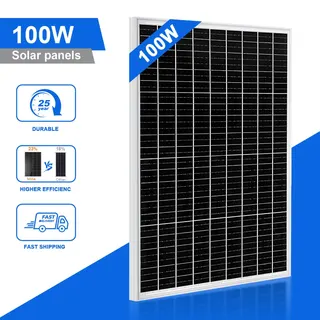

PFCTART 100W 12V Monocrystalline Solar Panel Watt Boat

SKU CH-7HCJ-WNF2D

Monocrystalline panel delivers 100 W at 12 V with half-cut cells, IP65 junction box and MC4 connectors for off-grid use

  • TypeSolar Panels
  • Cell TypeMonocrystalline
  • Solar Panel KitsOff-Grid
  • Size/Dimensions76*58*3 cm
  • FrameAluminum alloy frame
  • ConnectorsMC4 Connectors
  • 100W output at 18V optimum voltage charges 12V batteries efficiently
  • Half-cut cell technology reduces power loss and runs cooler under load
  • IP65-rated junction box resists dust and low-pressure water jets for outdoor durability
  • Pre-drilled mounting holes and MC4 connectors enable quick installation and expansion
  • Monocrystalline cells deliver 90% power output at 10 years and 80% at 20 years

PFCTART 100W 12V Monocrystalline Solar Panel

This new 100W monocrystalline panel uses half-cut cell technology to deliver stable off-grid power for RVs, boats, cabins and home backup. It operates at 18V Vmp and 21.6V Voc with a 6.2A short-circuit current. The IP65-rated junction box resists dust and low-pressure water jets for reliable outdoor service.

Thermals and power in normal use

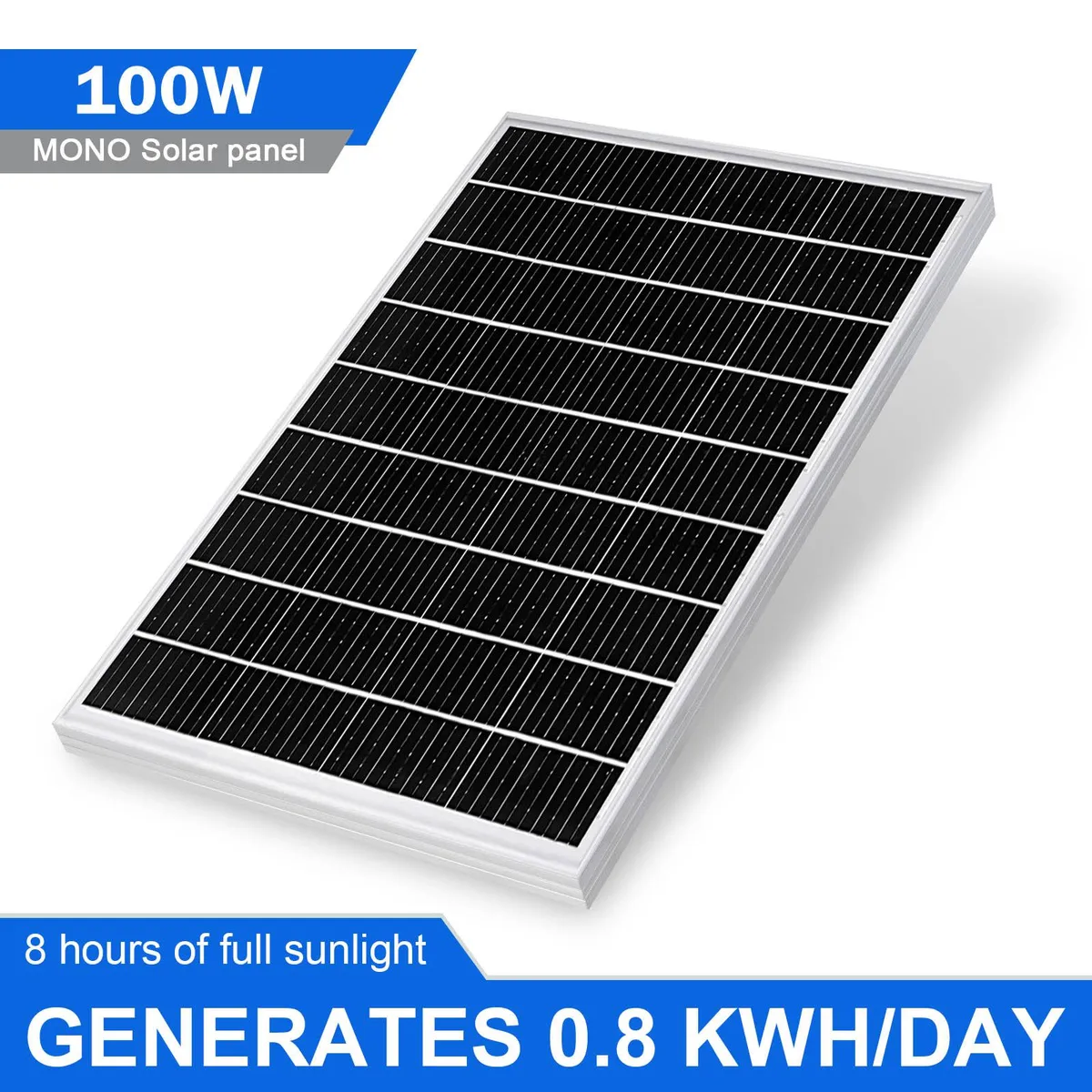

Half-cut cells lower the panel temperature and reduce power loss compared to regular designs. Under eight hours of full sunshine the panel generates .8 kWh per day at its 100W STC rating. The corrosion-resistant aluminum frame and shatter-resistant glass maintain performance across decades of exposure.

Bundled hardware for installation

Pre-drilled mounting holes, MC4 connector leads and the IP65 junction box let you mount and wire the panel or expand the array without extra parts. Grade A+ monocrystalline cells provide over 90% transferable output at 10 years and 80% at 20 years. Buyers needing integrated battery storage or grid-tie inverters must source those separately.

Erősségek

  • 100W output at 18V optimum voltage charges 12V batteries efficiently
  • Half-cut cell technology reduces power loss and runs cooler under load
  • IP65-rated junction box resists dust and low-pressure water jets for outdoor durability
  • Pre-drilled mounting holes and MC4 connectors enable quick installation and expansion
  • Monocrystalline cells deliver 90% power output at 10 years and 80% at 20 years

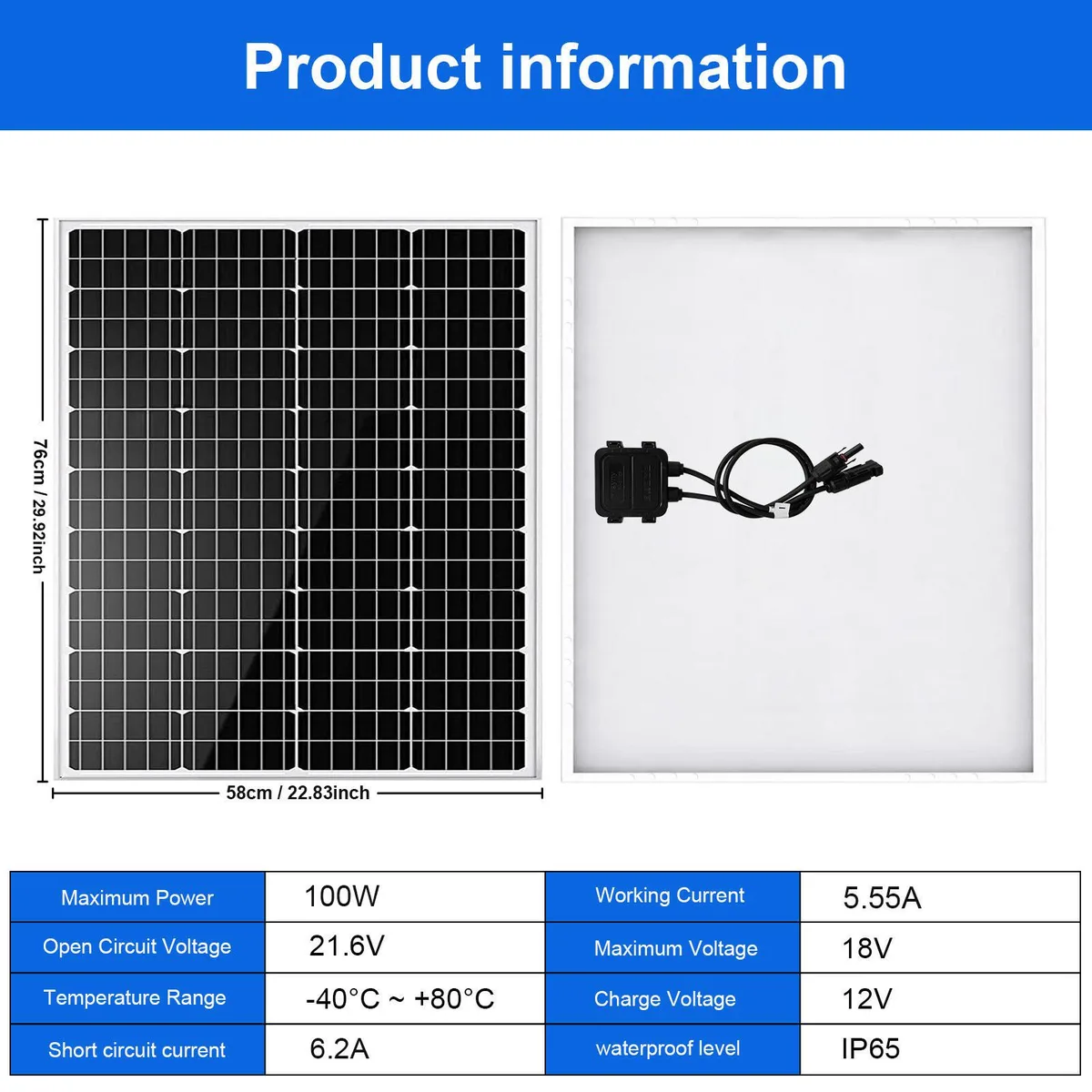

Műszaki adatok

BrandPFCTART
ModelMonocrystalline Solar Panel
TypeSolar Panels
Cell TypeMonocrystalline
Solar Panel KitsOff-Grid
Size/Dimensions76*58*3 cm
FrameAluminum alloy frame
ConnectorsMC4 Connectors
STC Maximum Power (Pmax)100W
STC Optimum Operating Voltage (Vmp)18V
STC Open Circuit Voltage (Voc)21.6V
STC Short Circuit Current (Isc)6.2A
Specifications100W 12V Mono Solar Panel
FeaturesHigh Conversion Efficiency/Upgraded Design/IP65-rated

Kérdések a termékről

How do I mount the 76 by 58 cm panel and connect the MC4 leads to a charge controller?

Use the pre-drilled mounting holes on the aluminium alloy frame to secure the panel, then plug the MC4 connectors into a compatible 12 V charge controller observing correct polarity.

What output degradation should I expect from the monocrystalline cells over time?

The panel is rated to deliver over 90 % of its original power after 10 years and 80 % after 20 years under standard conditions.

At what voltage will the 100 W panel clamp under sustained full-sun operation?

The optimum operating voltage is 18 V at maximum power, with an open-circuit voltage of 21.6 V and short-circuit current of 6.2 A.
