A blue rectangular solar panel with silver aluminium frame and attached charge controller box

PFCTART

PFCTART 200W 12V Mono Solar Panel Kit with 30A Controller

SKU CH-GRHM-QH7DF MPN 200W

A 200W monocrystalline solar kit with a 30A charge controller for 12V off-grid power

  • TypeSolar Panel Kits
  • Cell TypeMonocrystalline
  • Solar Panel KitsOff-Grid
  • Kit AccessoriesCharge Controller
  • Number of Cells23%
  • Size/Dimensions76*58*3 cm
  • Half-cut cells reduce power loss and improve shading tolerance for stable off-grid output
  • IP65 junction box resists dust and water jets for reliable outdoor durability
  • 30 A charge controller included so the kit is ready to connect and expand
  • Monocrystalline cells deliver 200 W peak power with 100 W NOCT rating for efficient generation

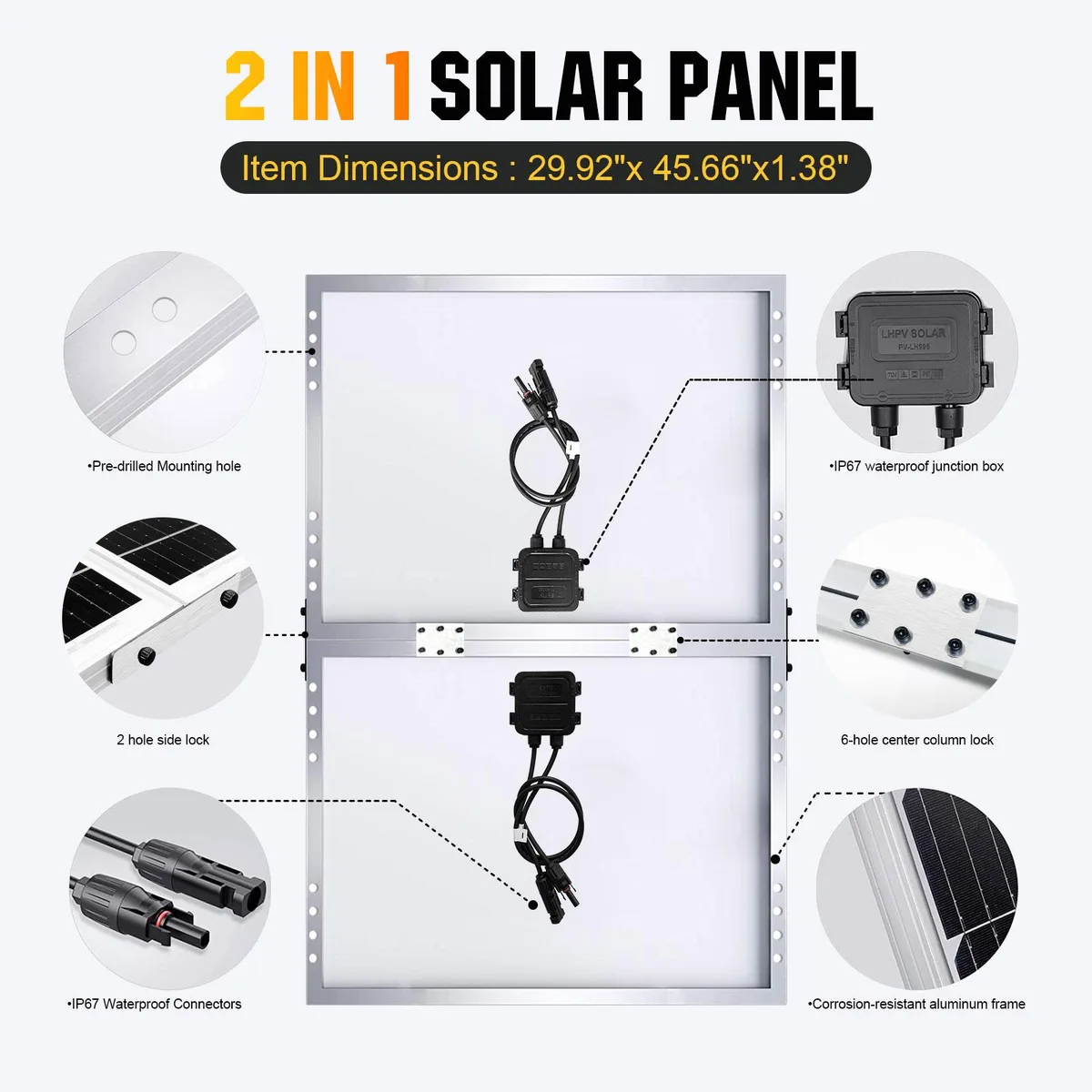

  • Pre-drilled holes and MC4 connectors enable quick mounting without special tools

Off-Grid Solar Kit with 30A Controller

This 200W monocrystalline panel kit includes a 30A charge controller for off-grid battery charging. It suits RV owners, cabin users and marine installations needing a complete starter system. The half-cut cell design reduces power loss and lowers operating temperature compared to standard panels. Buyers who need grid-tie capability or microinverter compatibility should look elsewhere.

Check Battery Voltage and Mounting Space

The kit is built for 12V battery banks; verify your bank matches this voltage before ordering. Ensure you have a flat area of at least 76 by 58 cm for the panel footprint. The anodised aluminium frame uses pre-drilled holes for standard brackets. No roof-penetration hardware or extension cables are supplied in the box.

IP65 Junction Box Handles Dust and Jets

The IP65-rated junction box resists dust ingress and low-pressure water jets during normal outdoor exposure. At NOCT the panel delivers 100W at 21.6V and 5.55A, with an open-circuit voltage of 18V. The 4.58 kg weight keeps wind loading modest on vehicle roofs. Silent solid-state operation adds no audible noise to the site.

Erősségek

  • Half-cut cells reduce power loss and improve shading tolerance for stable off-grid output
  • IP65 junction box resists dust and water jets for reliable outdoor durability
  • 30 A charge controller included so the kit is ready to connect and expand
  • Monocrystalline cells deliver 200 W peak power with 100 W NOCT rating for efficient generation
  • Pre-drilled holes and MC4 connectors enable quick mounting without special tools

Műszaki adatok

Model200W Mono Solar Panel Kit
TypeSolar Panel Kits
Cell TypeMonocrystalline
Solar Panel KitsOff-Grid
Kit AccessoriesCharge Controller
Number of Cells23%
Size/Dimensions76*58*3 cm
Weight4.58 KG
FrameAnodized aluminum alloy
ConnectorsMC4 Connectors
NOCT Maximum Power (Pmax)100W
NOCT Optimum Operating Voltage (Vmp)21.6V
NOCT Optimum Operating Current (Imp)5.55A
NOCT Open Circuit Voltage (Voc)18V
NOCT Short Circuit Current (Isc)6.2A
SpecificationsHigh Efficient Monocrystalline
FeaturesHigh Conversion Efficiency/Upgraded Design/High Quality/IP65-rated

Kérdések a termékről

Does the kit include mounting brackets or just the panel, controller and MC4 connectors?

The kit supplies the 200 W monocrystalline panel, a 30 A charge controller, MC4 leads, pre-drilled mounting holes and a junction box; separate brackets or rails are not included.

Should I choose the 12 V 200 W mono kit or a higher-voltage version for my off-grid cabin?

This 12 V kit delivers 200 W rated power with 21.6 V Vmp and 5.55 A Imp, matching 12 V battery banks; higher-voltage arrays would need a different controller and wiring.

What daily energy can I expect from the 200 W panel in eight hours of full sun?

Under eight hours of full sunshine the panel generates about 1.6 kWh per day, based on the 100 W NOCT Pmax and 23 % cell efficiency.
