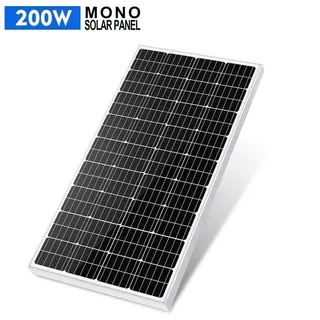

Rectangular dark-blue monocrystalline panel in silver anodised aluminium frame with MC4 connectors

PFCTART

PFCTART 200W Monocrystalline Solar Panel 126×76×3 cm

SKU CH-0C05-CKTHY MPN 200W

Monocrystalline panel delivers 200 W at 18 V with IP67 connectors and a corrosion-resistant aluminium frame for off-grid 12 V charging

  • TypeSolar Panels
  • Cell TypeMonocrystalline
  • Solar Panel KitsOff-Grid
  • Kit AccessoriesWiring & Connector
  • Size/Dimensions126*76*3 CM
  • FrameAnodized aluminum alloy
  • High efficiency from 91.5% transparent anti-reflective glass
  • Durable cells protected by multi-layer encapsulation lamination
  • Corrosion-resistant anodized aluminium frame with reinforced corners
  • IP67 waterproof MC4 connectors block dust and water ingress
  • 200W monocrystalline panel delivers 18V optimum operating voltage

Panel Purpose

This 200W monocrystalline panel converts sunlight into 12V electrical power for off-grid battery charging. It includes MC4 connectors and wiring accessories for direct connection to charge controllers. The anodised aluminium frame and tempered glass construction are built for permanent outdoor installation on vehicles, vessels or buildings.

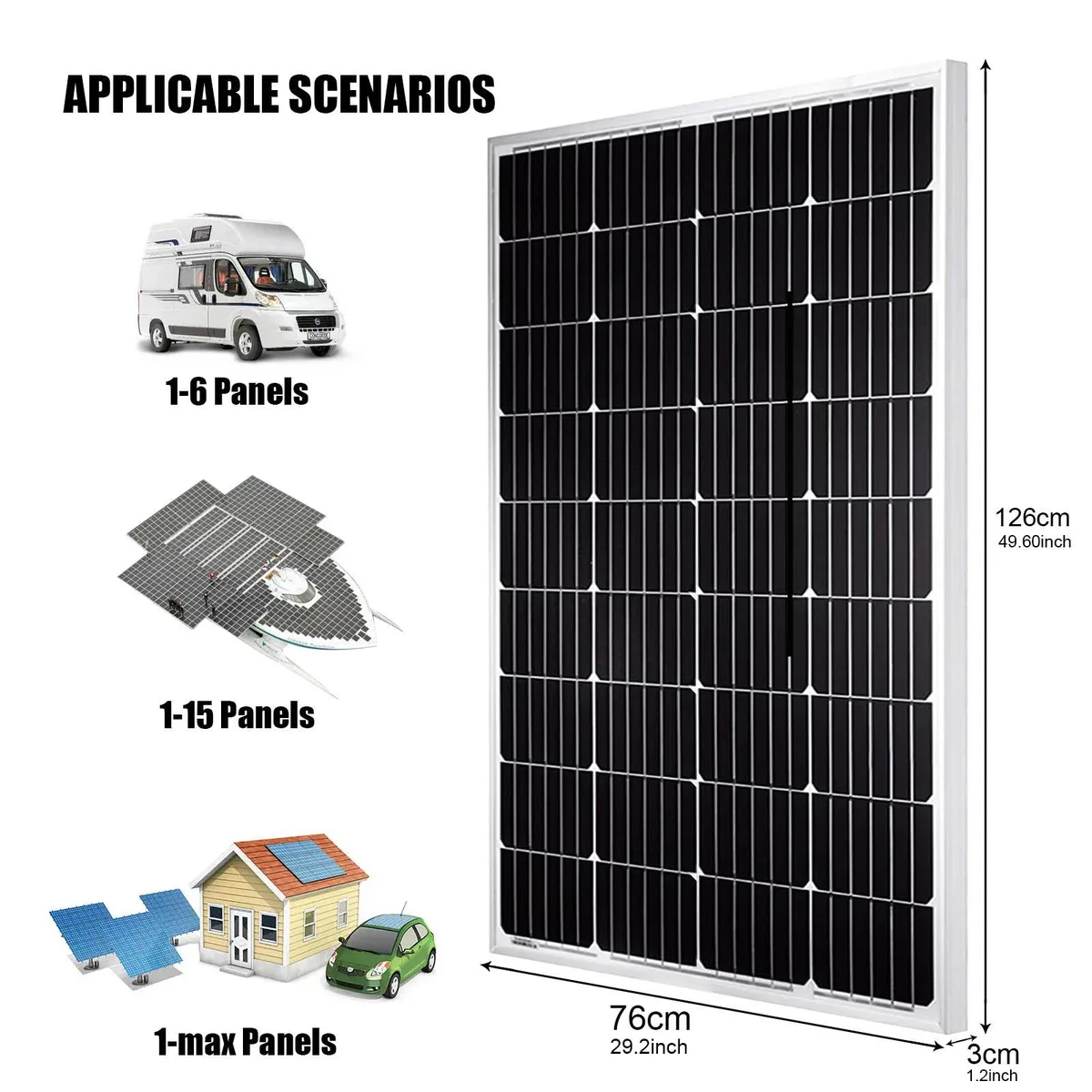

Suitable Installations

The panel suits owners of RVs, boats, cabins or remote homes who need a single 200W module for 12V deep-cycle battery banks. Its fixed 126×76 cm footprint requires a flat mounting surface and cannot be folded for portable use. Installers needing higher voltage arrays or flexible panels should consider other designs.

Electrical Match

The module delivers a maximum power voltage of 18V and a short-circuit current of 12.2A under NOCT conditions. A charge controller rated for at least these voltage and current values is essential to protect the battery bank and harvest the full 200W output.

Erősségek

  • High efficiency from 91.5% transparent anti-reflective glass
  • Durable cells protected by multi-layer encapsulation lamination
  • Corrosion-resistant anodized aluminium frame with reinforced corners
  • IP67 waterproof MC4 connectors block dust and water ingress
  • 200W monocrystalline panel delivers 18V optimum operating voltage

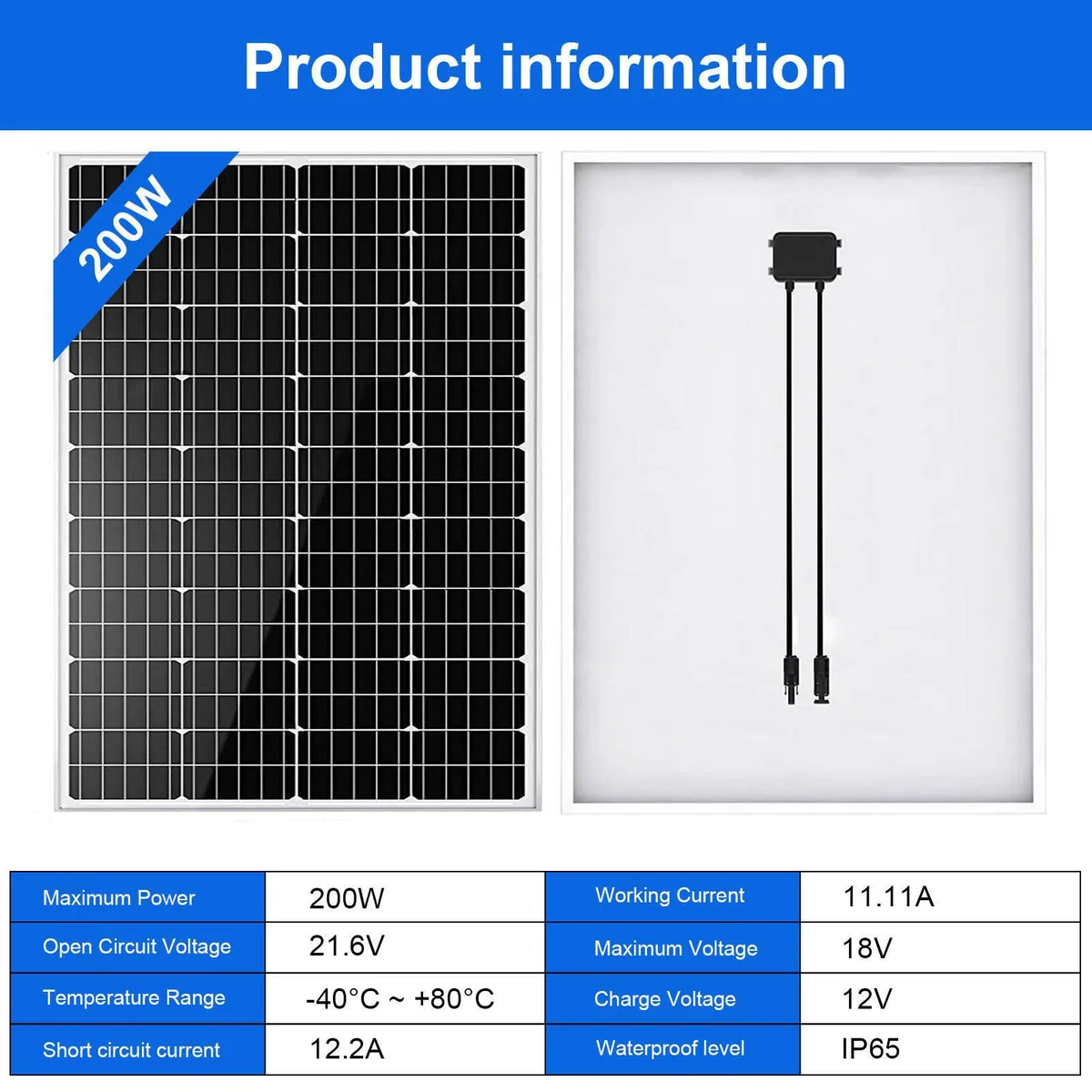

Műszaki adatok

Model200W Mono Solar Panel
TypeSolar Panels
Cell TypeMonocrystalline
Solar Panel KitsOff-Grid
Kit AccessoriesWiring & Connector
Size/Dimensions126*76*3 CM
FrameAnodized aluminum alloy
ConnectorsMC4 Connectors
NOCT Maximum Power (Pmax)200W
NOCT Optimum Operating Voltage (Vmp)18V
NOCT Optimum Operating Current (Imp)11.11A
NOCT Open Circuit Voltage (Voc)21.6V
NOCT Short Circuit Current (Isc)12.2A
Item CountAlternative & Solar Energy
SpecificationsAbrasion Resistant, Antimicrobial Resistant, Chemical Resistant, Corrosion Resistant, Dust Resistant, Dustproof
FeaturesWaterproof

Kérdések a termékről

What charge controller rating do I need to handle the 18 V optimum voltage and 11.11 A current from this 200 W panel?

Choose a 12 V solar charge controller rated for at least 11.11 A input current and an MPPT or PWM model that accepts 18 V Vmp; the panel's MC4 connectors plug directly into the controller's PV terminals.

Will the MC4 connectors on this panel mate with the MC4 leads on my existing 12 V battery bank?

Yes, the panel ships with standard MC4 connectors that match the MC4 pigtails commonly used on 12 V deep-cycle battery banks, so you can link them without adapters.

How can I confirm the panel is delivering its rated 200 W after installation?

Under full sun, measure voltage and current at the controller; you should see roughly 18 V and 11.11 A at the maximum power point, giving the rated 200 W output.
