Four dark-blue monocrystalline panels in silver anodised aluminium frames, stacked with a charge controller and MC4 cables

PFCTART

PFCTART 400W 12V Monocrystalline Solar Panel Kit

SKU CH-0G9Z-PHAEM MPN 400W

A 400W off-grid monocrystalline kit with half-cut cells, anodised aluminium frame, IP67 junction box, MC4 connectors and a charge controller included

  • TypeSolar Panel Kits
  • Cell TypeMonocrystalline
  • Solar Panel KitsOff-Grid
  • Kit AccessoriesCharge Controller
  • Solar InvertersOff-Grid Inverters
  • Solar CellMonocrystalline
  • Delivers 1.6 kWh daily energy with 200 W panel under 8 hours sun
  • Half-cut cell design boosts stable output for off-grid systems
  • IP67 junction box plus IP65 rating resists dust and water jets
  • Anodized aluminum frame withstands 2400 Pa wind and 5400 Pa snow loads
  • Pre-drilled holes and MC4 connectors enable quick off-grid installation

Off-Grid Solar Kit

This PFCTART kit delivers a 400W 12V off-grid solar system built around monocrystalline panels. It includes two 200W modules, a charge controller and MC4 connectors ready for battery charging. The package suits RV, boat, cabin or backup power installations where grid access is unavailable.

Half-Cut Cell Panels

The monocrystalline panels use half-cut cell technology for stable output and reduced hotspot risk. Anodized aluminium frames withstand 2400Pa wind and 5400Pa snow loads while IP67-rated junction boxes resist dust and water jets. Buyers needing grid-tie inverters or micro-inverter compatibility should look elsewhere.

200W Per Panel at NOCT

Each panel reaches 200W maximum power at NOCT with 21.6V optimum voltage and 11.11A operating current. Open-circuit voltage is 18V and short-circuit current 12.2A. Daily yield reaches 1.6kWh per panel under eight hours of full sun, so total output scales directly with the number of modules installed.

Erősségek

  • Delivers 1.6 kWh daily energy with 200 W panel under 8 hours sun
  • Half-cut cell design boosts stable output for off-grid systems
  • IP67 junction box plus IP65 rating resists dust and water jets
  • Anodized aluminum frame withstands 2400 Pa wind and 5400 Pa snow loads
  • Pre-drilled holes and MC4 connectors enable quick off-grid installation

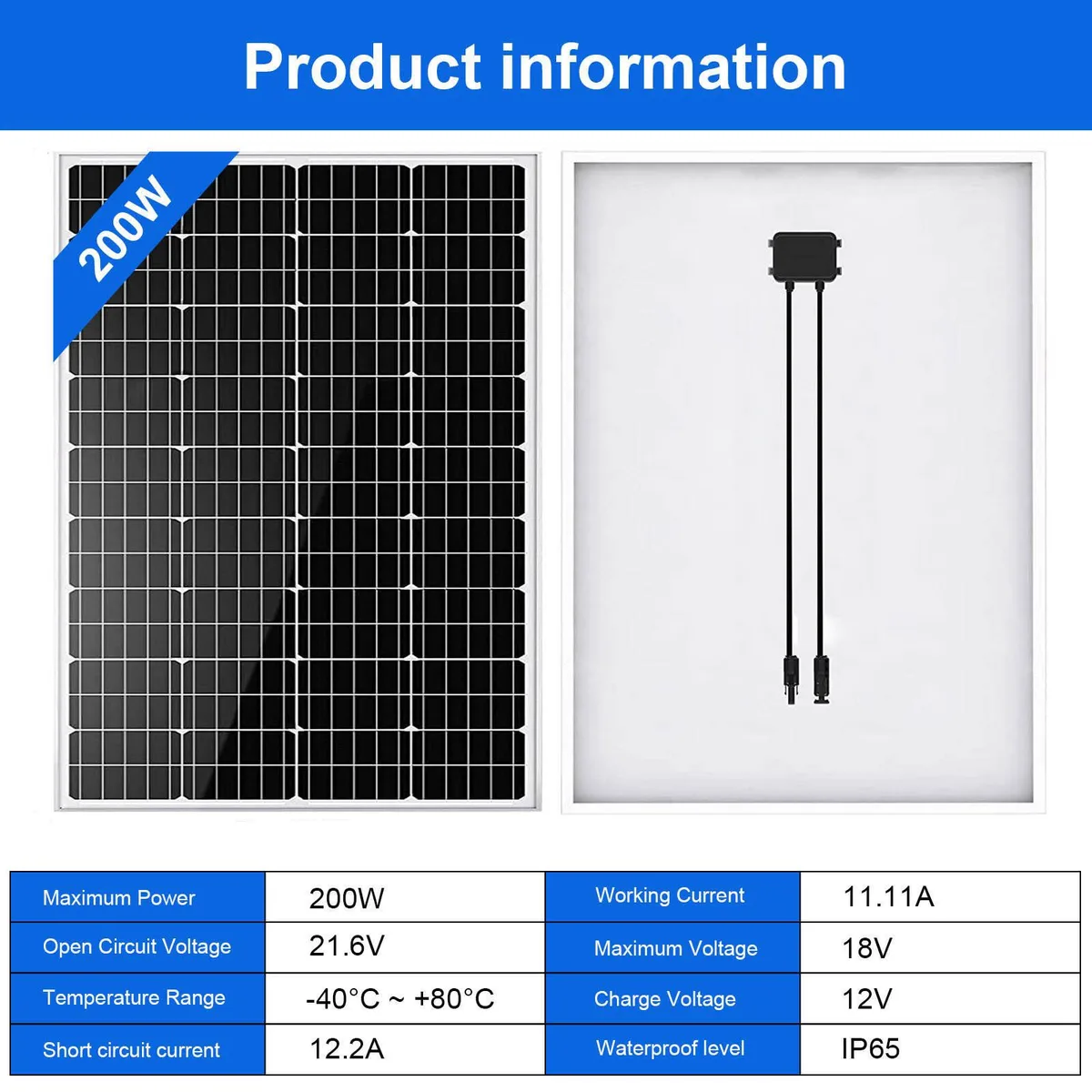

Műszaki adatok

BrandPFCTART
Model400W Solar Panel Kit
TypeSolar Panel Kits
Cell TypeMonocrystalline
Solar Panel KitsOff-Grid
Kit AccessoriesCharge Controller
Solar InvertersOff-Grid Inverters
Solar CellMonocrystalline
Size/Dimensions50.78*29.92*1.18 Inch
Weight25.57 lbs
FrameAnodized aluminum alloy
Junction BoxIP67 rated
ConnectorsMC4 Connectors
NOCT Maximum Power (Pmax)200W
NOCT Optimum Operating Voltage (Vmp)21.6V
NOCT Optimum Operating Current (Imp)11.11A
NOCT Open Circuit Voltage (Voc)18V
NOCT Short Circuit Current (Isc)12.2A
Nominal Operating Cell Temperature (-40? to +80?
Item Countmono-Cryatalline Silicon
SpecificationsAlternative & Solar Energy
FeaturesAll Daylight Conditions, Maintenance Free, Monocrystalline

Kérdések a termékről

Can I connect this 400W 12V kit to my existing 12V battery bank without rewiring?

Yes, the kit is designed for 12V off-grid systems and uses MC4 connectors that plug directly into compatible charge controllers and battery wiring.

How do I verify the panels are producing power correctly after installation?

Under full sun, check that the charge controller shows voltage near 21.6V open-circuit and current around 11.11A at maximum power; daily yield should approach 3.2 kWh with both 200W panels.

Does the box include mounting brackets and battery cables, or must I buy them separately?

The kit includes two 200W monocrystalline panels with pre-drilled holes, an IP65-rated junction box, MC4 leads, and a charge controller; mounting brackets and battery cables are not included.
