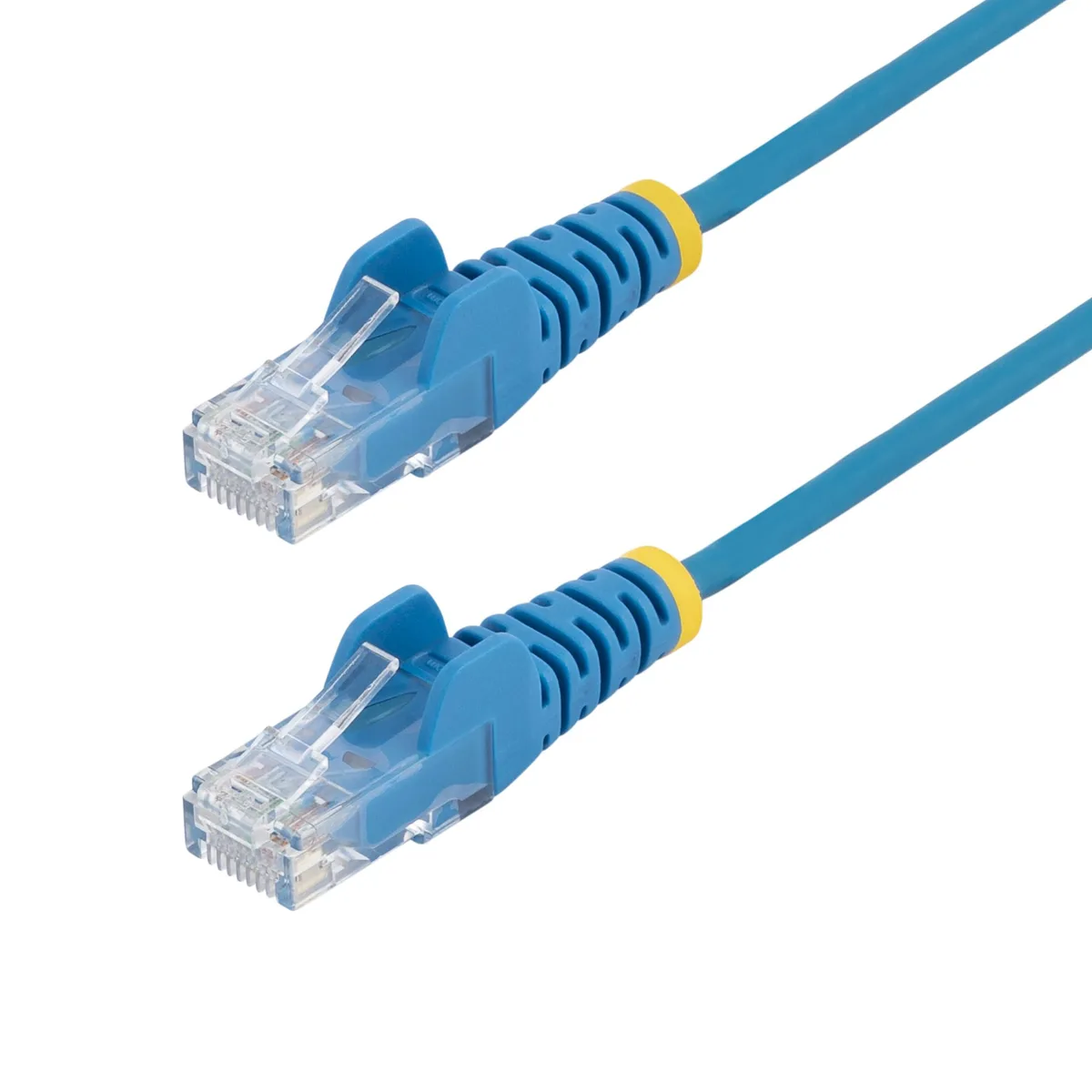

Blue slim Cat6 patch cable with snagless RJ45 connectors, 2ft length

STARTECH

STARTECH N6PAT2BLS network ethernet cable 2ft blue CAT6 28AWG LSZH

SKU CH-EK1T-VEE59 MPN N6PAT2BLS

A slim Cat6 patch cable with 28 AWG pure copper conductors, snagless gold-plated RJ45 connectors and an LSZH jacket for high-density installs

  • TypeEthernet
  • Cat6
  • Connector ARJ45
  • ColorBlue
  • Features, , , ,
  • Slim 28AWG design is 36% thinner for high-density routing
  • Snagless RJ45 connectors with 50-micron gold contacts reduce signal loss
  • Pure bare copper conductors deliver 10 Gbps at 250 MHz
  • LSZH jacket emits low toxic fumes for safer enclosed installations
  • Supports PoE++ up to 100W per IEEE 802.3bt Type 4

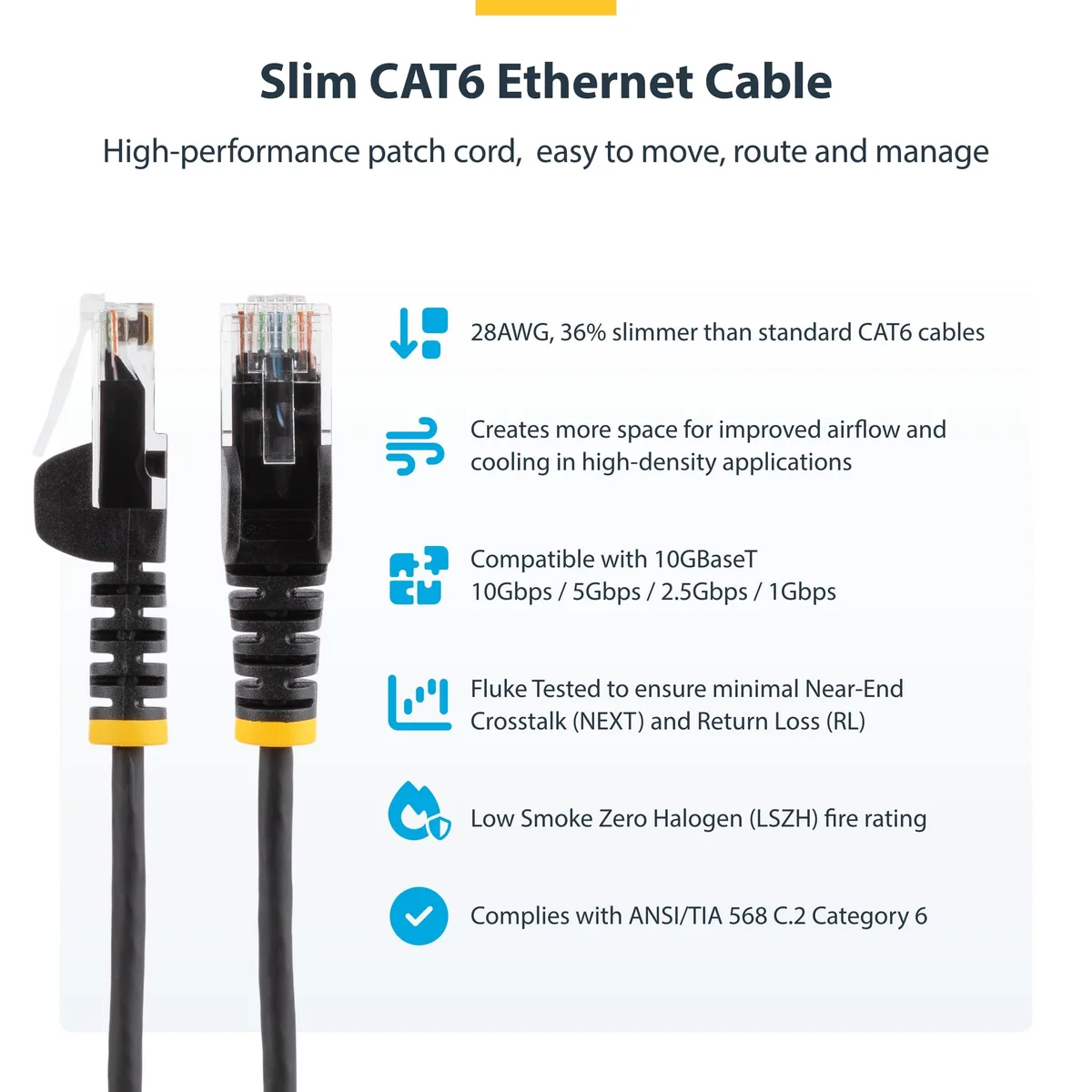

Slim Cat6 cable for dense installs

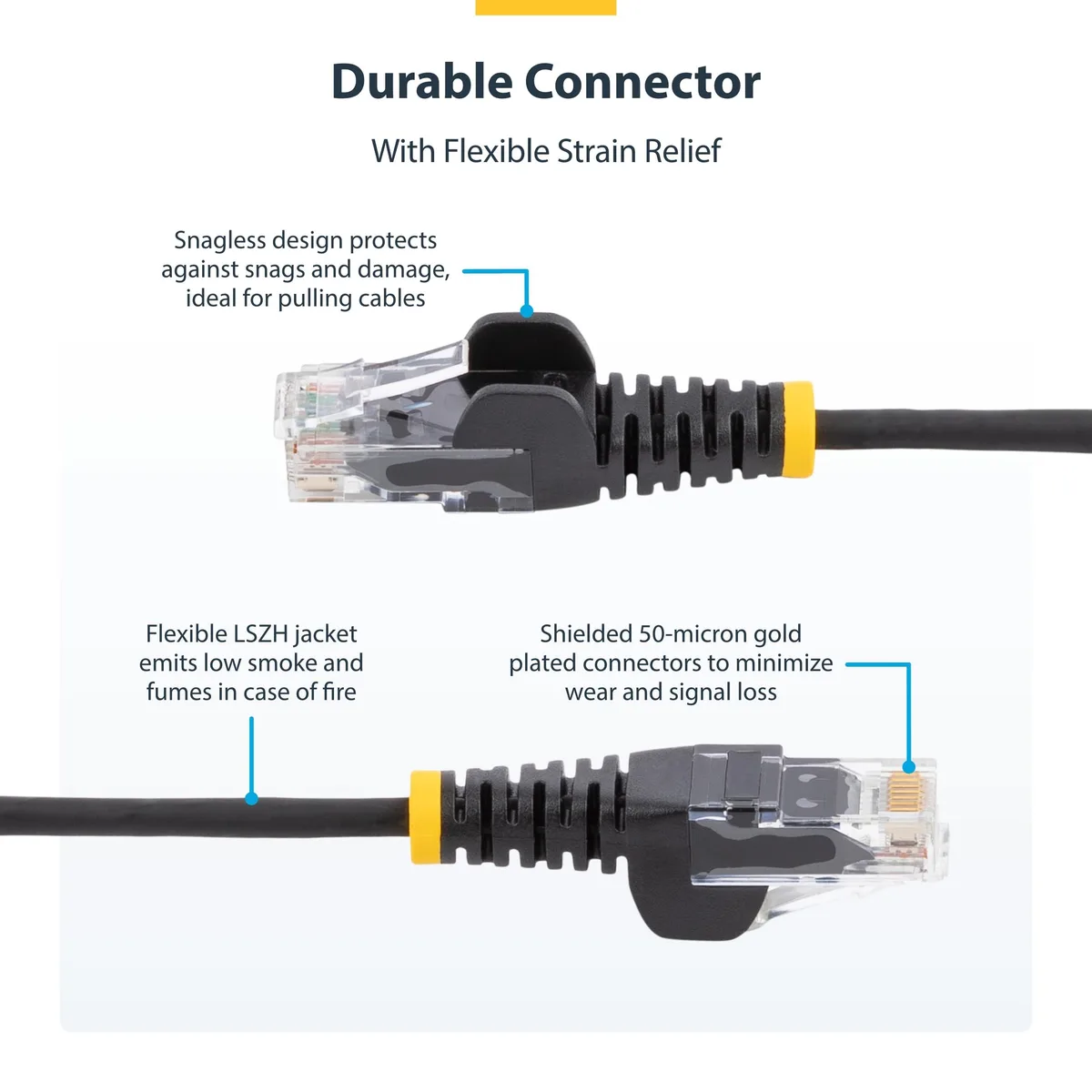

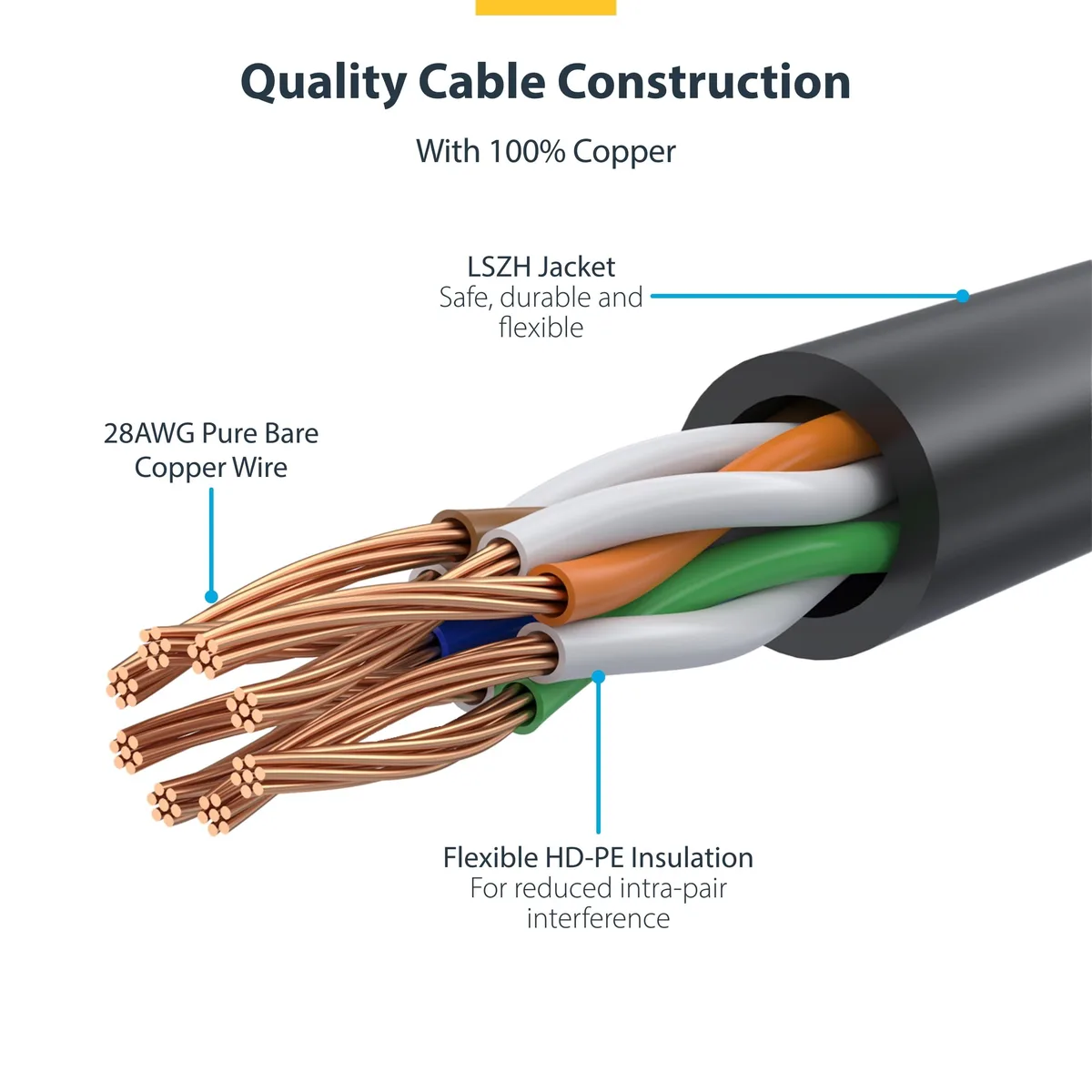

This two-foot blue Cat6 patch cable uses a 28AWG pure bare copper construction that is 36% slimmer than standard Cat6, making it easier to route through crowded network closets and cable management panels. The Low-Smoke Zero Halogen jacket adds flexibility and meets safety requirements for enclosed or poorly ventilated spaces. Snagless RJ45 connectors with 50-micron gold-plated contacts help maintain a secure fit during frequent moves.

10 Gbps at 250 MHz with PoE++

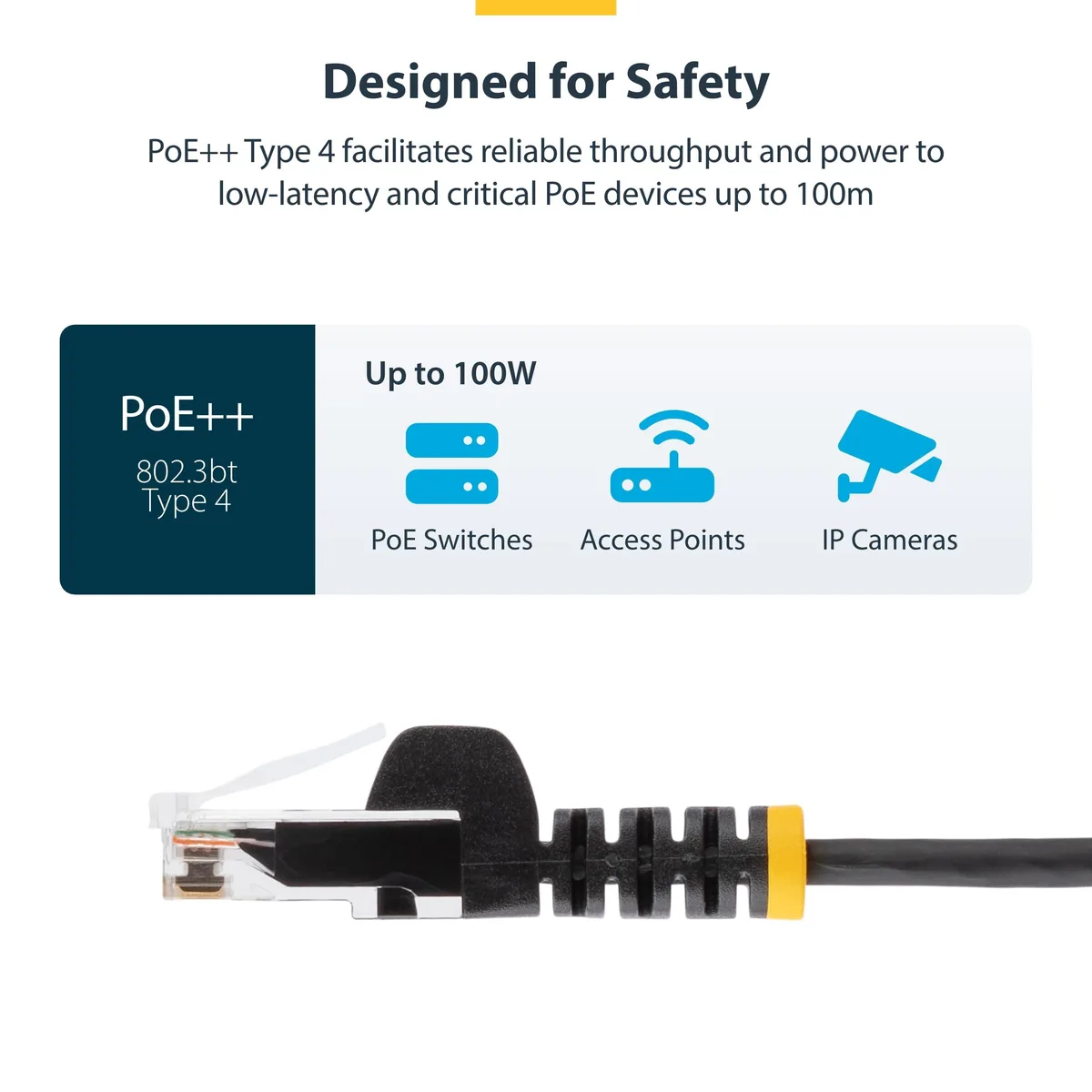

The cable is rated for 10 Gbps data rates and a 250 MHz bandwidth, supporting Power over Ethernet up to 100W under the IEEE 802.3bt Type 4 specification. Compliance with ANSI/TIA-568-C.2 guarantees Cat6 performance for high-density switching and PoE device deployments. Low Near-End Crosstalk and Return Loss figures keep signal quality consistent across the short run.

Fits tight panels and PoE endpoints

Its reduced diameter frees up space in high-density patch panels and improves airflow between rack-mounted equipment, simplifying troubleshooting access. The LSZH jacket allows installation in plenum-like areas where standard PVC cables are restricted. The cord connects directly to PoE++ devices such as IP cameras or boardroom displays without needing a separate power injector. Not suited for runs that exceed the two-foot length or for installations requiring shielded twisted-pair cabling.

Erősségek

  • Slim 28AWG design is 36% thinner for high-density routing
  • Snagless RJ45 connectors with 50-micron gold contacts reduce signal loss
  • Pure bare copper conductors deliver 10 Gbps at 250 MHz
  • LSZH jacket emits low toxic fumes for safer enclosed installations
  • Supports PoE++ up to 100W per IEEE 802.3bt Type 4

Műszaki adatok

BrandStarTech
ModelN6PAT2BLS
TypeEthernet
Cat6
Connector ARJ45
ColorBlue
Features, , , ,
Szállítási súly0.45 kg
Csomagméret25 × 25 × 25 mm

Kérdések a termékről

What does the 10 Gbps rating mean when the cable is installed in a rack?

The 10 Gbps rating is the maximum throughput at 250 MHz bandwidth; actual speed depends on the connected switch, router and network interface capabilities

How does the RJ45 connector and Cat 6 standard limit real-world use?

The RJ45 plugs are wired to TIA-568-C.2 Cat 6 specs and support IEEE 802.3bt Type 4 PoE++ up to 100 W, so the link is capped at Cat 6 performance and 100 W power delivery

Will the slim 28 AWG cable fit in a high-density patch panel?

Yes, the 36 percent slimmer diameter and snagless 50-micron gold contacts are designed for tight cable-management panels and high-density network closets
