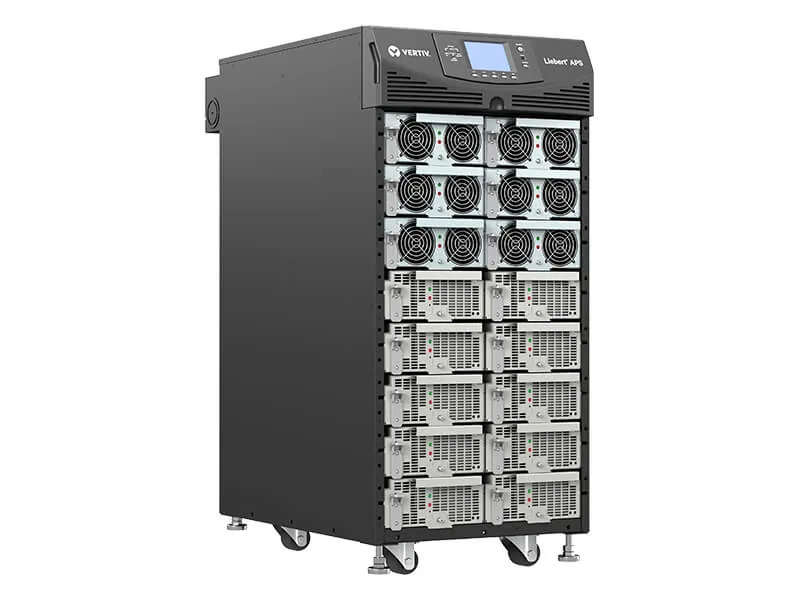

Tall grey rack-tower UPS cabinet 38 by 17 by 34 inches with front LCD display

Vertiv

Vertiv AS6C0NCWGNNXLKB 15kVA 208V UPS 5min runtime

SKU CH-YCAR-BJBWV MPN AS6C0NCWGNNXLKB

Scalable 15 kVA double-conversion UPS delivers 13.5 kW with five minutes full-load runtime in a rack-tower frame

  • International Version208V
  • Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection4-Wire (L-L-N-G)
  • VA Rating15 kVA
  • Watts13.5 kW

Option AS6C0NCWGNNXLKB

Még 16 konfiguráció megtekintése
  • 15 kVA scalable to 20 kVA N+1 for growing power needs
  • 5 kW online double-conversion output protects critical loads
  • 5 minutes full-load and 16 minutes half-load battery runtime
  • 40 Hz to 70 Hz auto-sensing input handles unstable mains
  • Rack or tower form factor fits 38-inch rack space

Scalable 15 kVA UPS for critical loads

The Vertiv Liebert AS6C0NCWGNNXLKB is an online double-conversion UPS delivering 15 kVA and 13.5 kW at 208 V split-phase. It accepts a wide input range of 200/100 to 240/120 VAC at 40 Hz to 70 Hz and provides user-configurable 50 Hz or 60 Hz output. The unit operates as rack or tower and includes a factory-installed SNMP web card for network management.

Replaces smaller single-module units when capacity

Scaling from a fixed-capacity UPS to this modular frame is worthwhile when the load exceeds the current unit or when N+1 redundancy becomes a requirement. The architecture supports expansion to 20 kVA within the same enclosure, avoiding a complete rip-and-replace. Buyers who need more than 20 kVA or who require three-phase output will not be served by this platform.

Fits standard racks with four-wire input

The 38 in by 17 in by 34 in chassis weighs 605 lbs and connects via 4-wire L-L-N-G input. Valve-regulated lead-acid batteries provide 5 minutes at full load and 16 minutes at half load. Integrated leak, temperature and humidity sensors feed the LCD status display and the SNMP card. Installers must provide adequate floor loading and clearance for the stated dimensions.

Erősségek

  • 15 kVA scalable to 20 kVA N+1 for growing power needs
  • 5 kW online double-conversion output protects critical loads
  • 5 minutes full-load and 16 minutes half-load battery runtime
  • 40 Hz to 70 Hz auto-sensing input handles unstable mains
  • Rack or tower form factor fits 38-inch rack space

Műszaki adatok

BrandVertiv
SeriesLiebert
ModelAS6C0NCWGNNXLKB
International Version208V
Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection4-Wire (L-L-N-G)
VA Rating15 kVA
Watts13.5 kW
Output Voltage200/100, 208/120, 220/110, 230/115, 240/120 VAC
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load: 5 mins.
Half Load: 16 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions38" x 17" x 34"
Weight605 lbs.
Szállítási súly274.42 kg
Csomagméret965 × 864 × 432 mm

A modell további verziói

5 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

What rack depth and floor capacity are needed for the 38" x 17" x 34" 605 lb UPS?

The unit measures 38 inches high, 17 inches wide and 34 inches deep and weighs 605 lbs, so a standard 42U rack with at least 34 inches usable depth and a floor rated for 605 lbs is required.

How is the 4-wire L-L-N-G input wired, and what step is often missed?

Connect the 4-wire input to a 208/120 VAC split-phase source with neutral and ground; the step often missed is verifying the neutral-to-ground bond and phase rotation before powering on.

When will the VRLA batteries need replacement under normal 32°F-104°F operation?

Valve regulated lead acid batteries typically last 3 to 5 years; plan replacement when runtime drops below the rated 5 minutes at full load or 16 minutes at half load.
