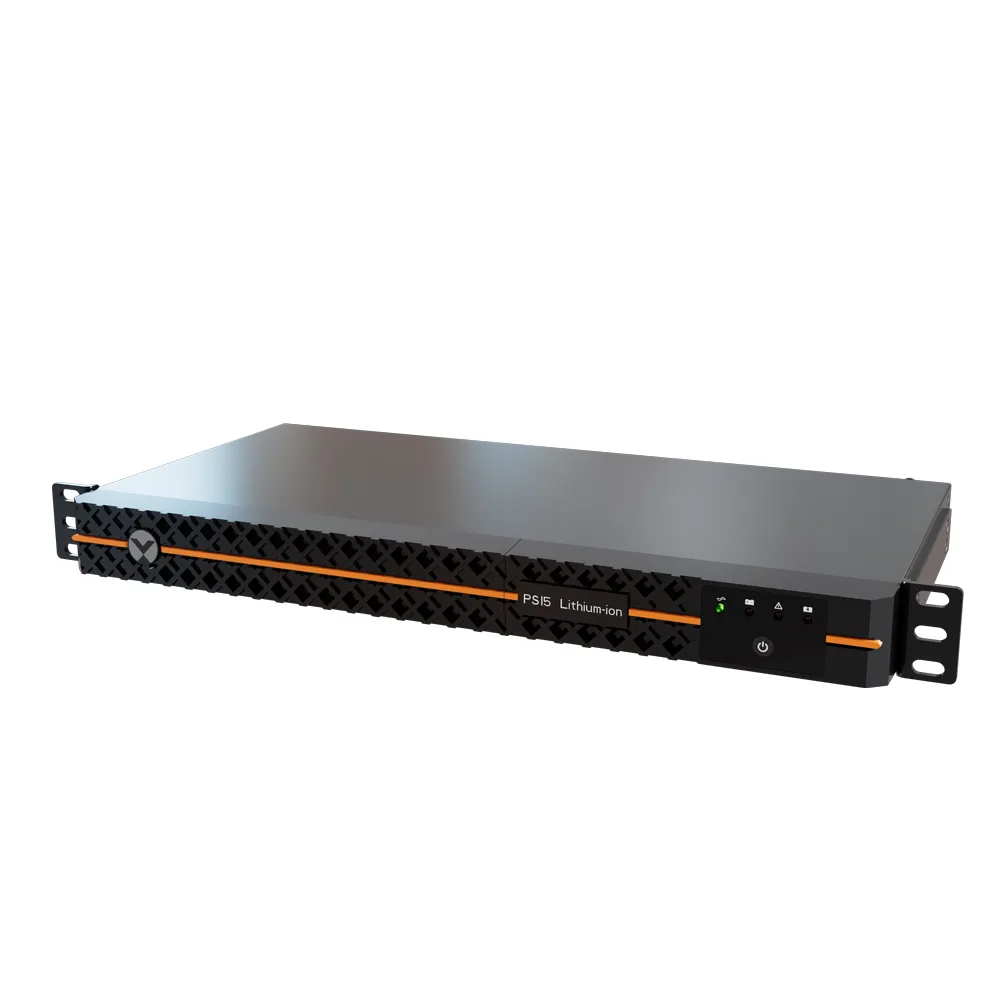

Black 1U rackmount UPS with front LCD display and four NEMA 5-15R outlets

Vertiv

Vertiv PSI5-500SRT1ULIN 500VA 450W Lithium-Ion UPS 1U

SKU CH-E2Y2-8G6Z8 MPN PSI5-500SRT1ULIN

Lithium-ion line-interactive UPS delivers 500VA/450W with four NEMA 5-15R outlets, USB management, and 1U rack/tower form factor

  • International Version120VAC Default; 100/110/115/120/125VAC
  • Input Voltage Range75 - 150VAC
  • Input Frequency50/60Hz Auto Sensing 60Hz default
  • Input ConnectionNEMA 5-15P
  • VA Rating500VA
  • Watts450W

Option PSI5-500SRT1ULIN

  • Lithium-ion battery recharges to full in 2 hours
  • 1U rack or tower design fits tight spaces
  • 500 VA / 450 W line-interactive topology protects IT loads
  • USB port enables remote monitoring and management
  • Surge suppression meets ANSI C62.41 Category A standard

Product purpose

The Vertiv PSI5-500SRT1ULIN is a 500VA line-interactive UPS with lithium-ion batteries that delivers 450W of backup power to IT equipment, servers or network devices in a 1U rack or tower form factor. It suits small infrastructure deployments that need short runtime and remote management capability.

Installation and common issues

The unit mounts in a standard 1U rack space or sits as a tower and connects via a NEMA 5-15P plug with an eight-foot cord, so no special wiring is required. Hot-swappable batteries allow replacement without powering down the load, while a USB port and optional network card enable monitoring. The main limitation is the brief runtime of three-point-four minutes at full load, which only covers orderly shutdown rather than extended operation.

Pre-purchase checks

Verify that your equipment draws no more than 450W total and uses NEMA 5-15R plugs, as the UPS provides four such outlets. Confirm the installation site stays within the 32° to 104°F operating range and 20% to 90% non-condensing humidity. Ensure a 120V nominal supply is available, because the input range is 75 to 150VAC.

Erősségek

  • Lithium-ion battery recharges to full in 2 hours
  • 1U rack or tower design fits tight spaces
  • 500 VA / 450 W line-interactive topology protects IT loads
  • USB port enables remote monitoring and management
  • Surge suppression meets ANSI C62.41 Category A standard

Műszaki adatok

BrandLiebert
SeriesPSI5
ModelPSI5-500SRT1ULIN
International Version120VAC Default; 100/110/115/120/125VAC
Input Voltage Range75 - 150VAC
Input Frequency50/60Hz Auto Sensing 60Hz default
Input ConnectionNEMA 5-15P
VA Rating500VA
Watts450W
Outlets4
Outlet Type4 x NEMA 5-15R
Battery TypeLithium Ion
Battery Run TimeFull load: 3.4 mins
Half load: 8.2 mins
Battery Recharge Time2 hrs to 100%
Interface PortUSB
ApprovalsUL 1778 5th Edition, UL1973 3rd Ed, CSA C22.2 107.3-14
Rackmountable1U Rack/Tower
Surge ProtectionANSI C62.41 Category A
TemperatureOperating Temperature,°F (°C): 32° to 104° (0° to 40°)
Storage Temperature °F (°C): 14° to 113° (-10° to 45°)
Humidity20% - 90%, non-condensing
Dimensions1.67" x 17.28" x 8.85"
Weight12.3 lbs.
Package Contentswith RDU120 Network Card
Szállítási súly6.76 kg
Csomagméret480 × 437 × 42 mm

A modell további verziói

5 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

How do I verify the PSI5-500SRT1ULIN is protecting my equipment after installation?

Connect the USB interface to a server or management console and confirm the monitoring software reports line-interactive topology, input voltage within the 75-150VAC range, and battery status showing 100% charge after the 2-hour recharge period.

What ships with the PSI5-500SRT1ULIN and what must I purchase separately?

The package includes the 1U UPS with internal lithium-ion batteries, an 8 ft NEMA 5-15P input cord, four NEMA 5-15R outlets, USB cable, and the RDU120 network card for remote management; no additional accessories are required for basic operation.

Which voltage setting should I select on the PSI5-500SRT1ULIN for my 120V North American circuit?

Leave the unit at its factory default of 120VAC; the international version also supports 100, 110, 115, and 125VAC if your facility uses a different nominal voltage.
