Silver 2U rackmount server chassis with eight full-height GPU slots visible at the rear

GIGABYTE

GIGABYTE G293-Z22-AAP1 barebone server 2U AMD EPYC 9004 8 GPU

SKU CH-6ZKQ-FV1Z6 MPN G293-Z22-AAP1

A 2U barebone server for AMD EPYC 9004 CPUs with eight PCIe Gen5 GPU slots, twelve DDR5 channels, four 2.5-inch Gen5 NVMe bays and dual 10 Gigabit LAN

  • Form Factor2U Rackmount
  • WorkloadAI/ML/HPC
  • CPU TypeAMD EPYC 9004 Series
  • CPU SocketSocket SP5
  • Installed CPUNo CPU Installed
  • Max Processors1
  • Supports up to eight dual-slot Gen5 GPU cards for massive AI compute
  • Single AMD EPYC 9004 processor delivers up to 84 cores and 168 threads
  • Twelve-channel DDR5 memory architecture scales to 256 GB per DIMM
  • Four 2.5-inch Gen5 NVMe/SATA/SAS hot-swap bays plus four SATA/SAS bays for fast storage

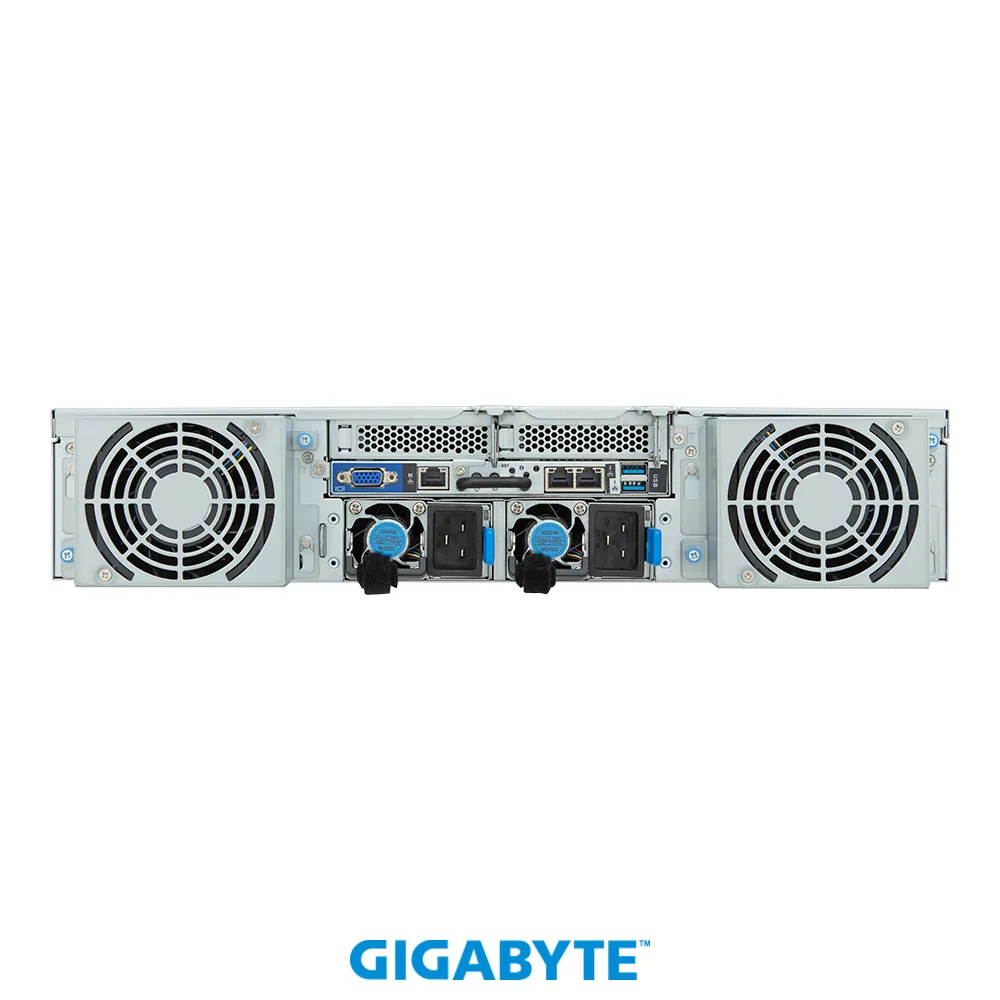

  • Dual 10 GbE BASE-T LAN ports with dedicated management port for high-speed networking

2U barebone for eight Gen5 GPUs

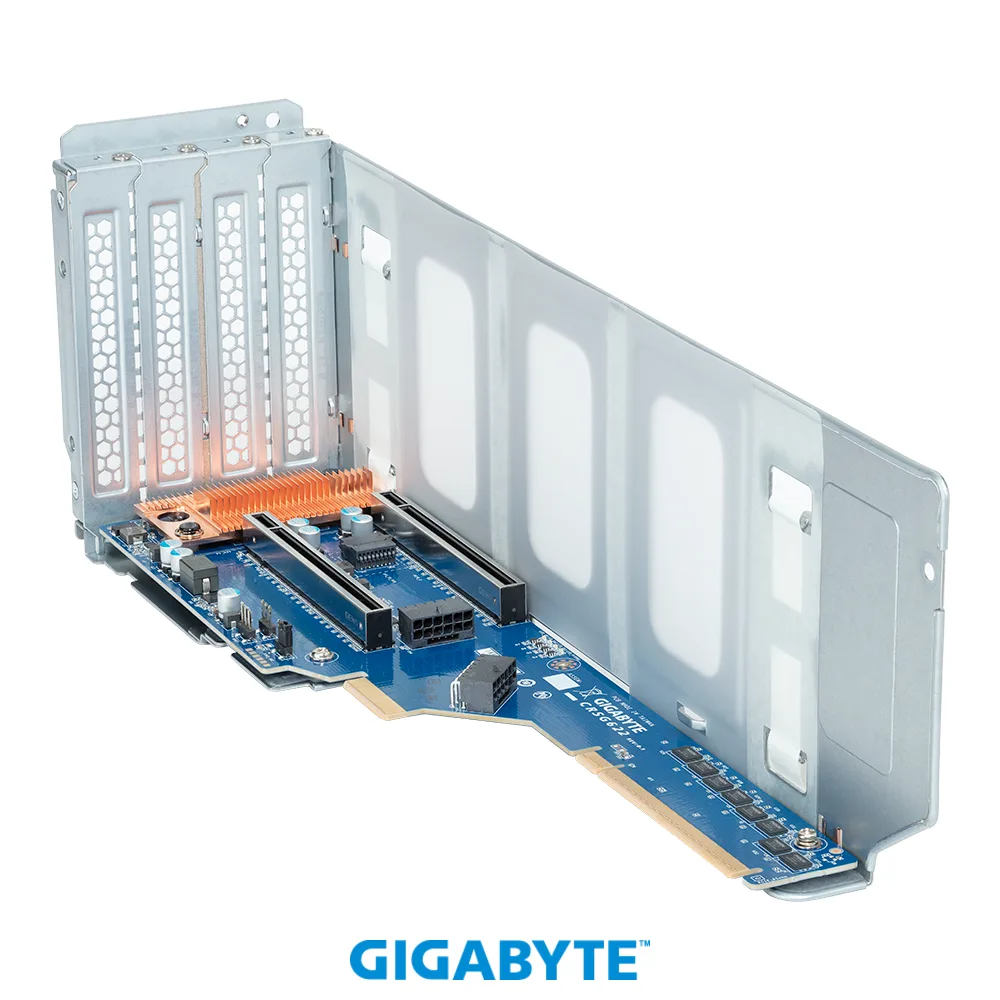

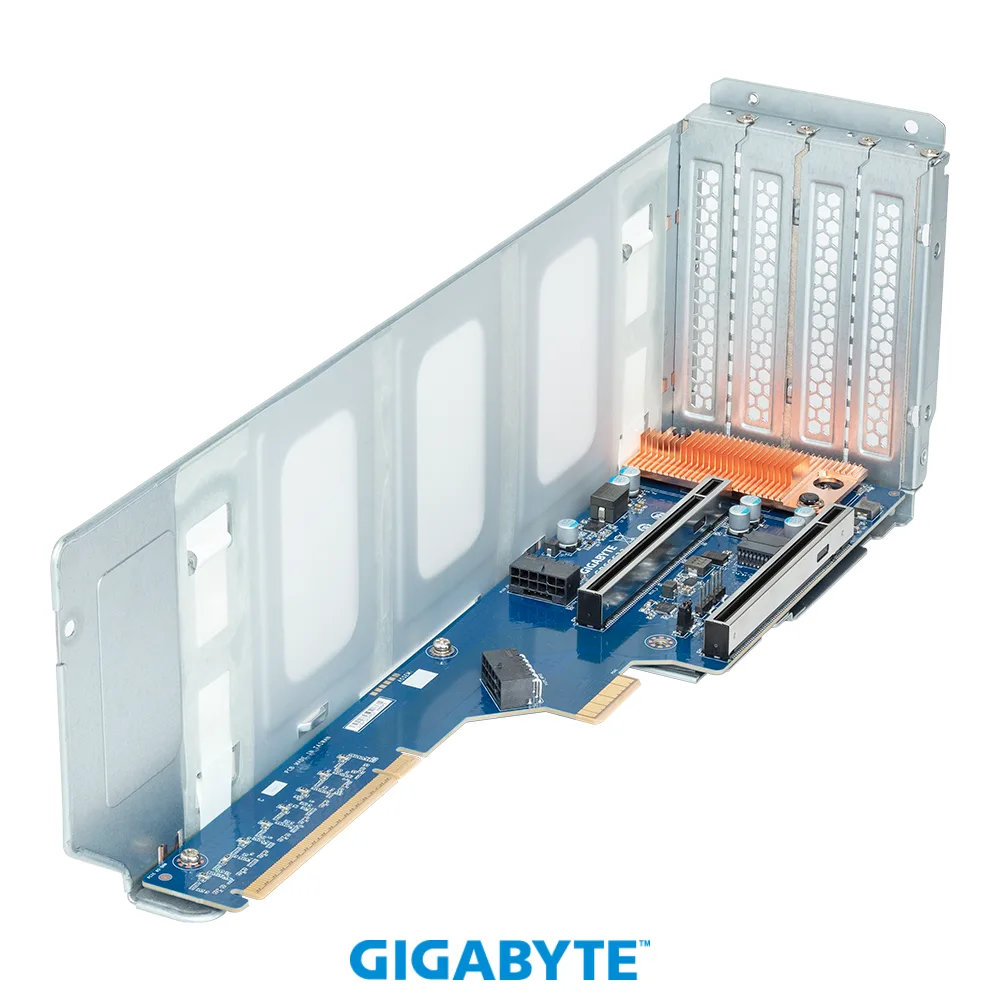

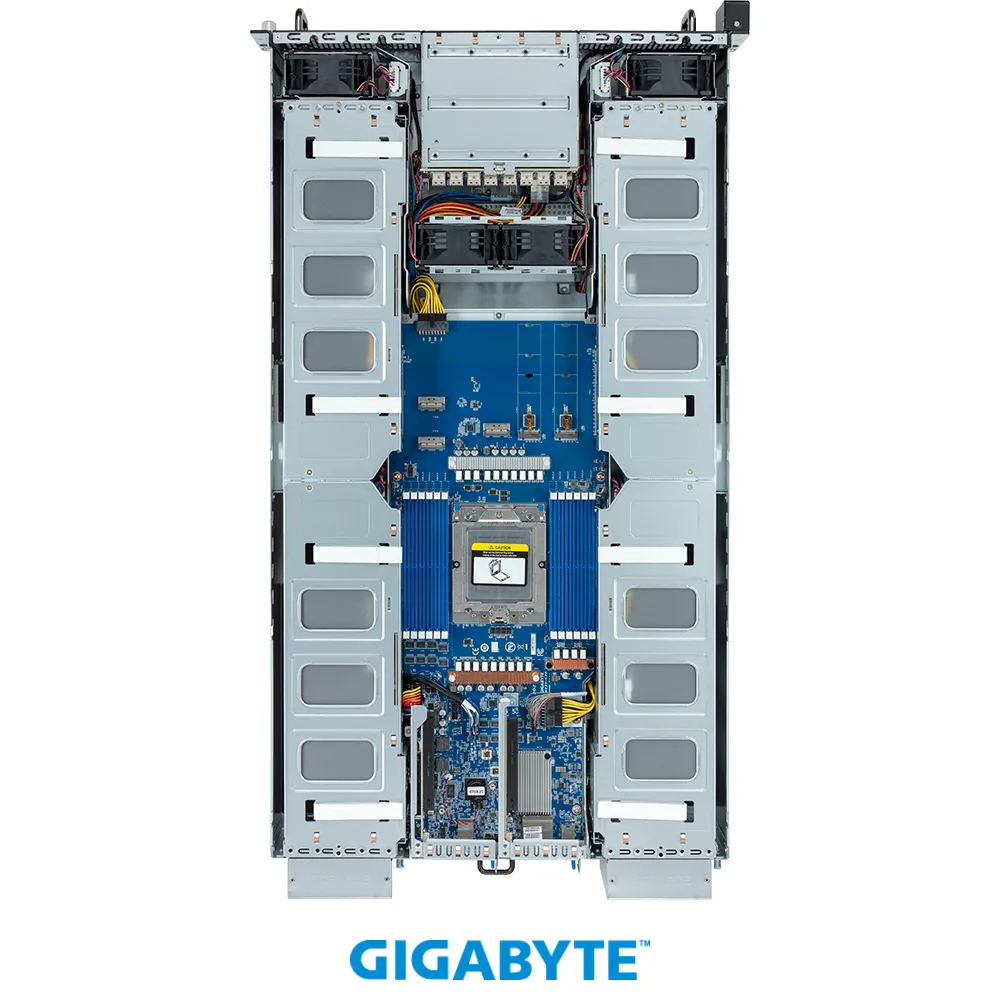

This 2U rackmount barebone is built around a single AMD EPYC 9004 series processor in an SP5 socket. It provides twelve DDR5 channels with twelve DIMM slots supporting RDIMM up to 96GB and 3DS RDIMM up to 256GB. Eight dual-slot PCIe Gen5 GPU cards can be installed via onboard PCIe switches.

Suits AI training clusters needing dense

Organisations deploying large-language-model training or high-performance compute workloads that require eight Gen5 GPUs in a 2U form factor will fit this platform. Buyers who need dual-socket CPU configurations or more than twelve memory channels should look at alternative server designs.

Verify CPU cooler clearance

No processor or memory is included; select an EPYC 9004 CPU with a cTDP up to 300W and compatible DDR5 modules. Confirm that your rack provides sufficient airflow for eight dual-slot cards and that the power distribution can deliver the combined GPU and CPU draw.

Privalumai

  • Supports up to eight dual-slot Gen5 GPU cards for massive AI compute
  • Single AMD EPYC 9004 processor delivers up to 84 cores and 168 threads
  • Twelve-channel DDR5 memory architecture scales to 256 GB per DIMM
  • Four 2.5-inch Gen5 NVMe/SATA/SAS hot-swap bays plus four SATA/SAS bays for fast storage
  • Dual 10 GbE BASE-T LAN ports with dedicated management port for high-speed networking

Specifikacijos

BrandGIGABYTE
ModelG293-Z22
Form Factor2U Rackmount
WorkloadAI/ML/HPC
CPU TypeAMD EPYC 9004 Series
CPU SocketSocket SP5
Installed CPUNo CPU Installed
Max Processors1
CPU FeaturesUp to 84-core, 168 threads per processor
cTDP up to 300W
Memory Slots12 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory SupportedRDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Channel Supported12 Channel
Installed HDDNo Storage Installed
M.22 x M.2 slots:
- M-key
- PCIe Gen5 x4
- Supports 2280/22110 cards
First LANBroadcom BCM57416
Max. LAN Speed10 Gigabit
Hot-Swap Bays4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
VGA1
Rear USB2 x USB 3.2 Gen1
RJ452
Other Ports1 x MLAN
Max. PowerDual 3000W (240V) 80 PLUS Titanium redundant power supply
TemperatureOperating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions17.64" x 3.44" x 31.5"
Siuntos svoris11.34 kg
Pakuotės dydis1143 × 724 × 254 mm

Klausimai apie šią prekę

Which AMD EPYC 9004 series processor must I supply for the SP5 socket?

Any single EPYC 9004 series CPU up to 84 cores and 168 threads with a cTDP up to 300W fits the SP5 socket.

Can the 10 Gigabit Broadcom BCM57416 LAN ports coexist with my existing 1 Gigabit network switches?

Yes, the dual 10GBASE-T ports auto-negotiate down to 1 Gigabit for compatibility with older switches.

How do I verify the eight PCIe Gen5 GPU slots are all active after assembly?

Check the system BIOS or OS device manager for eight PCIe Gen5 x16 links and confirm GPU firmware loads without errors.
