Small green circuit board with M.2 slot and 16-pin connector

LORDWORLD

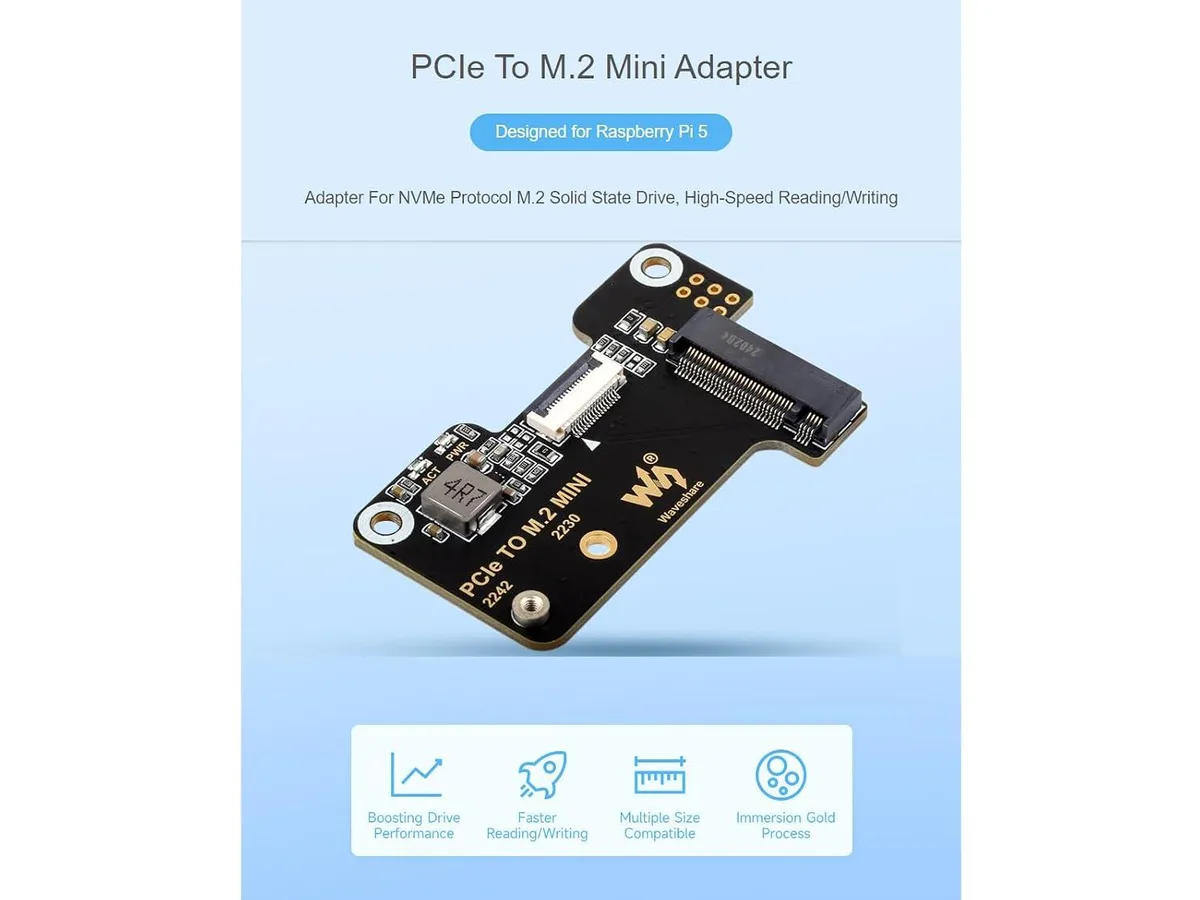

LORDWORLD PCIe to M.2 Mini Adapter Board for Raspberry Pi 5

SKU CH-Q302-E01JT

Adds NVMe storage to a Raspberry Pi 5 via its 16-pin PCIe interface, supporting 2230 and 2242 drives with dual status LEDs

  • Designed for Raspberry Pi 5 with 16-pin PCIe link
  • Compact board fits M.2 2230 or 2242 NVMe drives
  • Supports Gen2 and Gen3 speeds for fast storage access
  • Boots Raspberry Pi 5 directly from NVMe solid-state drive
  • Dual onboard LEDs show drive power and activity status

Purpose-Built Pi 5 Storage Upgrade

This adapter adds a PCIe-attached NVMe drive to the Raspberry Pi 5, targeting makers who need faster boot media or high-speed local storage for edge-computing projects. It connects through the board's 16-pin PCIe interface and accepts M.2 2230 and 2242 form-factor drives, making it a compact drop-in for embedded builds that outgrow microSD performance.

Silent Operation With Minimal Overhead

The board has no active cooling and draws power directly from the Pi 5's PCIe connector, so it adds negligible thermal load and zero acoustic noise to the system. Dual on-board LEDs give a quick visual check of drive activity and link status without requiring software monitoring tools.

Replaces MicroSD Boot For Speed-Critical Workloads

Swapping the default microSD for an NVMe SSD via this adapter cuts boot time and dramatically improves random I/O, which benefits database servers, container hosts and media-centre appliances running on the Pi 5. The upgrade is not suited for builds that must retain the microSD slot for dual-boot setups or for users who need 2280-length drives, which this board cannot accommodate.

Privalumai

  • Designed for Raspberry Pi 5 with 16-pin PCIe link
  • Compact board fits M.2 2230 or 2242 NVMe drives
  • Supports Gen2 and Gen3 speeds for fast storage access
  • Boots Raspberry Pi 5 directly from NVMe solid-state drive
  • Dual onboard LEDs show drive power and activity status

Specifikacijos

BrandLORDWORLD

Klausimai apie šią prekę

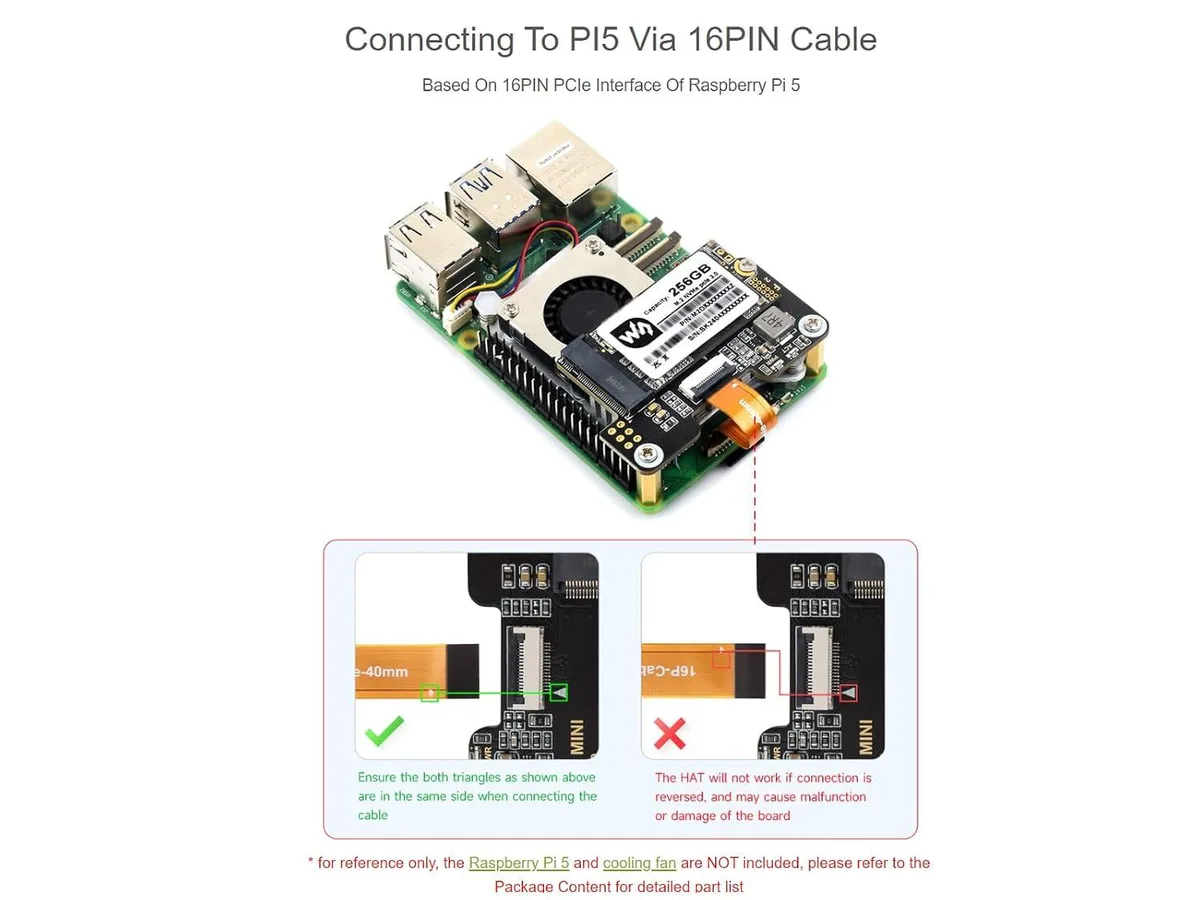

How do I attach the 16-pin cable to the Raspberry Pi 5 and the adapter board?

Plug the 16-pin cable into the Pi 5's 16-pin PCIe connector and the matching header on the adapter board, then secure the M.2 NVMe drive with its mounting screw; the step often missed is fully seating both cable ends before powering on.

Will the M.2 NVMe drive or the adapter board need replacement after heavy use?

The adapter board has no moving parts and requires no scheduled replacement; only the M.2 NVMe drive itself may wear out after its rated write endurance is reached.

What speed limit appears first when the drive runs at sustained Gen3 throughput?

The Raspberry Pi 5's 16-pin PCIe Gen2 interface caps sustained bandwidth before the drive or adapter reaches its Gen3 potential.
