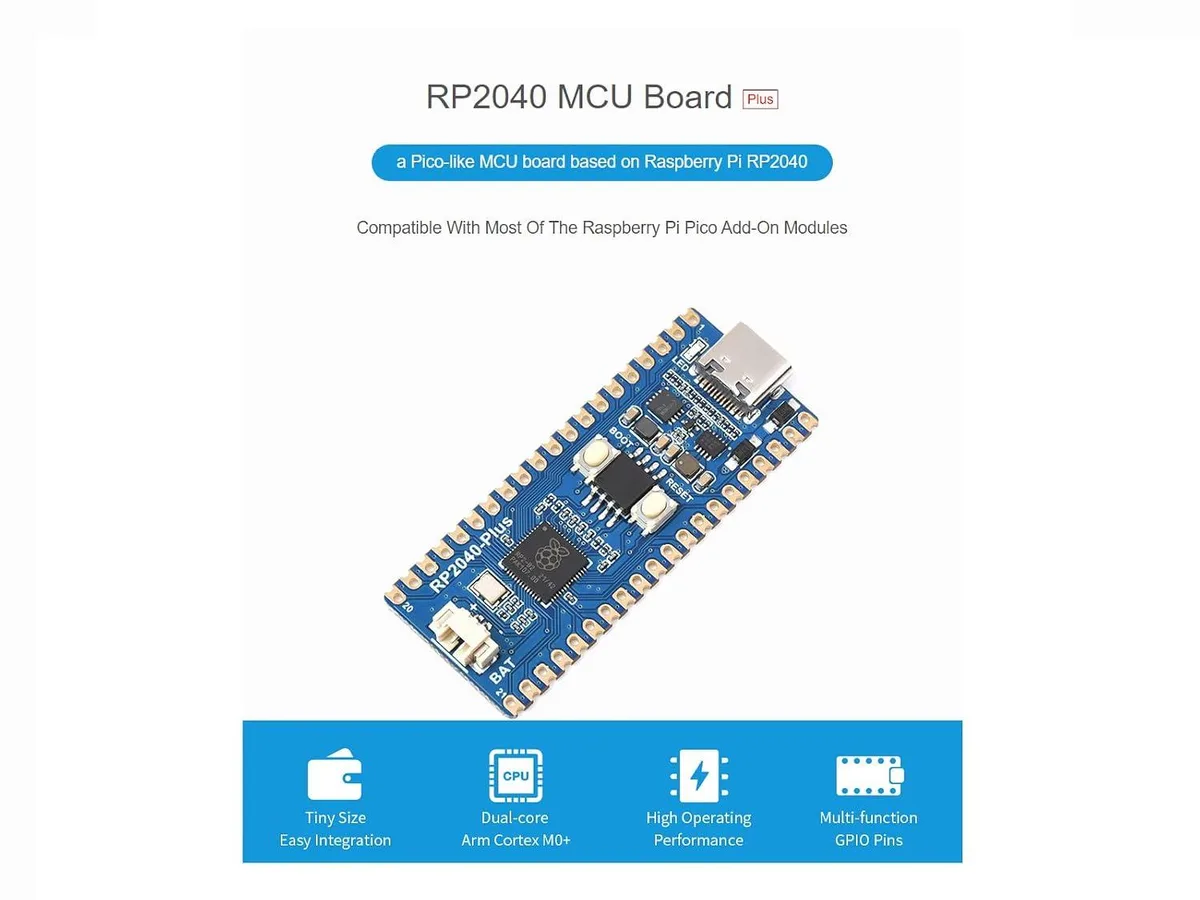

Green rectangular board with USB-C port and two rows of gold pins

LORDWORLD

LORDWORLD RP2040-Plus Mini Board 16MB Flash USB-C Pre-Soldered Header development board

SKU CH-9MSA-31V4V

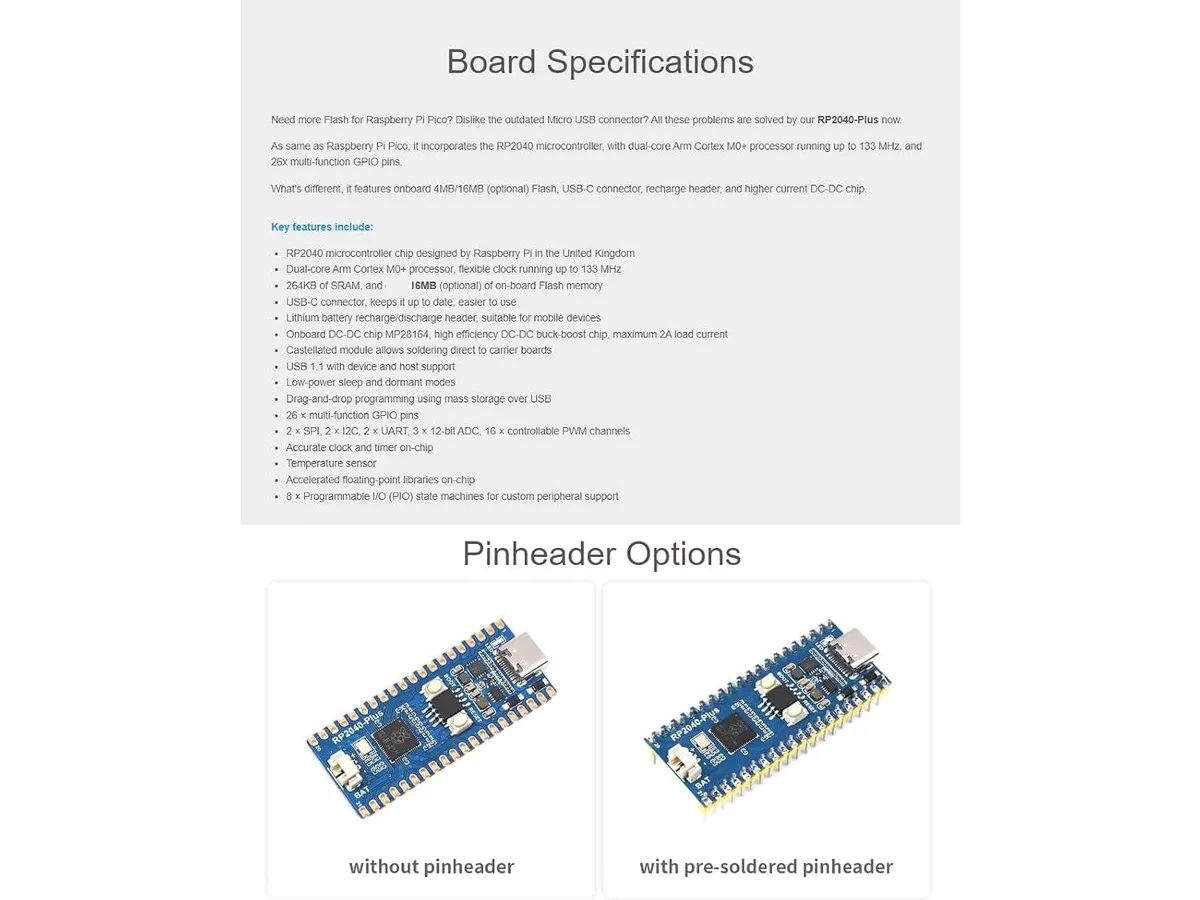

A Pico-compatible RP2040 board with 16 MB flash, USB-C, pre-soldered headers, 26 GPIOs and a higher-current DC-DC regulator running at 133 MHz

  • 16 MB flash stores larger programs
  • USB-C connector simplifies power and data
  • Dual-core Cortex-M0+ at 133 MHz runs demanding tasks
  • 26 multi-function GPIO pins enable flexible I/O
  • Pre-soldered header speeds up prototyping

Compact RP2040 board with 16 MB flash and USB-C

This LORDWORLD development board builds on the Raspberry Pi RP2040 microcontroller with a dual-core Arm Cortex-M0+ processor running up to 133 MHz. It provides 26 multi-function GPIO pins and comes with headers pre-soldered for immediate breadboard use. The board targets makers and engineers who need a Pico-compatible platform with more onboard storage and a modern USB-C connector.

Replaces a standard Pico when flash

Compared with the reference Pico, this version adds 16 MB of flash memory, a USB-C port, a recharge header and a higher-current DC-DC regulator. The upgrade is worthwhile for projects that exceed 2 MB of program space, require USB-C mechanical durability, or need more power headroom for attached peripherals. Existing Pico add-on modules remain compatible thanks to the identical pinout.

Suits embedded developers who need extra flash

The board fits developers writing larger C/C++ or MicroPython applications, hardware prototypes that benefit from the USB-C form factor, and battery-powered designs using the recharge header. It is less suited for buyers who need wireless connectivity, industrial temperature ratings, or a different GPIO count than the 26 pins provided.

Privalumai

  • 16 MB flash stores larger programs
  • USB-C connector simplifies power and data
  • Dual-core Cortex-M0+ at 133 MHz runs demanding tasks
  • 26 multi-function GPIO pins enable flexible I/O
  • Pre-soldered header speeds up prototyping

Specifikacijos

BrandLORDWORLD

Klausimai apie šią prekę

What physical space does the 26-pin pre-soldered header need?

The board uses a 26-pin header with standard Pico pin spacing for direct insertion into a solderless breadboard or matching socket.

How do you load the first program onto the RP2040-Plus, and what step do beginners miss?

Hold the BOOTSEL button while plugging the USB-C cable; the board appears as a mass-storage device, then drag a UF2 file onto it.

Which on-board component will need replacement first in a battery-powered project?

The recharge header is designed for a Li-cell; the cell itself will wear out long before the RP2040 or 16 MB flash.
