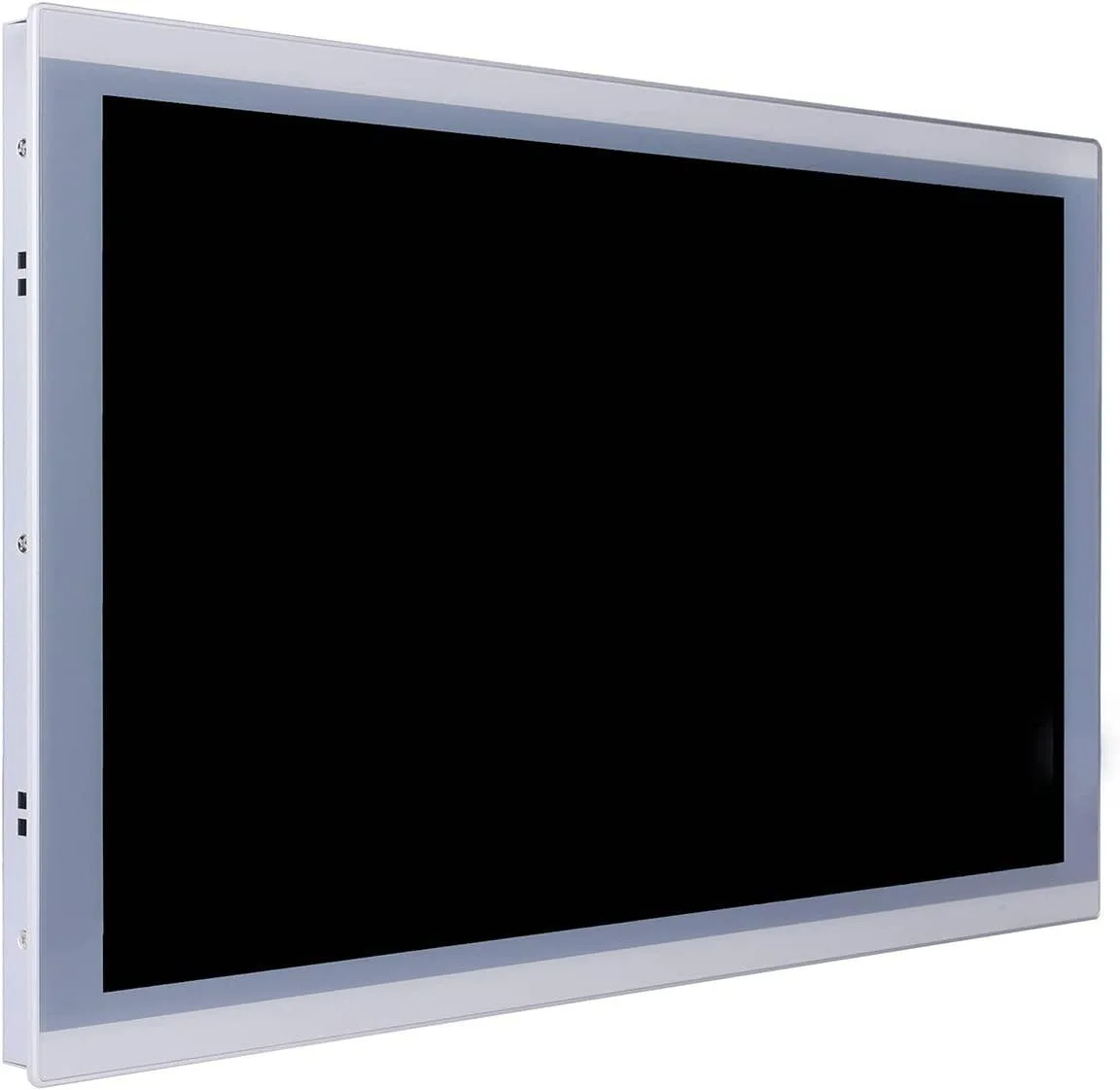

Silver 21.5 inch all-in-one industrial panel PC with resistive touchscreen

partaker

partaker A17 21.5" all-in-one PC Intel Core i5 4th Gen 8GB DDR3 256GB SSD 1TB HDD

SKU CH-50R6-72851

Industrial all-in-one with IP65 front protection, fanless cooling, resistive touch, Intel Core i5 4th Gen, 8GB DDR3, 256GB SSD and 1TB HDD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU Name1.60GHz
  • GPU/VGA TypeIntel HD Graphics 4400

GPU Intel HD Graphics 4400

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

  • 64GB
  • 256GB
  • 512GB

HDD 1TB

Perbrauktos versijos egzistuoja, bet šiame sandėlyje jų nėra.

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy chassis runs silently 24/7
  • 5-wire resistive touch withstands 35 million touches
  • Dual drive layout: 256GB SSD plus 1TB HDD
  • Wide DC 100-240V input with auto power-on after failure

Industrial all-in-one for 24/7 operation

The Partaker A17 is a 21.5 inch panel PC built for continuous industrial use. An Intel Core i5 4th Gen processor, 8GB DDR3L memory, 256GB mSATA SSD and 1TB 2.5 inch SATA HDD run Windows 10 Pro out of the box. Its IP65 front panel and 5-wire resistive touchscreen suit factory floors, kiosks and embedded installations.

Fanless cooling with wide temperature range

An aluminium alloy chassis dissipates heat without fans, giving silent operation and lower energy draw. The system runs from 0 to 50 °C with the SSD installed or 0 to 40 °C with the HDD, and survives storage from -20 to 60 °C. A 12 V DC input accepts 100-240 V AC via the supplied adapter, and a watchdog timer of 255 steps guards against lock-ups.

Mounting hardware and expansion slot included

The package provides a power supply, power cord and embedded buckle kits for panel, wall, desktop or cantilever mounting. I/O covers HDMI, VGA, two USB 3.0, two USB 2.0, LAN, audio in and out, two COM ports and a power switch. A mini PCIe slot with SIM holder allows optional Wi-Fi or 4G modules, while the resistive screen is rated for 35 million touches.

Privalumai

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium alloy chassis runs silently 24/7
  • 5-wire resistive touch withstands 35 million touches
  • Dual drive layout: 256GB SSD plus 1TB HDD
  • Wide DC 100-240V input with auto power-on after failure

Specifikacijos

ModelA17-PA-215TPC-CE5A(I54)-8G256G1TB
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU Name1.60GHz
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity8GB DDR3
SSD256GB
HDD1TB
Screen Size21.5"
TouchscreenYes

Kiti šio modelio variantai

Dar 5 toje pačioje serijoje

Ta pati šeima, bet skiriasi atmintis, aušintuvas ar dažnis — palyginkite prieš apsispręsdami.

Klausimai apie šią prekę

How do I mount the A17 in an embedded cut-out and which step is often missed?

Cut the opening to 522 x 315 mm, slide the unit in, and fasten the supplied embedded buckle kits; the step often missed is tightening all buckles evenly so the front panel keeps its IP65 seal.

What storage maintenance will the A17 need and which drive is user-replaceable?

The 2.5" SATA HDD or SSD can be swapped by removing the rear cover; the mSATA SSD is also replaceable but requires board access. Plan to replace the HDD first — its 0–40 °C operating range is tighter than the SSD's 0–50 °C.

Which thermal limit appears first during continuous 24/7 operation?

The fanless aluminium chassis is rated for 0–50 °C with the SSD installed; if the 1 TB HDD remains fitted the safe ceiling drops to 40 °C, so sustained loads will hit the HDD temperature limit before the SSD limit.
