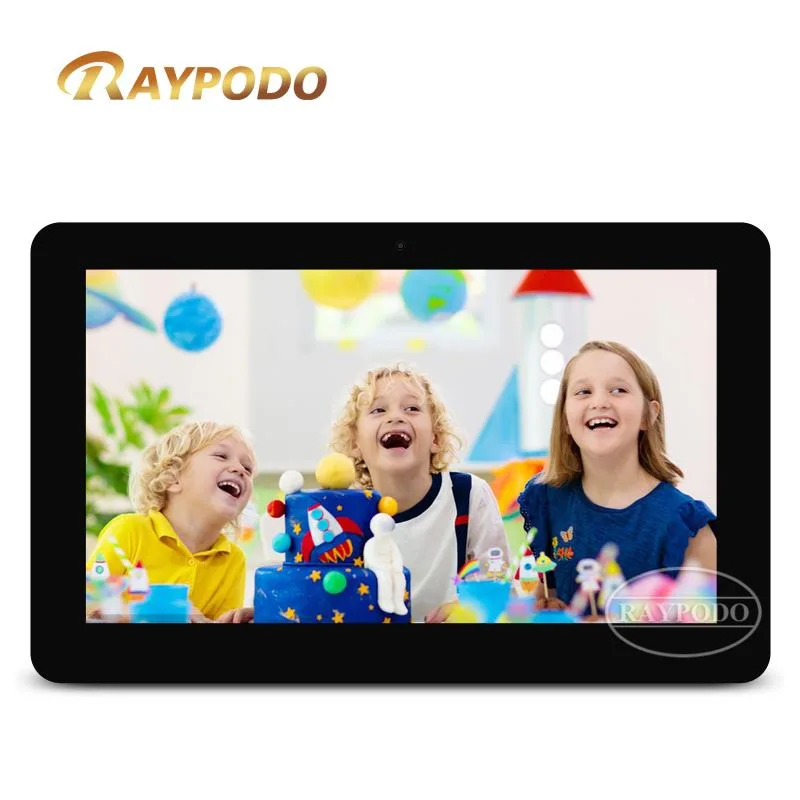

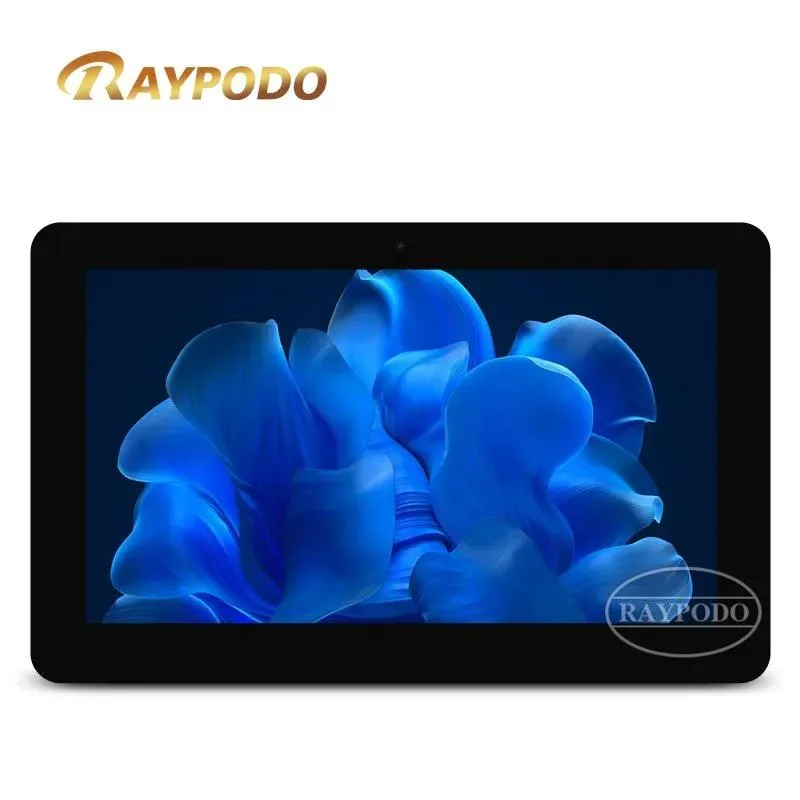

Black 14-inch all-in-one Android panel with capacitive touchscreen and RJ45 PoE port

RAYPODO

RAYPODO 14" RK3566 2GB 32GB Android 11 POE All-in-One PC

SKU CH-X7M2-XDJ6F

14-inch Android 11 all-in-one with POE, RK3566 quad-core, 2GB RAM and 32GB eMMC for 24/7 commercial displays

  • Screen Size14"
  • Screen Resolution1920*1080
  • TouchscreenYes
  • Screen Type10-Point capacitive touch, LCD IPS panel
  • Display Feature14" 1920*1080 IPS, 10-Point capacitive touch, Normally black
  • CPU NameRK3566

Chipset RK3566

Memory 2GB+32GB

  • RK3566 quad-core CPU powers reliable 24/7 commercial signage
  • POE via RJ45 enables single-cable wall-mount installation
  • 14-inch 1920*1080 IPS panel with 10-point capacitive touch
  • 2GB LPDDR4X RAM plus 32GB eMMC stores large display content
  • Android 11 with Mali-G52 graphics drives interactive kiosk apps

14-Inch Android All-in-One for Commercial Displays

This 14-inch all-in-one PC runs Android 11 on an RK3566 quad-core ARM Cortex-A55 processor with 2GB LPDDR4X/LPDDR4 memory and 32GB eMMC storage. It integrates a 1920x1080 IPS touchscreen with 10-point capacitive input, designed specifically for indoor digital signage, kiosks and commercial displays that require continuous 24/7 operation without a battery.

Sustained Operation via PoE and Passive Cooling

Power over Ethernet delivers both data and power through a single RJ45 cable, supporting 100M/1000M Ethernet speeds for stable long-term deployment. The fanless design relies on the RK3566 chipset and Mali-G52-2EE graphics to maintain reliable performance during extended content playback and interactive sessions, avoiding thermal throttling in enclosed wall-mounted installations.

Verify Mounting, Power and Software Compatibility

Confirm your mounting surface supports the 14-inch form factor and that a PoE-capable network switch or injector is available, as no battery or external power adapter is included. Ensure your digital-signage or kiosk applications target Android 11 and operate within the 2GB RAM and 32GB storage limits, and that HDMI output requirements match the available port for secondary display needs.

Privalumai

  • RK3566 quad-core CPU powers reliable 24/7 commercial signage
  • POE via RJ45 enables single-cable wall-mount installation
  • 14-inch 1920*1080 IPS panel with 10-point capacitive touch
  • 2GB LPDDR4X RAM plus 32GB eMMC stores large display content
  • Android 11 with Mali-G52 graphics drives interactive kiosk apps

Specifikacijos

Screen Size14"
Screen Resolution1920*1080
TouchscreenYes
Screen Type10-Point capacitive touch, LCD IPS panel
Display Feature14" 1920*1080 IPS, 10-Point capacitive touch, Normally black, 250cd/m2, 16:9
CPU NameRK3566
CPU TypeQuad-Core ARM Cortex-A55
Installed Qty1
Turbo Frequency-
CPU Main FeaturesRK3566 Quad-Core ARM Cortex-A55
Memory Capacity2GB
Form FactorAll-in-One
Memory Spec2GB LPDDR4X/LPDDR4
SSD32GB EMMC
HDD32GB EMMC
HDD InterfaceEMMC
Storage Spec2GB+32GB
GPU/VGA TypeMali-G52-2EE
Graphics CardMali-G52-2EE
Graphics InterfaceMali-G52-2EE
WLAN802.11b/g/n
ModemWiFi 802.11b/g/n, Bluetooth 5.0
LAN Speed100M/1000M
BluetoothBluetooth 5.0
BrandRaypodo
TypeAll in one PC, POE Tablet
UsageIndoor displays/kiosks, Commercial use
AI FeaturesSupport 1T NPU
ColorBlack
ProcessorRK3566
Processor Main FeaturesQuad-Core ARM Cortex-A55, Support 1T NPU
Memory2GB LPDDR4X/LPDDR4
Storage32GB EMMC
GraphicsMali-G52-2EE
Audio2*1.5W/2*8Ω 2W speaker, 3.5mm earphone port (Optional), supports MP3/WMA/AAC etc.
Ethernet100M/1000M Ethernet, RJ45 with POE
Wireless Card802.11b/g/n WiFi, Bluetooth 5.0
Monitor14" LCD IPS panel
Speaker2*8Ω 2W
Software IncludedAndroid 11
Special FeaturesPOE, Touchscreen, Android 11, All in one PC, Indoor displays/kiosks
Cosmetic ConditionBlack
ChipsetRK3566
Audio Channels2 channels
Audio FeaturesSupports MP3/WMA/AAC etc. audio format
Front USB2
Front Audio Ports3.5mm earphone port (Optional)
Card ReaderTF card (Max Support 128GB)
Video PortsHD-MI output
Rear USB2 x USB ports
RJ45RJ45 with POE
PC Card SlotTF card (Max Support 128GB)
WebcamFront Camera 2.0 M/P
Speaker Configuration2*8Ω 2W
Speaker FeaturesSupports MP3/WMA/AAC etc. audio formats
Consumer AlertNot include a battery, Not Consumer Tablet

Kiti šio modelio variantai

Dar 3 toje pačioje serijoje

Ta pati šeima, bet skiriasi atmintis, aušintuvas ar dažnis — palyginkite prieš apsispręsdami.

Klausimai apie šią prekę

How much heat or noise does the 14-inch RK3566 all-in-one generate when running 24/7?

The fanless design produces no audible noise; the ARM Cortex-A55 processor and Mali-G52-2EE GPU run cool enough for continuous commercial operation without active cooling.

What network equipment must I already have to power this PoE all-in-one PC?

A PoE-enabled network switch or mid-span injector that supplies power over the RJ45 port is required, as the unit has no separate power adapter or battery.

Can the HDMI output on this Android 11 device drive a legacy 1080p monitor alongside the built-in 1920*1080 touchscreen?

Yes, the HDMI port mirrors or extends the 1920*1080 display to an external 1080p screen, letting you keep older signage monitors in the same installation.
