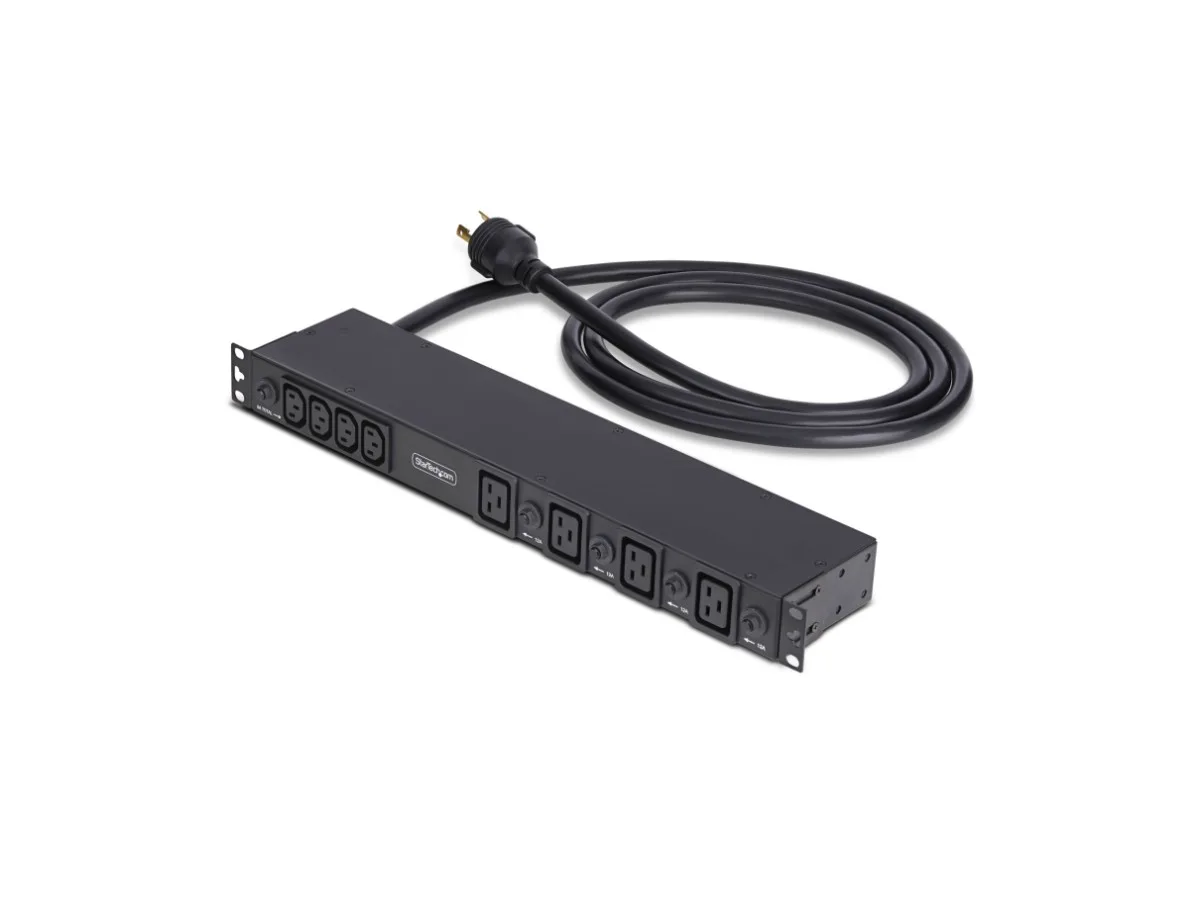

Black 1U rackmount PDU with 20 outlets, 8ft cord, metal finish

STARTECH

STARTECH 2030B8H-RACK-PDU-IC PDU 1U 20 Outlets 16x C13 4x C19 240V 15A 8ft Cord

SKU CH-CVVG-NFT17 MPN 2030B8H-RACK-PDU-IC

Distributes 240V power to 20 devices through 16 IEC C13 and 4 IEC C19 outlets with per-breaker overload protection in a 1U rackmount form factor

  • TypeRackmount
  • Rack Size1U
  • StyleRackmount, 4-way brackets for horizontal or vertical mountin
  • Rack Mounting Kit4-way mounting brackets included
  • CertificationsTAA compliant
  • Package Includes1x Rackmount PDU
  • Powers 20 devices via 16 IEC C13 and 4 IEC C19 outlets
  • User-resettable 15A breakers protect each C19 and every four C13 outlets
  • Mounts horizontally or vertically with 4-way brackets in 1U space
  • 8ft cord with NEMA L6-30P plug delivers 240V 15A input
  • TAA-compliant steel chassis fits standard 19in EIA-310 racks

Product identity

The StarTech 2030B8H-RACK-PDU-IC is a 1U rackmount power distribution unit that delivers 20 IEC outlets from a single 240V 15A input. It ships new with 4-way mounting brackets for horizontal or vertical installation in standard 19in EIA-310 racks.

Who it suits

Server-room technicians who need dense C13 and C19 outlet counts in one panel will fit up to 20 devices behind a single breaker group. Buyers who require per-outlet metering, remote switching, or a NEMA L6-30P plug rated above 15A should consider other models.

Deciding specification

The unit provides 16 IEC C13 outlets (4 front, 12 rear) and 4 IEC C19 outlets (front), each protected by user-resettable 15A breakers covering every C19 individually and each group of four C13 sockets.

Privalumai

  • Powers 20 devices via 16 IEC C13 and 4 IEC C19 outlets
  • User-resettable 15A breakers protect each C19 and every four C13 outlets
  • Mounts horizontally or vertically with 4-way brackets in 1U space
  • 8ft cord with NEMA L6-30P plug delivers 240V 15A input
  • TAA-compliant steel chassis fits standard 19in EIA-310 racks

Specifikacijos

BrandStarTech.com
Model2030B8H-RACK-PDU-IC
Part Number2030B8H-RACK-PDU-IC
TypeRackmount
Rack Size1U
StyleRackmount, 4-way brackets for horizontal or vertical mounting
Rack Mounting Kit4-way mounting brackets included
CertificationsTAA compliant
Package Includes1x Rackmount PDU
Input Voltage240V
Maximum Input Current15A
Cord Length8ft (2.4m)
Output Voltage240V
Output Connector(s)16x IEC C13 (4 front, 12 rear); 4x IEC C19 (front) - 20 outlets total
Maximum Output Current15A per breaker group
Overload ProtectionUser-resettable 15A breakers safeguard each IEC C19 outlet individually and every group of four IEC C13 outlets
FeaturesPowers up to 20 devices through 16x IEC C13 and 4x IEC C19 outlets; built-in circuit protection; 4-way mounting brackets for horizontal or vertical mounting; compatible with standard 19in EIA-310 racks at least 4in (10.1cm) deep; durable powder-coated SPCC steel construction; built-in 8ft (2.4m) power cord
Dimensions9.9in (W) x 22.0in (D) x 3.3in (H)
Weight7.0 lbs
Siuntos svoris3.18 kg
Pakuotės dydis559 × 279 × 102 mm

Klausimai apie šią prekę

What rack standard and depth does the 2030B8H-RACK-PDU-IC require for mounting?

It fits standard 19in EIA-310 racks that are at least 10.1cm deep, using the included 4-way brackets for horizontal or vertical installation.

Can I keep using my existing IEC C13 and C19 power cables with this unit?

Yes, the PDU provides 16 C13 and 4 C19 outlets at 240V, so your current cables plug directly into the matching receptacles.

How do I verify the 15A breakers are protecting each outlet group after installation?

Each C19 outlet and every group of four C13 outlets has its own user-resettable 15A breaker; a tripped breaker button will be visibly extended and can be pushed back to reset.
