Black PCIe add-in card with two USB-C ports and two mini DisplayPort inputs

ASUS

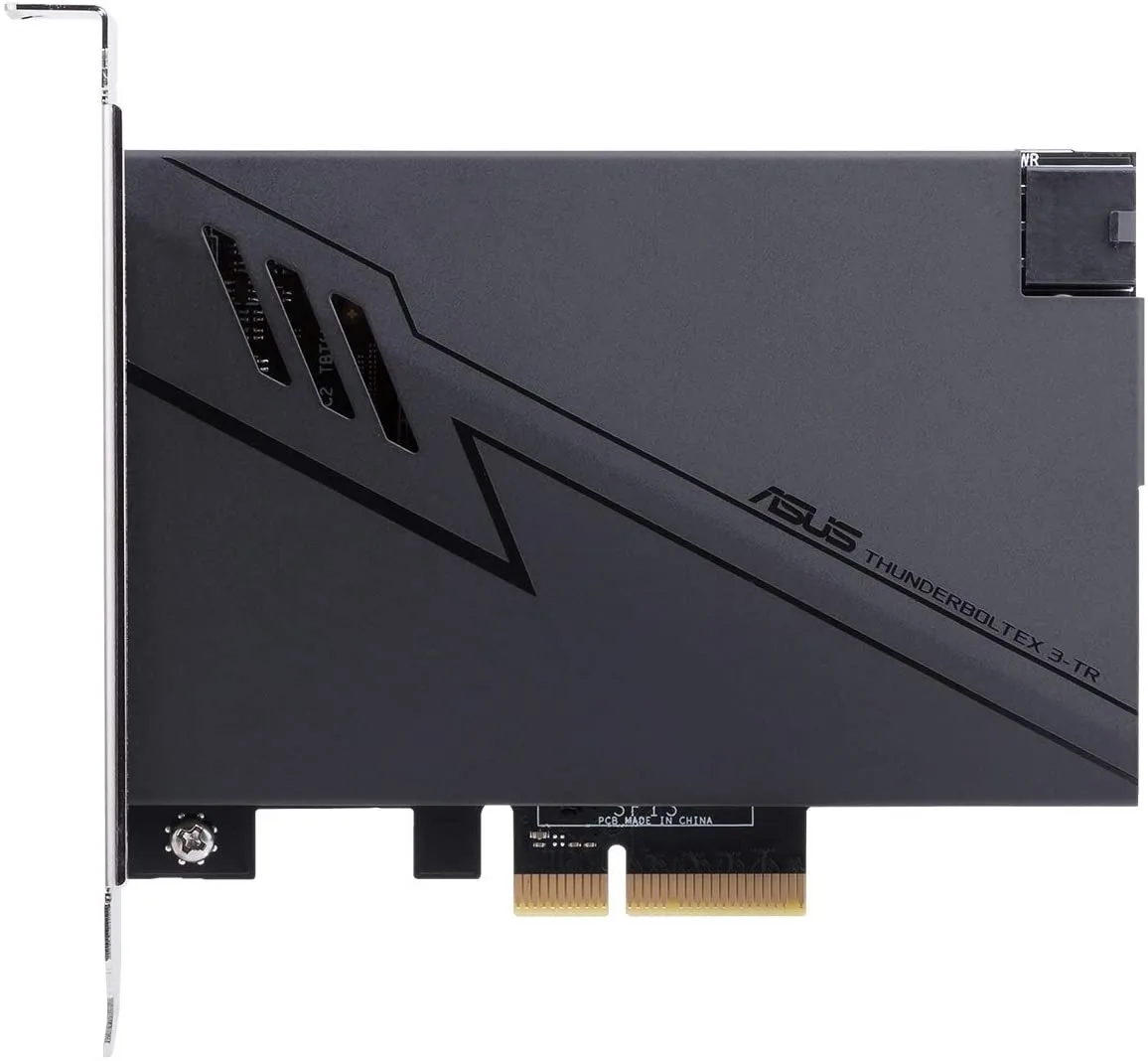

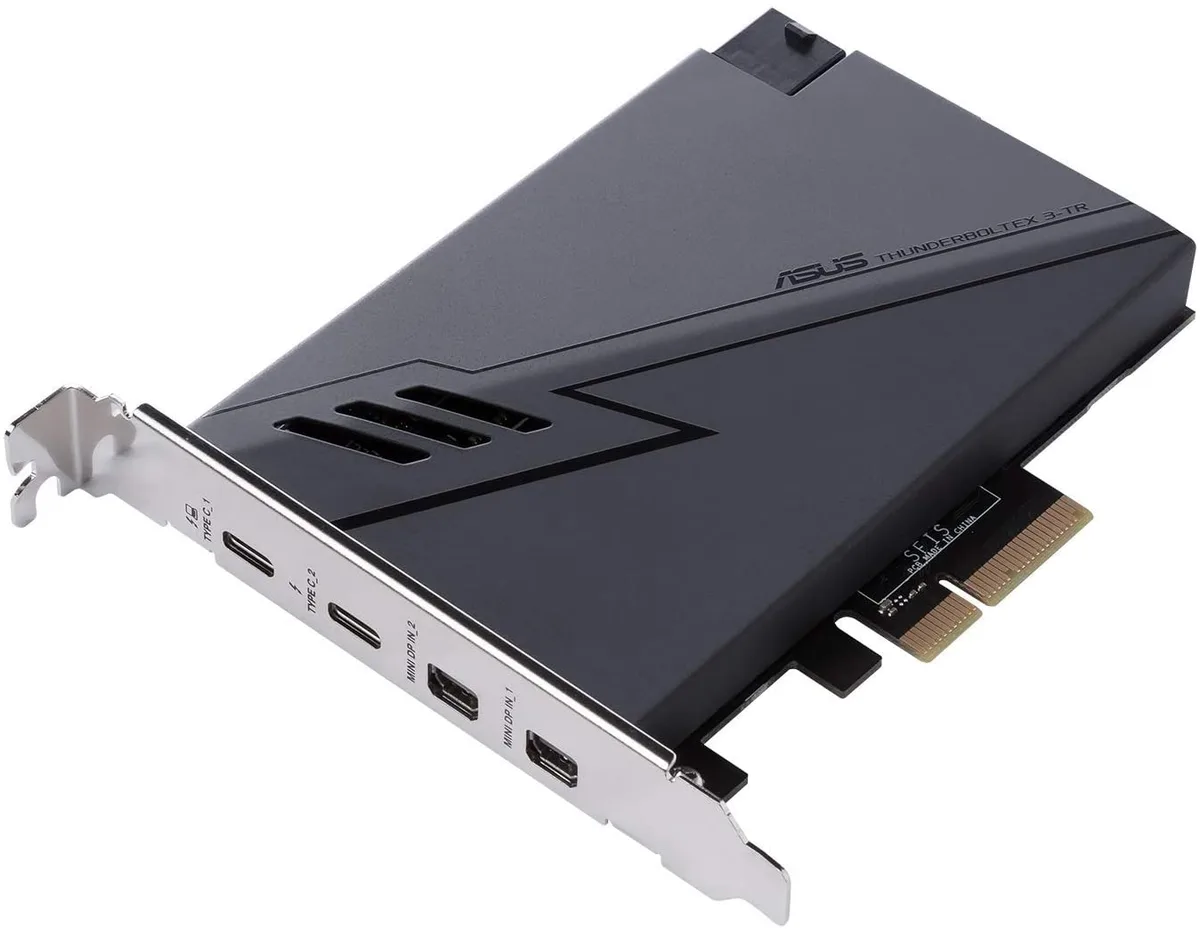

ASUS ThunderboltEX 3-TR expansion card

SKU CH-AKMP-N515Y MPN ThunderboltEX 3-TR

Adds two Thunderbolt 3 USB-C ports with 40 Gbps transfer, 100 W charging and 8K DisplayPort 1.4 to compatible Z490 motherboards via PCIe 3.0 x4

  • ColorBlack
  • GenderMale
  • AgeAdult
  • 40 Gbps transfer speed via Thunderbolt 3
  • 100 W USB quick charge through Type-C port
  • 8K Ultra HD support via DisplayPort 1.4
  • PCIe 3.0 x4 interface for Z490 motherboards

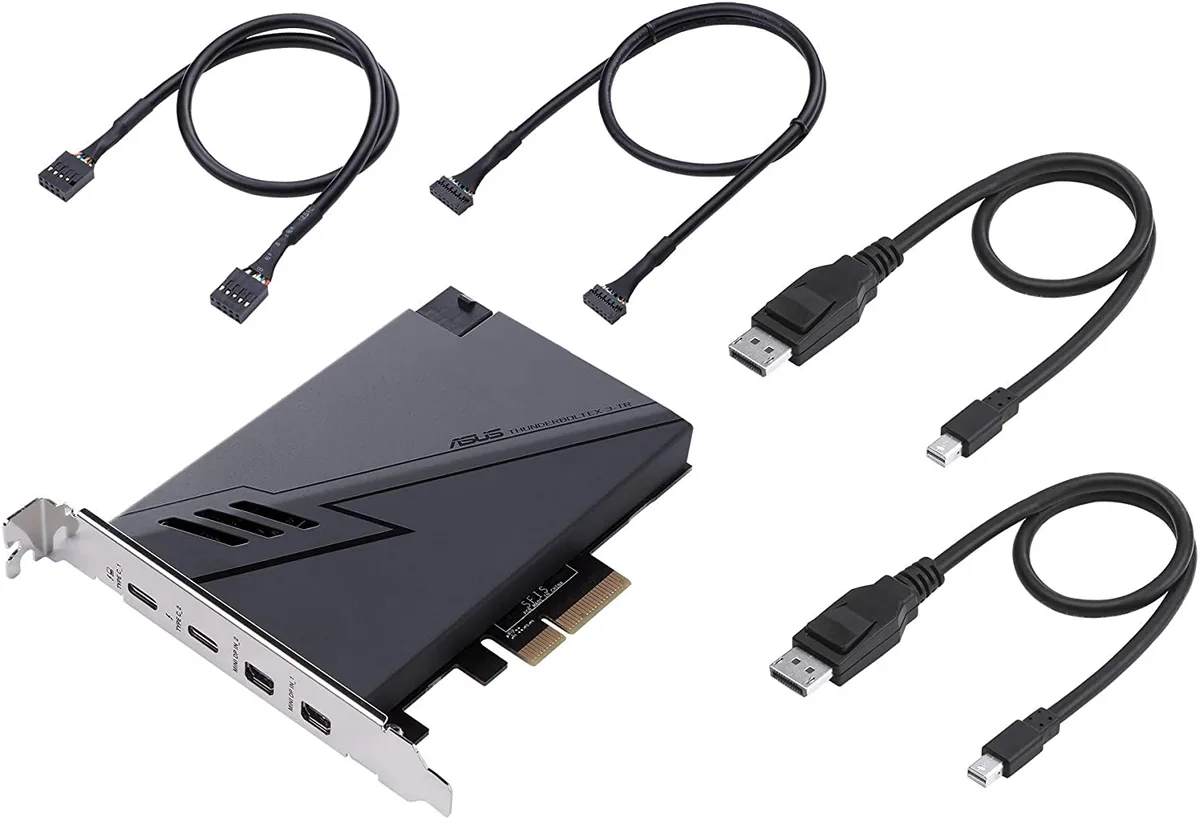

  • Bundled with 2 mini DisplayPort cables

Thunderbolt 3 add-in card

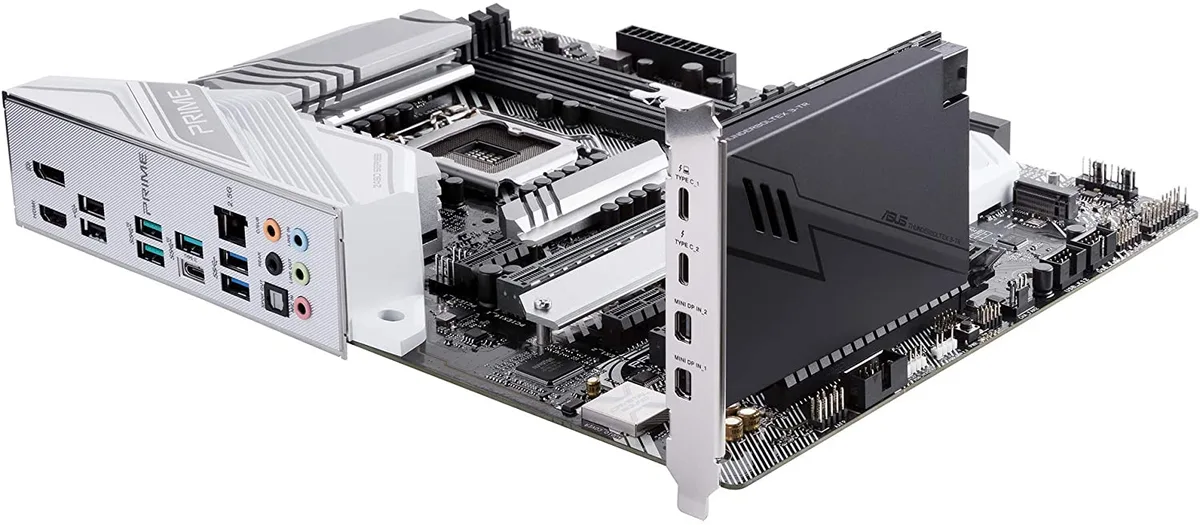

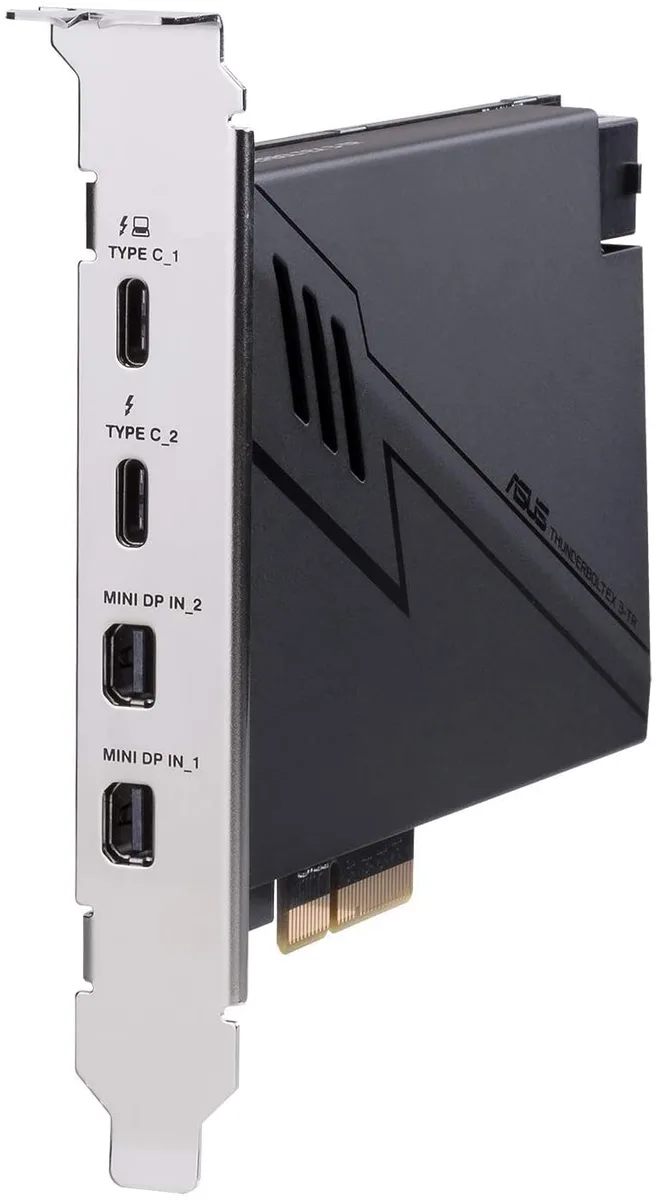

This ASUS ThunderboltEX 3-TR expansion card adds two Thunderbolt 3 USB Type-C ports and two Mini DisplayPort inputs to compatible ASUS Z490 motherboards via a PCIe 3.0 x4 slot. It delivers up to 40 Gbps transfer speed and supports 8K Ultra HD output. The bundle includes a 14-1 pin Thunderbolt header cable and a USB 2.0 cable for internal motherboard connections.

Builders with compatible Z490 boards

The card suits owners of ASUS Z490 motherboards that provide a PCIe 3.0 x4 slot and the required Thunderbolt header. It is not for users whose boards lack that specific header or the necessary PCIe lane allocation. Buyers needing Thunderbolt on other chipsets or platforms should look elsewhere.

PCIe 3.0 x4 interface requirement

The single specification that decides fit is the motherboard's PCIe 3.0 x4 interface paired with a 14-1 pin Thunderbolt header. Without both, the card cannot function. Verify your Z490 board provides these exact connections before purchase.

Priekšrocības

  • 40 Gbps transfer speed via Thunderbolt 3
  • 100 W USB quick charge through Type-C port
  • 8K Ultra HD support via DisplayPort 1.4
  • PCIe 3.0 x4 interface for Z490 motherboards
  • Bundled with 2 mini DisplayPort cables

Specifikācijas

BrandASUS
ModelAMU00628468
ColorBlack
GenderMale
AgeAdult
Sūtījuma svars0.54 kg
Sūtījuma izmēri100 × 85 × 64 mm

Jautājumi par šo preci

Which ASUS Z490 motherboard header does the 14-1 pin cable connect to?

The 14-1 pin Thunderbolt header cable plugs into the designated Thunderbolt header on a compatible ASUS Z490 motherboard.

Will the card output 8K video if I keep my current mini DisplayPort 1.4 monitors?

Yes, the two mini DisplayPort 1.4 inputs pass DisplayPort 1.4 signals through the Thunderbolt 3 ports for 8K Ultra HD support.

How can I verify the 40 Gbps link is active after installation?

The Thunderbolt 3 ports will show a 40 Gbps connection in the OS Thunderbolt control panel when a certified device is attached.
