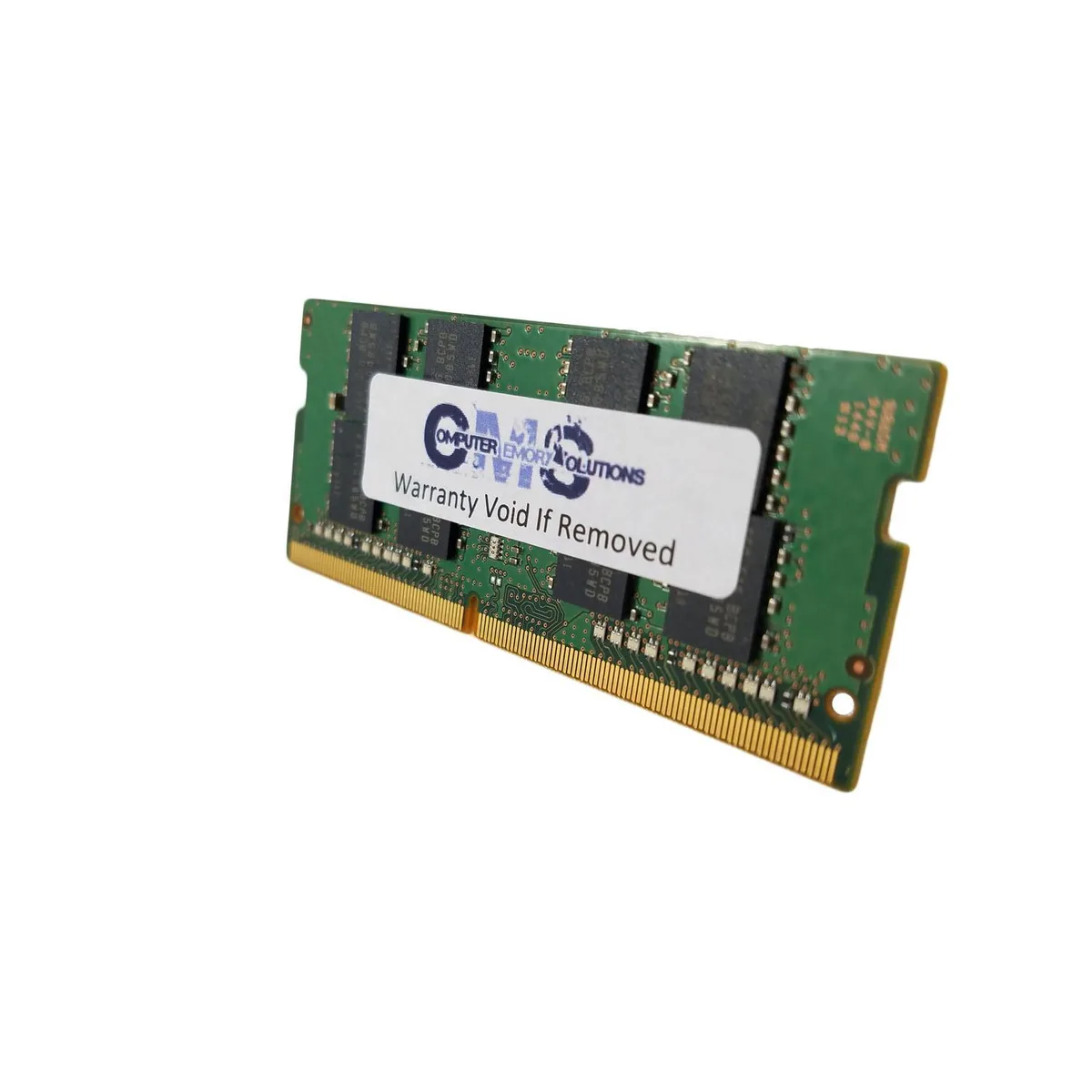

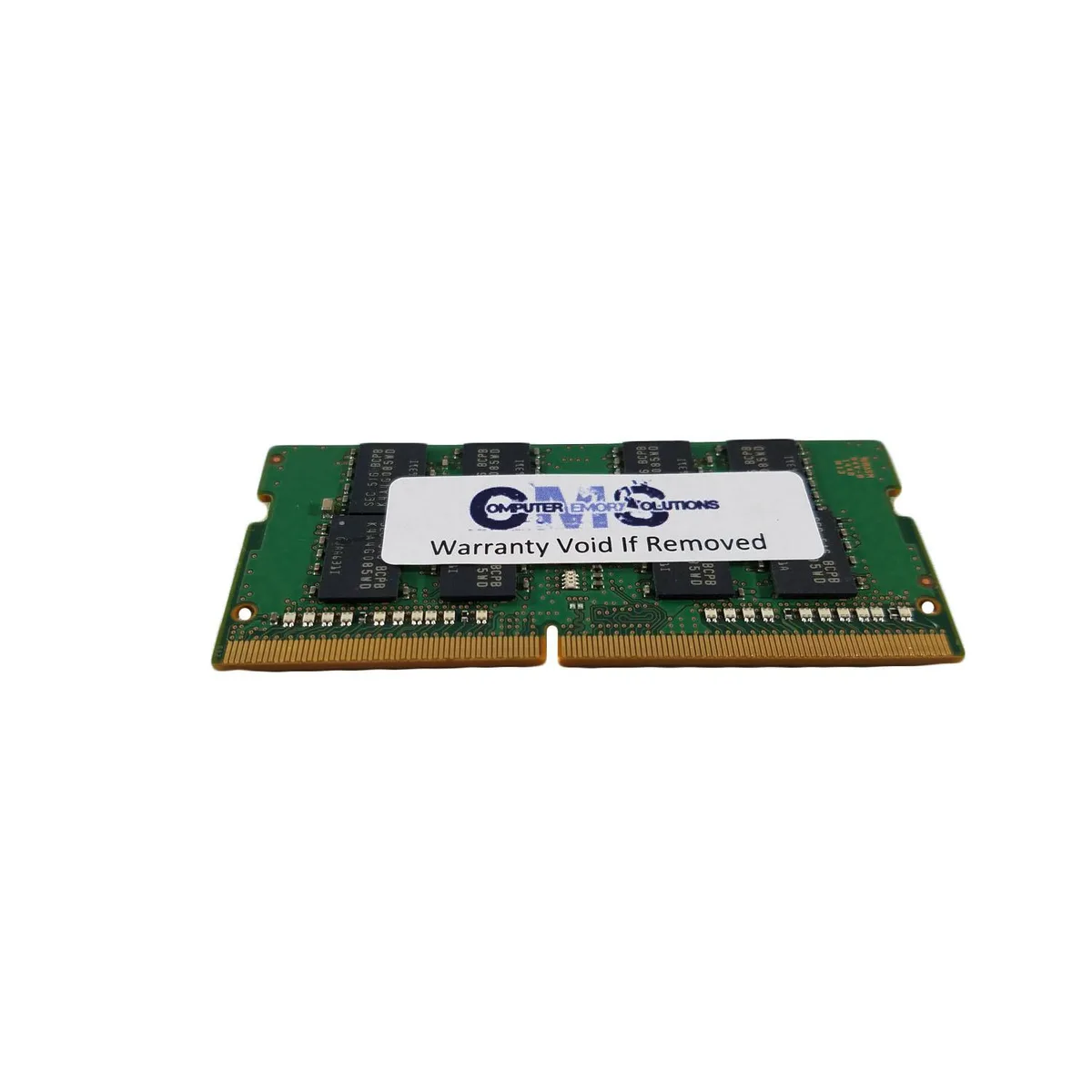

Single green 260-pin DDR4 SO-DIMM stick, no heat spreader

Computer Memory Solutions

Computer Memory Solutions 4GB DDR4 2400 SO-DIMM for ECS LIVA One H1104-SF100

SKU CH-JVRE-2B8HZ

A 4GB DDR4 2400 SO-DIMM built for the ECS LIVA One H1104-SF100 mini PC

  • Capacity4GB
  • Type260-Pin DDR4 SO-DIMM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.2V
  • 4GB capacity expands LIVA One Mini PC memory
  • 2400 MHz DDR4 speed matches system specification
  • CL17 latency supports responsive operation
  • 2 V unbuffered design fits 260-pin SO-DIMM slot
  • Major brand chipset validated for EliteGroup H1104-SF100 compatibility

System-specific 4 GB DDR4 SO-DIMM

This 260-pin DDR4 module runs at 2400 MHz with CL17 timing and 1.2 V unbuffered operation. It is built for the EliteGroup LIVA One Mini PC H1104-SF100 and carries the Computer Memory Solutions compatibility guarantee.

DDR4 2400 SO-DIMM practical limits

The board accepts a maximum of 32 GB across two sockets, so this single 4 GB stick leaves room for expansion. All installed memory will operate at the speed of the slowest module or the processor's memory controller limit.

Capacity headroom and 64-bit requirement

Four gigabytes suits light desktop tasks but a 64-bit operating system is needed to address more than 4 GB. Buyers who want more storage or higher multitasking headroom should plan a matched pair upgrade to reach the 32 GB ceiling.

Priekšrocības

  • 4GB capacity expands LIVA One Mini PC memory
  • 2400 MHz DDR4 speed matches system specification
  • CL17 latency supports responsive operation
  • 2 V unbuffered design fits 260-pin SO-DIMM slot
  • Major brand chipset validated for EliteGroup H1104-SF100 compatibility

Specifikācijas

BrandComputer Memory Solutions
ModelCM512642400SO
Capacity4GB
Type260-Pin DDR4 SO-DIMM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.2V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemEliteGroup (ECS) LIVA One Mini PC (H1104-SF100)
Package Content1 Memory RAM Stick

Jautājumi par šo preci

Should I pick the 4GB stick or add a second one to reach the 32GB maximum?

The board supports up to 32GB across two sockets, so a single 4GB module works alone but adding a matched stick enables dual-channel throughput.

Will the 2400MHz rating actually run at 2400MHz in the LIVA One H1104-SF100?

The module is rated DDR4 2400 (PC4-19200) CL17 at 1.2V; the system will clock it to the highest speed the CPU and firmware allow, which may be 2400MHz or lower.

Is the 260-pin SO-DIMM interface the same as a desktop 288-pin DIMM?

No, the stick uses a 260-pin SO-DIMM form factor for laptops and mini PCs, while desktop DDR4 uses 288 pins and will not fit.
