Green PCB expansion card with two blue USB-C and three blue USB-A ports, silver bracket

ESTONE

ESTONE PCIE23A2C3.2 PCIe USB 3.2 5-Port Card (2C/3A)

SKU CH-0WTQ-DWKWR

Adds five USB 3.2 ports — two Type-C and three Type-A — to a desktop via a PCI Express x1 slot, delivering up to 10 Gbps per port

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/

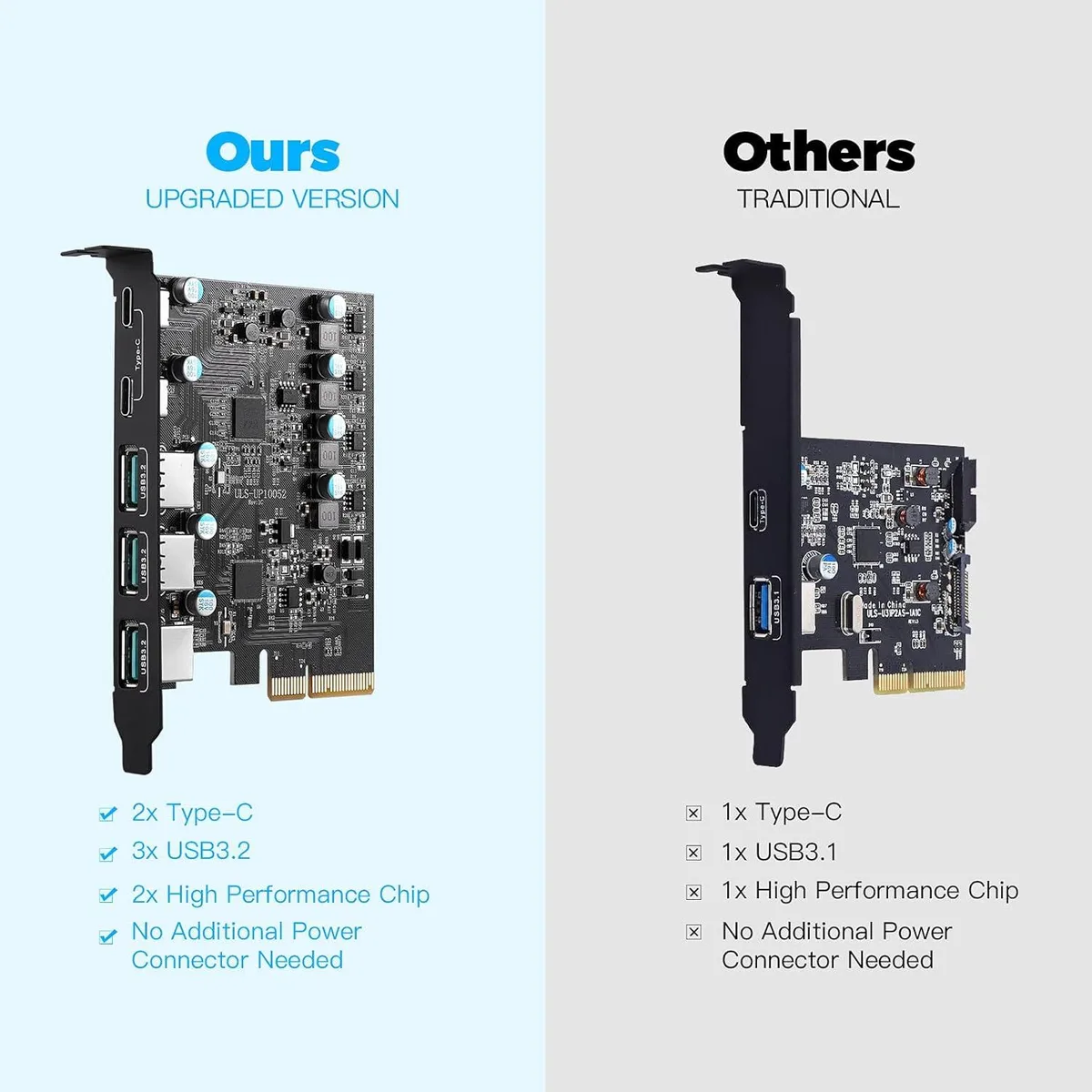

  • Add 5 USB 3.2 ports (2× USB-C, 3× USB-A) via a single PCIe x1 slot
  • Up to 10 Gbps transfer speed for fast file moves with external drives
  • Works with Windows 7 through 11 and Mac OS 10.8.2+
  • No external power needed; draws up to 5 W per port from the PCIe slot
  • Each port has independent over-current and short-circuit protection

Desktop USB expansion via PCIe x1

The ESTONE PCIE23A2C3.2 adds five USB 3.2 ports to a desktop through a single PCI Express x1 slot. It provides two USB-C and three USB-A connectors for attaching external drives, peripherals, and mobile devices. The card fits PCIe 2.0, 3.0, and 4.0 motherboards in x1, x4, x8, or x16 slots. No external power cable is required, as the board draws power from the slot.

Bandwidth layout and practical limits

Two USB-C ports and two USB-A ports share a 10 Gbps upstream link, while the remaining USB-C port has a dedicated 10 Gbps lane. Real-world throughput depends on the connected device and cable quality. The card is backward compatible with USB 2.0 and 1.1 hardware, though legacy devices will operate at their native speeds. Total simultaneous bandwidth is constrained by the single PCIe 2.0 x1 host connection.

Driver CD and protection circuitry

A driver CD is included for Windows 7, 8, Vista, XP, and Server 2008; Windows 10, 11, Mac OS 10.8.2+, and Linux work without extra software. Each port carries an independent 2 A current limit with over-current and short-circuit protection. Mounting screws and a user manual complete the package for immediate installation.

Priekšrocības

  • Add 5 USB 3.2 ports (2× USB-C, 3× USB-A) via a single PCIe x1 slot
  • Up to 10 Gbps transfer speed for fast file moves with external drives
  • Works with Windows 7 through 11 and Mac OS 10.8.2+
  • No external power needed; draws up to 5 W per port from the PCIe slot
  • Each port has independent over-current and short-circuit protection

Specifikācijas

BrandESTONE
SeriesPCIE23A2C3.2
ModelPCIE23A2C3.2
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?
FeaturesPCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB3.2)
USB3.0 Backwards compatible older USB 2.0 and 1.1 devices; Comply with PCI-e 3.0 PCIe 2.0 motherboards, Fits PCI Express x1, x4, x8 or x16 socket .Operating System Supports Windows XP/Vista/2008 Server/7/8/10,and Mac 0s (10.8.2 above) . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers.
transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:T
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Jautājumi par šo preci

Will the ESTONE PCIE23A2C3.2 card work in my older motherboard that only has PCIe 2.0 slots?

Yes, the card complies with PCIe 2.0 motherboards and fits PCI Express x1, x4, x8, or x16 slots.

How can I verify each of the five ports is delivering the 10 Gbps rate after installation?

Connect a USB 3.2 Gen 2 device to a single port and run a benchmark; the bottom USB-C port has dedicated 10 Gbps bandwidth while the other four share 10 Gbps.

Does the box include everything needed to mount the card and install drivers on Windows 7?

The package contains the expansion card, a driver CD, mounting screws, and a user manual; no external power cable is required.
