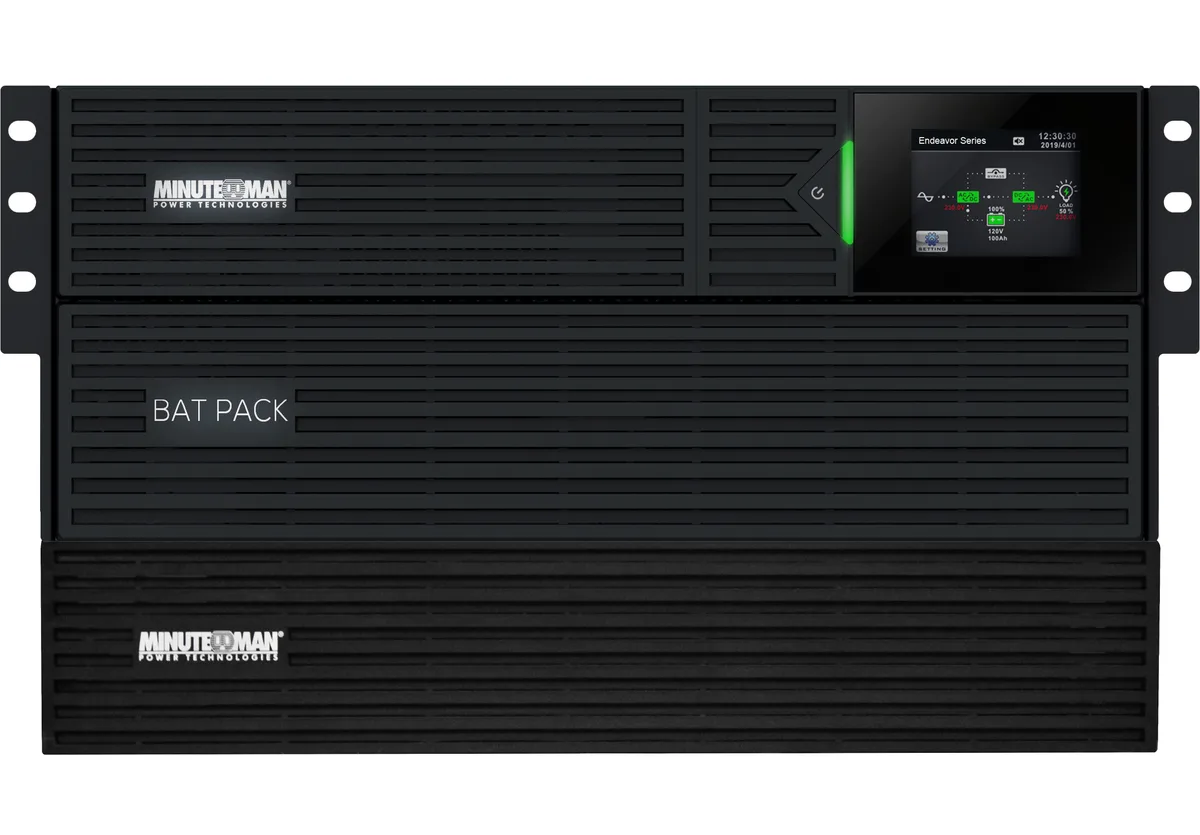

Large black rack-tower UPS with multiple NEMA outlets and terminal block

MINUTEMAN

MINUTEMAN ED8KRT-3KTF Endeavor 8000VA 7065W 208-240V UPS

SKU CH-XVFR-E6358 MPN ED8KRT-3KTF

Online double-conversion UPS delivering 8000VA and 7065W with true sine-wave output at 208-240VAC

  • International Version208 (Default), 220, 230, 240VAC
  • Input Voltage Range180-280VAC
  • Input Frequency40 to 70Hz at Full Load
  • Input ConnectionHardwire only
  • VA Rating8,000VA
  • Watts7065W

Model ED8KRT-3KTF

Skatīt vēl 16 konfigurācijas

Pārsvītrotās versijas pastāv, taču šeit nav pieejamas.

  • True sine wave output protects sensitive equipment
  • Online double-conversion topology delivers clean 208-240VAC power
  • 8000VA and 7065W capacity supports demanding loads
  • Three controllable L6-30R and two L6-20R outlets plus eight 5-15/20R receptacles
  • User-replaceable BM0098 battery module simplifies maintenance

Power capacity and target use

The Minuteman ED8KRT-3KTF is an 8000VA, 7065W online UPS delivering true sine-wave output at 208-240VAC. It suits data-centre racks or tower deployments that need continuous double-conversion protection for critical servers and network gear.

Upgrade considerations

The unit replaces smaller standby or line-interactive models when loads exceed their VA rating or when harmonic distortion must be eliminated. The jump is worth it for equipment requiring a 0.9 power factor and tight +/-0.1Hz frequency regulation during generator transitions.

Installation notes

Hardwire input and mixed NEMA L6-30R, L6-20R, terminal-block and 5-15/20R outlets demand professional wiring to local code. The 258.97 lb weight requires mechanical lifting aid and a rack rated for the load; the DB-9 port provides basic monitoring but lacks network management unless an optional card is added.

Priekšrocības

  • True sine wave output protects sensitive equipment
  • Online double-conversion topology delivers clean 208-240VAC power
  • 8000VA and 7065W capacity supports demanding loads
  • Three controllable L6-30R and two L6-20R outlets plus eight 5-15/20R receptacles
  • User-replaceable BM0098 battery module simplifies maintenance

Specifikācijas

BrandMINUTEMAN
SeriesENDEAVOR
ModelED8KRT-3KTF
International Version208 (Default), 220, 230, 240VAC
Input Voltage Range180-280VAC
Input Frequency40 to 70Hz at Full Load
Input ConnectionHardwire only
VA Rating8,000VA
Watts7065W
Output Voltage208 (Default), 220, 230, 240VAC
Output Frequency50/60Hz, +/-0.1Hz
Outlets5
Outlet Type(3) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block (208-240VAC)
(8) 5-15/20R (120VAC)
Battery Run TimeHalf Load: 11 min
Full Load: 3 min
Battery ReplaceableBM0098
Interface PortDB-9
ApprovalscUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2
Surge Energy Rating3140 Joules
TemperatureOperating Temperature: +32° to +104°F (0° to +40°C)
Storage Temperature: +5° to +131°F (-15° to +55°C)
Humidity0 to 95%, non-condensing
Dimensions11.95" x 17.24" x 28.74"
Weight258.97 lbs.
Sūtījuma svars117.48 kg
Sūtījuma izmēri729 × 437 × 305 mm

Citas šī modeļa versijas

Vēl 5 šajā sērijā

Viena saime, taču atšķirīga atmiņa, dzesētājs vai frekvence — salīdziniet, pirms izlemjat.

Jautājumi par šo preci

What rack space and floor clearance does the 11.95" x 17.24" x 28.74" rack/tower chassis need?

The unit occupies roughly 7U of rack height and 17.24 inches of depth; allow extra rear clearance for the hardwire input conduit and the terminal-block output.

Which wiring step is most often missed when installing the hardwire-only 208-240VAC input?

Installers frequently forget to torque the three-wire terminal-block connections to spec before energising the UPS, causing nuisance alarms.

When should the BM0098 battery module be swapped, and how long does a full-load discharge last?

Plan replacement around the 3-minute full-load runtime; the BM0098 is hot-swappable, so schedule service before runtime drops below that threshold.
