Silver aluminium fanless mini PC with vertical stand and WiFi antennas

partaker

Partaker B1 barebone mini PC i5-1235U 8GB DDR4 128GB SSD

SKU CH-VJEE-DJFFV

Fanless mini desktop with Intel Core i5-1235U, 8GB DDR4, 128GB SSD, dual 4K display support and extensive I/O including VGA, HDMI, four USB 3.0 and two USB 2.0 ports

  • ColorSilver
  • CPU TypeIntel Core i5 12th Gen

Group 8GB / 128GB SSD

  • Fanless cooling keeps operation silent and reliable
  • Intel Core i5-1235U delivers up to 4.40 GHz for responsive performance
  • Dual display via VGA and HDMI expands workspace flexibility
  • Three internal drive bays support SATA and NVME storage upgrades
  • Compact 197 x 197 x 37 mm aluminium chassis fits VESA mounts

Fanless Mini PC with Intel Core i5-1235U

The Partaker B1 is a compact barebone system built around a 12th-generation Intel Core i5-1235U processor. It ships with 8GB of DDR4 memory and a 128GB SSD, ready for Windows 11 Pro or Linux Ubuntu. The aluminium chassis measures 197 x 197 x 37mm and weighs 2.5kg, making it suitable for space-constrained desks or VESA-mounted deployments.

Silent Operation at 15W TDP

With a fanless cooling design and a processor TDP of 15W, the unit runs completely silent during typical workloads. Power draw scales between 15W and 55W depending on load, while the external 19V 5A adapter handles 100-240V AC input. Operating temperatures range from 0°C to 70°C, ensuring stable performance without moving parts.

Dual Display and Flexible Storage

HDMI 1.4 and VGA ports drive two independent screens at up to 4096 x 2304 resolution. Expansion includes one mSATA slot, one M.2 2280 slot supporting SATA or NVME drives, and a 2.5-inch bay for additional storage. Gigabit LAN, dual-band Wi-Fi with antennas, and a 5G module slot with SIM tray provide connectivity options for diverse network environments.

Priekšrocības

  • Fanless cooling keeps operation silent and reliable
  • Intel Core i5-1235U delivers up to 4.40 GHz for responsive performance
  • Dual display via VGA and HDMI expands workspace flexibility
  • Three internal drive bays support SATA and NVME storage upgrades
  • Compact 197 x 197 x 37 mm aluminium chassis fits VESA mounts

Specifikācijas

ColorSilver
CPU TypeIntel Core i5 12th Gen

Citas šī modeļa versijas

Vēl 5 šajā sērijā

Viena saime, taču atšķirīga atmiņa, dzesētājs vai frekvence — salīdziniet, pirms izlemjat.

Jautājumi par šo preci

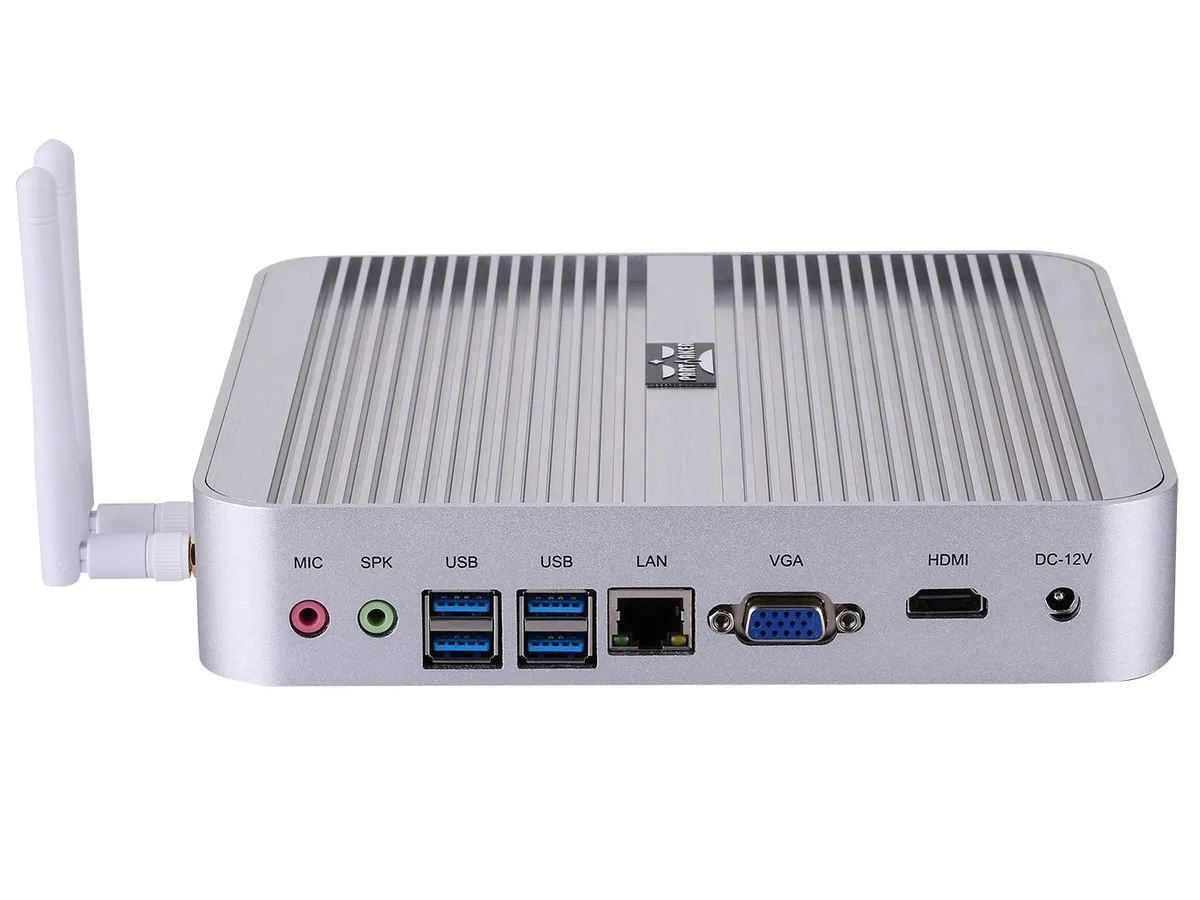

How do I install the WiFi antennas on the Partaker B1?

Screw the two supplied antennas onto the gold connectors on the rear panel; the dual-band 2.4 GHz and 5 GHz antennas are required for 802.11ac wireless performance.

What storage upgrades will the Partaker B1 need later?

The system ships with a 128 GB mSATA SSD; you can add a 2.5-inch SATA drive and an M.2 2280 SATA or NVME SSD up to the board limits.

What thermal limit appears first during sustained loads on the fanless Partaker B1?

The aluminium chassis dissipates the 15 W TDP passively; if the CPU reaches its 100 °C junction limit it will throttle to stay within the 0–70 °C operating range.
