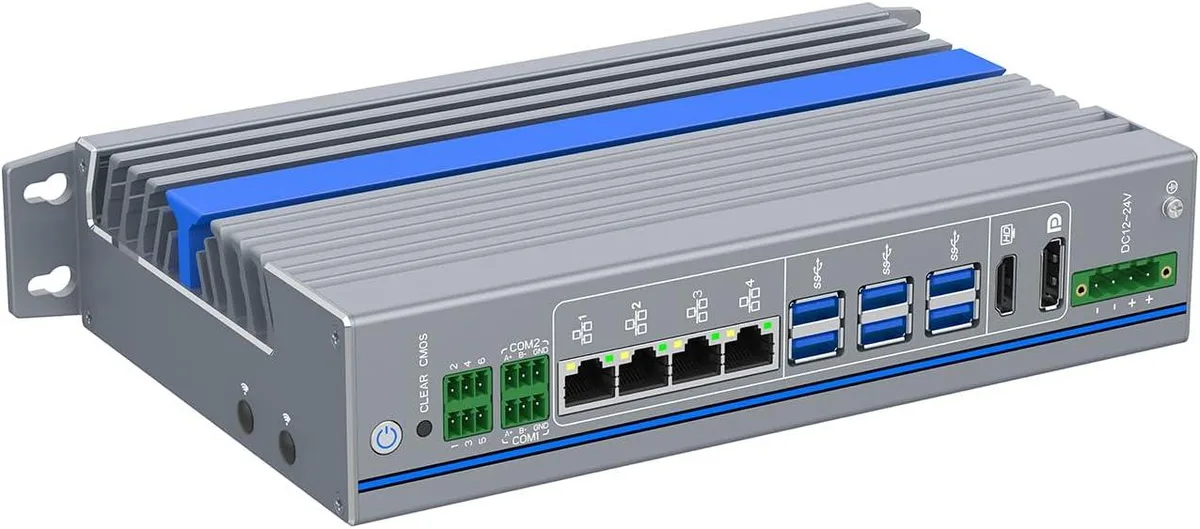

Gray fanless aluminum mini PC, book-style vertical form, 265 x 146 x 50mm

partaker

partaker I24 barebone mini PC i7-12700T 64GB 1TB

SKU CH-XWV1-HA6E3

Fanless aluminium mini PC with a 12-core i7-12700T, 64 GB DDR5, 1 TB NVME SSD, quad Gigabit LAN and dual 4K video for industrial 24/7 use

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I24 CPU I7 12700T 64GB RAM / 1TB SSD

  • Fanless all-aluminium chassis runs silently from -20 °C to 50 °C
  • 12-core i7-12700T reaches 4.70 GHz with 20 threads for heavy edge workloads
  • Dual DDR5 4800 SODIMM slots support 64 GB for real-time multitasking

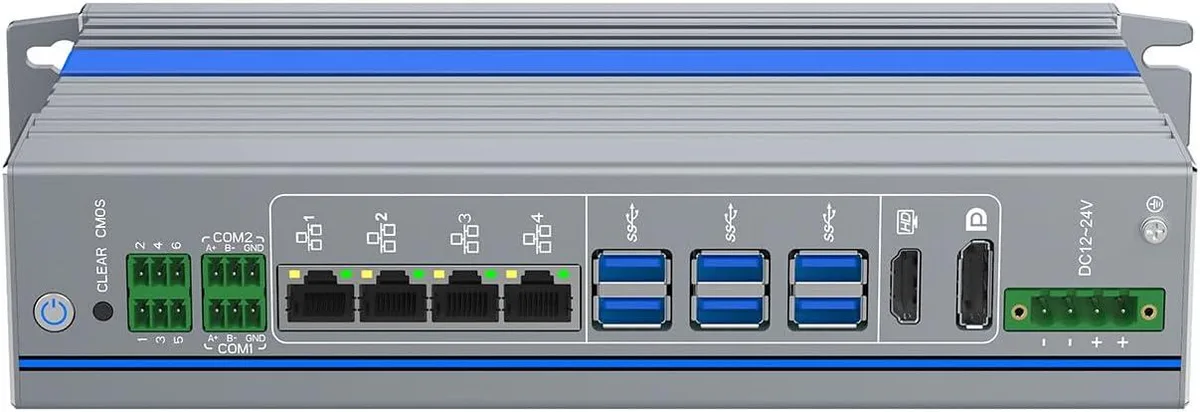

  • Four Gigabit LAN plus two optically isolated RS-485 ports for industrial networking
  • Dual 4K outputs at 3840 x 2160 60 Hz drive surveillance or HMI displays

Industrial fanless mini PC

The Partaker I24 is a book-style barebone system built around a 12-core Intel Core i7-12700T processor with 20 threads and 25MB cache boosting to 4.70GHz. Its sealed aluminium chassis uses passive cooling to run silently from -20°C to 50°C at up to 95% humidity, making it suitable for continuous operation in automation, medical or logistics environments.

Suits edge deployments needing dense I/O

Engineers who require four gigabit LAN ports, dual 4K video outputs at 60Hz, six USB 3.0 ports and two optically isolated RS485 serial links on a DC 12V-24V Phoenix terminal will fit this unit directly into cabinets or DIN rails. Buyers who need active cooling, internal PCIe slots, additional COM ports or a different mounting footprint should look at other form factors.

64GB DDR5 4800MT/s memory ceiling

The board provides two SODIMM slots limited to 64GB total capacity at 4800MT/s, so the installed 64GB kit already saturates the platform. If your workload demands more than 64GB of system memory, this hardware cannot meet the requirement.

Priekšrocības

  • Fanless all-aluminium chassis runs silently from -20 °C to 50 °C
  • 12-core i7-12700T reaches 4.70 GHz with 20 threads for heavy edge workloads
  • Dual DDR5 4800 SODIMM slots support 64 GB for real-time multitasking
  • Four Gigabit LAN plus two optically isolated RS-485 ports for industrial networking
  • Dual 4K outputs at 3840 x 2160 60 Hz drive surveillance or HMI displays

Specifikācijas

ColorGray
CPU TypeIntel Core i7 12th Gen

Citas šī modeļa versijas

Vēl 5 šajā sērijā

Viena saime, taču atšķirīga atmiņa, dzesētājs vai frekvence — salīdziniet, pirms izlemjat.

Jautājumi par šo preci

Does the package include the power supply and mounting hardware, or do I need to buy them separately?

The box contains the Partaker I24 unit, a power supply, a power cord and a book-style wall mount so no extra parts are required for basic desktop or wall installation.

Should I choose the 64 GB DDR5 4800 MT/s configuration or a lower capacity for my application?

The system ships with 64 GB already installed in the two SODIMM slots, which is the maximum supported capacity, so there is no lower-capacity option to select.

What does the 4.70 GHz turbo frequency mean for sustained workloads in a fanless chassis?

The 12-core i7-12700T can reach 4.70 GHz on short bursts; passive cooling across the aluminum body keeps it within its 35-69 W TDP envelope for continuous 24/7 operation from -20 °C to 50 °C.
