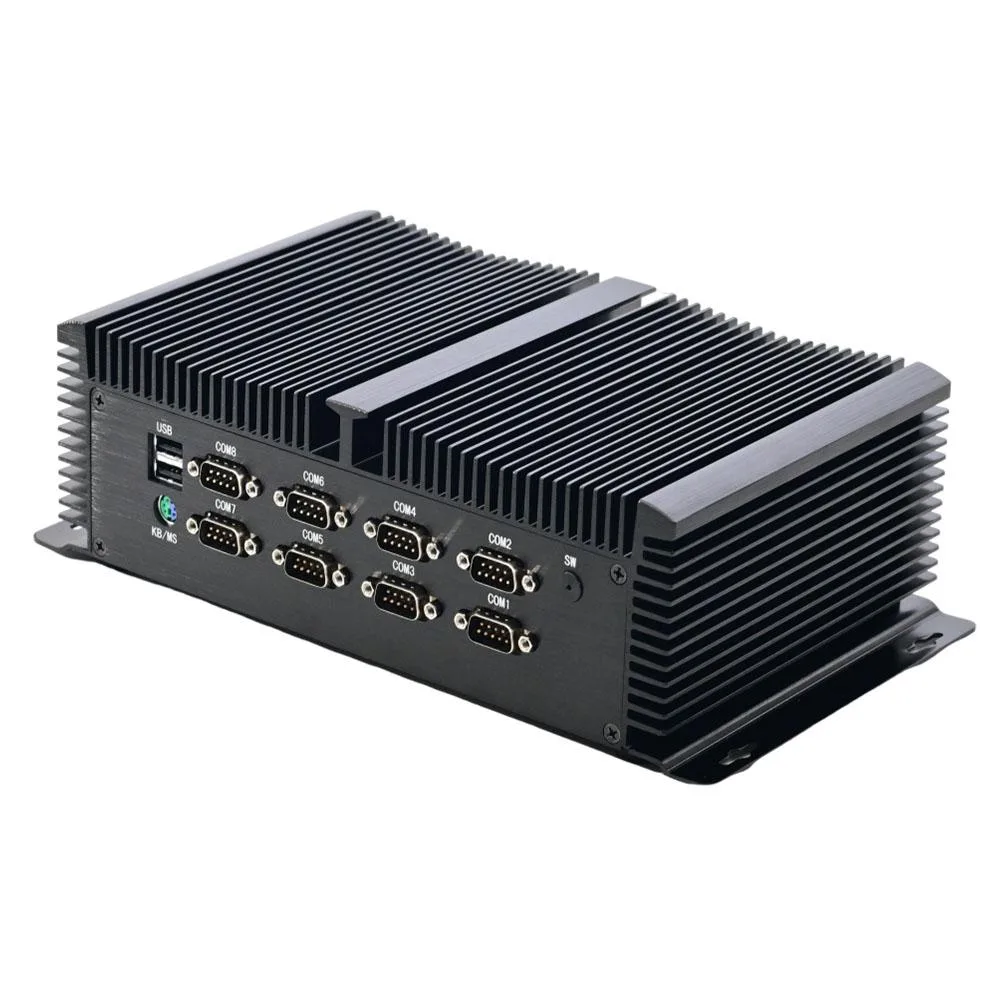

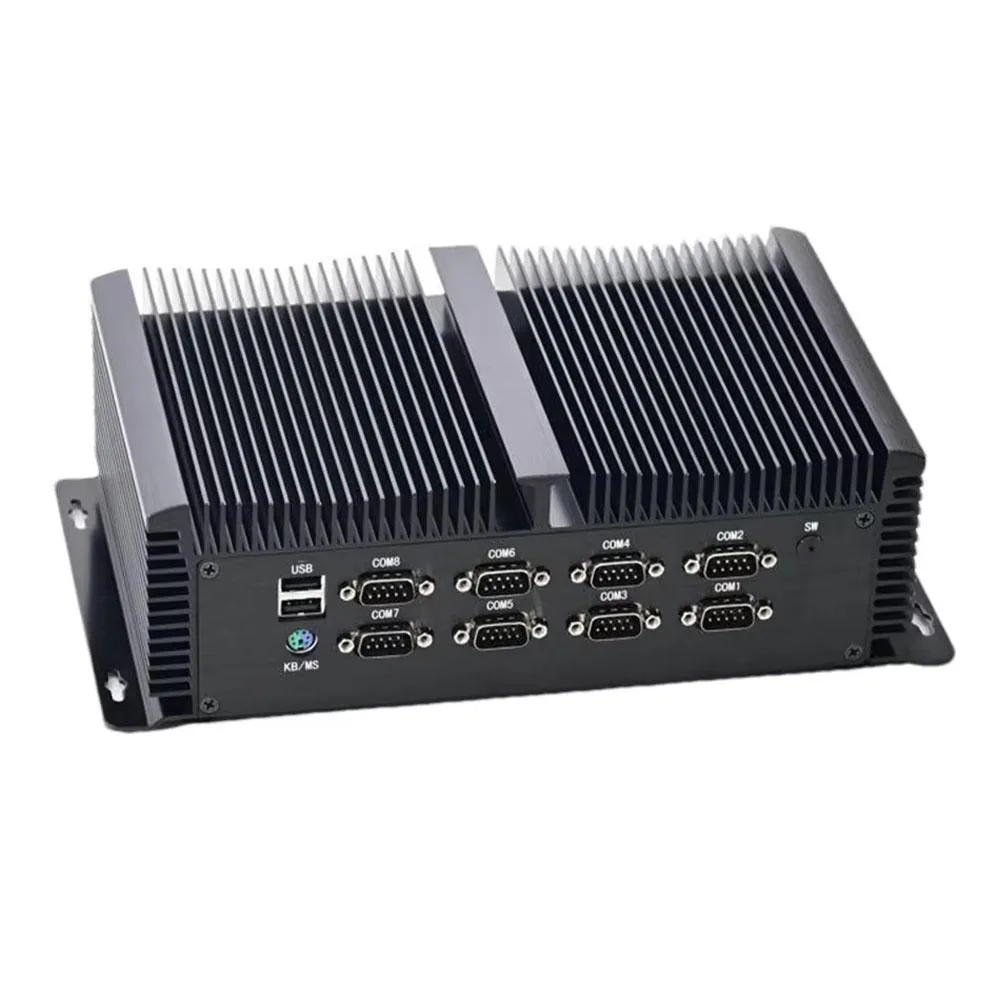

Black fanless aluminium mini PC with mounting ears and dense industrial ports

partaker

partaker I6 barebone mini PC i5-1235U 64GB DDR5 1TB NVME

SKU CH-0RY0-SBH83

Fanless industrial mini PC with i5-1235U, 64GB DDR5, 1TB NVME, triple 2.5G LAN, eight COM ports and triple display output

  • ColorBlack
  • CPU TypeIntel Core i5 12th Gen

CPU Type Intel Core i5-1235U

Group 64G RAM / 1T SSD

  • Fanless aluminium chassis enables silent 24/7 operation
  • Triple 2.5G Intel i226 LAN ports for high-speed networking
  • Eight COM ports with RS485/422 BIOS selectability
  • Triple display via two HDMI 2.0 and one DP 1.4
  • 64 GB DDR5 memory and 1 TB NVME storage included

Industrial mini PC for embedded deployments

The Partaker I6 is a fanless barebone built around an Intel Core i5-1235U processor with 64GB of DDR5 memory and a 1TB NVME drive. It targets system integrators and OEMs who need a compact Windows 11 or Linux platform for kiosks, edge gateways or machine-vision nodes. The aluminium chassis doubles as a heatsink for continuous 24/7 operation.

Fanless aluminium shell with extensive legacy I/O

The black alloy enclosure measures 255 x 155 x 80mm and includes mounting ears for wall or DIN-rail installation. Connectivity covers three Intel i226 2.5G LAN ports, eight RS232 COM ports with two switchable to RS485/422, four USB 3.0, four USB 2.0, PS/2, GPIO, dual HDMI 2.0 and one DP 1.4. Expansion uses half and full mini PCIe slots for wireless modules and an internal SIM slot.

Passive cooling rated for -10°C to 60°C operation

The 45W TDP processor dissipates heat through the full aluminium body without any moving parts, eliminating fan failure risk in dusty or vibration-prone sites. Power is supplied by a 19V 5A adapter accepting 100-240V AC input. BIOS features include ACPI, watchdog timer, wake-on-LAN, PXE boot and automatic power-on after AC loss for unattended reliability.

Priekšrocības

  • Fanless aluminium chassis enables silent 24/7 operation
  • Triple 2.5G Intel i226 LAN ports for high-speed networking
  • Eight COM ports with RS485/422 BIOS selectability
  • Triple display via two HDMI 2.0 and one DP 1.4
  • 64 GB DDR5 memory and 1 TB NVME storage included

Specifikācijas

ColorBlack
CPU TypeIntel Core i5 12th Gen

Citas šī modeļa versijas

Vēl 5 šajā sērijā

Viena saime, taču atšķirīga atmiņa, dzesētājs vai frekvence — salīdziniet, pirms izlemjat.

Jautājumi par šo preci

What resolution does the DP 1.4 port cap at for triple-display output?

The DP 1.4 port supports up to 4K resolution at 60 Hz, enabling simultaneous triple-display output alongside the two HDMI 2.0 ports.

What physical mounting options does the 255 x 155 x 80 mm aluminum chassis provide?

The chassis includes integrated mounting ears for wall installation using optional long screws, and its fanless aluminum alloy shell doubles as a heatsink for 24/7 industrial use.

How is the 64 GB DDR5 memory installed across the two SO-DIMM slots, and what is the common mistake?

The 64 GB kit populates both SO-DIMM slots; the common mistake is installing a single 64 GB module in one slot, which prevents dual-channel operation.
