Black 16U open-frame wall-mount server rack with hinged front door

Tripp Lite

Tripp Lite SRWO16US 16U Wall-Mount Open Frame Server Chassis

SKU CH-3W6J-5JR7P MPN SRWO16US

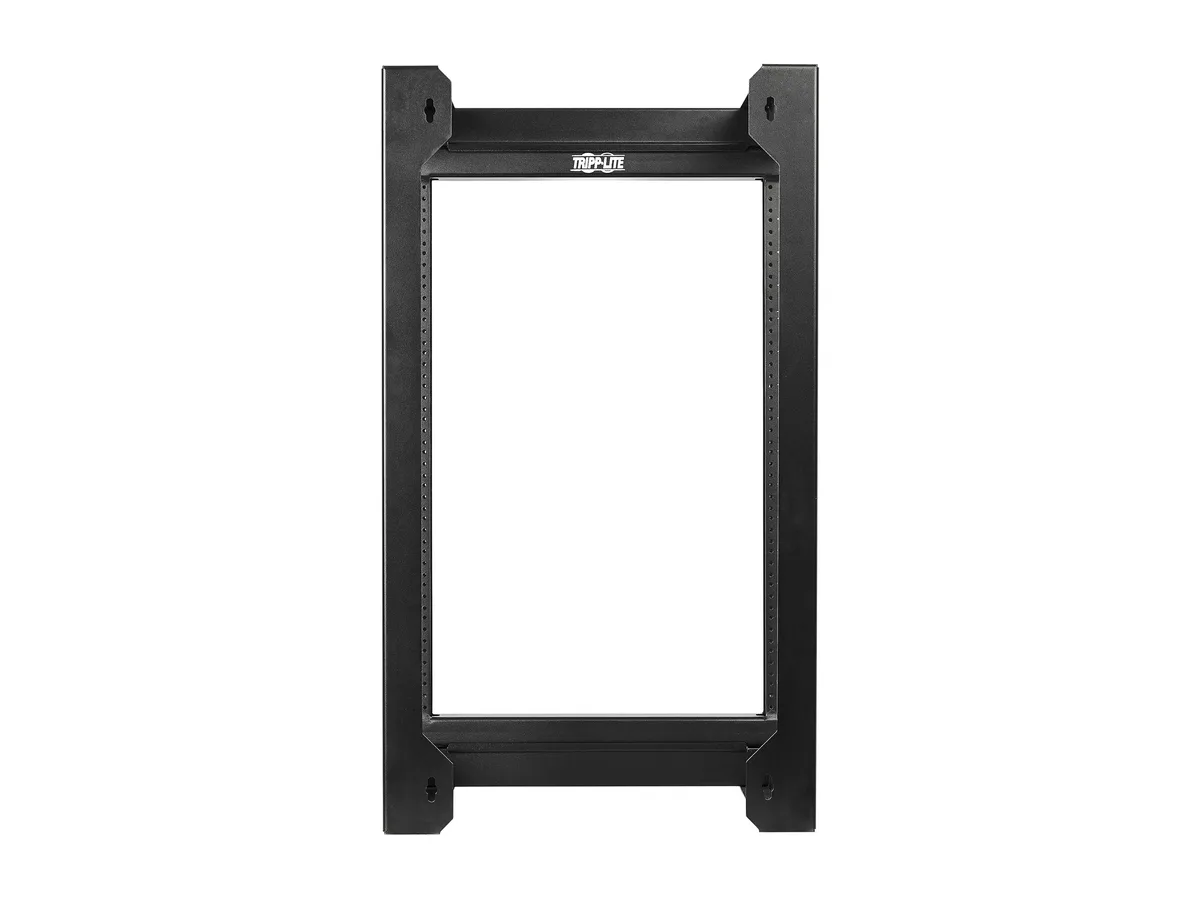

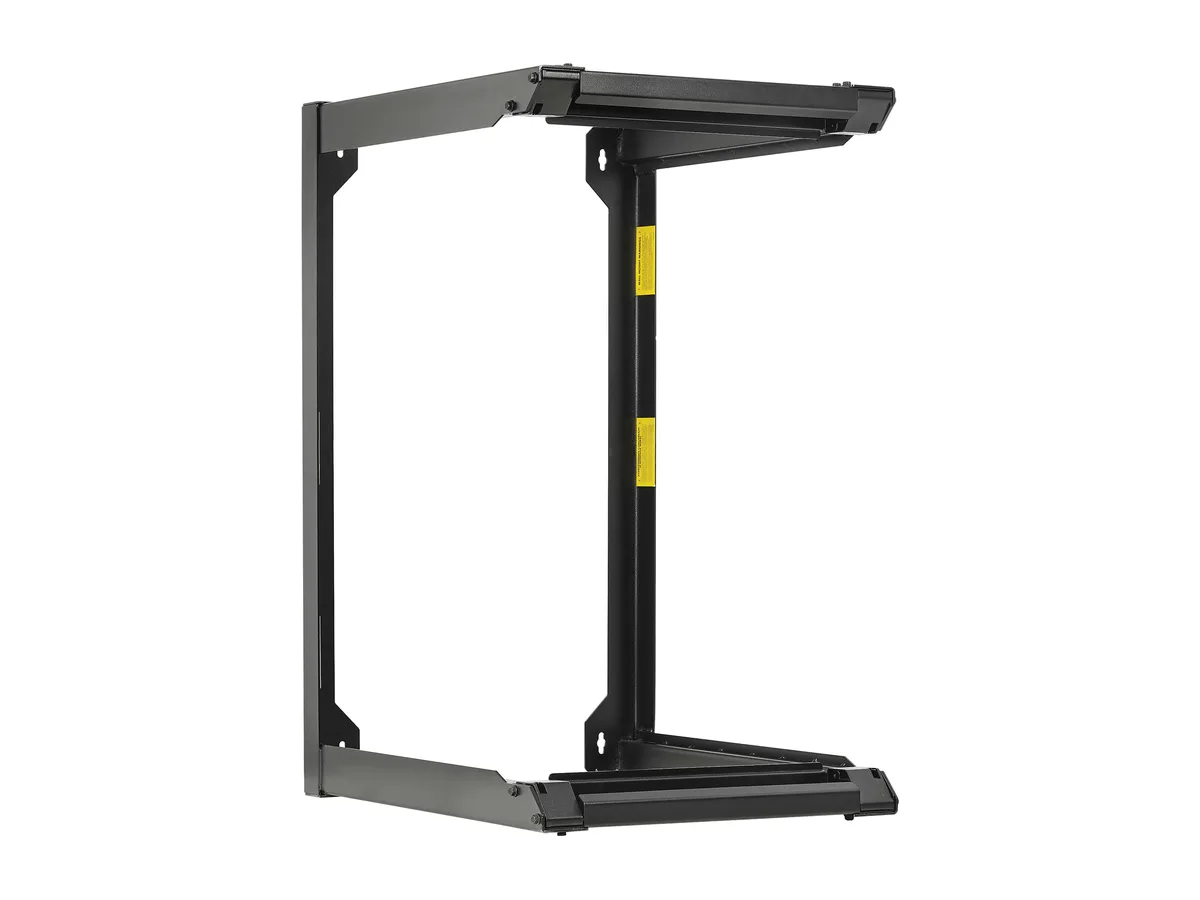

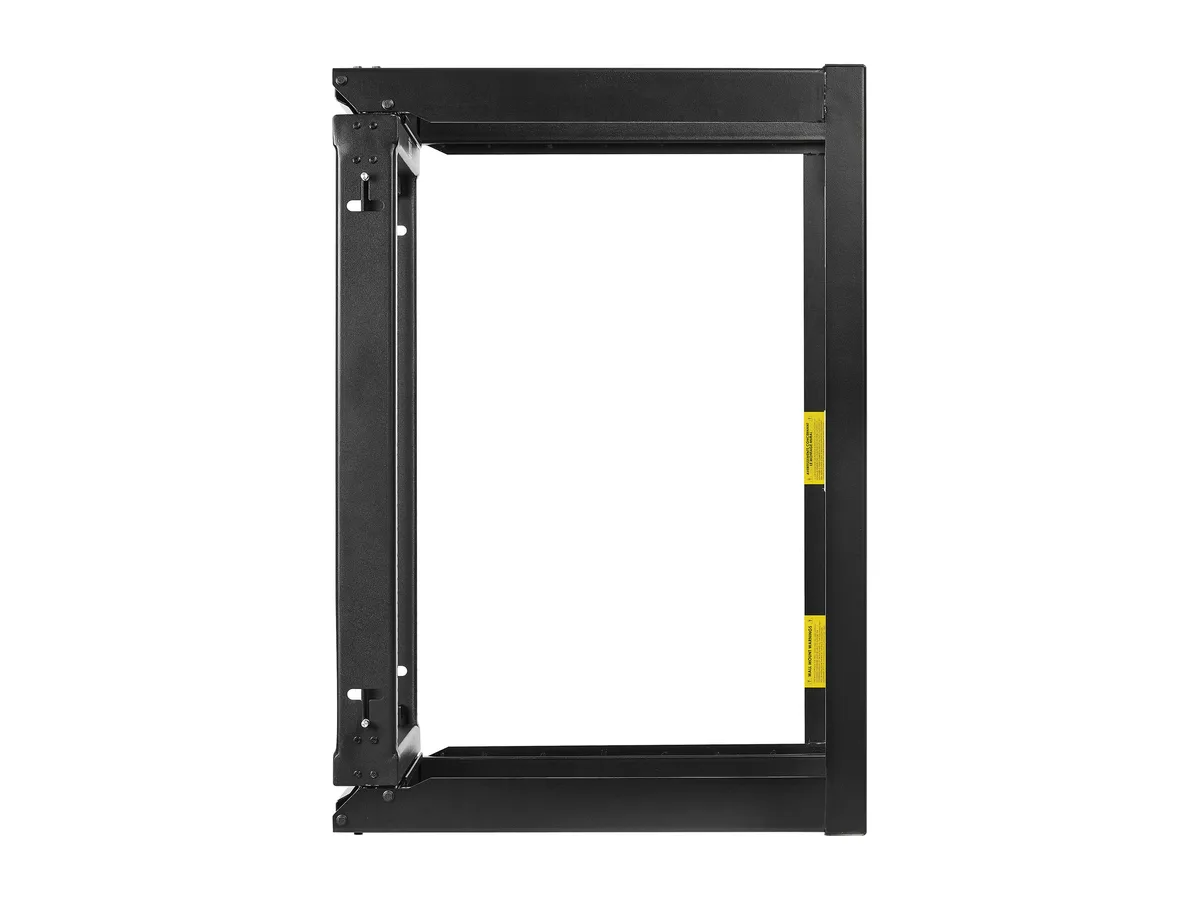

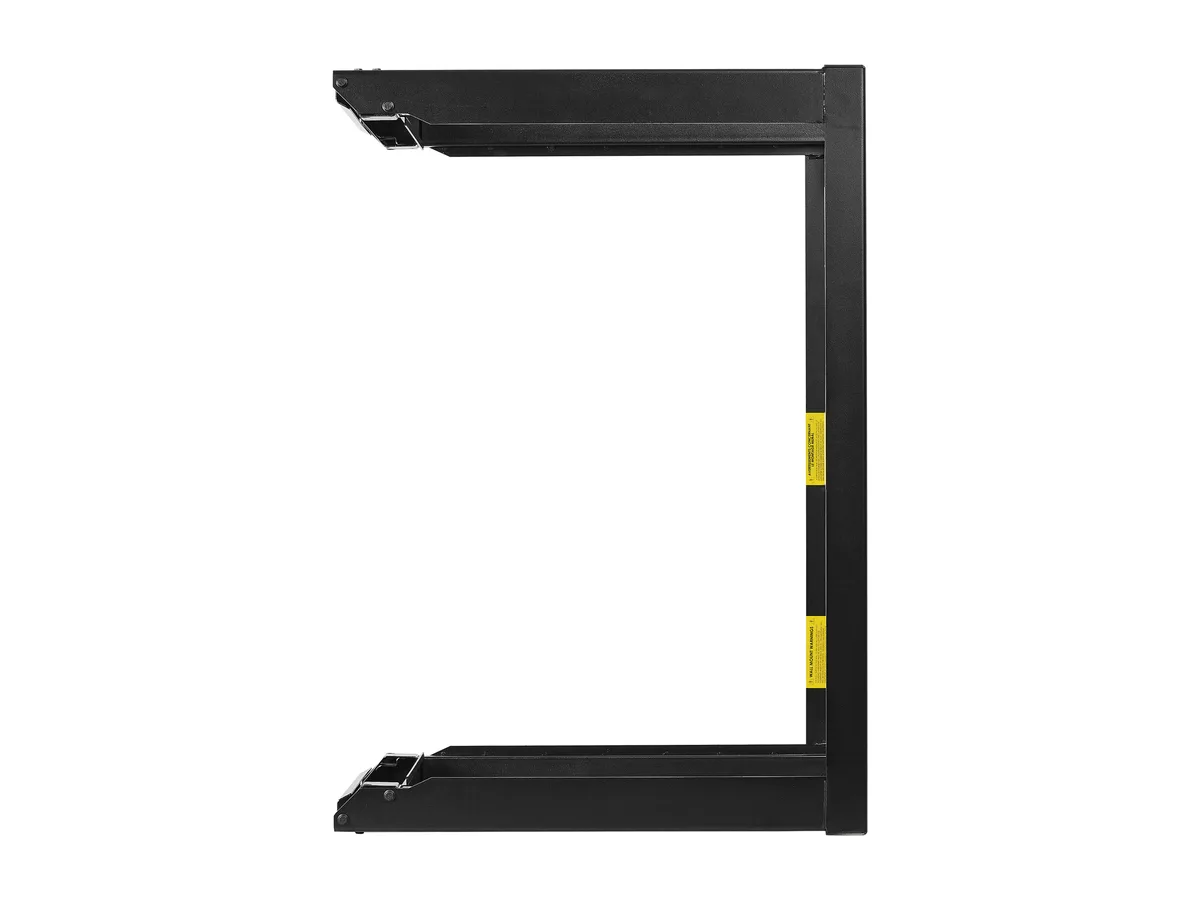

Wall-mount open frame rack holds 16U of 19-inch equipment up to 22 inches deep and swings open for rear access

  • Chassis TypeDesktop
  • Form Factor16U
  • ColorBlack
  • Features2-Post Wall-Mount Open Frame Rack Saves Valuable Floor Space
  • Dimensions36.60" x 22.30" x 25.20"
  • Weight71.70 lbs.
  • Wall-mount design saves floor space in tight areas

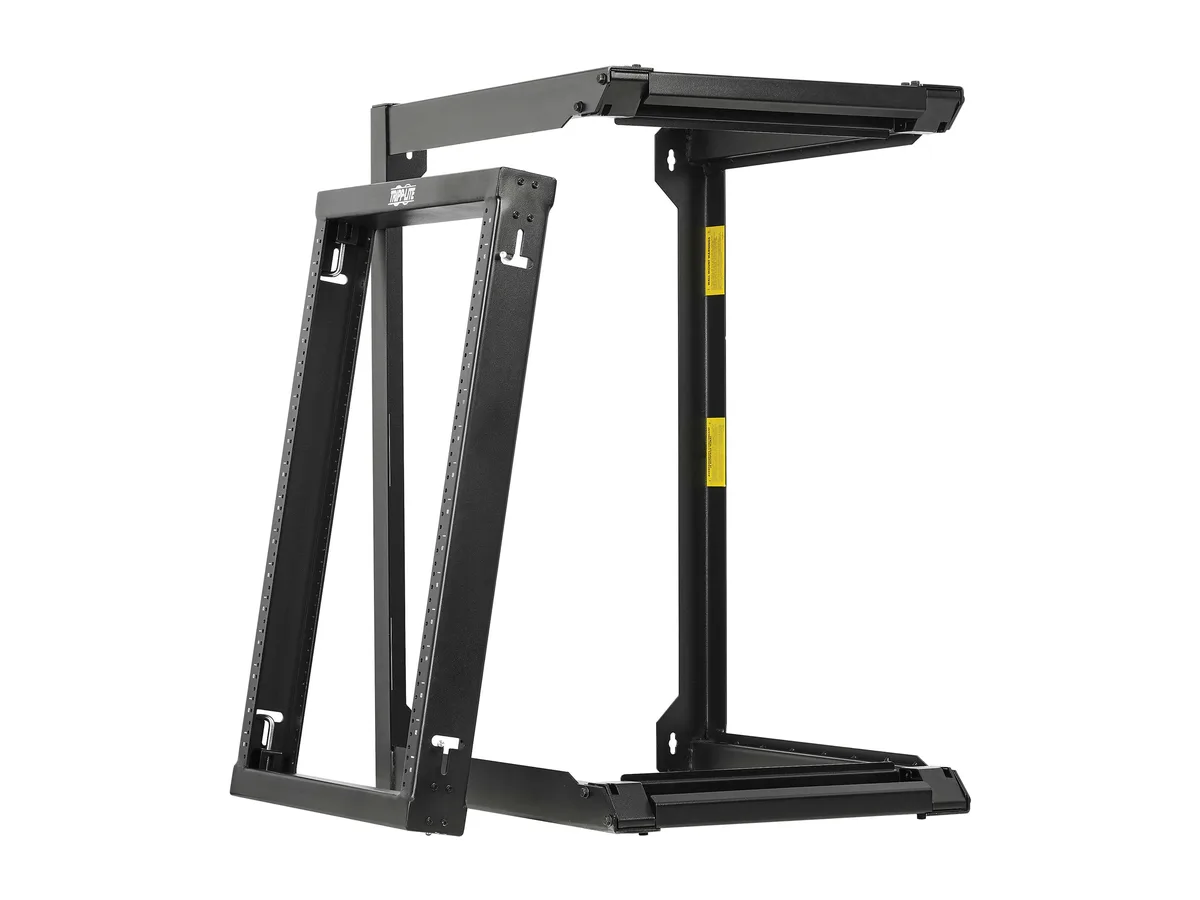

  • Hinged front swings open for easy rear cable access
  • Holds 16U of 19-inch rack equipment up to 22 inches deep
  • Keyhole slots spaced 16 inches apart match standard wall studs
  • Supports up to 150 pounds of equipment weight

Wall-Mount 16U Open Frame Rack

The Tripp Lite SRWO16US is a wall-mount open frame rack that holds 16U of EIA-standard 19-inch equipment compatible with 2-post mounting. It is designed for network wiring closets, back offices and other secure areas where floor space is limited and a locked enclosure is not required. Heavy-duty steel construction with a black powder-coated finish provides durability in professional environments.

Capacity and Access

The rack accommodates equipment up to 22 inches deep and supports a maximum load of 150 pounds. Its hinged front swings open to the left or right, giving unrestricted rear access to cables and hardware for installation and servicing. The swinging frame can be secured in position to prevent movement while equipment is being installed or configured.

Upgrade From Floor-Standing Racks

This unit replaces freestanding racks when floor space is unavailable or when a secure locked cabinet is unnecessary. Keyhole mounting slots spaced 16 inches apart align with standard wall studs for direct attachment. The jump is worth it when you need to reclaim floor area in a wiring closet or small office while keeping 19-inch gear accessible and organized.

Priekšrocības

  • Wall-mount design saves floor space in tight areas
  • Hinged front swings open for easy rear cable access
  • Holds 16U of 19-inch rack equipment up to 22 inches deep
  • Keyhole slots spaced 16 inches apart match standard wall studs
  • Supports up to 150 pounds of equipment weight

Specifikācijas

BrandTripp Lite
ModelSRWO16US
Chassis TypeDesktop
Form Factor16U
ColorBlack
Features2-Post Wall-Mount Open Frame Rack Saves Valuable Floor Space
The SRWO16US open frame rack stores and organizes 16U of EIA-standard 19-inch rack equipment compatible with 2-post mounting. Designed for wall mounting, the rack saves space in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. The 2-post rack is made of heavy-duty steel with a durable black powder-coated finish. Maximum load capacity is 150 pounds (68 kilograms).
Hinged Front Provides Convenient Access to Cables and Equipment
The hinged front of t
Dimensions36.60" x 22.30" x 25.20"
Weight71.70 lbs.
Package ContentsSRWO16US 16U Wall-Mount 2-Post Open Frame Rack, Hinged
(2) Wall-mount bracket frames
(2) Front rail assemblies
Swinging door assembly
(16) M6 hex bolts for assembly
Owner's manual
Sūtījuma svars34.50 kg
Sūtījuma izmēri1020 × 735 × 240 mm

Jautājumi par šo preci

Will my 19-inch patch panels that are 22 inches deep fit in this 16U open frame rack?

Yes, the rack accepts EIA-standard 19-inch equipment up to 22 inches deep, so those patch panels will fit.

How can I confirm the rack is securely mounted to the wall after assembly?

Verify the keyhole slots are seated on studs spaced 16 inches apart and that the hinged front swings and locks without binding.

What hardware comes in the box and do I need to buy lag bolts for the wall separately?

The package includes the rack frame, two wall-mount brackets, two front rails, a swinging door, 16 M6 hex bolts and the manual; wall fasteners are not supplied.
