Compact metal-encased DC-DC high-voltage module with screw terminals

Analog Technologies, Inc.

Analog Technologies, Inc. AHV12V1KV2MAW DC-DC HV Power Supply Module 12V 1kV 2mA

SKU CH-MZJJ-WMJXT

Converts 12 V input to an adjustable 0‑1 kV output at up to 2 mA with 0‑5 V control and a metal enclosure for low EMI and good heat sinking

  • TypeLinear Power Supplies
  • Voltage1KV
  • Amps2mA
  • 12 V input delivers up to 1 kV output
  • 0–5 V control scales output precisely
  • 2 mA maximum current suits low-power needs
  • Metal enclosure gives zero EMI and heat sinking
  • Built for X-ray, spectrometry and semiconductor tools

Industrial DC-DC High Voltage Module

The Analog Technologies AHV12V1KV2MAW converts a 12 V input into an adjustable 0 to 1 kV output at up to 2 mA. It is built for engineers and technicians who need a compact high-voltage source for X-ray, spectroscopy or semiconductor processes.

Verify Input and Control Compatibility

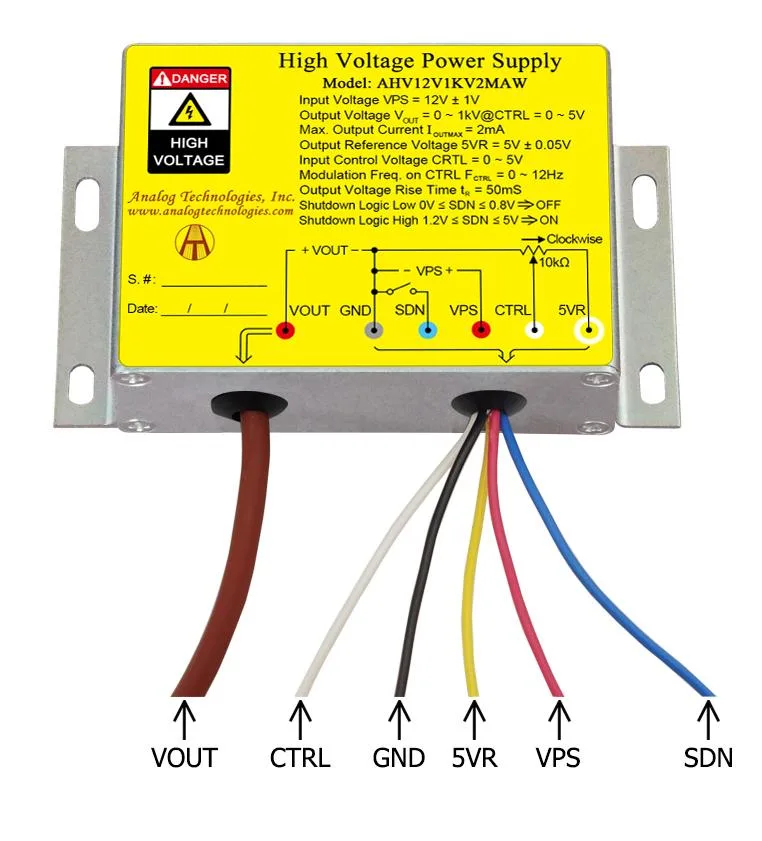

Your system must supply 12 V within a ±1 V tolerance and deliver between 50 mA and 240 mA depending on load. The module also requires a 0 to 5 V control signal to set the output voltage and uses a 5 V reference with ±0.05 V accuracy.

Integration Into High Voltage Systems

A metal enclosure provides shielding and heat sinking so the unit can be mounted directly inside instrument chassis without extra EMI measures. An electronic shutdown pin allows safe power-down, freeing you from designing external protection circuits for sensitive loads.

Öne çıkanlar

  • 12 V input delivers up to 1 kV output
  • 0–5 V control scales output precisely
  • 2 mA maximum current suits low-power needs
  • Metal enclosure gives zero EMI and heat sinking
  • Built for X-ray, spectrometry and semiconductor tools

Teknik özellikler

TypeLinear Power Supplies
Voltage1KV
Amps2mA

Bu ürünle ilgili sorular

What comes in the box with the AHV12V1KV2MAW module and what must I source separately?

The module itself is supplied; you must provide a 12 V ± 1 V power source capable of 50 mA to 240 mA input current and a 0 V to 5 V control signal for voltage adjustment.

The module offers 0 V to 1 kV output at up to 2 mA — how do I decide which output setting to use?

Set the control voltage between 0 V and 5 V to dial the exact output voltage your application requires; the 2 mA limit is fixed, so choose a voltage that keeps your load within that current.

What does the 1 kV / 2 mA rating mean when the unit is installed in my equipment?

It means the module can supply any voltage from 0 V to 1 kV proportional to the 0 V to 5 V control input, but the output current will never exceed 2 mA regardless of load.
