Small green PCIe add-in card with a USB-C port, USB-A port, and internal headers

ASUS

ASUS ThunderboltEX 3 FF3D516G6000HC38ADC01 Thunderbolt expansion card

SKU CH-MYY7-4E5J1 MPN FF3D516G6000HC38ADC01

Adds Thunderbolt 3, USB 3.1 Type-C and DisplayPort 1.2 to compatible ASUS motherboards via a PCIe 3.0 x4 slot

  • TypePCI Express to USB Card
  • Thunderbolt 3Yes
  • External Ports1 x 9 pin TB header
  • Internal PortsPCI Express 3.0 x4 (compatible with PCI Express x16/x8/x4 sl
  • Operating Systems SupportedWindows 10 Windows 8.1 64-bit Windows 8 64-bit Windows 7 32-
  • CompatibilityROG RAMPAGE VI EXTREME PRIME X299-DELUXE PRIME X299-A TUF X2
  • Adds Thunderbolt 3 at 40 Gbps via PCIe 3.0 x4
  • Single reversible USB-C port carries Thunderbolt 3, USB 3.1 Gen 2 and DisplayPort 1.2
  • Charges devices up to 36 W through USB Power Delivery
  • Extra USB-A port delivers 10 Gbps for legacy peripherals
  • Works with listed ASUS X299, Z370, Z270, Z170 and WS C422 boards

What this card adds

The ASUS ThunderboltEX 3 is a PCI Express 3.0 x4 add-in card that brings Thunderbolt connectivity to compatible ASUS motherboards with a TB header. It provides a single Thunderbolt 3 port using USB Type-C and a USB 3.1 Gen 2 Type-A port. The card fits into x16, x8 or x4 slots. It is intended for builders who need high-speed external storage, docking or display support on a supported platform.

Sustained throughput and daisy-chaining

The Thunderbolt port delivers up to 40 Gbps for Thunderbolt devices and up to 10 Gbps for USB 3.1 Gen 2 devices. The USB Type-A port also supports up to 10 Gbps. The card supports daisy-chaining of multiple Thunderbolt devices. When a monitor is present in the chain, the included cable must connect the card's miniDP input to the system's DisplayPort output. USB Power Delivery supplies up to 36 W through the Thunderbolt port for charging.

Installation steps and common issues

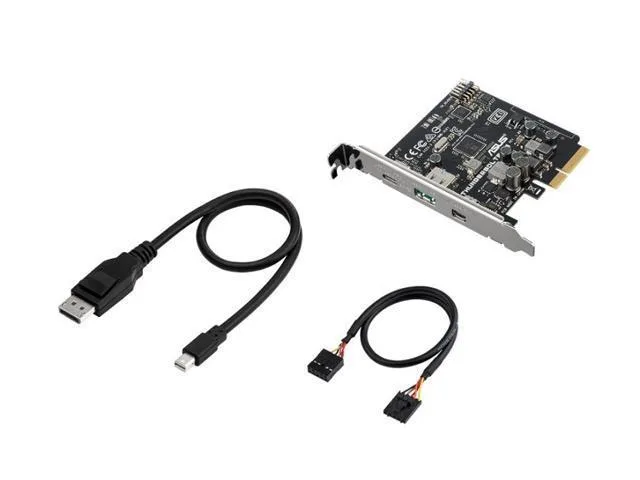

Installation requires three steps: insert the card into a PCIe 3.0 x4 slot, connect the supplied system-link cable to the motherboard TB header, and attach the supplied DisplayPort cable between the card and the onboard DisplayPort connector. The card only works with the listed ASUS motherboards. Builders without a TB header or using a non-listed board cannot use this card. Windows 7 through Windows 10 are supported.

Öne çıkanlar

  • Adds Thunderbolt 3 at 40 Gbps via PCIe 3.0 x4
  • Single reversible USB-C port carries Thunderbolt 3, USB 3.1 Gen 2 and DisplayPort 1.2
  • Charges devices up to 36 W through USB Power Delivery
  • Extra USB-A port delivers 10 Gbps for legacy peripherals
  • Works with listed ASUS X299, Z370, Z270, Z170 and WS C422 boards

Teknik özellikler

BrandAsus
ModelThunderboltEX 3
TypePCI Express to USB Card
Thunderbolt 3Yes
External Ports1 x 9 pin TB header
Internal PortsPCI Express 3.0 x4 (compatible with PCI Express x16/x8/x4 slots)
Operating Systems SupportedWindows 10
Windows 8.1 64-bit
Windows 8 64-bit
Windows 7 32-bit
Windows 7 64-bit
CompatibilityROG RAMPAGE VI EXTREME
PRIME X299-DELUXE
PRIME X299-A
TUF X299 MARK 1
TUF X299 MARK 2
PRIME Z370-A
MAXIMUS IX HERO
PRIME Z270-A
PRIME Z270-AR
TUF Z270 Mark 1
Z170-PREMIUM
Z170-DELUXE
Z170-PRO
Z170-A
Z170-AR
SABERTOOTH Z170 MARK 1
SABERTOOTH Z170 S
MAXIMUS VIII EXTREME
MAXIMUS VIII HERO
MAXIMUS VIII RANGER
X99-DELUXE II
X99-DELUXE
X99-DELUXE/U3.1
X99-PRO/USB 3.1
X99-PRO
X99-A/USB 3.1
X99-A
X99-A II
X99-E
SABERTOOTH X99
RAMPAGE V EXTREME/U3.1
RAMPAGE V EXTREME
X99-E WS/USB3.1*
X99-E WS*
* X99-E WS/USB 3.1 and X99-E WS support ThunderboltEX 3 card at PCIEX16_2 slot.
Specifications1 x Thunderbolt 3 port (USB TypeC)
- up to 40Gbps for Thunderbolt devices
- up to 10Gbps for USB 3.1 Gen 2 devices
- up to 12V/3A, 36W charging support
1 x USB 3.1 Gen 2 port (Type-A, support up to 10Gbps)
1 x 9 pin TB header
FeaturesBreathtaking 40Gbps for faster transfers
A single port integrating Thunderbolt 3, reversible USB 3.1 Type-C and DisplayPort 1.2
Supports the USB Power Delivery specification for fast, high-power charging of up to 36W
Weight0.65

Bu ürünle ilgili sorular

Does the ASUS ThunderboltEX 3 card need extra power cables or active cooling when running all day?

The card draws power through the PCIe 3.0 x4 slot and has no external power connector or fan, so it runs silently without additional cables.

Which motherboard header must my board already have for this ThunderboltEX 3 to function?

Your motherboard needs a 9-pin Thunderbolt header; the card connects to it with the supplied system-link cable and only works with the listed ASUS models.

If I keep my current graphics card, how does the ThunderboltEX 3 pass DisplayPort 1.2 video to the Thunderbolt port?

You connect the included DisplayPort cable from your graphics card's DisplayPort output to the miniDP input on the ThunderboltEX 3, enabling video over the Thunderbolt 3 port.
