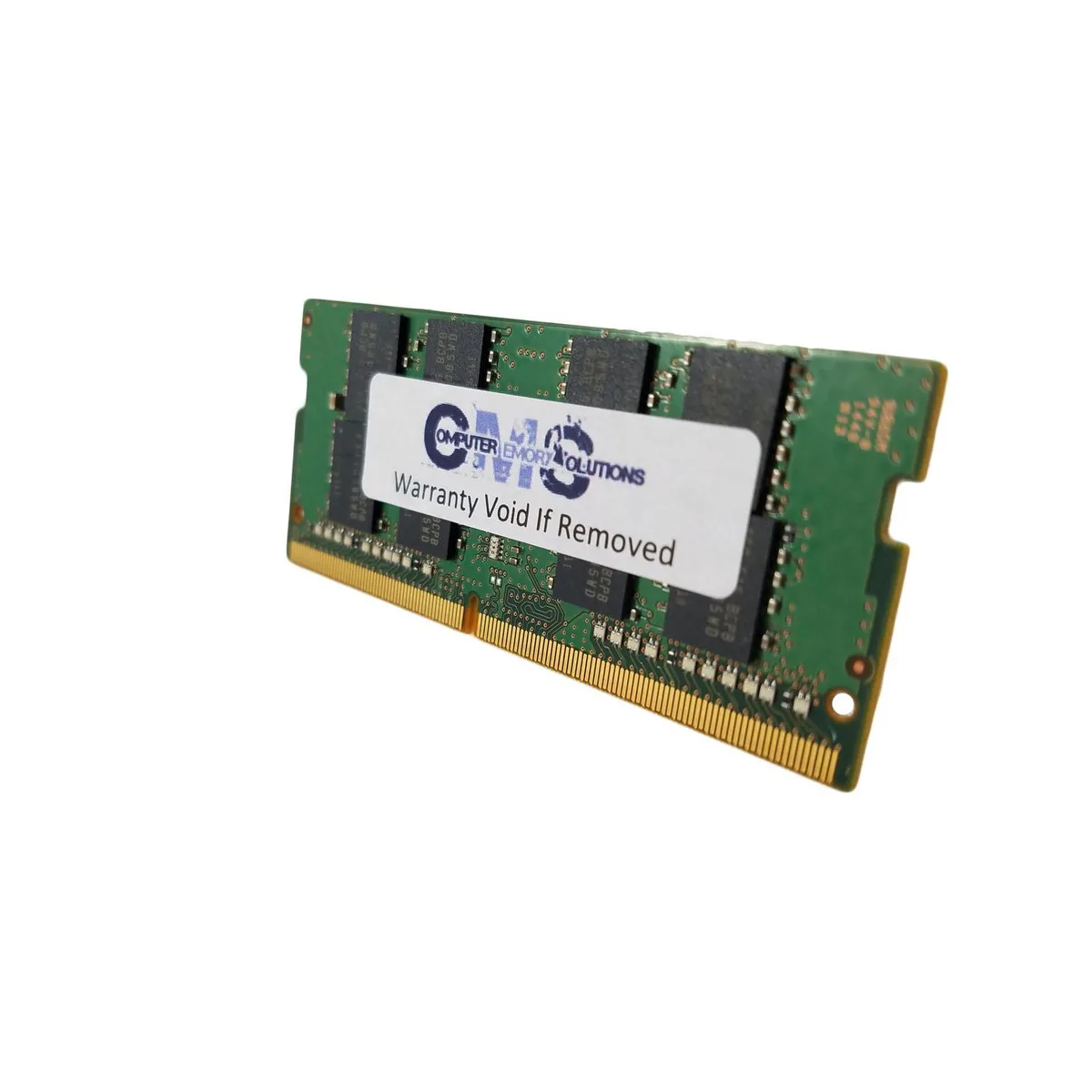

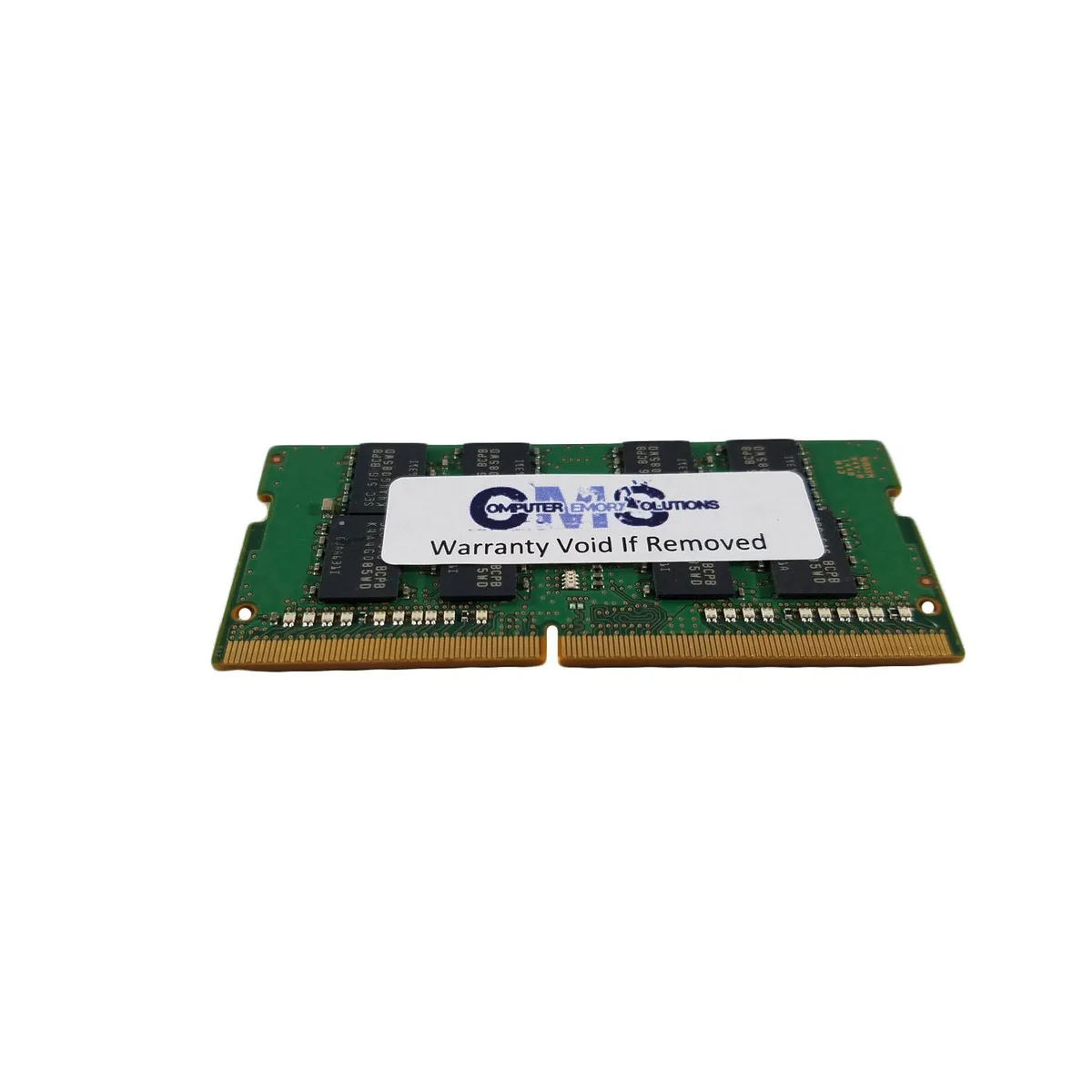

Green circuit board with black memory chips, 260-pin SODIMM form factor

Computer Memory Solutions

Computer Memory Solutions 16GB DDR4 2400MHz SODIMM memory upgrade NUC7i5BNH BNK DNHE DNKE DNKPC C107

SKU CH-NPEQ-MV67S

16 GB DDR4 2400 MHz SO-DIMM for Intel NUC 7i5 systems, CL17 1.2 V unbuffered single module

  • Capacity16GB
  • Type260-Pin DDR4 SO-DIMM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.2V
  • 16 GB single module expands NUC memory to 32 GB maximum
  • DDR4 2400 MHz CL17 timing matches factory specification
  • 2 V low-voltage operation reduces power draw
  • 260-pin SO-DIMM form factor fits Intel NUC 7i5 slots
  • 2Rx8 dual-rank organisation enables full channel bandwidth

16 GB DDR4 SODIMM for Intel NUC 7i5

This 16 GB DDR4-2400 SODIMM module is built for Intel NUC models NUC7i5BNH, NUC7i5BNK, NUC7i5DNHE, NUC7i5DNKE and NUC7i5DNKPC. It delivers a single 16 GB stick running at 1.2 V with CL17 timing. The unbuffered, non-ECC design fits the 260-pin SO-DIMM slots in those compact systems.

Sustained-load behaviour with CL17 2Rx8 chips

The 2Rx8 organisation and CL17-17-17 timings provide stable throughput during extended workloads. Because the module is unbuffered and runs at the standard 1.2 V, it maintains the rated 2400 MT/s without additional voltage headroom. All installed memory will operate at the slowest module or processor limit, so matched pairs are recommended for dual-channel throughput.

Verify slot count and OS before ordering

The target NUCs provide two SODIMM sockets with a maximum capacity of 32 GB, so this single 16 GB stick leaves one slot free for a future upgrade. A 64-bit operating system is required to address more than 4 GB of memory. Confirm that your specific NUC model appears in the supported list and that the BIOS is current for full compatibility.

Öne çıkanlar

  • 16 GB single module expands NUC memory to 32 GB maximum
  • DDR4 2400 MHz CL17 timing matches factory specification
  • 2 V low-voltage operation reduces power draw
  • 260-pin SO-DIMM form factor fits Intel NUC 7i5 slots
  • 2Rx8 dual-rank organisation enables full channel bandwidth

Teknik özellikler

BrandComputer Memory Solutions
ModelCM2048642400SO
Capacity16GB
Type260-Pin DDR4 SO-DIMM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.2V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemIntel Next Unit of Computing (NUC) NUC7i5BNH, NUC7i5BNK, NUC7i5DNHE, NUC7i5DNKE, NUC7i5DNKPC
Package Content1 Memory RAM Stick

Bu ürünle ilgili sorular

Does the 1.2V DDR4 module run noticeably hotter or draw more power than lower-voltage sticks during all-day workloads?

The stick operates at the standard 1.2V for DDR4 and has no heat spreader, so its thermal output and power draw are typical for a 2400 MHz unbuffered SODIMM.

Will this 260-pin SODIMM work in a laptop that only has a single DDR4 slot and no second socket?

Yes, the kit contains one 16 GB module that fits any 260-pin DDR4 SO-DIMM slot; the system simply needs an available socket and a 64-bit OS to address the full capacity.

If I keep one existing 8 GB DDR4 stick and add this 16 GB module, will both run at 2400 MHz CL17?

The memory will run at the speed of the slowest installed module; if the older stick is slower than 2400 MHz or has looser timings, both will downclock to match it.
