Small green circuit board camera module with silver lens mount and black tripod bracket

KEHIPI

KEHIPI Arducam B024001-B 12.3MP IMX477 HQ Camera Module

SKU CH-JXJJ-FA7G0

A 12.3MP IMX477 HQ camera module for all Raspberry Pi boards, includes C-CS adapter, tripod mount and both 15-22pin and 22-22pin cables

  • 3 MP IMX477 sensor captures detailed 4056×3040 images
  • 55 µm pixels gather more light for better low-light shots
  • Works with every Raspberry Pi board including Pi 5 and Zero 2W
  • Includes C-CS adapter, tripod mount and both 15-22pin and 22-22pin cables
  • Ready for AI vision, 3D printer monitoring or home security projects

12.3 MP IMX477 Camera Module for Raspberry Pi

The KEHIPI Arducam B024001-B is a 12.3 megapixel HQ camera module built around the Sony IMX477 sensor. It is designed for Raspberry Pi boards and suits makers working on computer vision, AI inference, 3D printer monitoring or home security projects.

Check config.txt overlay

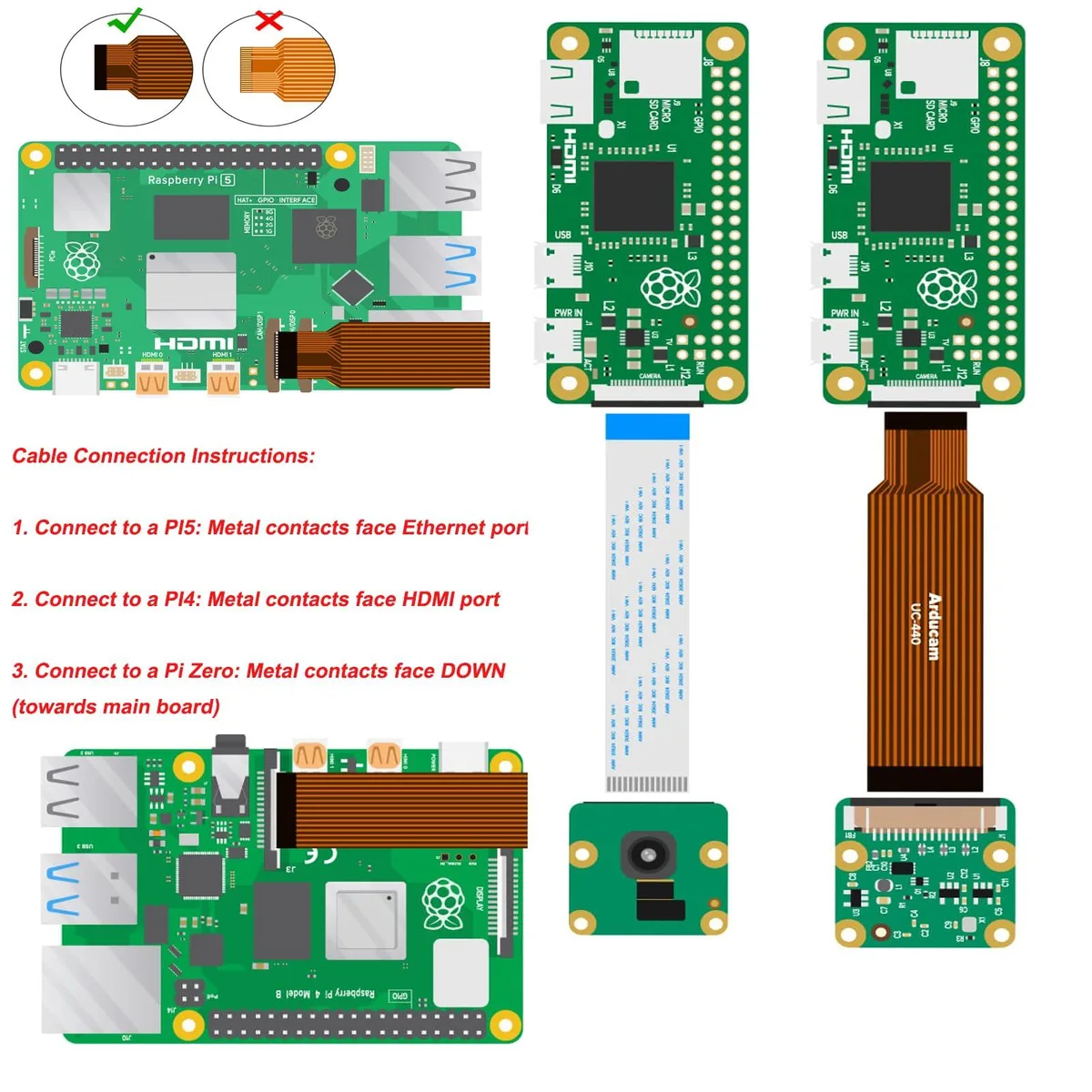

You must edit the config.txt file and add dtoverlay=IMX477, or dtoverlay=IMX477,cam0 when using the cam0 port on a Pi 5. The kit ships with both a 15-22 pin and a 22-22 pin camera cable so you can match the CSI connector on your specific board.

C/CS adapter and tripod mount simplify mounting

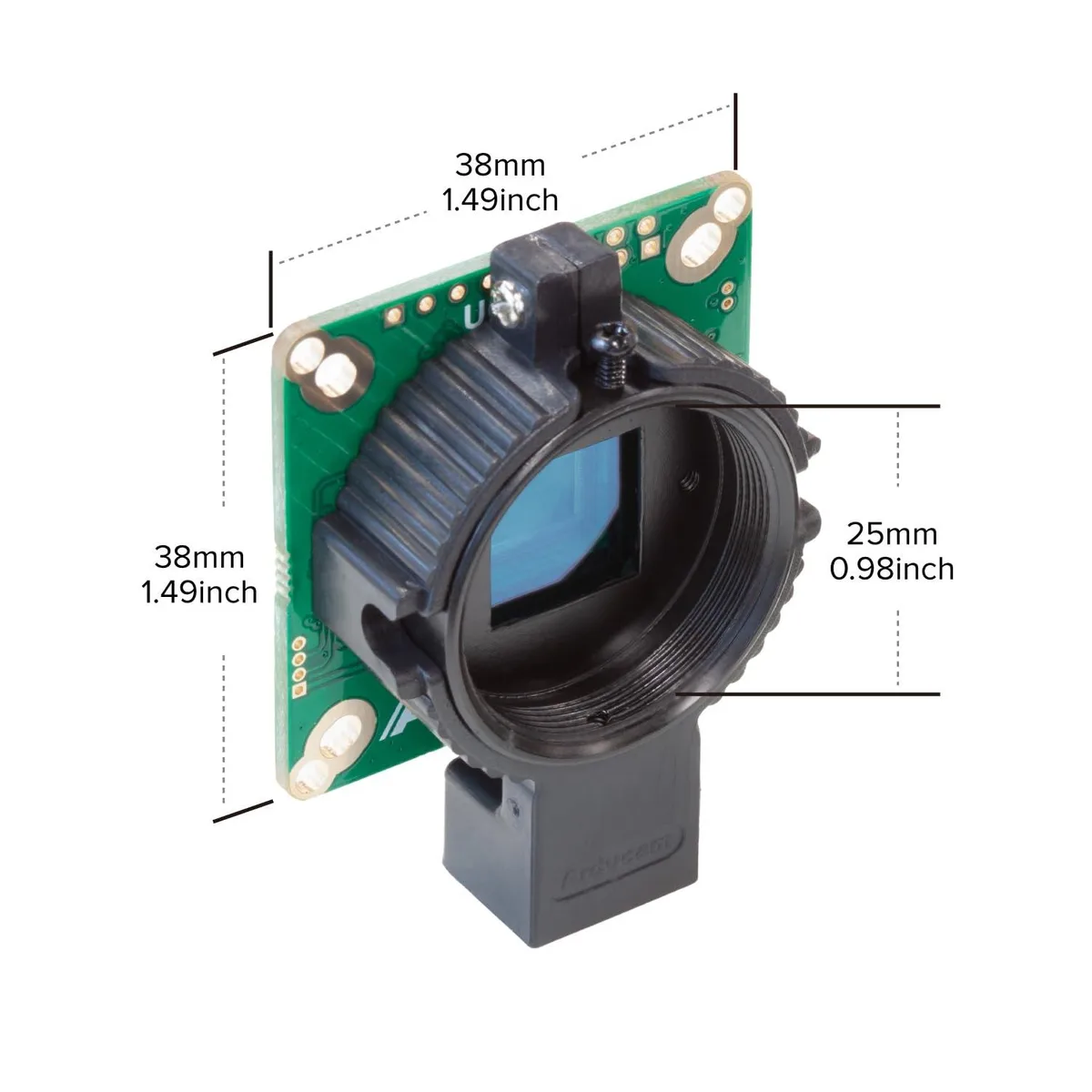

A C-CS adapter ring is included to accommodate either C-mount or CS-mount lenses without extra parts. The integrated 1/4 inch tripod thread lets you secure the module on standard stands or rigs, while the supplied dust cover protects the sensor when no lens is attached.

Öne çıkanlar

  • 3 MP IMX477 sensor captures detailed 4056×3040 images
  • 55 µm pixels gather more light for better low-light shots
  • Works with every Raspberry Pi board including Pi 5 and Zero 2W
  • Includes C-CS adapter, tripod mount and both 15-22pin and 22-22pin cables
  • Ready for AI vision, 3D printer monitoring or home security projects

Teknik özellikler

BrandArducam
ModelB024001-B

Bu ürünle ilgili sorular

What comes in the box and which cables or adapters must be purchased separately?

The box contains the 12.3MP IMX477 HQ camera with a 1/4" tripod adapter, a dust cover, a C-CS adapter, a 15-22pin cable and a 22-22pin cable. No extra cables or adapters are required for Raspberry Pi connection.

Which version should I choose for a Raspberry Pi 5 versus a Pi 4B or Zero 2W?

The single B024001-B module works with all Raspberry Pi boards including Pi 5, 4B, 3B+ and Zero 2W; use the 22-22pin cable for Pi 5 cam0 and the 15-22pin cable for other models.

What does the 12.3MP 4056×3040 resolution mean for real-world image quality?

The IMX477 sensor provides 12.3 megapixels at 4056×3040 pixels with 1.55µm pixels — twice the pixel area of the IMX219 — giving noticeably better low-light performance and detail for AI, security or 3D printer monitoring.
