Tiny green RP2040 board with USB-C adapter board attached

LORDWORLD

LORDWORLD RP2040-Tiny Development Board USB-C Adapter

SKU CH-QHC3-R56HP

Tiny RP2040 board with dual-core Cortex M0+ at 133 MHz, 264 KB SRAM, 2 MB Flash, USB 1.1 host and device, castellated edges and an FPC connector for a USB-C adapter

  • Raspberry Pi designed RP2040 chip ensures reliable microcontroller performance
  • Dual-core Arm Cortex M0+ up to 133 MHz delivers responsive processing
  • 264KB SRAM and 2MB Flash provide ample memory for projects
  • USB Type-C via FPC 8PIN adapter simplifies modern connectivity
  • Castellated module design enables direct soldering to carrier boards

RP2040 Microcontroller Board

The LORDWORLD RP2040-Tiny is a compact development board built around the RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom. It targets makers and engineers who need a small footprint for embedded projects. The dual-core Arm Cortex M0+ processor runs at up to 133 MHz with 264KB of SRAM and 2MB of onboard Flash memory. It suits IoT edge applications requiring direct carrier-board integration.

Solderable Module With USB-C Adapter

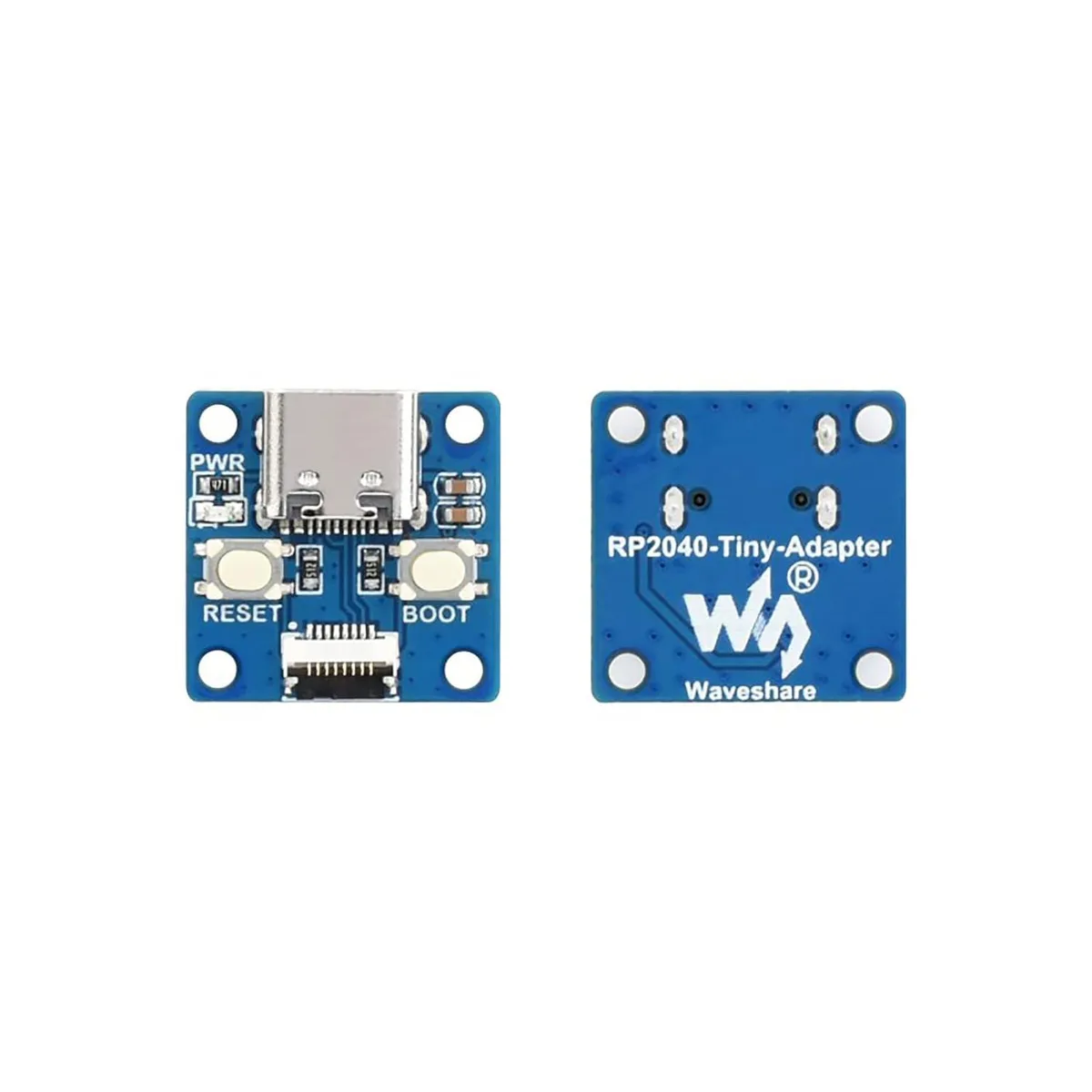

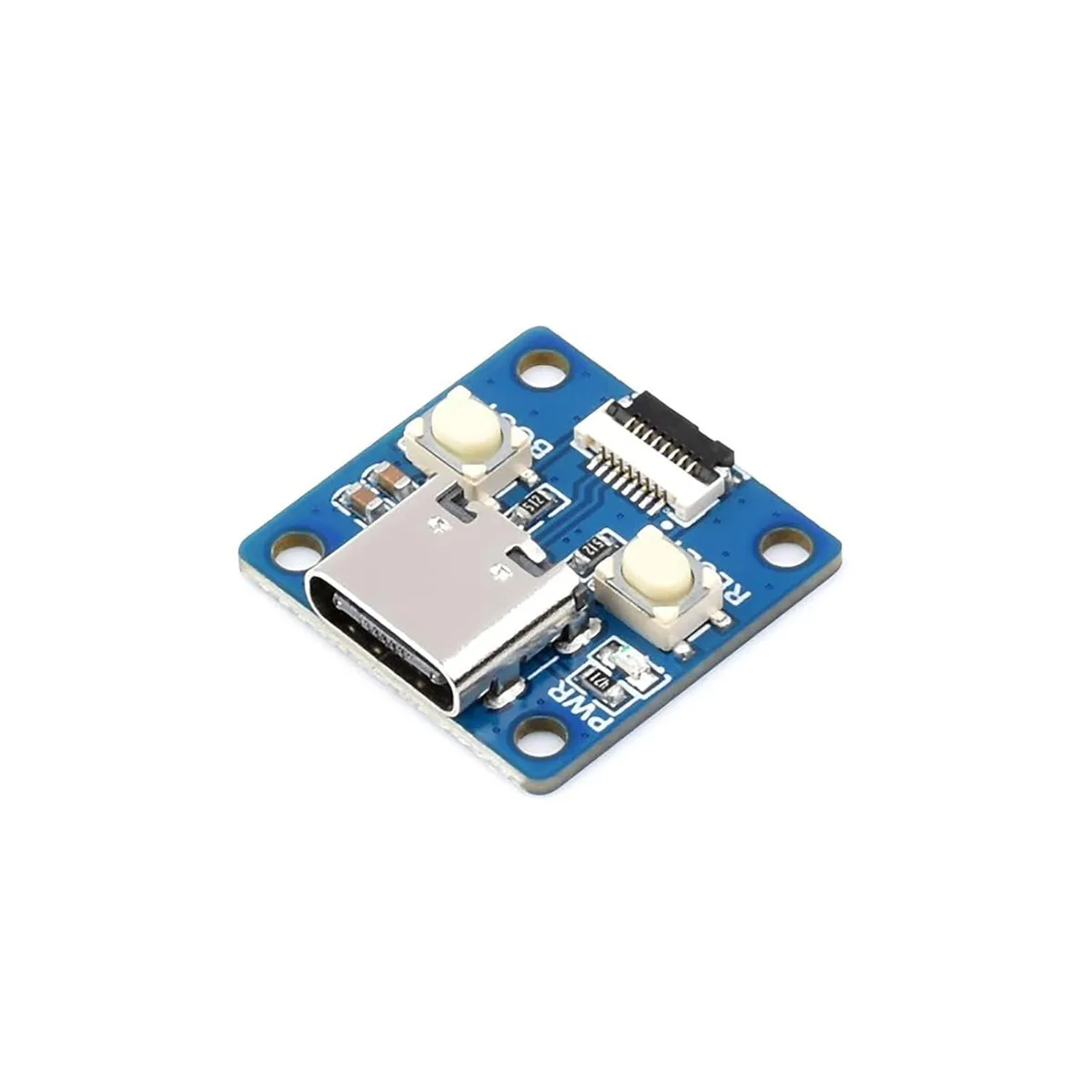

The castellated module design allows direct soldering onto custom carrier boards for permanent installation. An included adapter board provides a USB Type-C connection via an onboard FPC 8PIN connector for power and data. Careful alignment is required when soldering the castellated edges to avoid bridging pins. The USB 1.1 interface supports both device and host modes for flexible connectivity.

USB 1.1 Interface Speed

The board communicates over USB 1.1, which limits data throughput compared to newer USB standards. This specification decides whether the board fits projects needing high-speed bulk transfers. Buyers who need faster USB 2.0 or higher bandwidth for streaming applications should consider other hardware. The 133 MHz processor clock and 2MB Flash remain unchanged regardless of the USB link speed.

Öne çıkanlar

  • Raspberry Pi designed RP2040 chip ensures reliable microcontroller performance
  • Dual-core Arm Cortex M0+ up to 133 MHz delivers responsive processing
  • 264KB SRAM and 2MB Flash provide ample memory for projects
  • USB Type-C via FPC 8PIN adapter simplifies modern connectivity
  • Castellated module design enables direct soldering to carrier boards

Teknik özellikler

BrandLORDWORLD

Bu ürünle ilgili sorular

How can I verify the RP2040-Tiny is running after connecting it via USB-C?

The board appears as a USB 1.1 device on the host; the dual-core Arm Cortex M0+ processor running up to 133 MHz will enumerate and allow code upload through the FPC 8PIN connector and adapter board.

What comes in the box and what must I source separately for the RP2040-Tiny?

The board includes the RP2040 microcontroller with 264KB SRAM and 2MB onboard Flash, castellated edges for direct soldering, and the USB Type-C adapter board; cables, headers or a carrier PCB are not included.

Which RP2040-Tiny version should I choose for a compact carrier-board design?

The castellated module with the FPC 8PIN connector and USB-C adapter board is the version suited for direct soldering onto a custom carrier while retaining USB 1.1 device and host capability.
