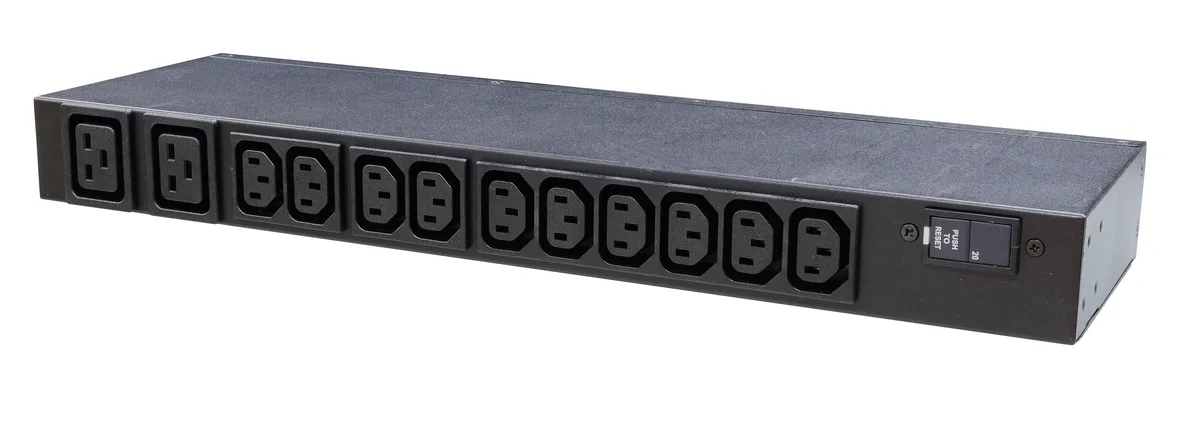

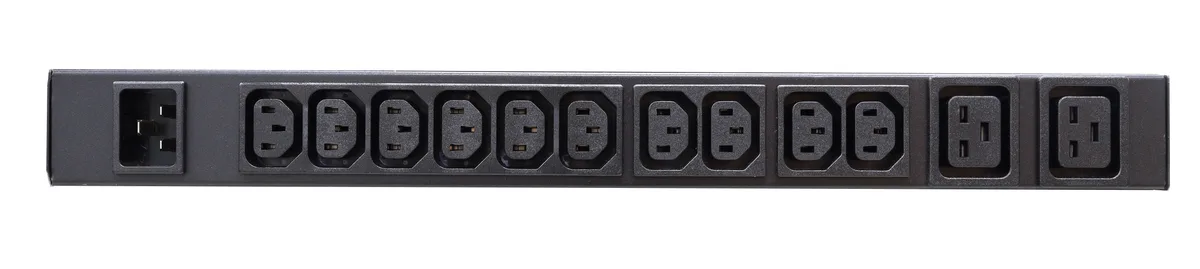

Black metal 1U rack PDU with twelve C13 and twelve C19 outlets front and back, six-foot hardwire cord

MINUTEMAN

MINUTEMAN OEPD2024IECHW PDU 208V 20A 12 C13 12 C19 Hardwire 6ft 1U/0U

SKU CH-NH1S-PAK8P MPN OEPD2024IECHW

A 208 V, 20 A rack PDU with twelve IEC 320 C13 and twelve C19 outlets, hard-wired six-foot input, and 1U or 0U mounting

  • Rack Size1U
  • StyleHorizontal Installation, 0U Vertical Installation
  • CertificationsUL 60950-1, cUL, CE
  • Maximum Input Current20A
  • Input Connector(s)Hardwire
  • Cord Length6 ft

Model OEPD2024IECHW

8 yapılandırma daha gösterin

Üzeri çizili sürümler mevcuttur ancak burada stokta değildir.

  • 208 V 20 A capacity powers dense racks
  • 24 IEC 320 outlets (12 C13 / 12 C19) front and rear
  • 1U horizontal or 0U vertical mounting fits any cabinet
  • UL 60950-1, cUL, CE certified for safety compliance
  • 6 ft hardwire input cord enables permanent installation

Rack PDU 1U/0U 208V 20A

The Minuteman OEPD2024IECHW is a power distribution unit built for 208-volt environments. It delivers 20-amp capacity through twenty-four IEC320 outlets split evenly between front and rear faces. The unit mounts horizontally in a single rack unit or vertically in zero-U space using the included stand-off bracket. A six-foot hardwire input cord connects the PDU to the facility supply.

Suited for high-density racks needing mixed C13

Data-centre racks and network cabinets that require both C13 and C19 receptacles benefit from the balanced layout. Installations without access to a hardwire feed should consider a model with a factory-fitted plug. Builds that need surge suppression must select an OES-series variant instead.

Hardwire input with six-foot lead

The six-foot hardwire cord terminates without a plug, requiring a qualified electrician to land the conductors on a branch circuit. This connection method meets UL 60950-1, cUL and CE listings and provides a permanent, secure feed for mission-critical equipment.

Öne çıkanlar

  • 208 V 20 A capacity powers dense racks
  • 24 IEC 320 outlets (12 C13 / 12 C19) front and rear
  • 1U horizontal or 0U vertical mounting fits any cabinet
  • UL 60950-1, cUL, CE certified for safety compliance
  • 6 ft hardwire input cord enables permanent installation

Teknik özellikler

BrandMINUTEMAN
SeriesOE Series
ModelOEPD2024IECHW
Rack Size1U
StyleHorizontal Installation, 0U Vertical Installation
CertificationsUL 60950-1, cUL, CE
Maximum Input Current20A
Input Connector(s)Hardwire
Cord Length6 ft
Output Connector(s)(10) C13 / (2) C19, (10) C13 / (2) C19
FeaturesLonger power cords
Most Minuteman PDU units have up to 15-ft power cords, to allow for seamless installations
More standard outlets
Minuteman PDU units have 6, 8, 10, 14, 18, or 24 outlets. Most of the Minuteman PDUs have additional front outlets for improved access
Configuration versatility
Minuteman PDU units have a multi-form factor with 1U and 0U configurations allowing for either horizontal or vertical placement. 1U products ship with a stand-off mounting bracket, at no additional cost, that allows for vertical installation on most racks and enclosures
Locking (L) and Hardwire (
Kargo ağırlığı1.71 kg
Koli boyutu432 × 89 × 43 mm

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

How can I confirm the PDU is delivering 208 VAC at up to 20 A after hardwiring it?

Verify the branch circuit supplies 208 VAC and measure current draw with a clamp meter; the unit carries UL 60950-1, cUL and CE certifications for 20 A operation.

What outlets and mounting hardware come in the box, and what must I supply?

The PDU includes (10) C13 and (2) C19 outlets per side and a 1U stand-off bracket for 0U vertical mounting; you must provide the hardwire electrical connection and rack screws.

Should I choose the horizontal 1U or vertical 0U orientation for my rack?

Use 1U horizontal when rack space is limited; use 0U vertical with the included stand-off bracket to preserve U-space and route the 6 ft hardwire cord to the power source.
