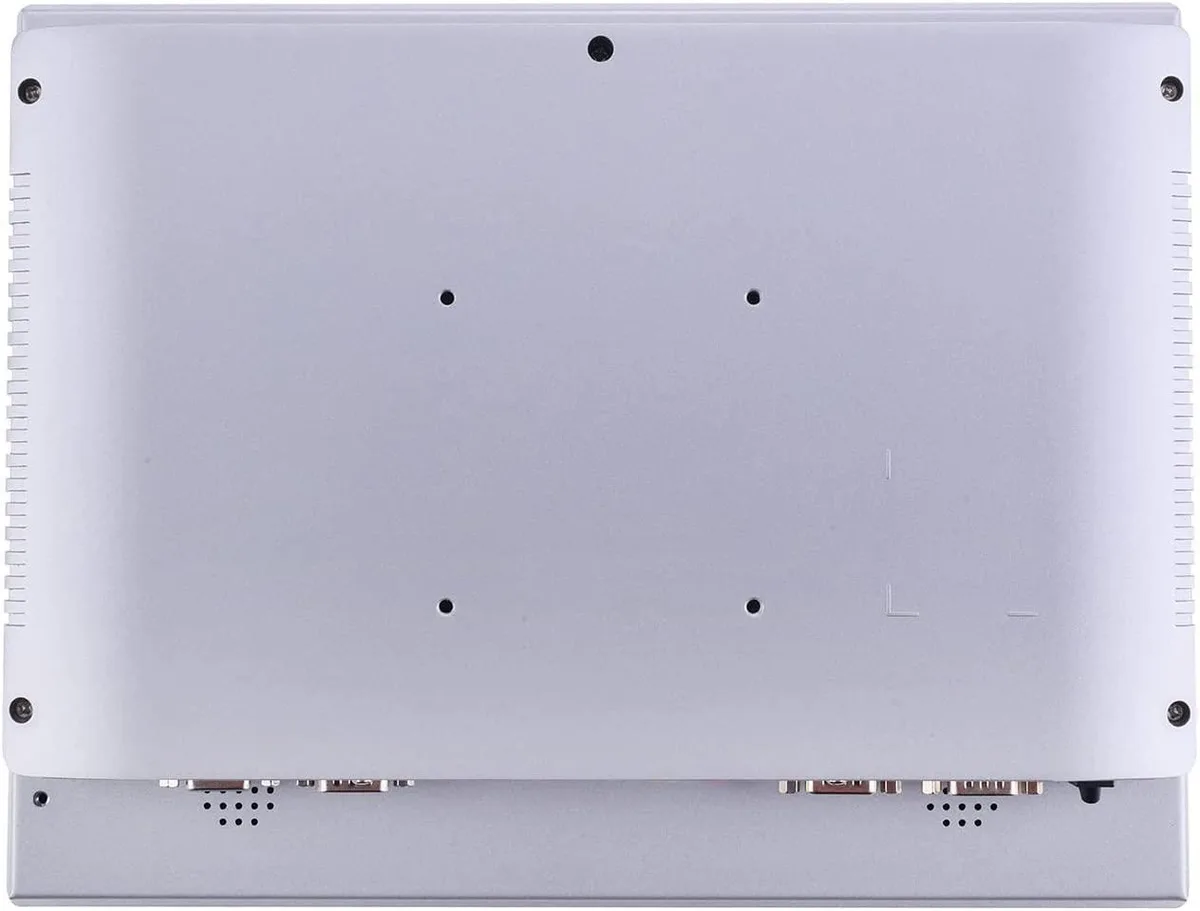

Compact silver all-in-one panel PC with 12.1 inch resistive touchscreen and fanless aluminium chassis

partaker

Partaker A2 12.1" All-in-One PC Intel Core i5 4th Gen 1.60GHz 4GB DDR3 128GB SSD

SKU CH-FCVB-RAGFH

Compact 12.1" industrial all-in-one with IP65 front panel, resistive touchscreen, fanless aluminium chassis and Intel Core i5 4th Gen performance

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU Name1.60GHz
  • GPU/VGA TypeIntel HD Graphics 4400

GPU Intel HD Graphics 4400

Memory 4GB DDR3

SSD

HDD None

  • None
  • 1TB

Üzeri çizili sürümler mevcuttur ancak burada stokta değildir.

  • IP65 front-panel protection seals out dust and water jets
  • Fanless aluminium chassis runs silently in harsh environments
  • High-temperature 5-wire resistive touch rated for 200 million touches
  • Intel Core i5 4th Gen 1.60GHz with 4GB DDR3 and 128GB SSD ready to deploy
  • Rich industrial I/O including dual LAN, dual COM, VGA, HDMI and USB 3.0

Industrial panel PC for embedded control

The Partaker A2 is a 12.1 inch all-in-one computer built around an Intel Core i5 fourth-generation processor running at 1.60 GHz. It ships with 4 GB of DDR3L memory and a 128 GB mSATA SSD, and comes with Windows 10 Pro already installed. The IP65-rated front panel and resistive touchscreen suit factory automation, kiosk and machine-interface deployments where a compact, sealed unit is required.

Fanless cooling with DC power input

An aluminium-alloy chassis dissipates heat without any moving parts, so the system runs silently and avoids dust ingestion. Power is supplied through a 12 V DC jack that accepts 100-240 V AC via the included adapter, and the unit can restart automatically after a power loss. Operating temperature spans 0 to 50 °C with the fitted SSD, while the 350 cd/m² panel remains visible across 80-degree viewing angles in all directions.

Sustained load within industrial limits

The fanless design maintains stable operation across the full 0-50 °C range during continuous workloads, relying on the aluminium housing to spread heat from the CPU and Intel HD Graphics 4400. The five-wire resistive touchscreen is rated for 200 million touches, and the LED backlight targets a minimum 30,000-hour lifespan. Expansion via a full-size Mini PCIe slot with SIM holder allows the addition of 4G or Wi-Fi without altering the thermal envelope.

Öne çıkanlar

  • IP65 front-panel protection seals out dust and water jets
  • Fanless aluminium chassis runs silently in harsh environments
  • High-temperature 5-wire resistive touch rated for 200 million touches
  • Intel Core i5 4th Gen 1.60GHz with 4GB DDR3 and 128GB SSD ready to deploy
  • Rich industrial I/O including dual LAN, dual COM, VGA, HDMI and USB 3.0

Teknik özellikler

ModelA2-PA-121TPC-CE5B(I54)-4G128G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
CPU Name1.60GHz
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity4GB DDR3
HDDNo
Screen Size12.1"
TouchscreenYes

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

How do I mount the Partaker A2 into a panel cut-out, and which step is often missed?

Cut a 301 x 229 mm opening, slide the unit in from the front, and secure the embedded buckle kits; the step often missed is tightening all four buckles evenly so the IP65 front seal seats properly.

What memory and storage upgrades will the Partaker A2 need later, and what are the limits?

The single SODIMM slot takes DDR3L 1333/1600 up to 8 GB total; storage can use the mSATA slot or the 2.5" SATA bay for SSD or HDD.

At what temperature does the Partaker A2 throttle first during sustained load?

The fanless aluminium chassis is rated for 0–50 °C with SSD and 0–40 °C with HDD; exceeding those ambient limits triggers thermal throttling before any other limit.
