Silver 12.1 inch industrial panel PC with resistive touchscreen and aluminium housing

partaker

Partaker A2 12.1" Industrial Panel PC J1900 8GB 128GB SSD

SKU CH-NGXM-PRFHS

12.1-inch IP65-rated industrial panel PC with resistive touchscreen, Intel Celeron J1900, 8 GB DDR3L and 128 GB SSD, fanless aluminium chassis

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 8GB DDR3

SSD

HDD None

  • None
  • 1TB

Üzeri çizili sürümler mevcuttur ancak burada stokta değildir.

  • IP65 front protection for dust and water resistance
  • Fanless aluminium cooling for silent operation
  • 1" resistive touchscreen rated for 200 million touches
  • Intel Celeron J1900 with 8 GB DDR3L and 128 GB SSD
  • Extensive I/O: VGA, LAN, 4 USB, 3 COM, audio, Mini PCIe

Industrial Panel PC with Resistive Touch

The Partaker A2 is a 12.1 inch all-in-one computer built around an Intel Celeron J1900 processor, 8GB of DDR3L memory and a 128GB mSATA SSD. Its IP65-rated front panel and five-wire resistive touchscreen are designed for operators who need reliable input while wearing gloves or in environments where moisture and dust are present.

Fanless Build with Embedded Mounting

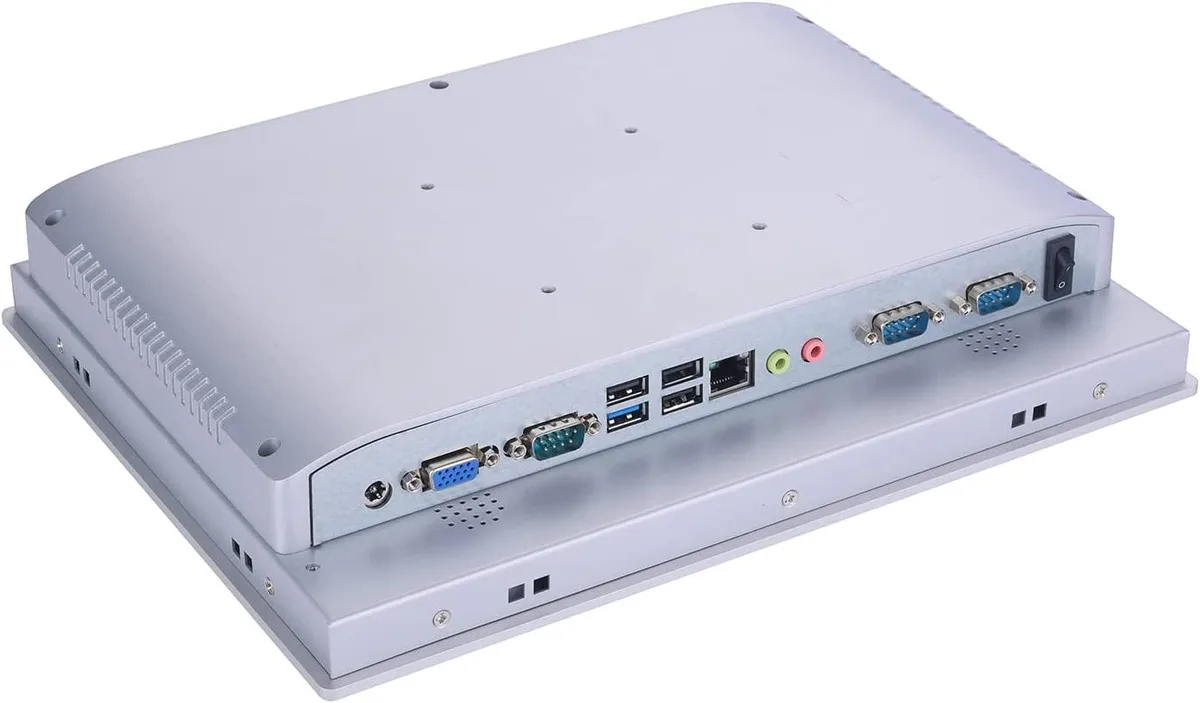

The aluminium chassis dissipates heat without fans, so the unit runs silently and avoids moving-part failure in vibration-prone settings. A VESA 75 pattern and embedded buckle kits allow panel, wall, desktop or cantilever mounting. One Mini PCIe slot with a SIM holder accepts a Wi-Fi or 4G module, while VGA, three COM ports, LAN, audio and four USB sockets cover legacy and current industrial peripherals.

Steady Operation Across Temperature Range

With an SSD installed the system is rated for continuous use from 0 to 50 °C; with a hard drive the upper limit is 40 °C. The fanless design maintains these temperatures without throttle-inducing airflow restrictions. A hardware watchdog timer set to 255 seconds can restart the unit automatically after a power loss or software hang, supporting unattended operation in kiosk, automation or monitoring roles.

Öne çıkanlar

  • IP65 front protection for dust and water resistance
  • Fanless aluminium cooling for silent operation
  • 1" resistive touchscreen rated for 200 million touches
  • Intel Celeron J1900 with 8 GB DDR3L and 128 GB SSD
  • Extensive I/O: VGA, LAN, 4 USB, 3 COM, audio, Mini PCIe

Teknik özellikler

ModelA2-PA-121TPC-CE5B(J19)-8G128G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU Name2.00GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
HDDNo
Screen Size12.1"
TouchscreenYes

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

How far can the Intel Celeron J1900 push its clock speed before thermal limits throttle it in the fanless chassis?

The processor reaches up to 2.42 GHz burst frequency, but the fanless aluminum housing relies on passive dissipation, so sustained loads will settle at lower clocks to stay within the 0–50 °C operating envelope.

What acoustic and thermal profile should I expect when the panel PC runs continuously in an enclosed cabinet?

With no moving parts the unit is silent; the aluminum alloy chassis spreads heat passively, and the spec lists 0–50 °C ambient with an SSD installed, so adequate cabinet ventilation is the only requirement.

Which mounting hardware and power source must already be on site for installation?

The box includes embedded buckle kits for panel-mount cut-outs of 301 x 229 mm and a 12 V DC adapter that accepts 100–240 V AC mains; VESA 75 brackets are optional extras.
