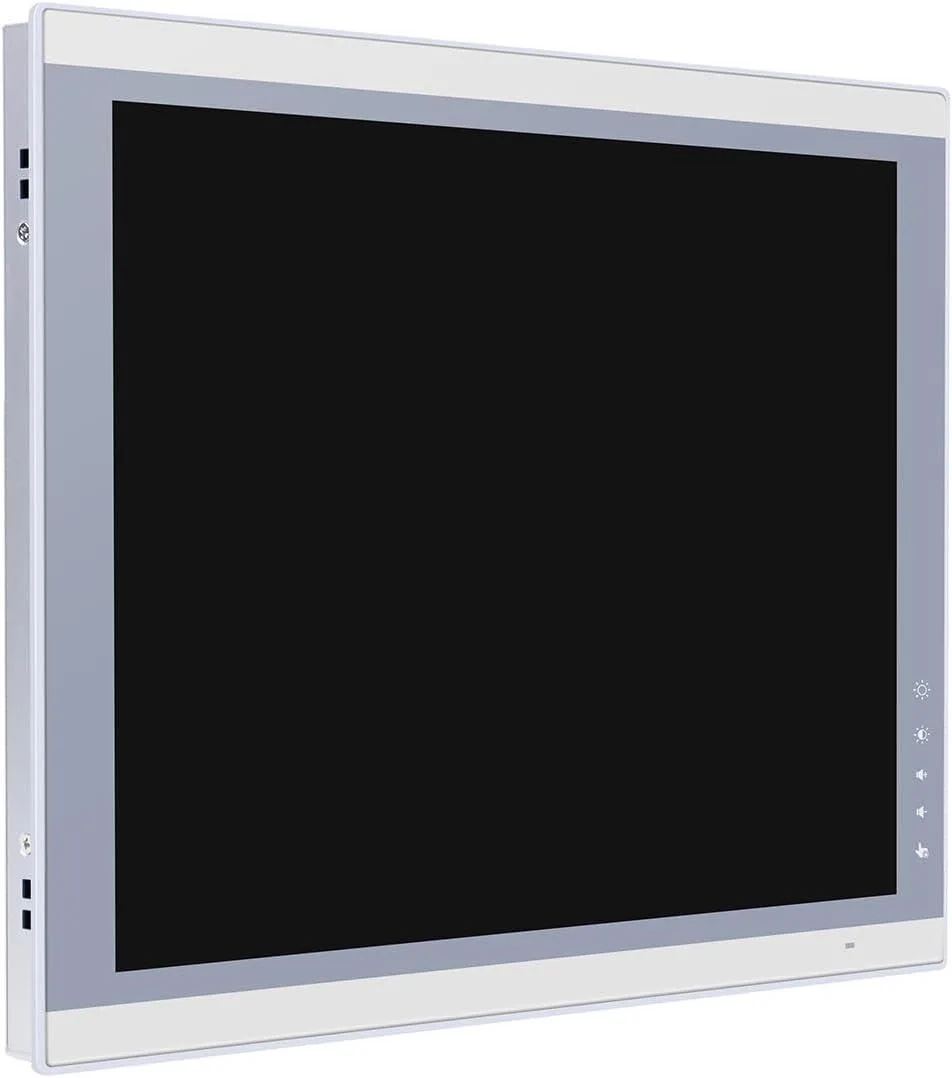

Gray 15-inch all-in-one industrial panel PC with capacitive touchscreen and fanless aluminum chassis

partaker

partaker A23 all-in-one PC i5-6200U 8GB DDR4 512GB 15" IP65

SKU CH-6XDB-Y0EKH

Fanless 15-inch IP65 all-in-one with i5-6200U, 8GB DDR4, 512GB SSD and 10-point touch for industrial use

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U
  • GPU/VGA TypeIntel HD Graphics 520

CPU Type Intel Core i5 6th Gen

CPU Name Intel Core i5-6200U

Memory Capacity 8GB DDR4

SSD 512GB

HDD None

  • 1TB
  • None

Üzeri çizili sürümler mevcuttur ancak burada stokta değildir.

  • IP65 front protection withstands dust and water jets in harsh environments
  • 10-point capacitive touch enables precise multi-finger control for industrial operators
  • Fanless aluminium cooling runs silently with zero moving parts to fail
  • 12 V DC input plus HDMI, VGA, dual LAN and dual COM simplifies cabinet integration
  • Windows 11 Pro pre-installed on 512 GB SSD for immediate deployment

Industrial Panel PC with IP65 Front

The Partaker A23 is a 15-inch all-in-one computer built for continuous operation in harsh environments. Its fanless aluminium chassis houses an Intel Core i5-6200U processor, 8GB DDR4 memory and a 512GB SSD running Windows 11 Pro. The 10-point projected capacitive touchscreen delivers 1024x768 resolution behind an IP65-rated front panel resistant to dust and water jets.

Fanless Embedded Installation

Mount the unit into a 348x272mm cut-out using the supplied embedded buckle kits, then connect a single 12V DC supply via the included power cord. No internal cabling or drive mounting is required because the SSD and memory are pre-installed. The fanless design eliminates moving parts, so the only common issue is thermal throttling if the rear fins are blocked by tight enclosures or dust buildup over time.

Verify Power and I/O Compatibility

Confirm your cabinet provides 12V DC input within the 100-240V AC adapter range and that the 54mm depth fits your mounting surface. Check whether your peripherals need the two COM ports, dual LAN, HDMI, VGA or the four USB ports (two 3.0, two 2.0). Expansion relies on a mini PCIe slot with SIM holder for optional wireless modules, so plan for that if connectivity is required.

Öne çıkanlar

  • IP65 front protection withstands dust and water jets in harsh environments
  • 10-point capacitive touch enables precise multi-finger control for industrial operators
  • Fanless aluminium cooling runs silently with zero moving parts to fail
  • 12 V DC input plus HDMI, VGA, dual LAN and dual COM simplifies cabinet integration
  • Windows 11 Pro pre-installed on 512 GB SSD for immediate deployment

Teknik özellikler

ModelA23-I5 6200U-8G512G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity8GB DDR4
SSD512GB
HDDNo
Screen Size15"
TouchscreenYes

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

How do I confirm the IP65 front protection and 10-point capacitive touch are functioning after installation?

Verify the front panel meets IP65 rating by checking for water and dust resistance, then test all 10 touch points respond accurately across the 1024x768 screen.

What comes in the box and which mounting option needs separate purchase?

The package includes the A23 panel PC, power supply, power cord, and embedded buckle kits; wall-mount, desktop, or cantilever brackets are not included.

Should I choose the 8GB DDR4 model or plan to upgrade to the 16GB DDR3L maximum?

This unit ships with 8GB DDR4 soldered; the board also has two SODIMM slots for DDR3L up to 16GB total if you need more memory.
