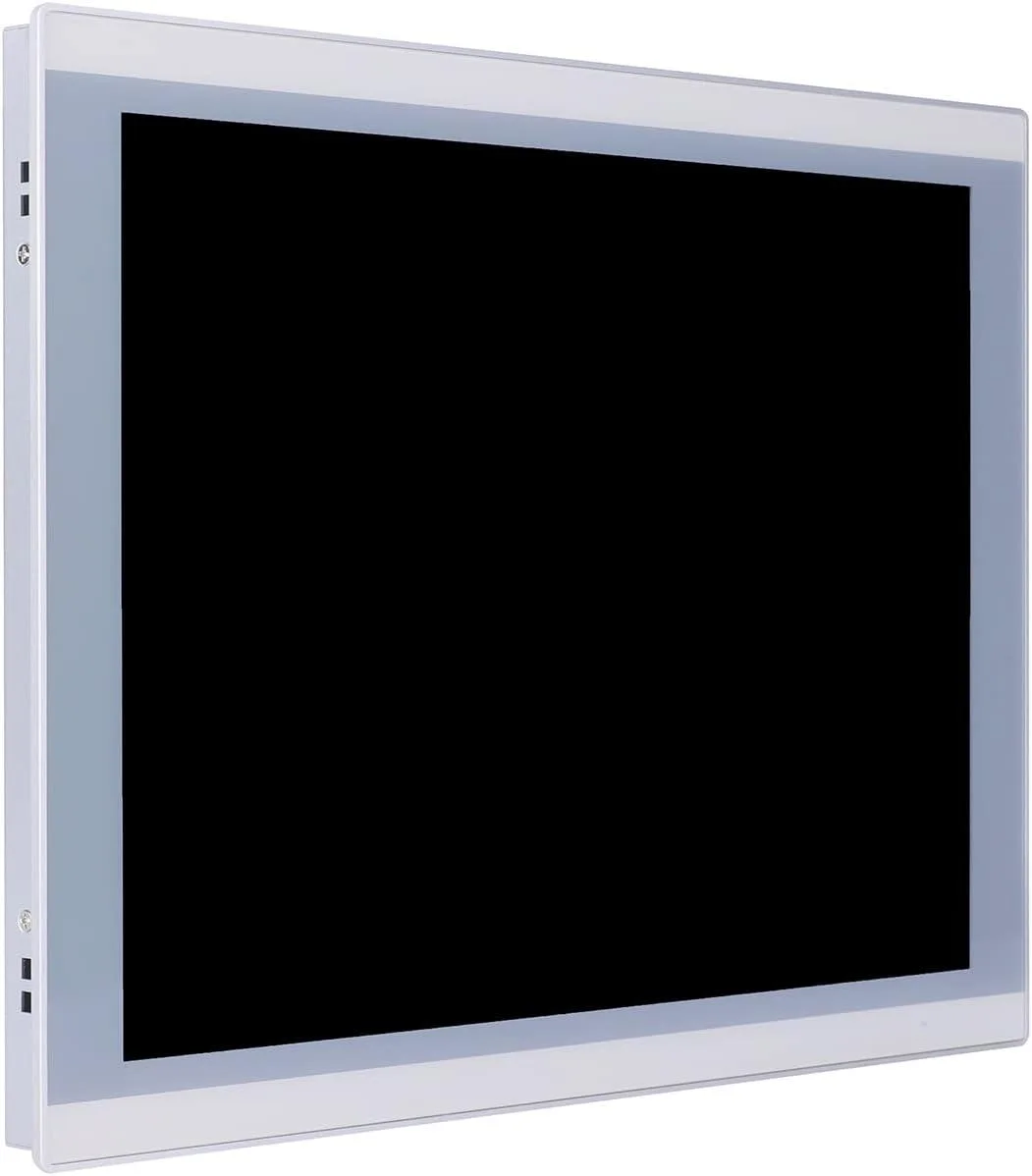

15 inch industrial all-in-one PC with IP65 front panel and resistive touchscreen

partaker

partaker A5 15" IP65 i7-6500U 16GB DDR3 512GB all-in-one PC

SKU CH-149P-98XKH

A 15-inch IP65-rated all-in-one with an i7-6500U, 16GB DDR3 and 512GB SSD for industrial environments

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • GPU/VGA TypeIntel HD Graphics 520
  • Memory Capacity16GB DDR3
  • SSD512GB

Memory Capacity 16GB DDR3

  • IP65 front-panel protection resists dust and water jets in harsh environments
  • 5-wire resistive touchscreen works reliably from 0 to 50 °C operating range
  • Intel Core i7-6500U up to 3.10 GHz handles continuous industrial workloads
  • Fanless aluminium alloy chassis runs silently with no moving parts to fail
  • Windows 11 Pro 64-bit pre-installed for immediate deployment out of the box

Industrial all-in-one PC

The Partaker A5 is a 15-inch all-in-one computer with an IP65-rated front panel designed for industrial environments. It runs on an Intel Core i7-6500U processor with 16GB of DDR3 memory and a 512GB SSD. Windows 11 Pro comes pre-installed for immediate deployment in factories, kiosks or outdoor cabinets.

Fanless cooling and power

An aluminium alloy chassis provides completely passive cooling, so the system operates silently with no moving parts to fail. The unit accepts a wide 100 to 240 volt AC input converted to 12 volts DC. Typical operating temperatures range from 0 to 50 degrees Celsius when equipped with an SSD.

Mounting and expansion

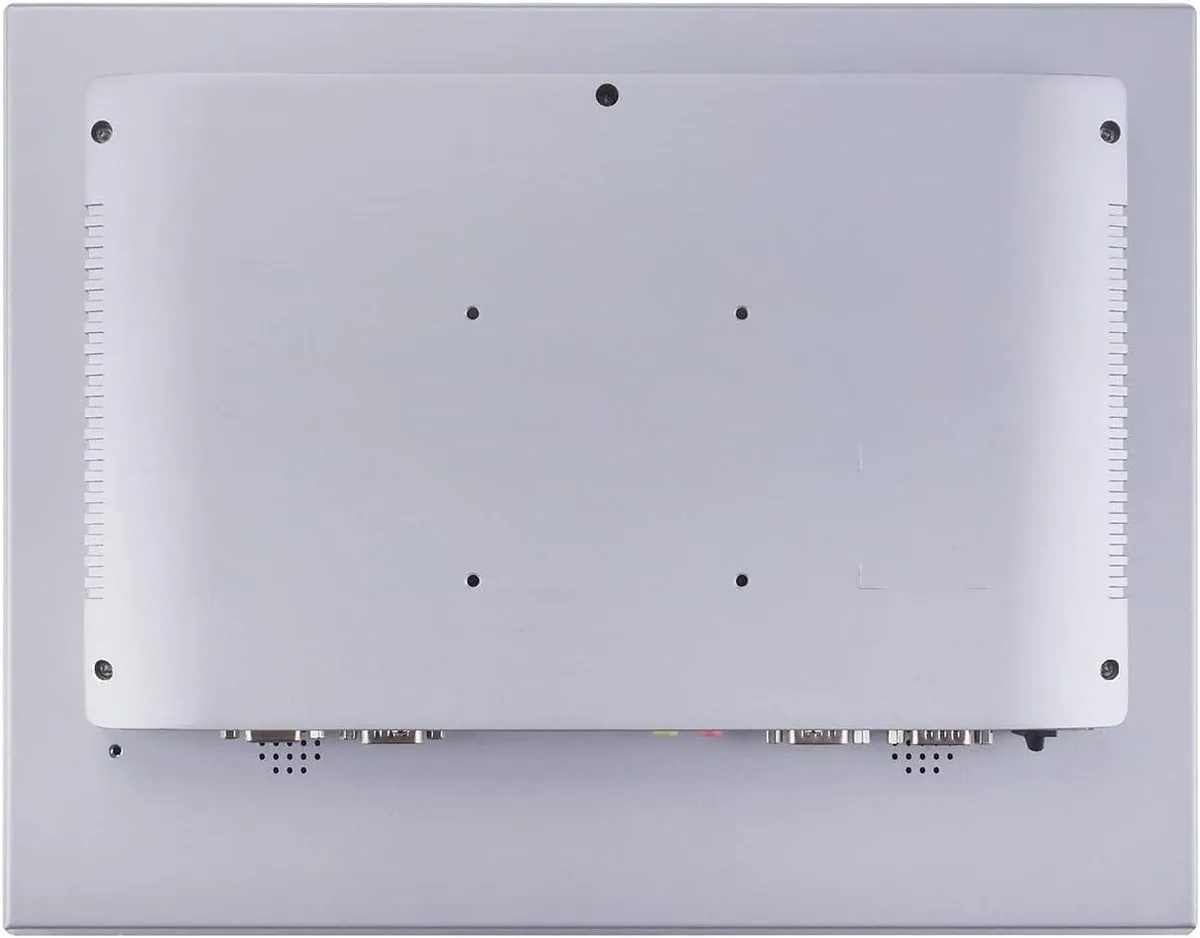

The panel measures 354.3 by 278.3 by 54 millimetres and requires a 348 by 272 millimetre cut-out for embedded installation. Wall, desktop or cantilever mounting is supported with the supplied buckle kits. I/O includes HDMI, VGA, two USB 3.0, two USB 2.0, dual LAN, audio, two COM ports and a 12 volt DC jack. A Mini PCIe slot with a SIM socket allows optional 4G or Wi-Fi expansion. Buyers who need a larger display or higher resolution should consider other models.

Öne çıkanlar

  • IP65 front-panel protection resists dust and water jets in harsh environments
  • 5-wire resistive touchscreen works reliably from 0 to 50 °C operating range
  • Intel Core i7-6500U up to 3.10 GHz handles continuous industrial workloads
  • Fanless aluminium alloy chassis runs silently with no moving parts to fail
  • Windows 11 Pro 64-bit pre-installed for immediate deployment out of the box

Teknik özellikler

ModelA5-PA-150TPC-CE5A(I76)-16G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity16GB DDR3
SSD512GB
HDDNo
Screen Size15"
TouchscreenYes

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

What size panel cutout do I need for the embedded mounting method?

Cut a 348 mm by 272 mm opening in the panel; the unit's outer dimensions are 354.3 mm by 278.3 mm by 54 mm and it weighs 3.6 kg so ensure the surface can support that.

Which storage slot should I use first if I need to add capacity later?

Use the M.2 2280 slot for an NVME or SATA SSD, the mSATA slot for an mSATA SSD, or the 2.5 inch bay for a SATA drive — all three are empty and available.

At what ambient temperature does the fanless cooling reach its limit during continuous load?

The aluminium chassis is rated for 0 to 50 °C with the installed SSD; sustained loads above that range will throttle the i7-6500U before the 350 cd/m² backlight hits its 30,000-hour rating.
