Small dark aluminium box with ports on two faces

partaker

partaker B5 barebone mini PC i5-7360U 16GB 512GB

SKU CH-58N6-16NQ1

Fanless aluminium mini PC with an Intel Core i5 7360U, 16 GB DDR4, 512 GB storage, dual 2.5 Gb LAN and HDMI plus DisplayPort outputs

  • ColorGray
  • CPU TypeIntel Core i5 7th Gen
  • M.2 Slot1 x M.2
  • Integrated GraphicsIntel Iris Plus Graphics 640
  • DisplayPort1 x DisplayPort

Group 16G RAN / 512G SSD

  • Dual 2.5G LAN ports enable fast wired networking
  • Fanless aluminium chassis runs silently in industrial settings
  • 16 GB DDR4 memory handles multi-tasking workloads
  • 512 GB M.2 storage provides quick boot and data access
  • Dual HDMI and DisplayPort outputs drive two screens

Industrial fanless mini PC for embedded deployments

The Partaker B5 is a fanless aluminium mini PC built around an Intel Core i5-7360U processor with two cores and four threads reaching 3.6 GHz. It ships with 16 GB of DDR4 memory and a 512 GB M.2 drive, and supports Windows 10, Windows 11 and Linux. The sealed chassis is designed for continuous operation in digital signage, kiosk and industrial automation roles.

Dual 2.5 GbE ports and legacy COM on an aluminium

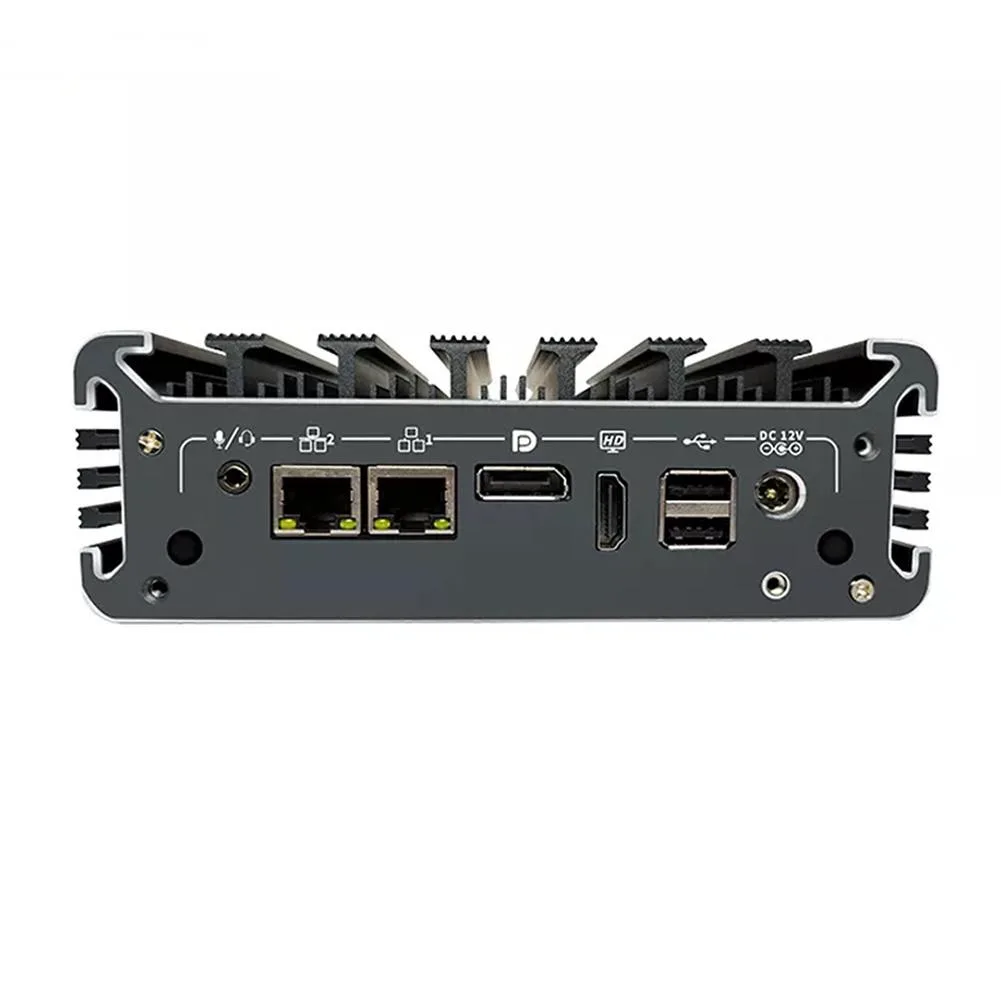

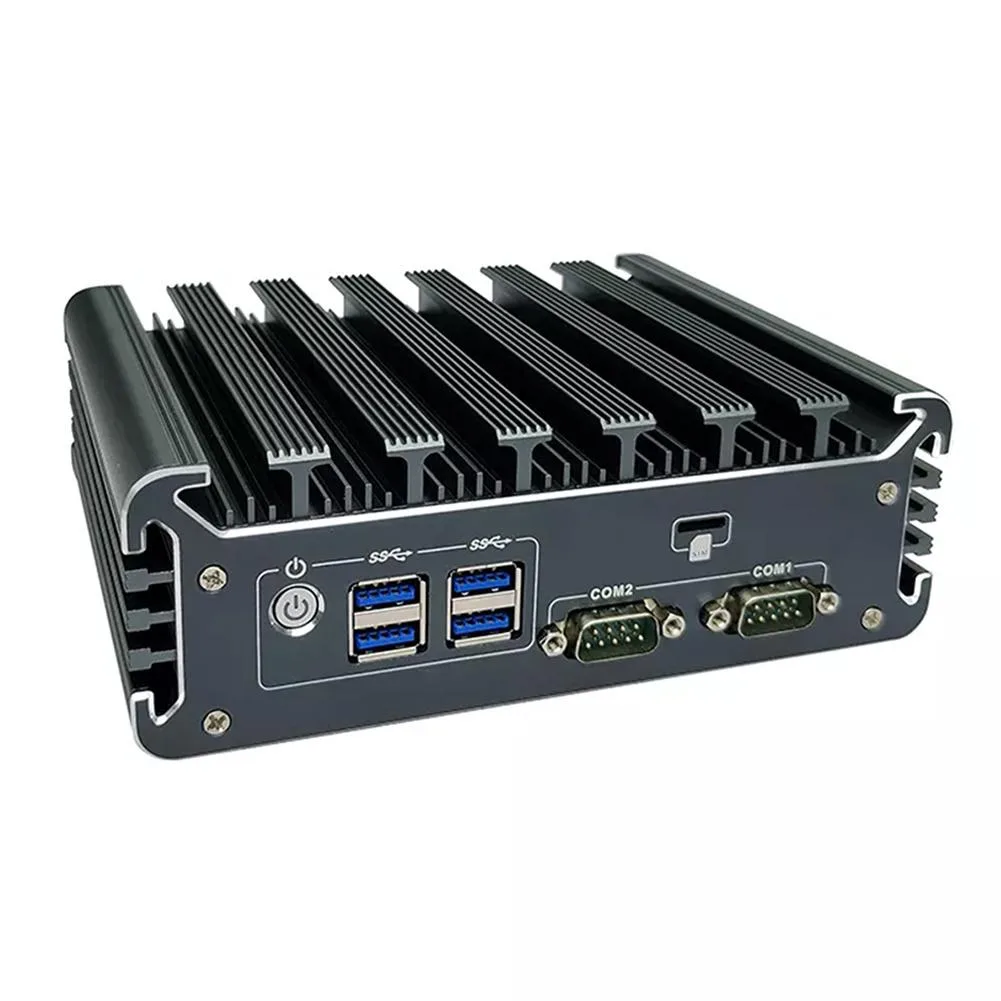

Two Intel i225-V 2.5 GbE LAN ports sit on the rear alongside HDMI, DisplayPort, audio and a 12 V DC jack, while the front provides four USB 3.0 ports, two serial ports configurable for RS232 or RS485 and a SIM slot for optional WWAN. The anodised aluminium case doubles as a heatsink, allowing silent operation from 0 °C to 50 °C depending on storage choice. Internal expansion includes an M.2 2280 slot supporting SATA and NVME, a 2.5 inch bay and a mini-PCIe slot.

Iris Plus 640 graphics

Integrated Intel Iris Plus Graphics 640 drives dual displays at 4K resolution but lacks dedicated video memory, so heavy 3D or multi-monitor compute tasks will throttle. The single DDR4 2133 SODIMM slot caps system memory at 32 GB, ruling out larger datasets in memory. RAID 0 or 1 is possible across the M.2 and 2.5 inch drives, yet the 12 V DC input and nano-ITX board restrict total power headroom for sustained all-core loads.

Öne çıkanlar

  • Dual 2.5G LAN ports enable fast wired networking
  • Fanless aluminium chassis runs silently in industrial settings
  • 16 GB DDR4 memory handles multi-tasking workloads
  • 512 GB M.2 storage provides quick boot and data access
  • Dual HDMI and DisplayPort outputs drive two screens

Teknik özellikler

ColorGray
CPU TypeIntel Core i5 7th Gen
M.2 Slot1 x M.2
Integrated GraphicsIntel Iris Plus Graphics 640
DisplayPort1 x DisplayPort

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

Does the 2.5 GbE Intel i225-V LAN cap at 2.5 Gbps in practice?

Each Intel i225-V port runs at up to 2.5 Gbps when connected to a 2.5 GbE switch with Cat 5e or better cable.

What physical space and mounting does the 166 x 127 x 55.5 mm aluminium chassis need?

The fanless aluminium case measures 166 mm wide, 127 mm deep and 55.5 mm high; it sits on a desk or can be VESA-mounted with an optional bracket.

How do I install the 16 GB DDR4 2133 SODIMM and 512 GB M.2 2280 drive, and which step is often missed?

Remove the bottom panel, insert the SODIMM at an angle until it clicks, secure the M.2 2280 drive with the screw, then reattach the panel — many forget the M.2 retaining screw.
